Pinpoint Test DT: Drive Cycle Test

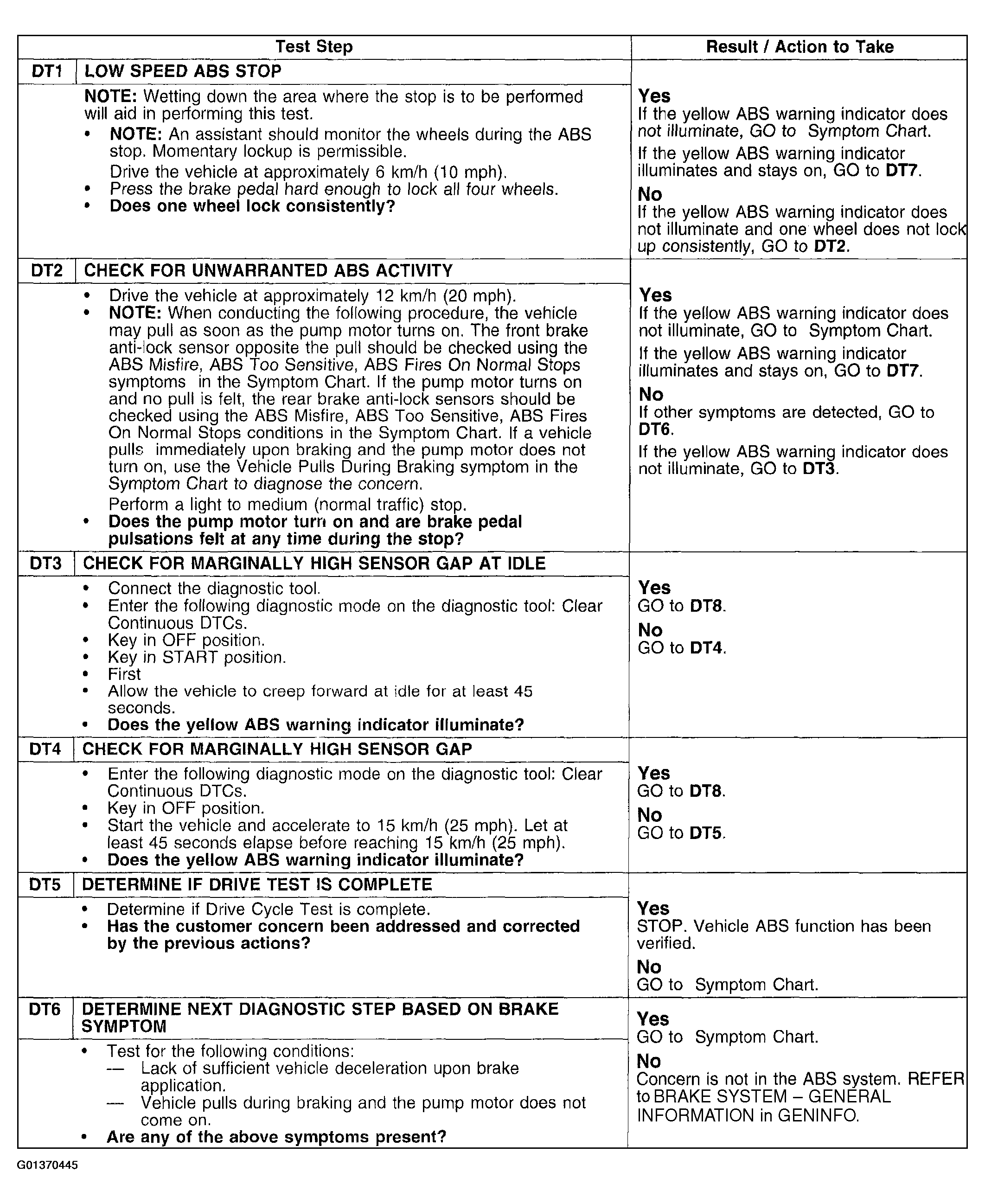

Fig 1: Pinpoint Test DT Chart - Drive Cycle Test (DT1-DT6)

Courtesy of FORD MOTOR CO.

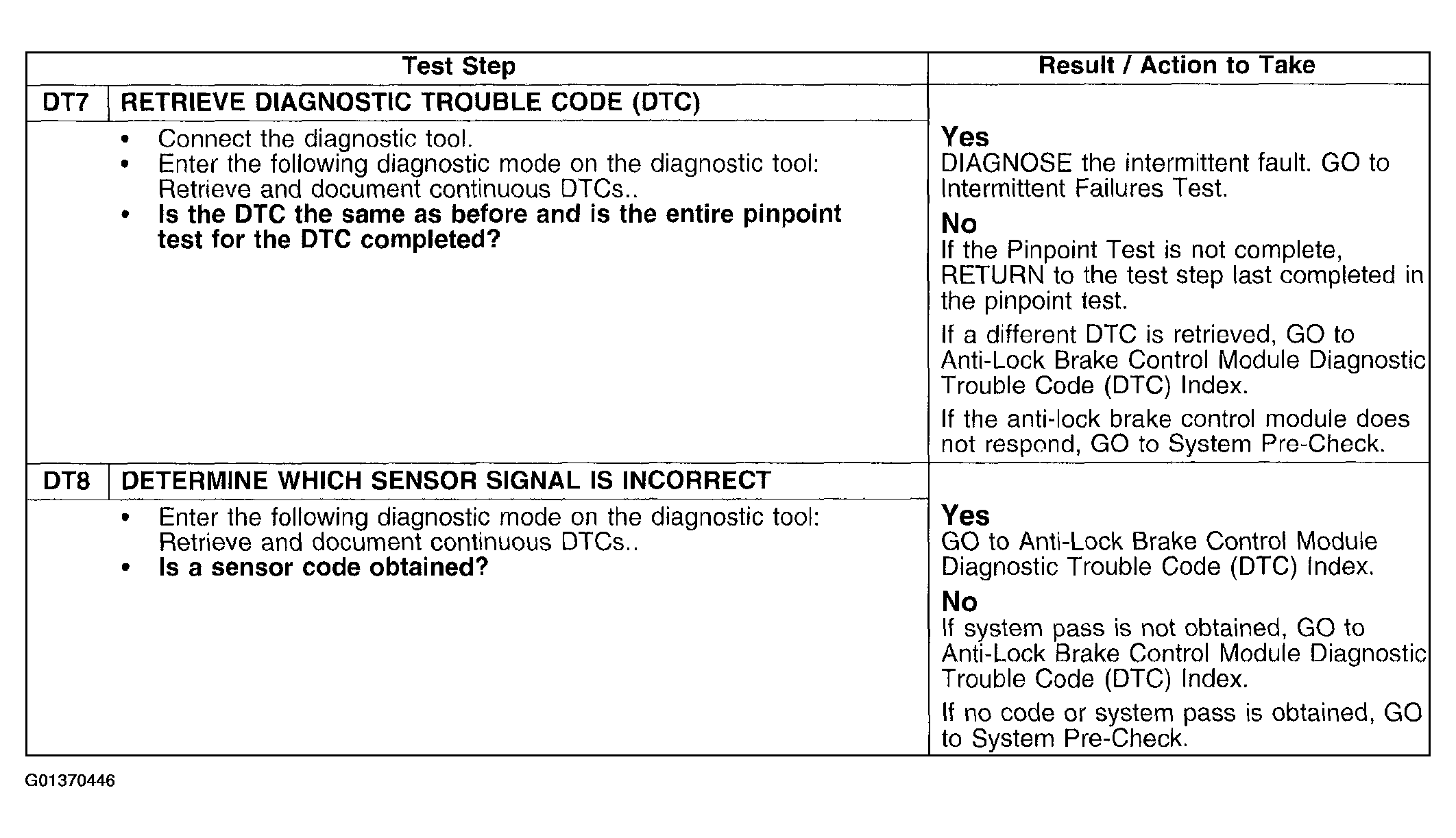

Fig 2: Pinpoint Test DT Chart - Drive Cycle Test (DT7-DT8)

Courtesy of FORD MOTOR CO.
