Removal And Installation

Disconnect the battery ground cable. For additional information, refer to REMOVAL .
Remove the bolt, the nut and the front support isolator damper.

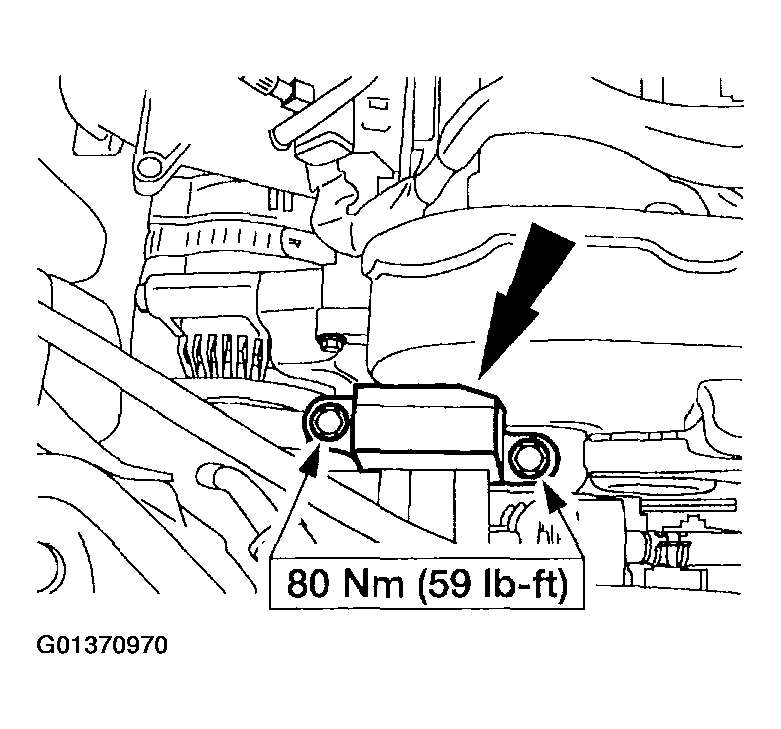

Fig 1: Removing Bolt, Nut And Front Support Isolator Damper
Courtesy of FORD MOTOR CO.
Remove the bolts and the upper timing belt cover.

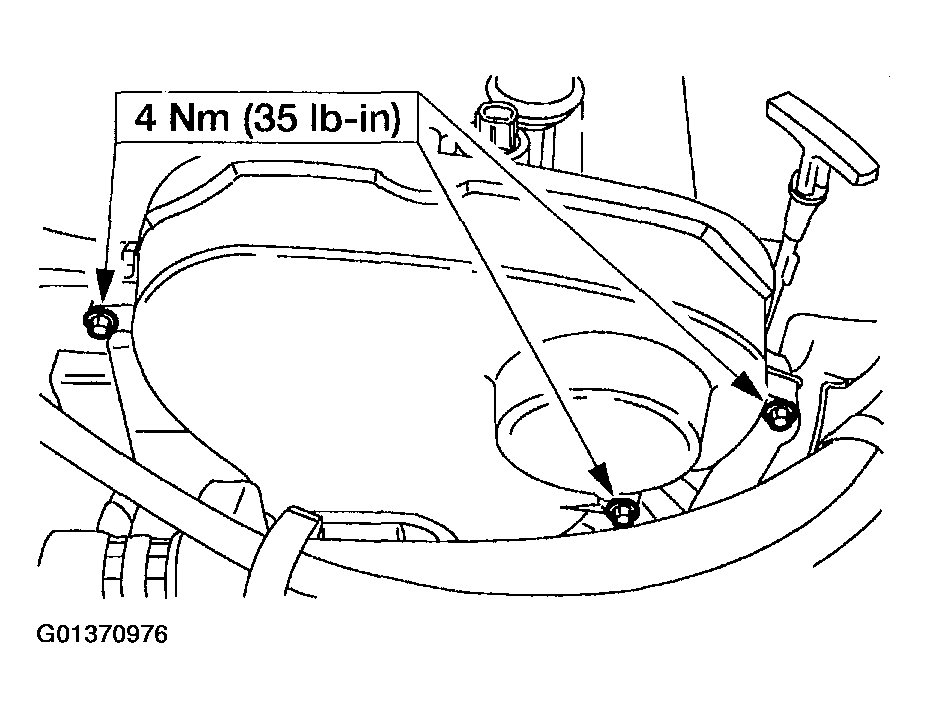

Fig 2: Removing Bolts And Upper Timing Belt Cover
Courtesy of FORD MOTOR CO.
Loosen the water pump pulley bolts.
Remove the drive belt. For additional information, refer to ACCESSORY DRIVE BELT .
Remove the bolts and the water pump pulley (8509).

Fig 3: Removing Bolts And Water Pump Pulley
Courtesy of FORD MOTOR CO.
Raise and support the vehicle. For additional information, refer to JACKING & HOISTING .
Remove the crankshaft pulley. For additional information, refer to CRANKSHAFT PULLEY .
Remove the bolts and the lower timing belt cover.

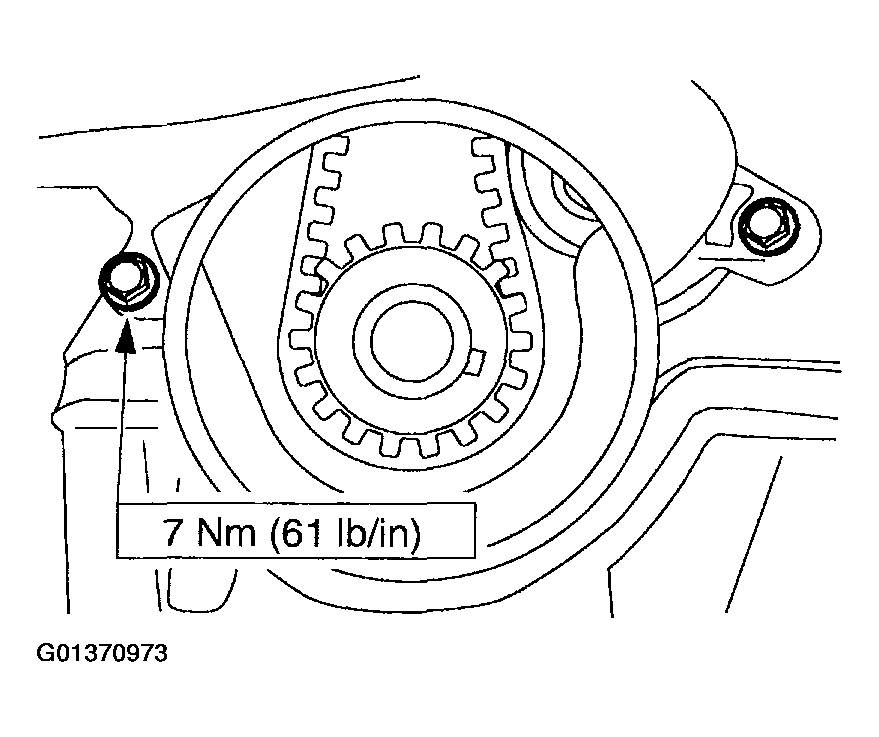

Fig 4: Removing Bolts And Lower Timing Belt Cover
Courtesy of FORD MOTOR CO.
Remove the four bolts and the middle timing belt cover.

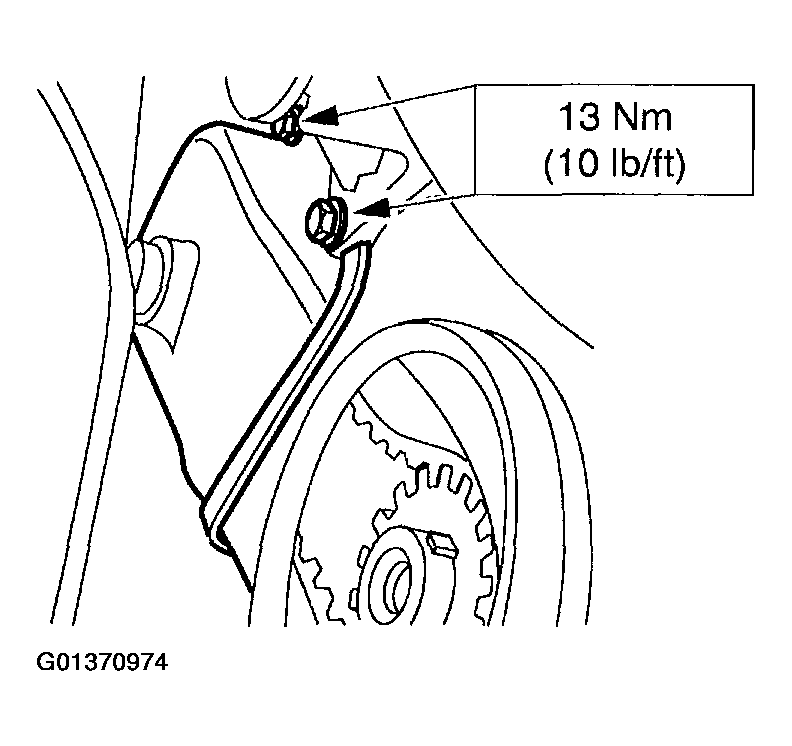

Fig 5: Removing Four Bolts And Middle Timing Belt Cover
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.

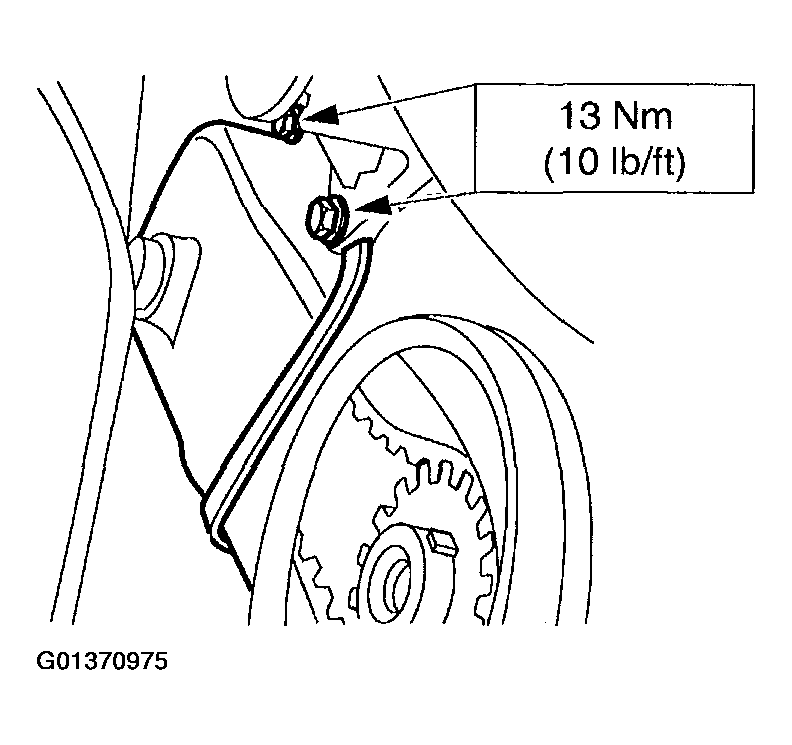

Fig 6: Installing Four Bolts And Middle Timing Belt Cover
Courtesy of FORD MOTOR CO.

Fig 7: Installing Bolt And Upper Timing Belt Cover
Courtesy of FORD MOTOR CO.

Fig 8: Installing Upper Timing Belt Cover
Courtesy of FORD MOTOR CO.
