In-Vehicle Repair: Flexplate: Removal

WARNING: This page is about a different car, the 2004 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING AND LIFTING .
  2. Remove the transmission. For additional information, refer to AUTOMATIC TRANSAXLE/TRANSMISSION .
  3. Install the special tool and remove the flexplate bolts.

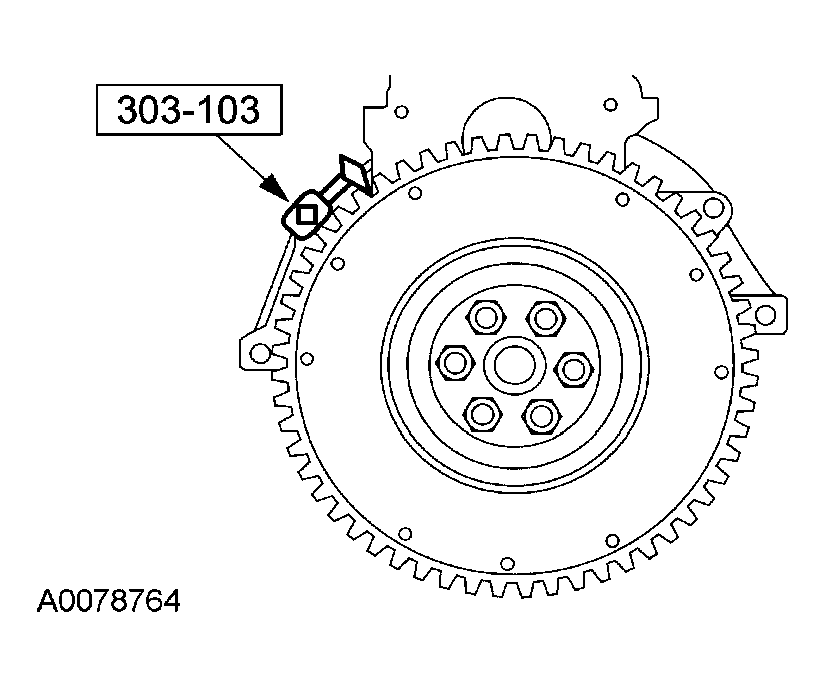

    Fig 1: Removing Flexplate Bolts
    G04035579Courtesy of FORD MOTOR CO.
