Item 3: EGR System Module Installation Note

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Connect the EGR system module-to-exhaust manifold tube to the EGR system module.

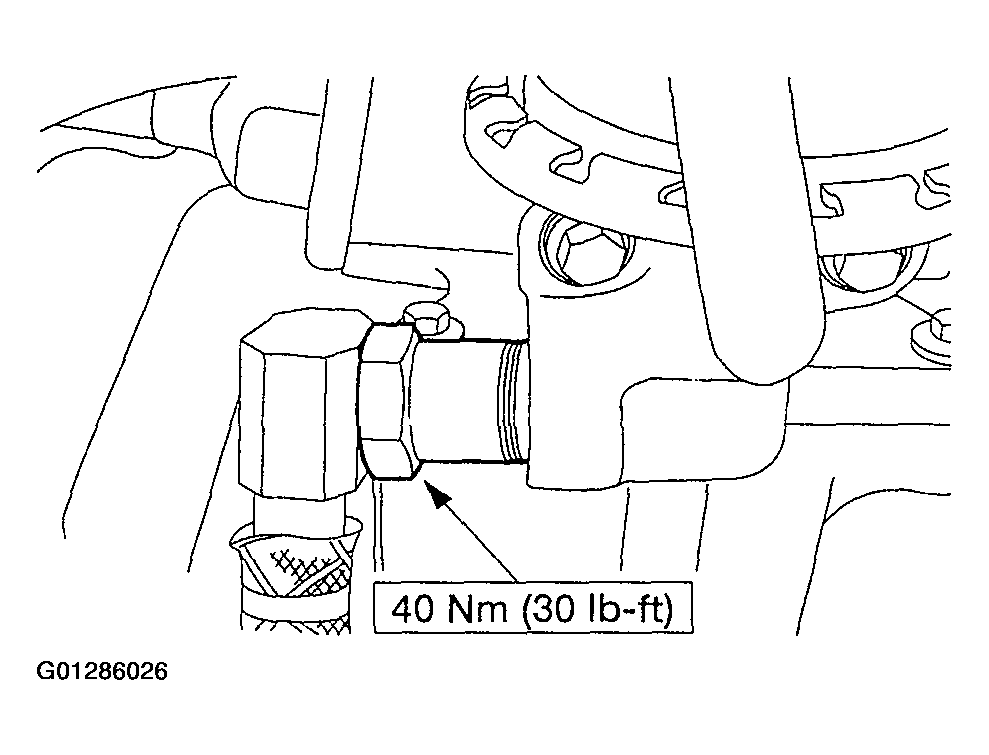

Fig 1: Connecting EGR System Module-To-Exhaust Manifold Tube To EGR System Module
Courtesy of FORD MOTOR CO.
Install the vacuum harness.

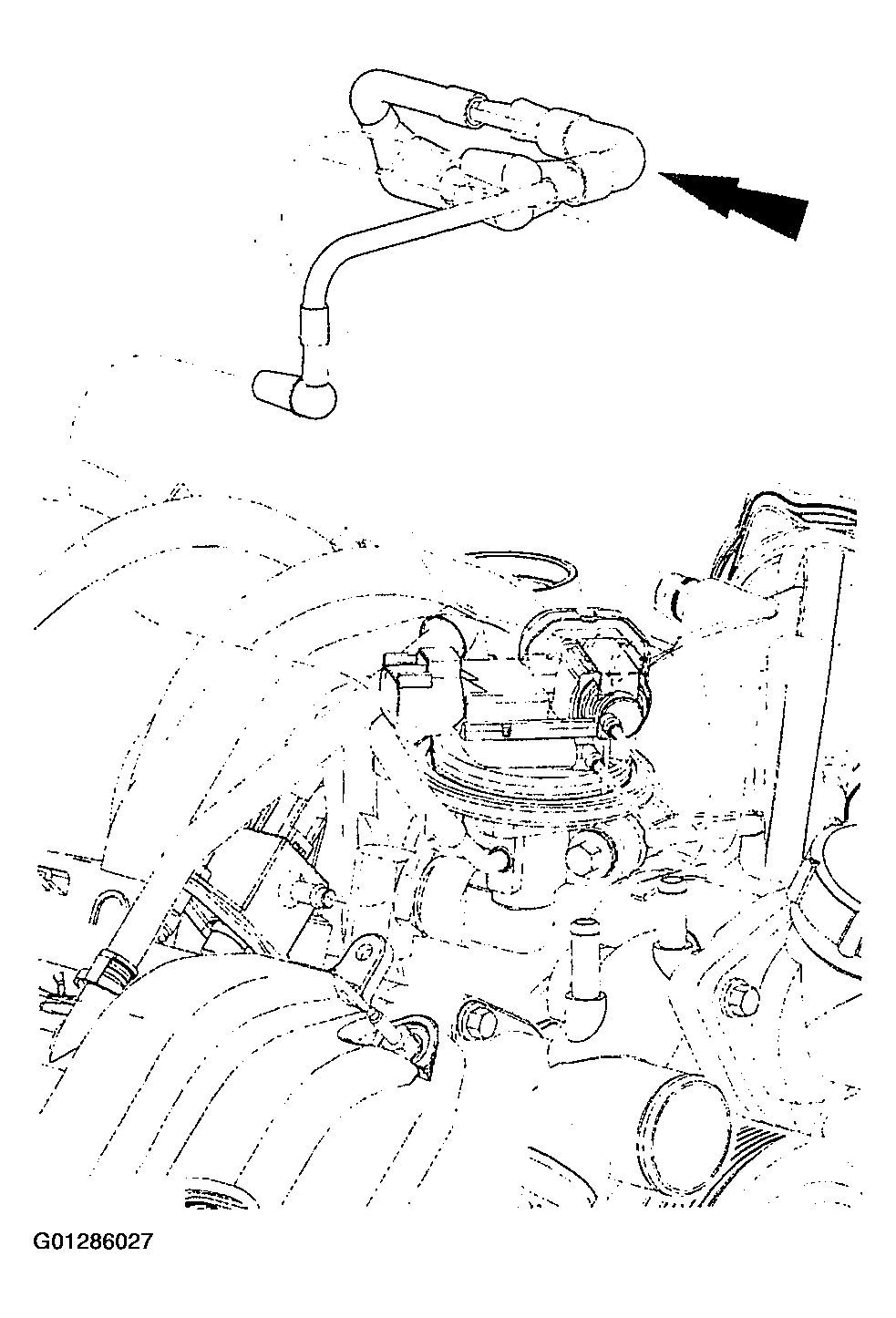

Fig 2: Installing Vacuum Harness
Courtesy of FORD MOTOR CO.
