Valve Cover LH: Material

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

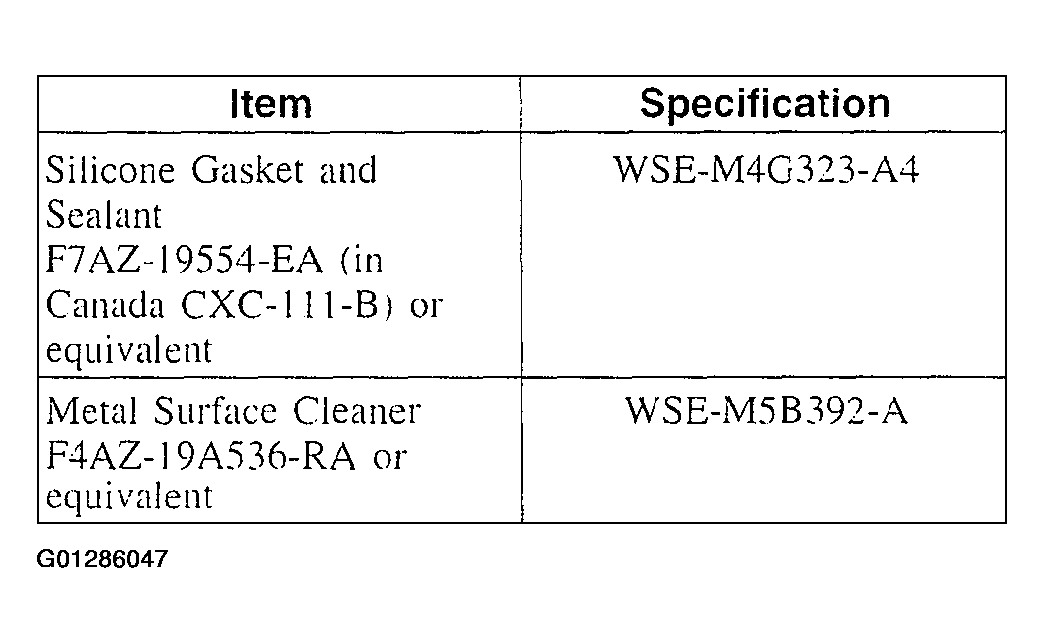

Fig 1: Material Specification Chart

Courtesy of FORD MOTOR CO.

Remove the air cleaner outlet tube.
Remove the LH ignition coils. For additional information, Refer to IGNITION COILS & SPARK PLUGS .
Illustration 1 of 2. Remove the components in the order indicated in the following illustration and table.

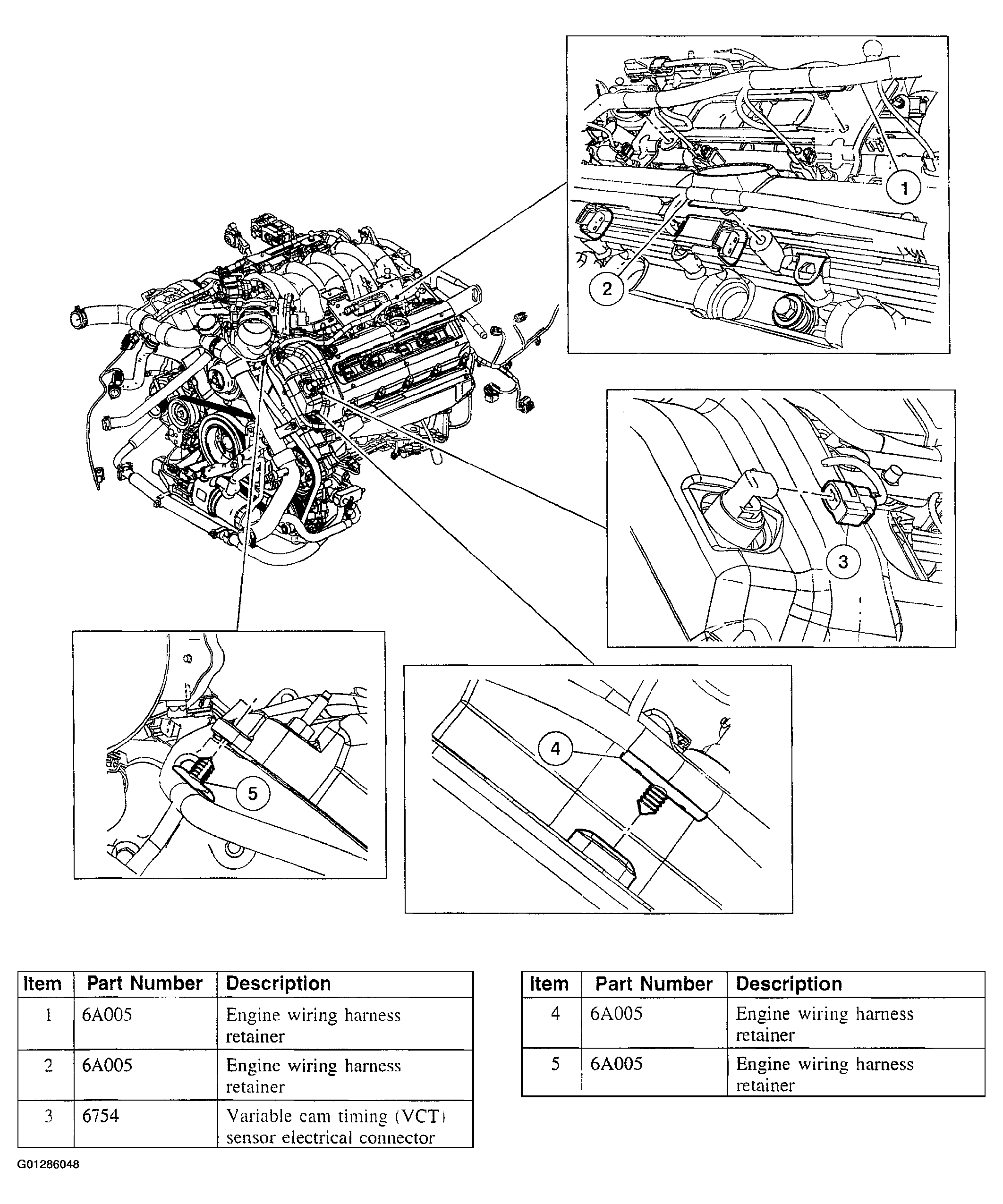

Fig 2: Identifying Engine Wiring Harness Retainer And VCT Sensor Connector
Courtesy of FORD MOTOR CO.
Illustration 2 of 2. Remove the components in the order indicated in the following illustration and table.

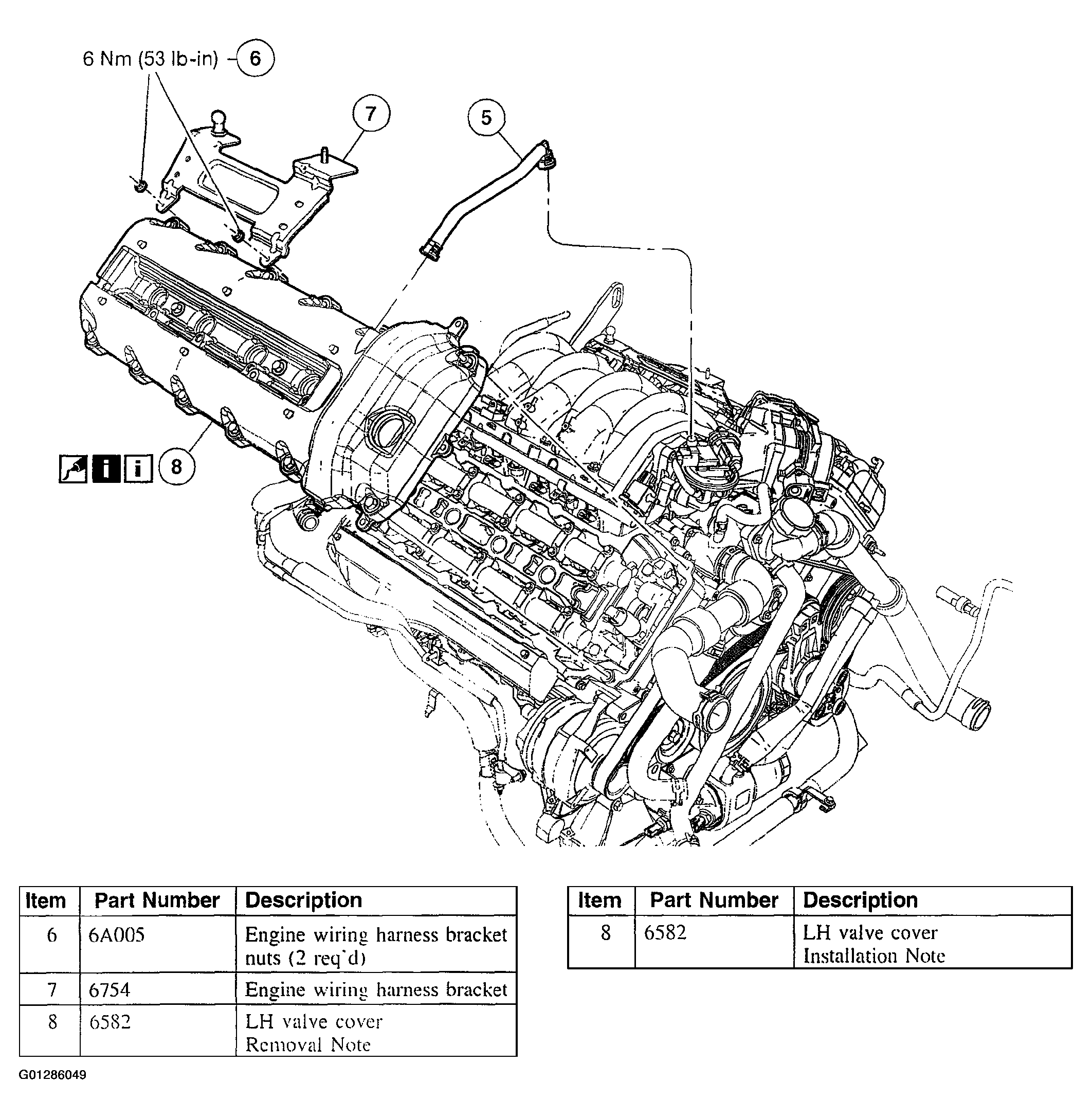

Fig 3: Identifying Engine Wiring Harness Retainer And LH Valve Cover
Courtesy of FORD MOTOR CO.
To install reverse thermovalve procedure.
