Special Tool(s)

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

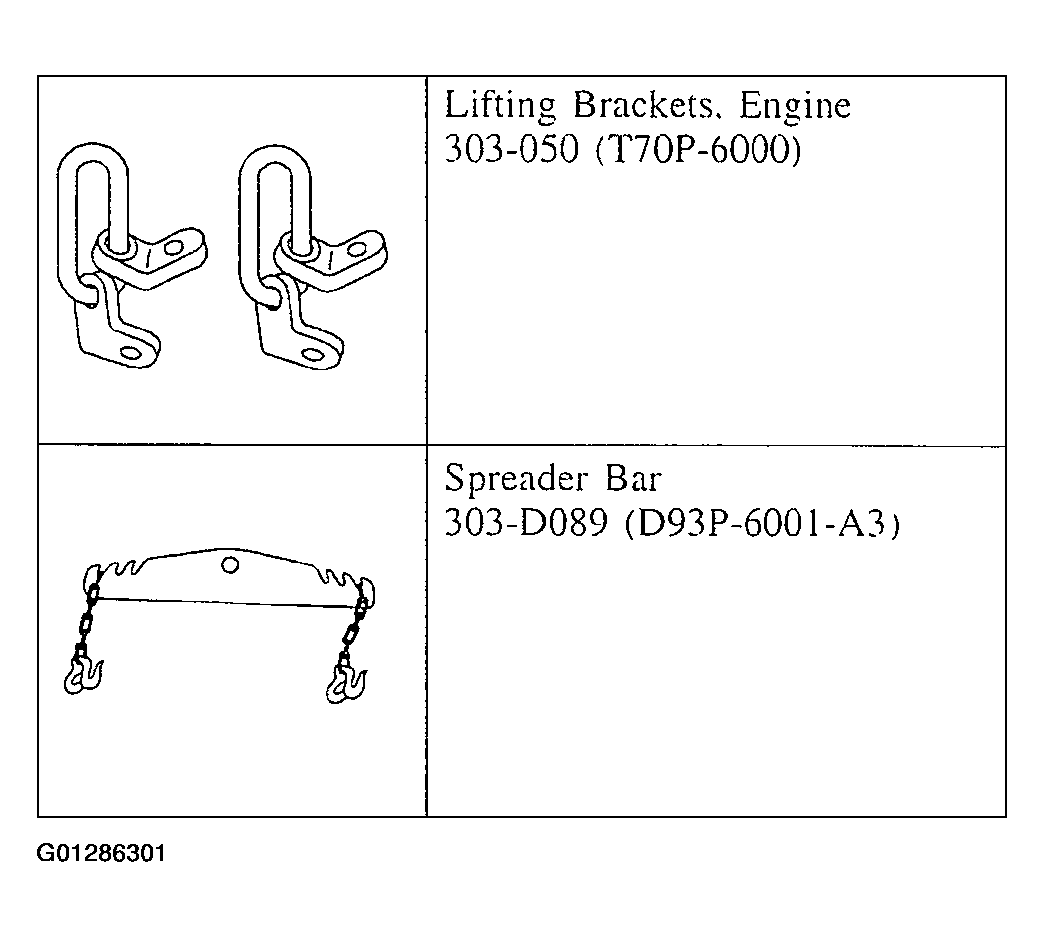

Fig 1: Identifying Special Tool(s)

Courtesy of FORD MOTOR CO.

With the vehicle in NEUTRAL, position it on a hoist.
Disconnect the battery ground cable. For additional information, Refer to BATTERY AND CHARGING SYSTEM .
Remove the air cleaner inlet.

CAUTION: The coolant drain procedure must be followed exactly or damage to the engine can occur.

Drain the engine coolant. For additional information, Refer to ENGINE COOLING .
Discharge the A/C system. For additional information, Refer to CLIMATE CONTROL SYSTEM .
Remove the power steering pump reservoir bolts. For additional information, Refer to DRIVELINE SYSTEM .
Remove the cowl vent screens. For additional information, Refer to BODY SYSTEM - EXTERIOR .
Disconnect the fuel hose. For additional information, Refer to FUEL SYSTEM .
Remove the fresh air filter panel. For additional information, Refer to CLIMATE CONTROL SYSTEM .
Remove the front wheels and tires.
Remove the LH and the RH inner splash shields.
Remove the driveshaft. For additional information, Refer to DRIVELINE SYSTEM .
Remove the three-way catalytic converter (TWC). For additional information, Refer to EXHAUST SYSTEM .
Illustration 1 of 13. Remove the components in the order indicated in the following illustration and table.

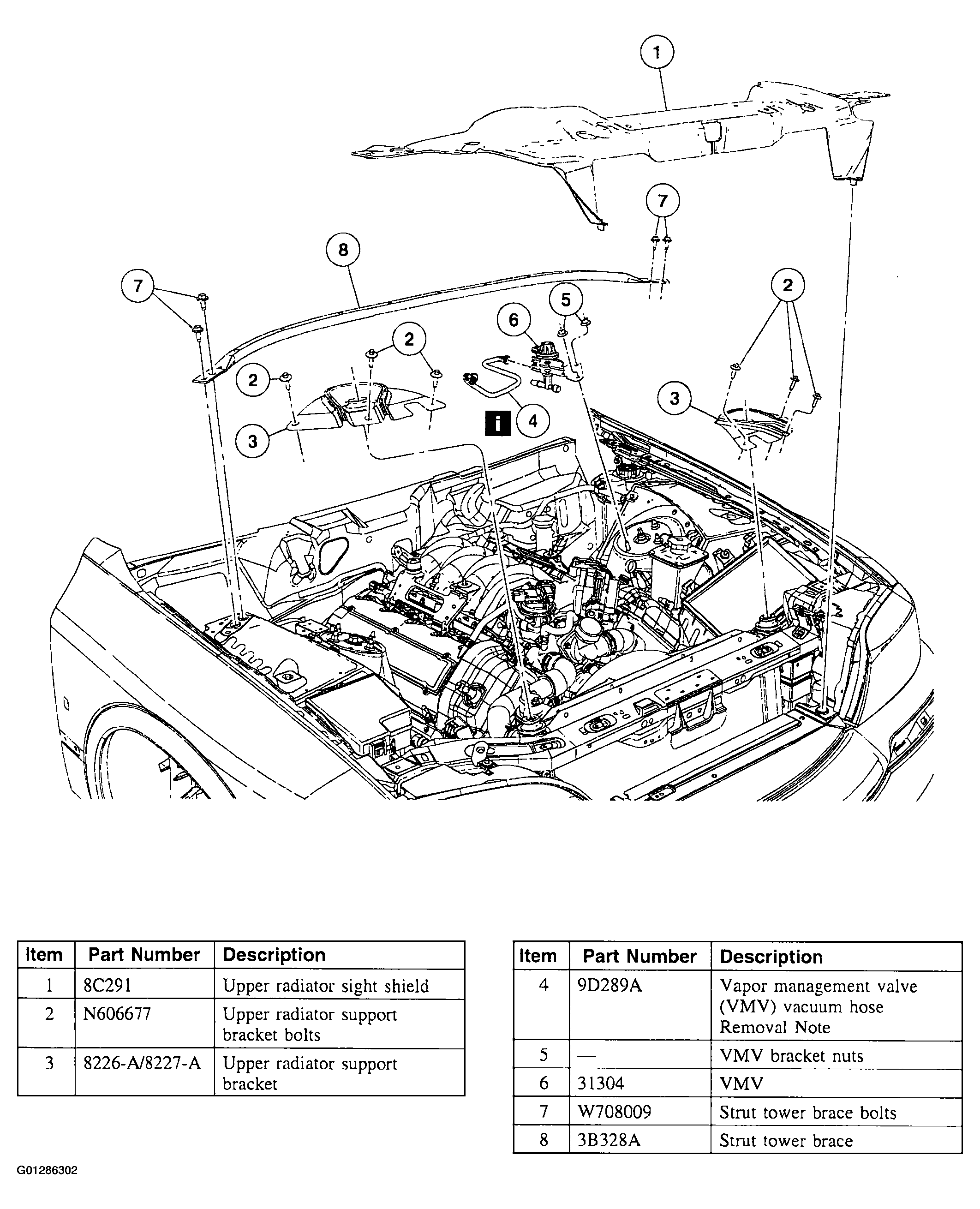

Fig 2: Removing Radiator Sight Shield And Upper Radiator Support
Courtesy of FORD MOTOR CO.
Illustration 2 of 13. Remove the components in the order indicated in the following illustration and table.

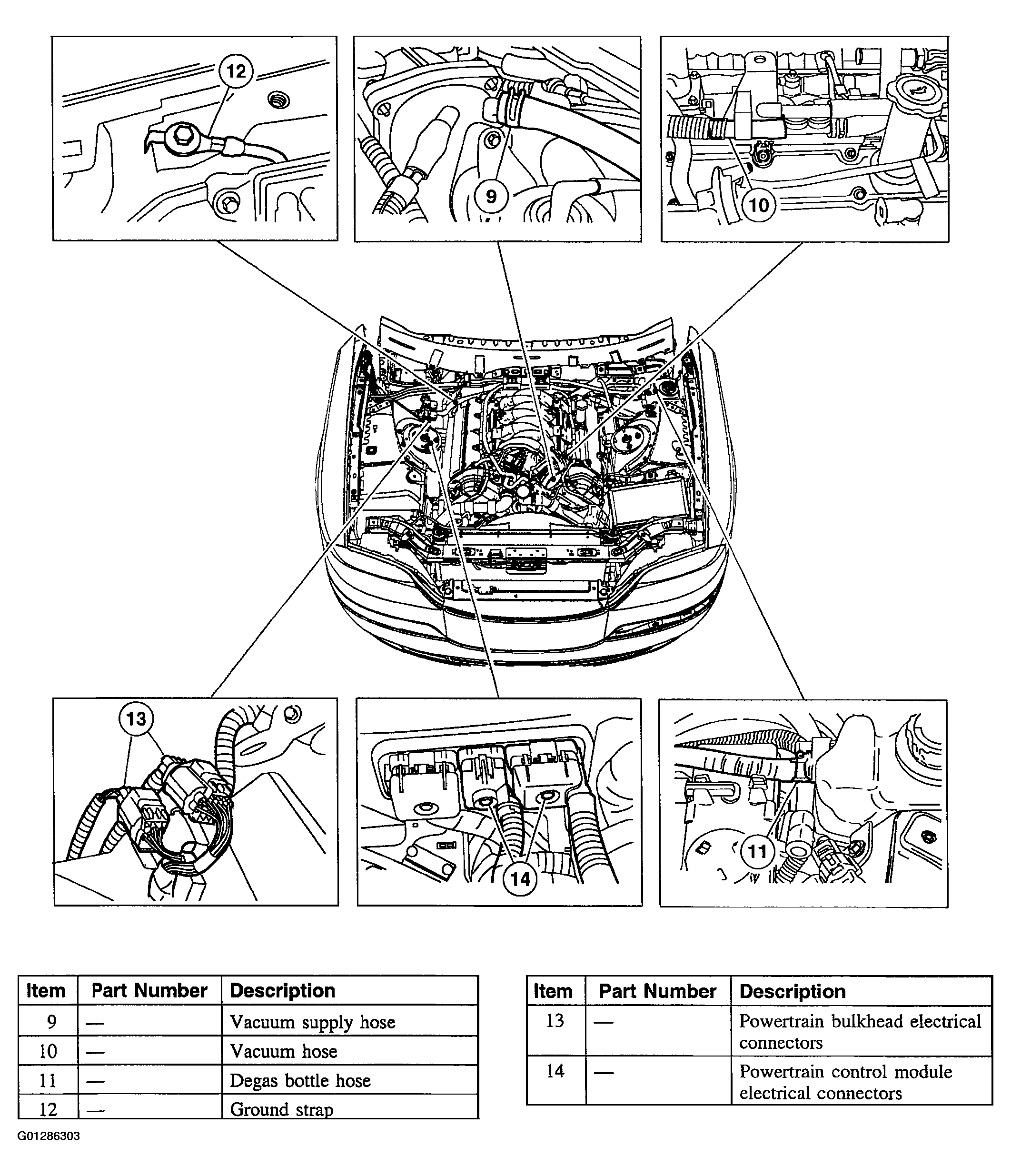

Fig 3: Removing Vacuum Hoses And Powertrain Electrical Connectors
Courtesy of FORD MOTOR CO.
Illustration 3 of 13. Remove the components in the order indicated in the illustration and table.

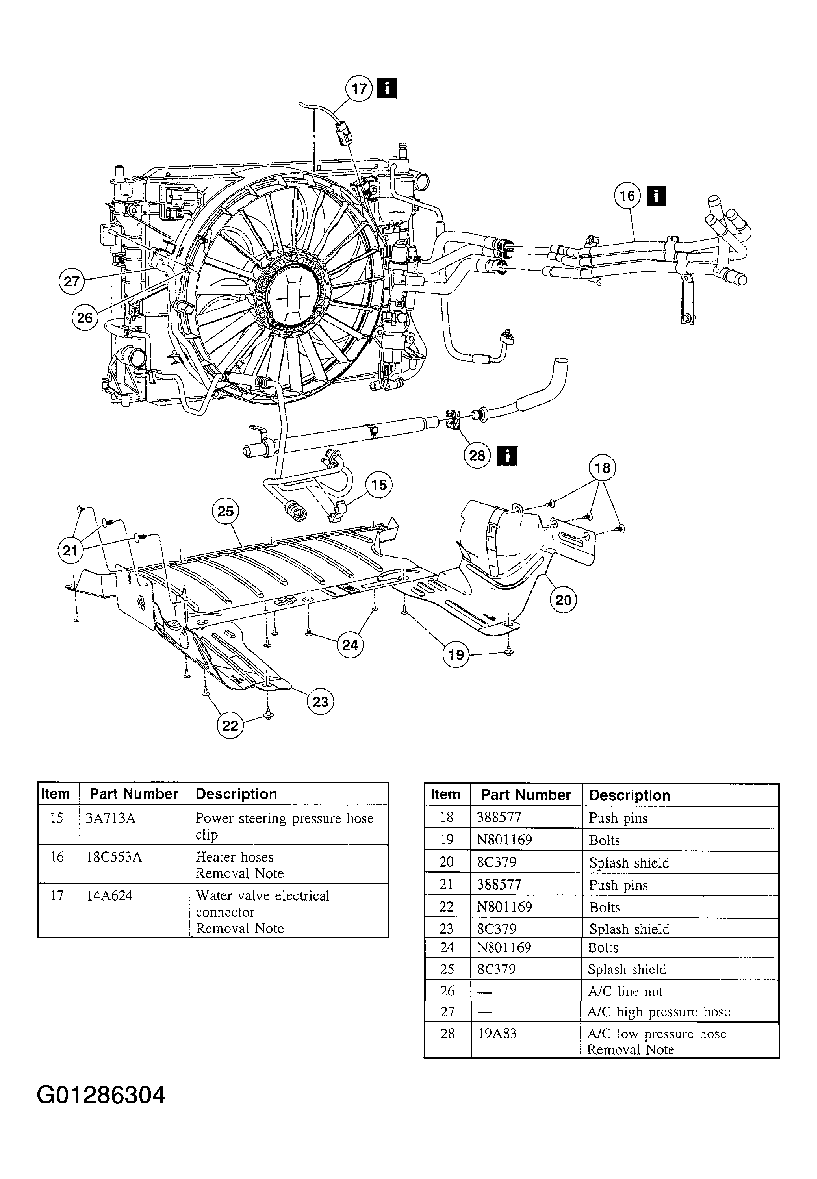

Fig 4: Removing Power Steering Pressure Hoses Clips And Electrical Connectors
Courtesy of FORD MOTOR CO.
Illustration 4 of 13. Remove the components in the order indicated in the following illustration and table.

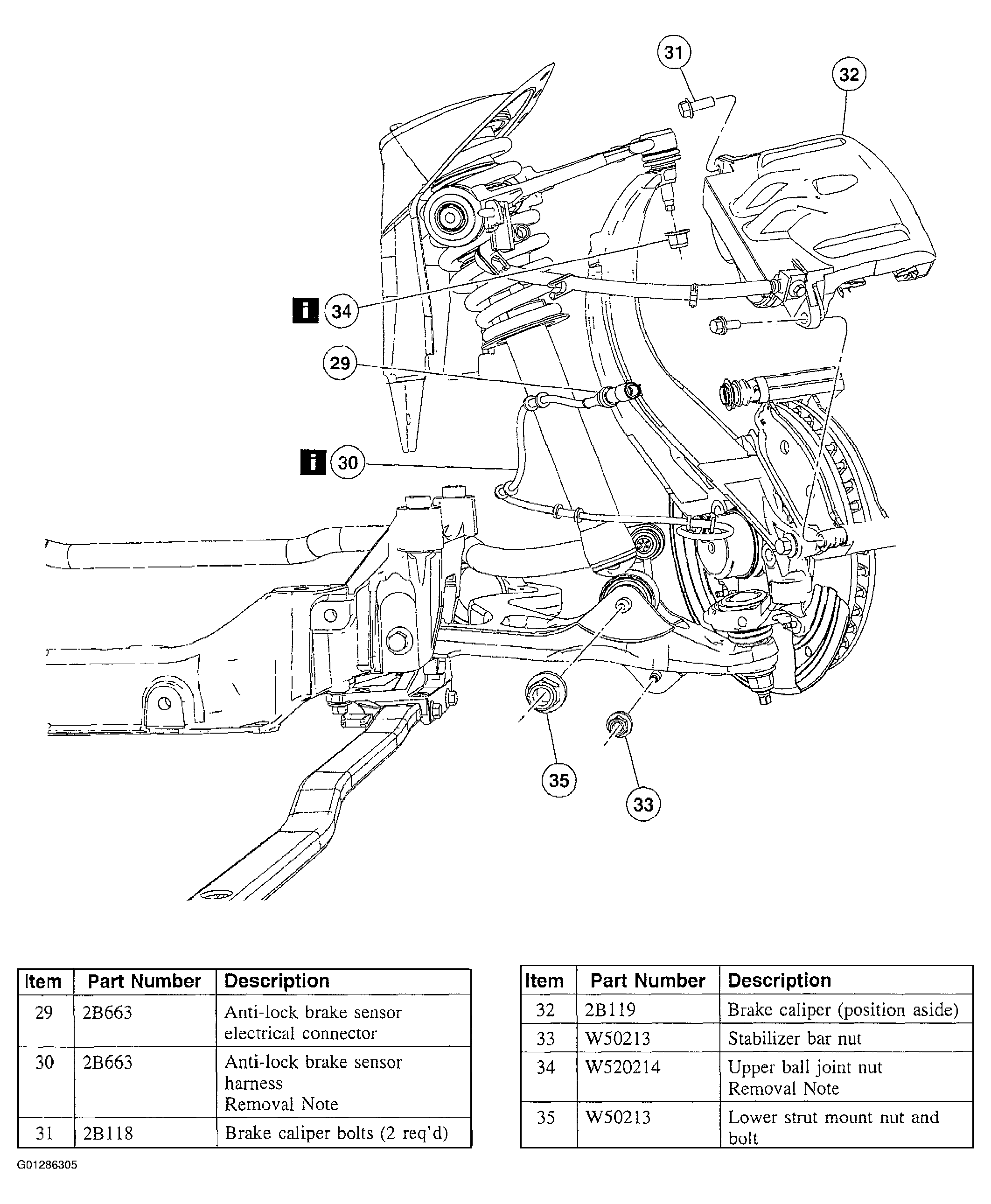

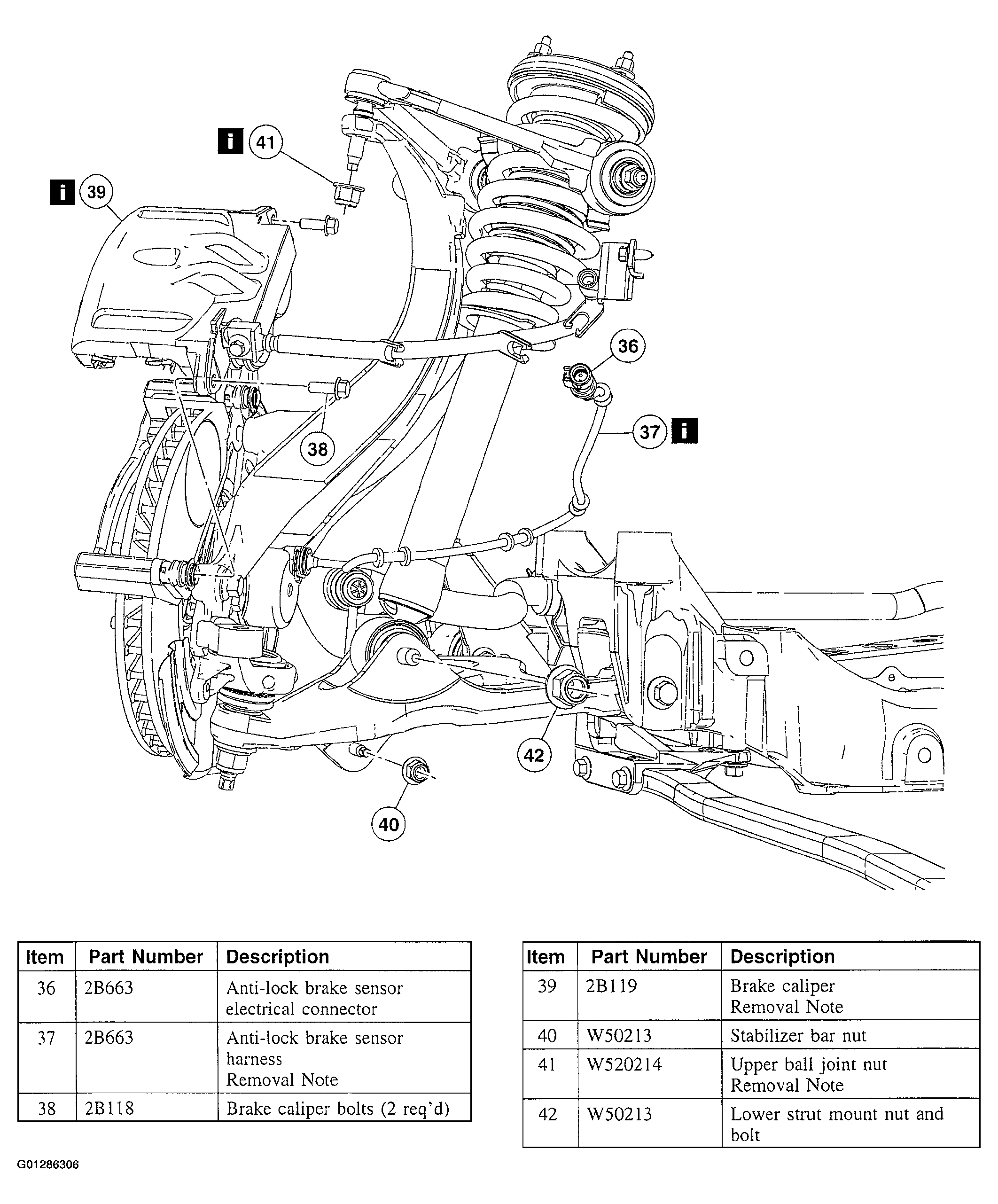

Fig 5: Removing Anti Lock Brake Electrical Connectors And Components (1 Of 2)
Courtesy of FORD MOTOR CO.
Illustration 5 of 13. Remove the components in the order indicated in the following illustration and table.

Fig 6: Removing Anti Lock Brake Electrical Connectors And Components (2 Of 2)
Courtesy of FORD MOTOR CO.
Illustration 6 of 13. Remove the components in the order indicated in the following illustration and table.

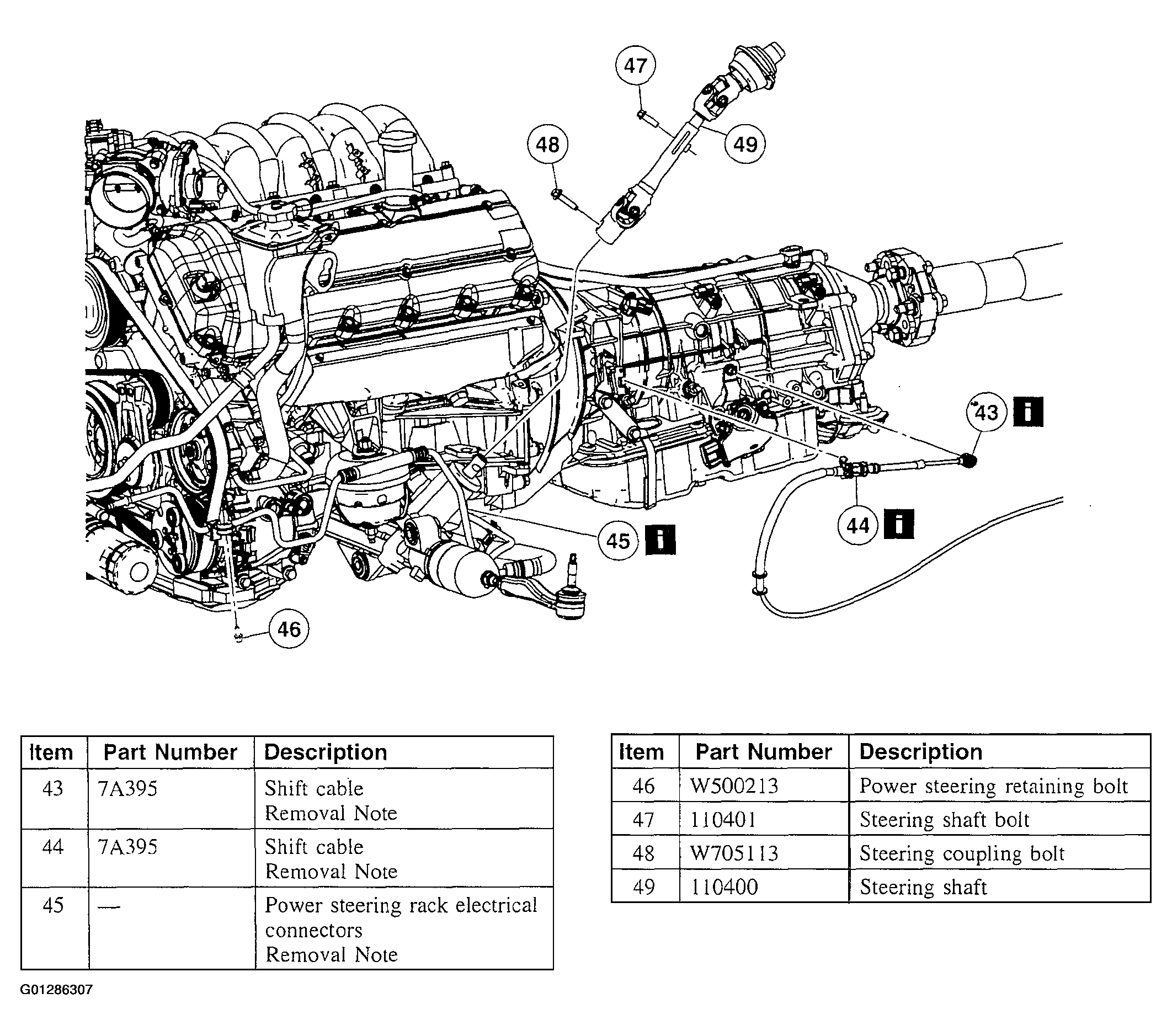

Fig 7: Removing Power Steering Components And Connectors
Courtesy of FORD MOTOR CO.
Illustration 7 of 13. Remove the components in the order indicated in the following illustration and table.

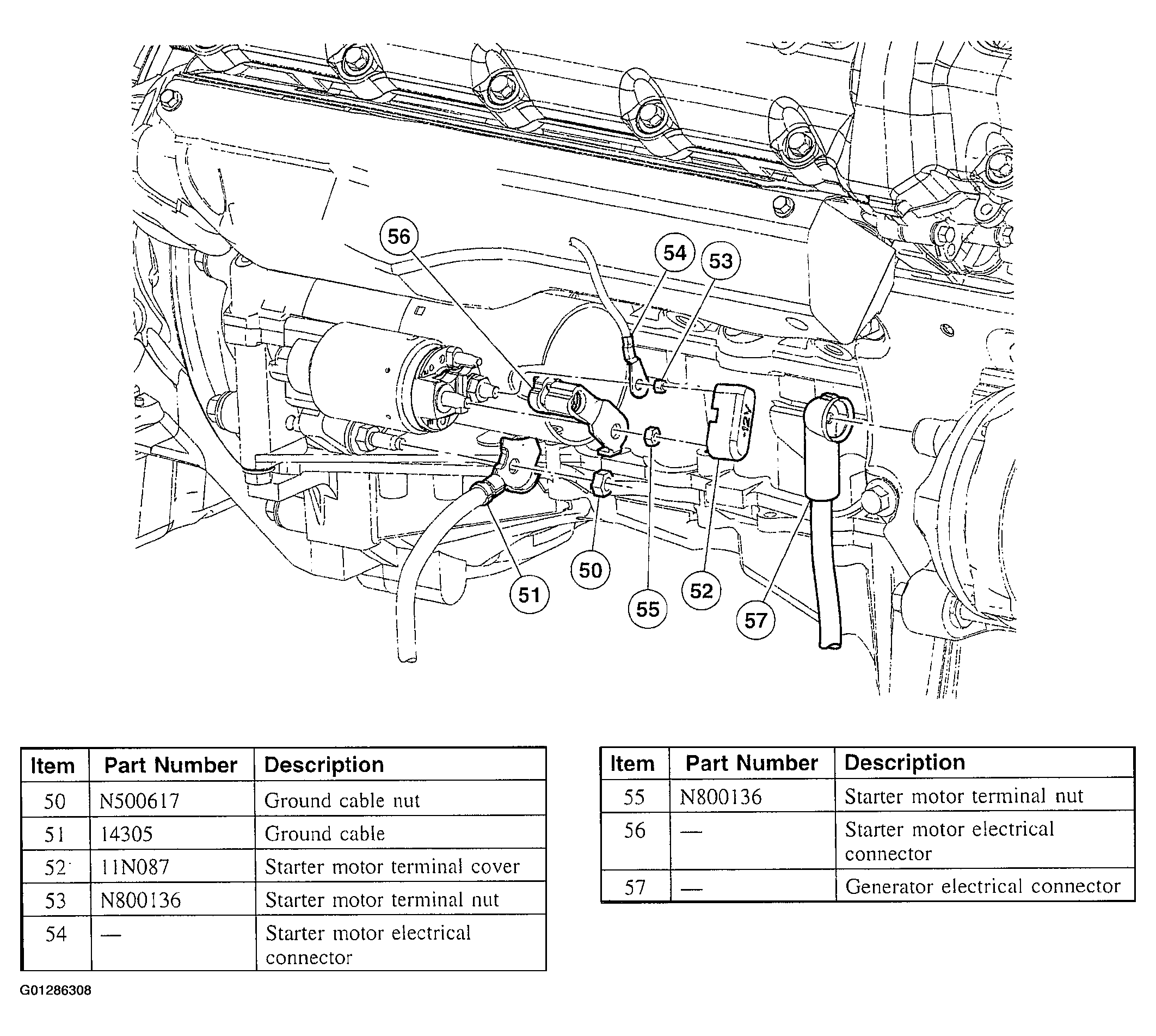

Fig 8: Removing Starter Motor Connectors And Components
Courtesy of FORD MOTOR CO.
Illustration 8 of 13. Remove the components in the order indicated in the following illustration and table.

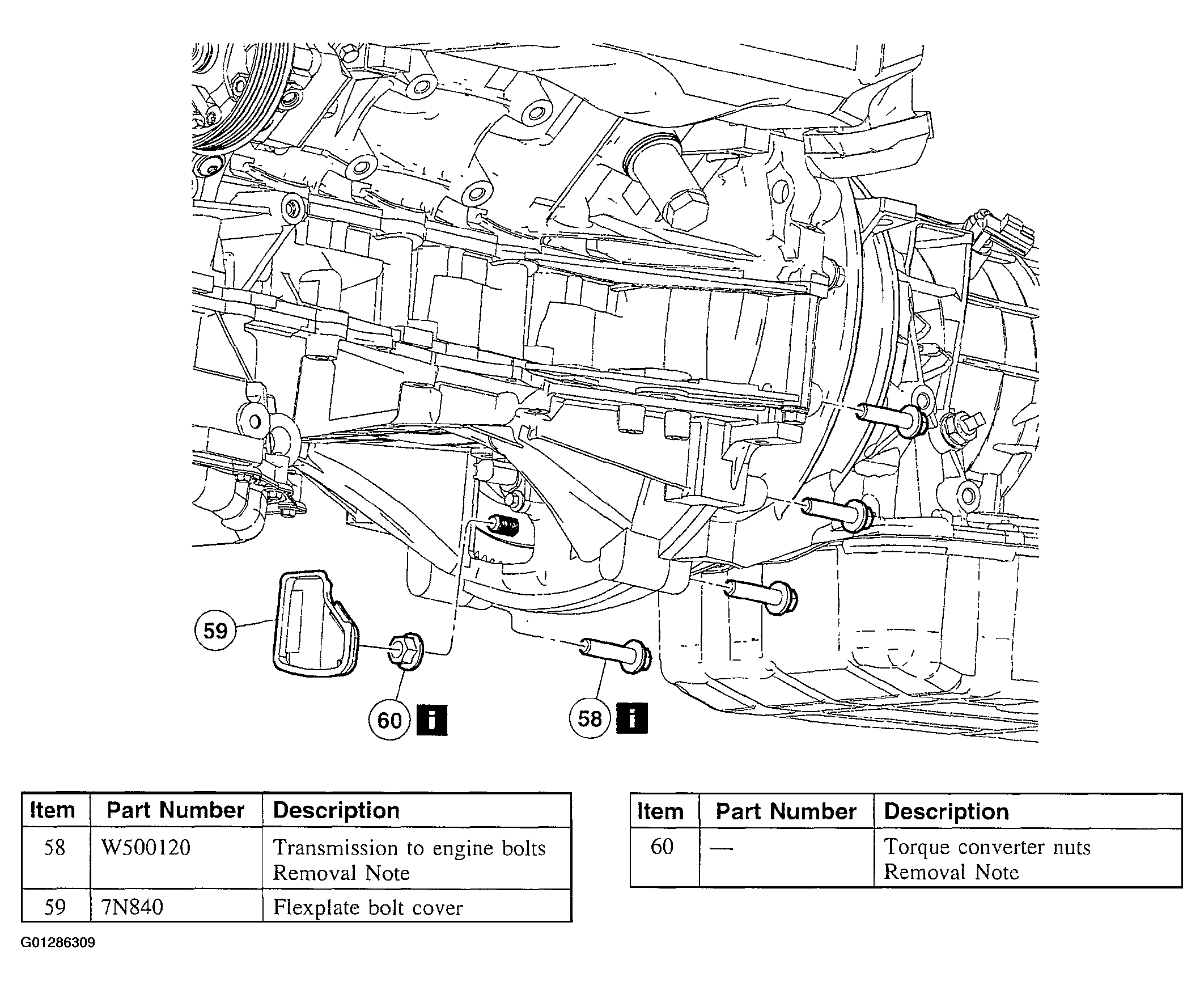

Fig 9: Removing Transmission To Engine Bolts
Courtesy of FORD MOTOR CO.
Illustration 9 of 13. Remove the components in the order indicated in the following illustration and table.

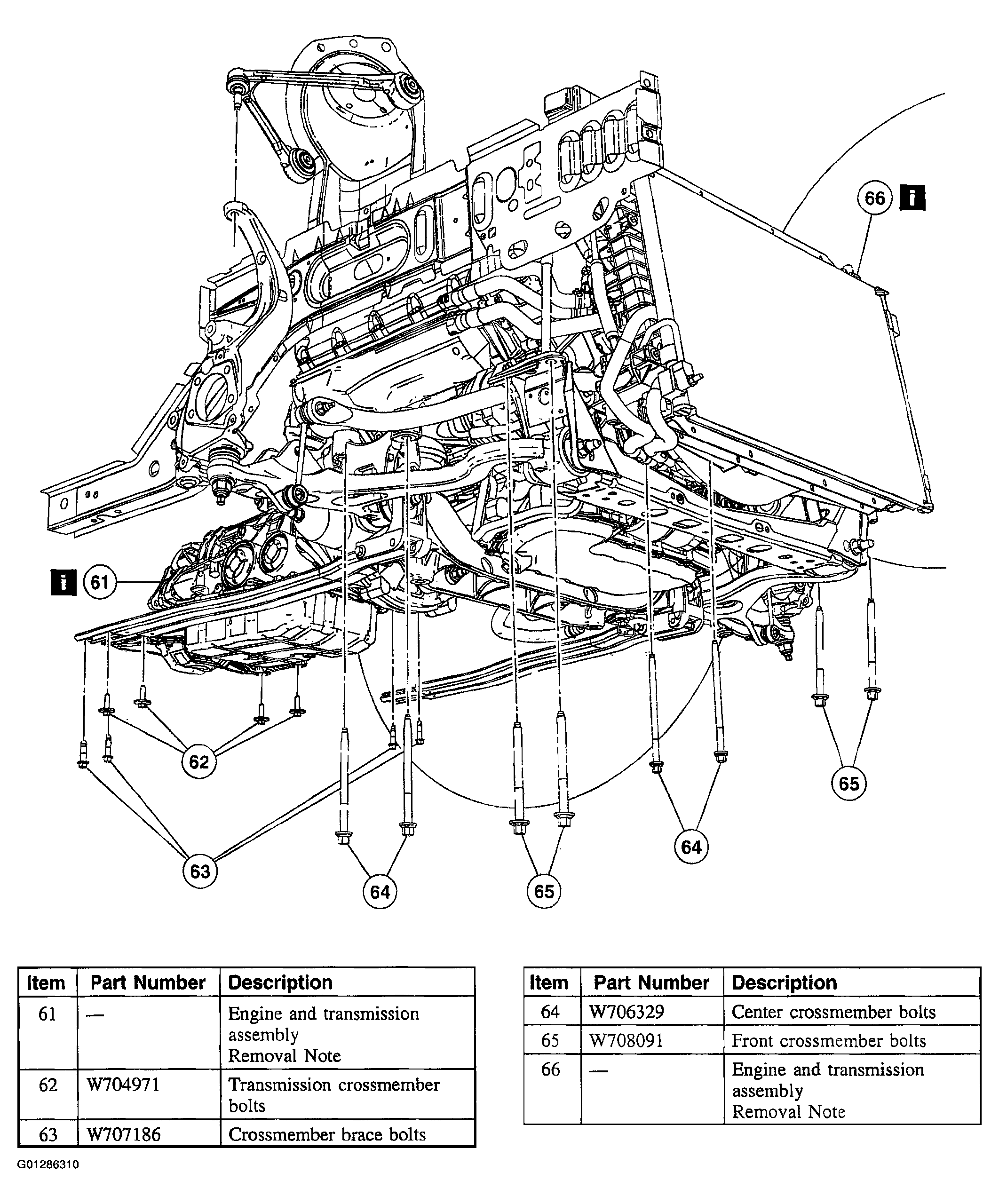

Fig 10: Removing Transmission Crossmember Bolts
Courtesy of FORD MOTOR CO.
Illustration 10 of 13. Remove the components in the order indicated in the following illustration and table.

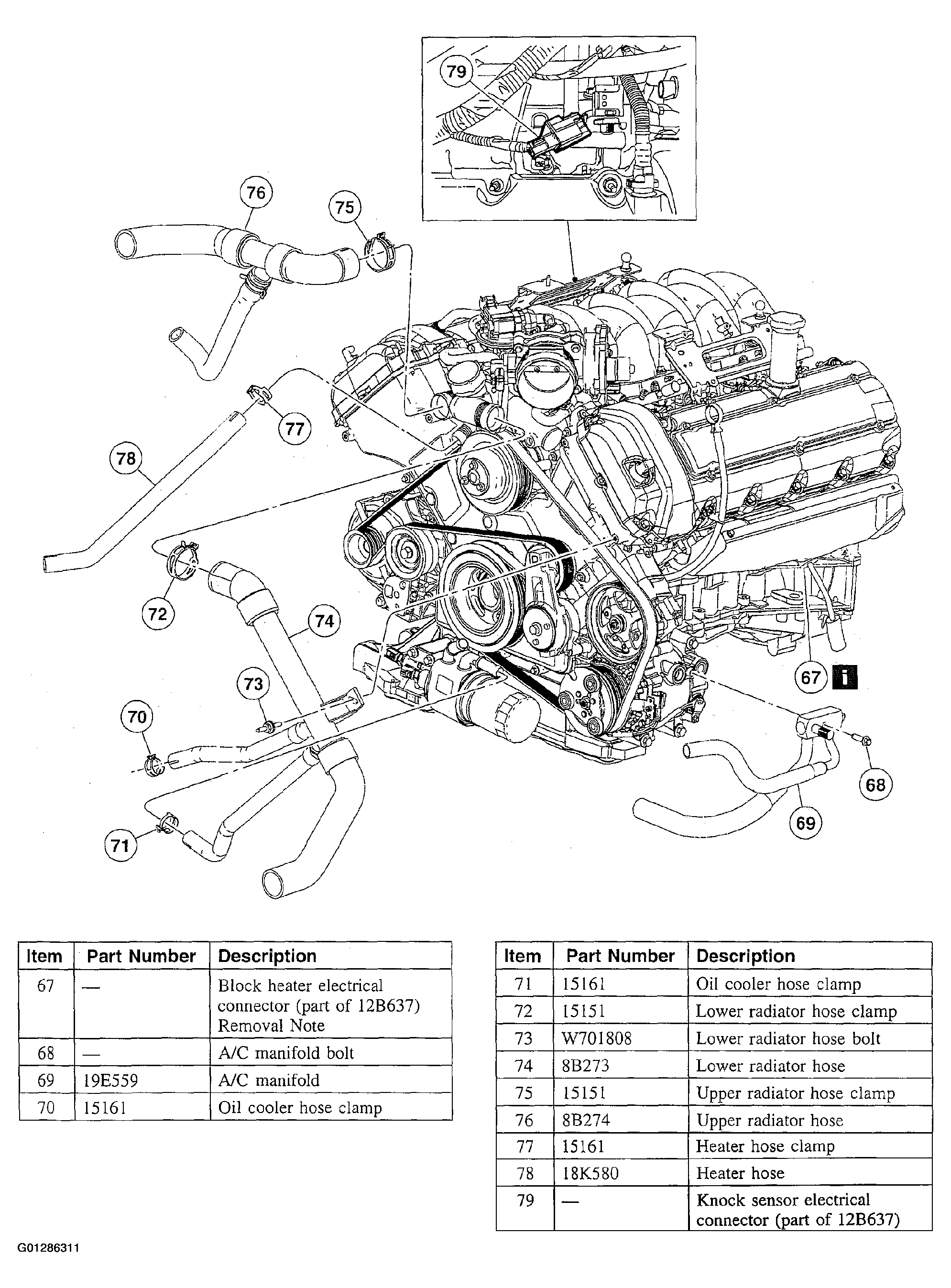

Fig 11: Removing Radiator Hoses Components
Courtesy of FORD MOTOR CO.
Illustration 11 of 13. Remove the components in the order indicated in the following illustration and table.

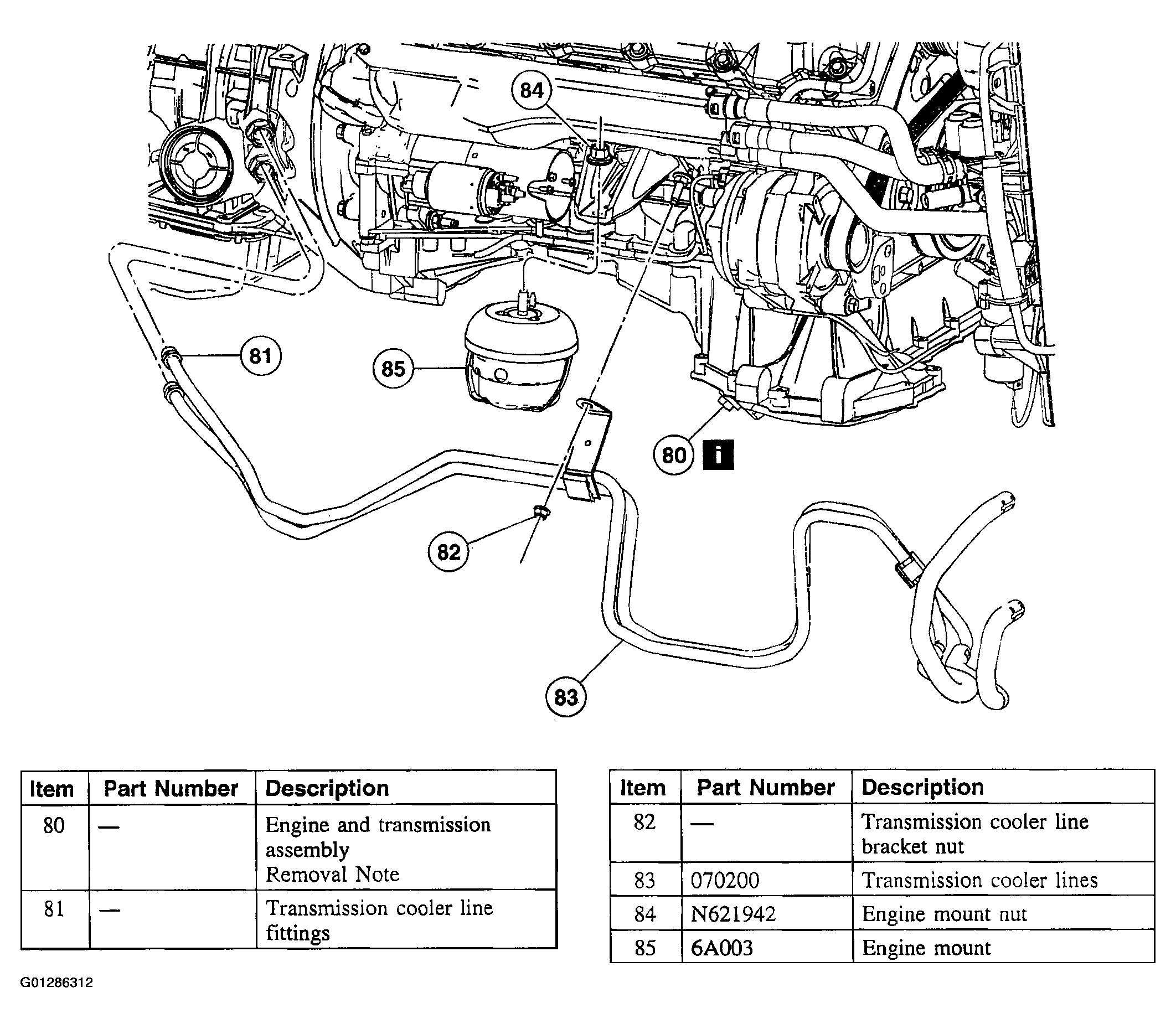

Fig 12: Removing Transmission Cooler Lines Components
Courtesy of FORD MOTOR CO.
Illustration 12 of 13. Remove the components in the order indicated in the following illustration and table.

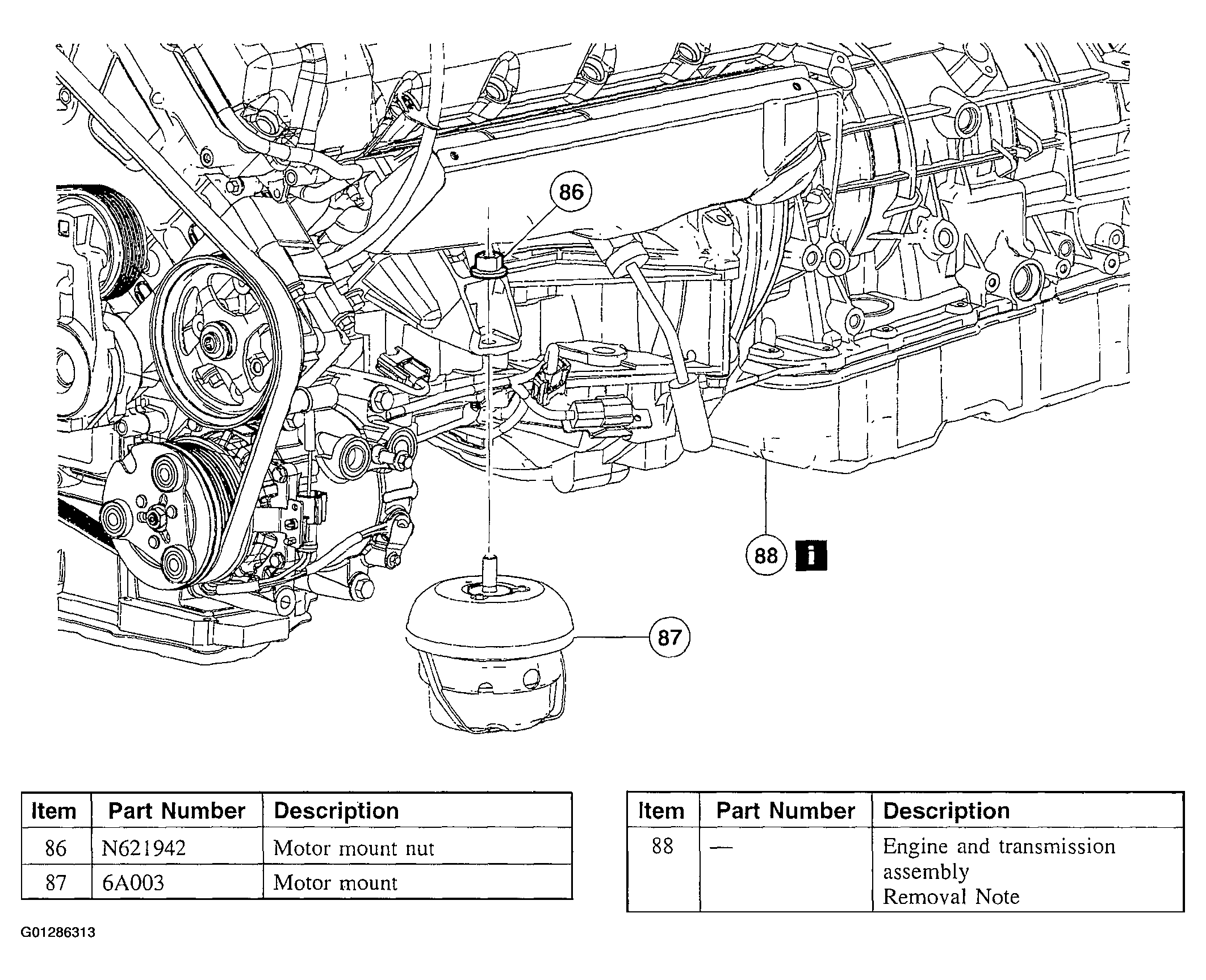

Fig 13: Removing Motor Mount And Nut
Courtesy of FORD MOTOR CO.
Illustration 13 of 13. Remove the components in the order indicated in the following illustration and table.

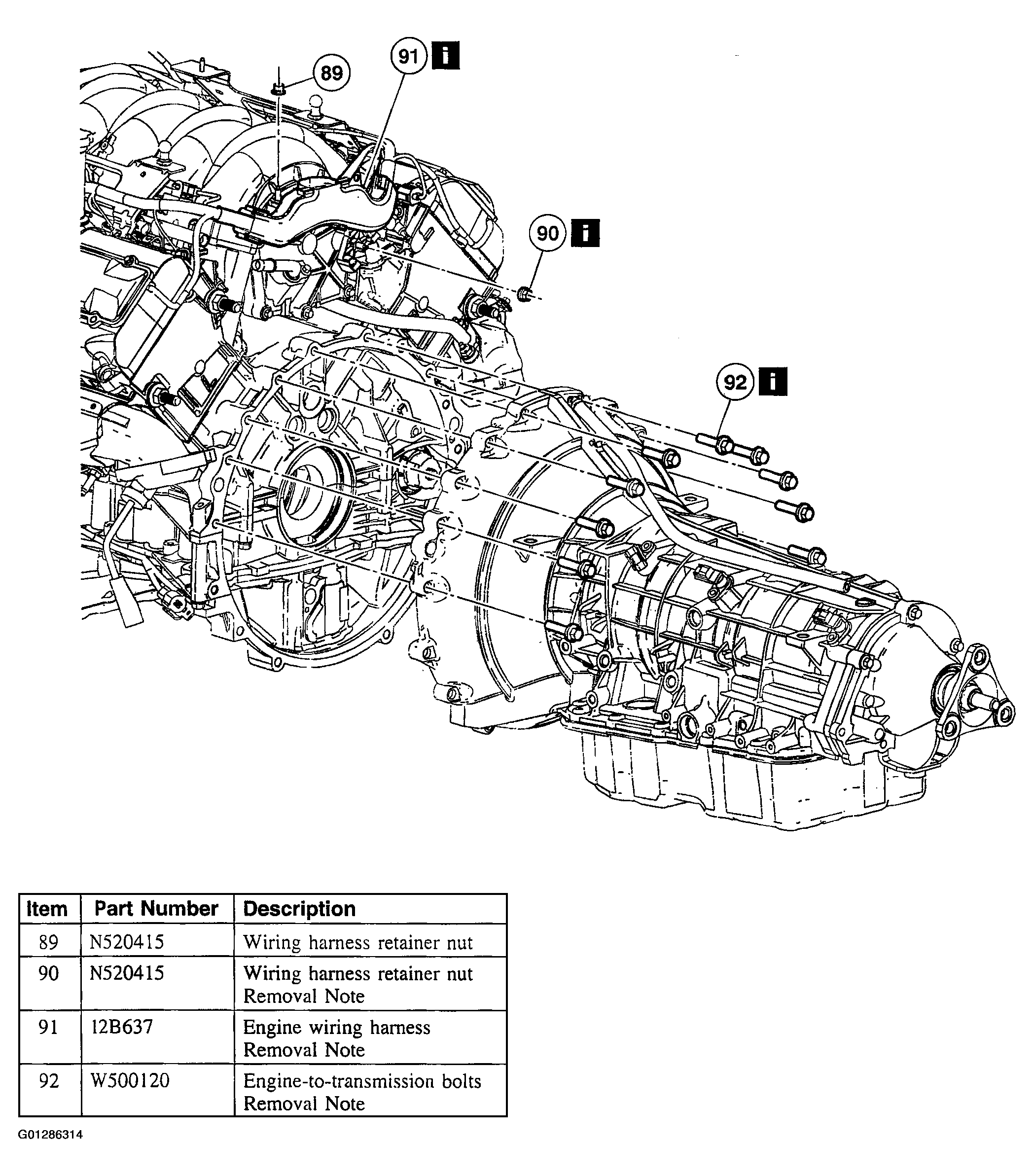

Fig 14: Removing Wiring Harness Retainer Nuts
Courtesy of FORD MOTOR CO.
