Item 97: Speed Sensor Assembly Note

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Using one of the speed sensor holes, fill the transmission with 8.5L (9 quarts) of automatic transmission fluid.

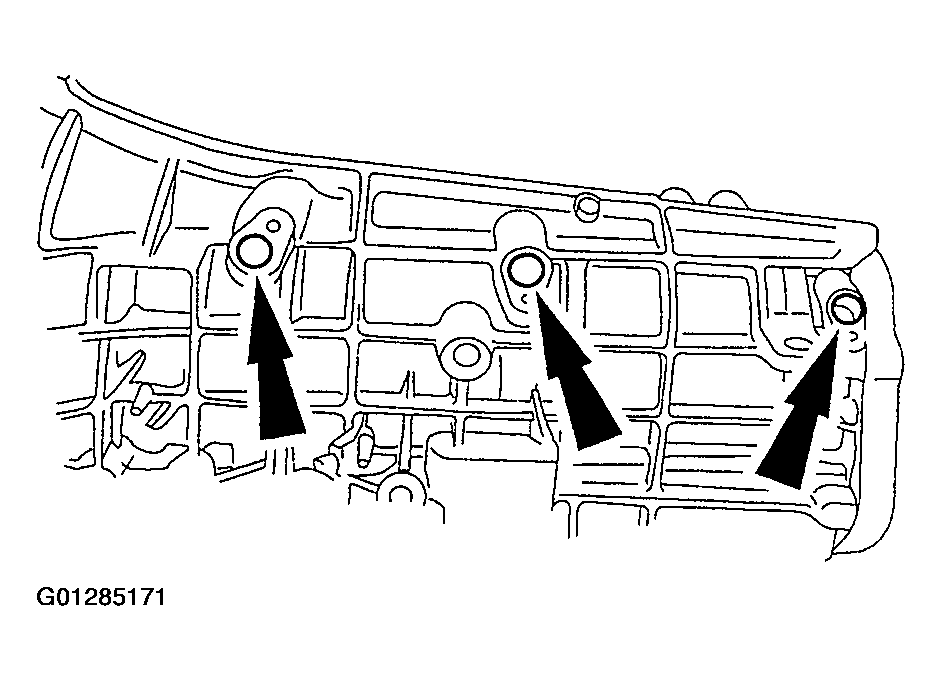

Fig 1: Identifying Speed Sensor Assembly Note
Courtesy of FORD MOTOR CO.

NOTE: Inspect the speed sensor O-ring seals for damage. If damage to the seal is found, install a new seal. Lubricate the O-ring seals with petroleum jelly to prevent damage to the O-ring seals

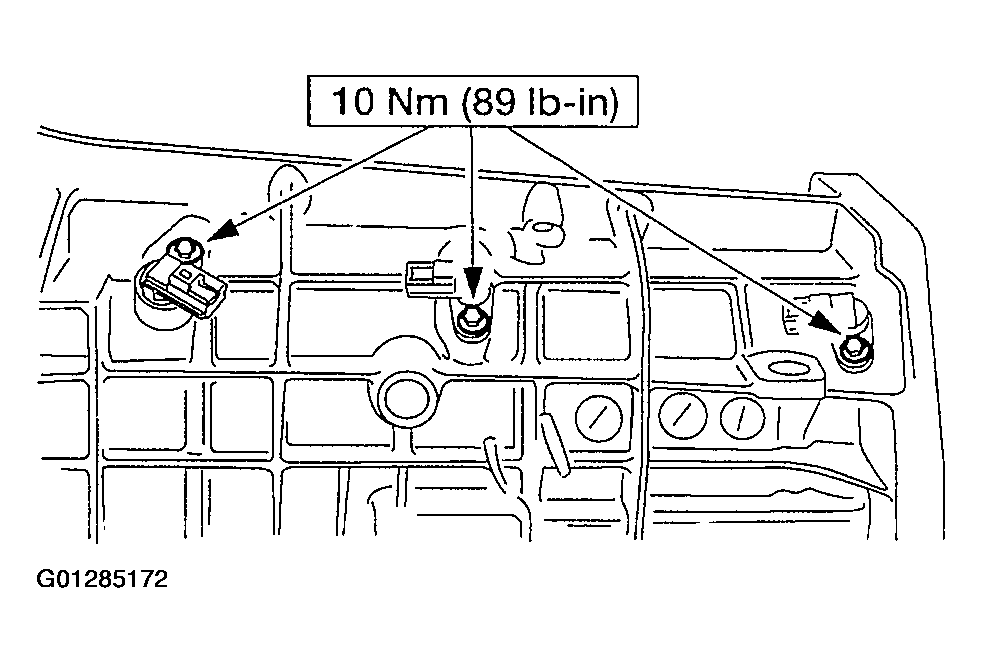

Fig 2: Installing Speed Sensors

Courtesy of FORD MOTOR CO.

Install the speed sensors.
Before installing transmission, make sure that the transmission cooling system (tube and cooler) have been thoroughly flushed. If contamination cannot be removed or correct flow cannot be obtained, install a new cooler and/or tubes. For additional information, refer to TRANSMISSION FLUID COOLER .
