Passive Anti-Theft System (PATS) Transceiver: Notes

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery ground cable. For additional information, Refer to BATTERY AND CHARGING SYSTEM .
Remove the instrument cluster. For additional information, Refer to INFORMATION, GAUGES AND WARNING DEVICES .
Remove the components in the order indicated in the illustration and table.

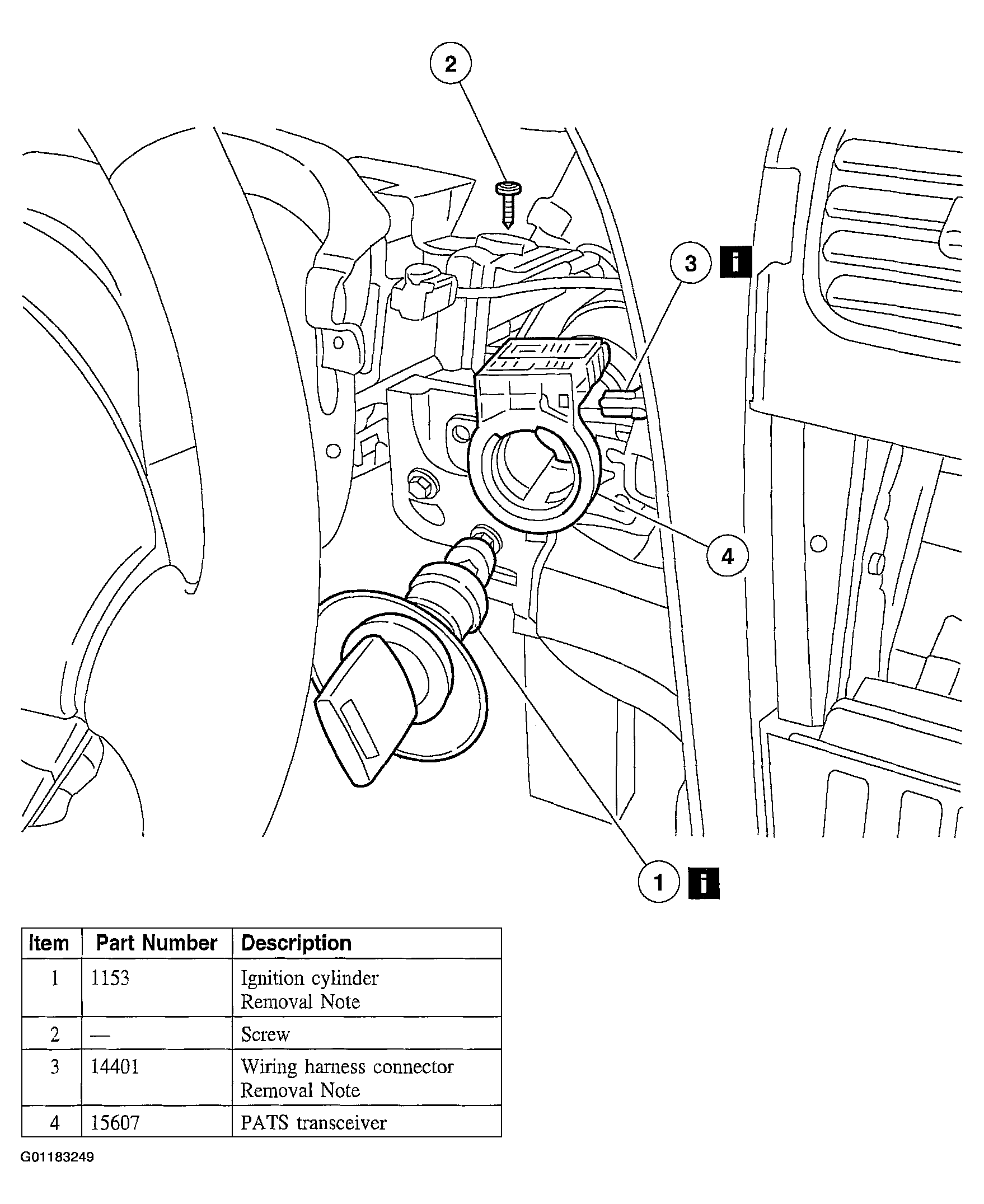

Fig 1: Removing Sequence Of Passive Anti-Theft System (PATS) Transceiver Components
Courtesy of FORD MOTOR CO.
Install in the reverse order of removal.
