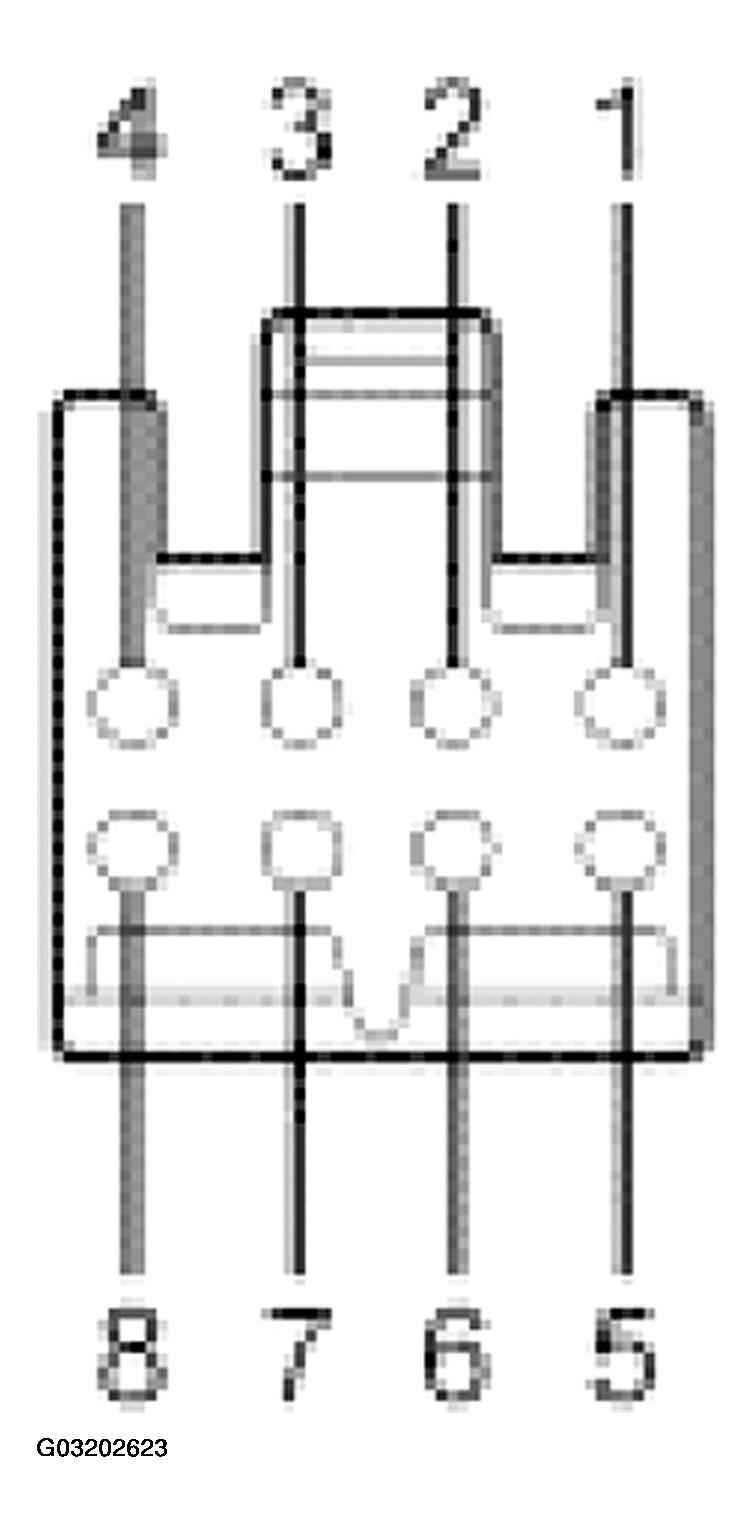

AUDIO AMPLIFIER C4208A CONNECTOR PINOUTS REFERENCE
| Pin Number(s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 1 | 10-MD18A(GY) RR speaker return | Less than 5 ohms between the audio unit and the audio amplifier and greater than 10,000 ohms between the audio amplifier audio unit and ground. |
| 2 | 10-MD17A(GY/RD) RF speaker return | Less than 5 ohms between the audio unit and the audio amplifier and greater than 10,000 ohms between the audio amplifier and ground. |
| 3 | 10-MD11A(GY/WH) LR speaker return | Less than 5 ohms between the audio unit and the audio amplifier and greater than 10,000 ohms between the audio amplifier and ground. |
| 4 | 10-MD10A (GY/BK) LF speaker return | Less than 5 ohms between the audio unit and the audio amplifier and greater than 10,000 ohms between the audio amplifier and ground. |
| 5 | 8-MD18A (WH) RR speaker output | Less than 5 ohms between the audio unit and the audio amplifier and greater than 10,000 ohms between the audio amplifier and ground. |
| 6 | 8-MD17A(WH/RD) RF speaker output | Less than 5 ohms between the audio unit and the audio amplifier and greater than 10,000 ohms between the audio amplifier and ground. |
| 7 | 8-MD11A(WH/VT)LR speaker output | Less than 5 ohms between the audio unit and the audio amplifier and greater than 10,000 ohms between the audio amplifier and ground. |
| 8 | 8-MD10A(WH/BK) LF speaker output | Less than 5 ohms between the audio unit and the audio amplifier and greater than 10,000 ohms between the audio amplifier and ground. |
