Rear Seat Backrest

1. Remove the rear seat backrest. For additional information, refer to REAR SEAT .
2. Disassemble the parts in the order listed in the following illustration and table.

   To remove individual parts, only carry out the listed steps:

   PARTS REMOVING STEPS



   Part	Steps
   Left heated seat backrest element	3-6
   Right heated seat backrest element	9-11

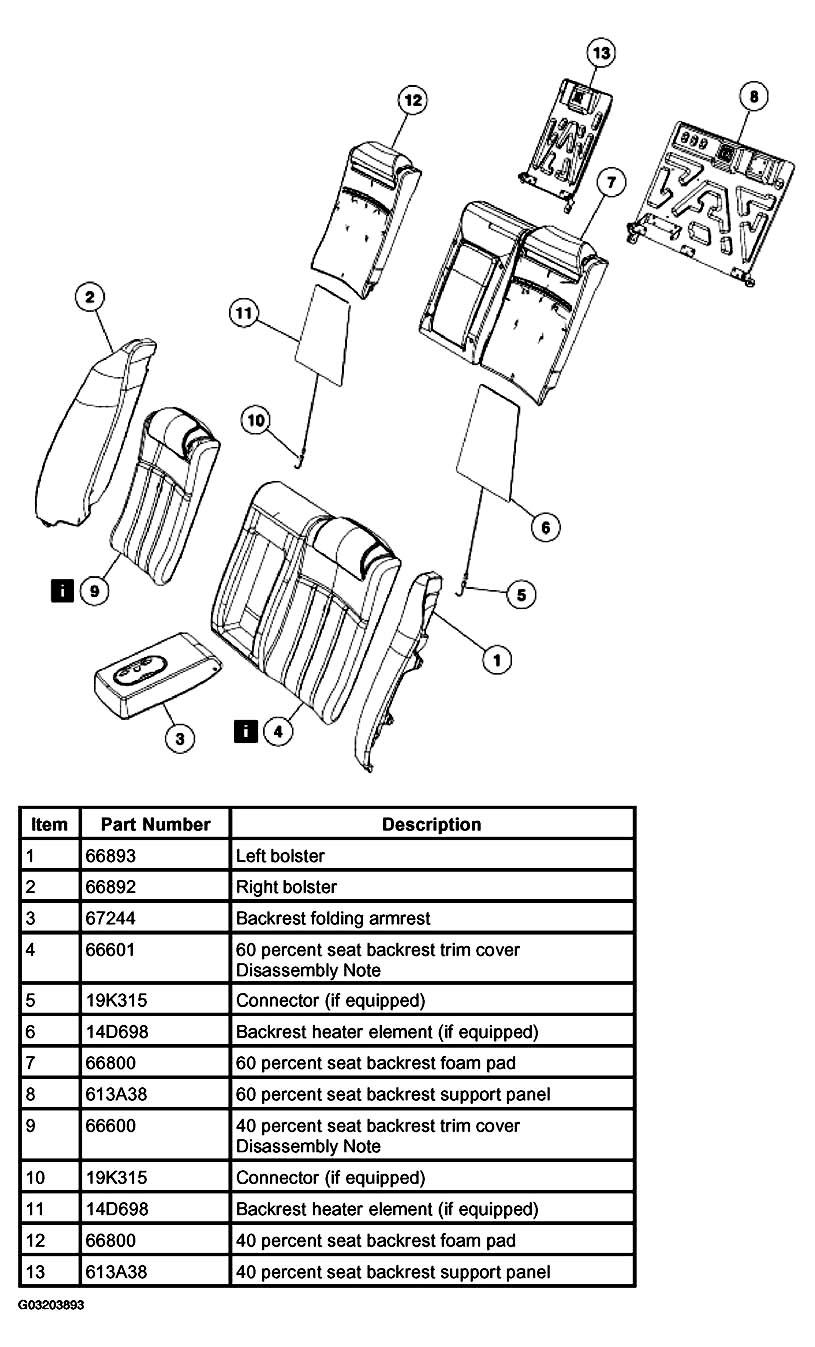

   Fig 1: Identifying Removing Sequence Of Rear Seat Backrest

   Courtesy of FORD MOTOR CO.
3. To assemble, reverse the disassembly procedure.

Item 4: 60 Percent Seat Backrest Trim Cover Disassembly Note

CAUTION: Use care when separating the seat upholstery from the hook and loop strip, or the hook and loop strip can be torn from the seat backrest foam pad.
1. Separate the hook and loop fasteners.
2. Remove and discard the hog rings.

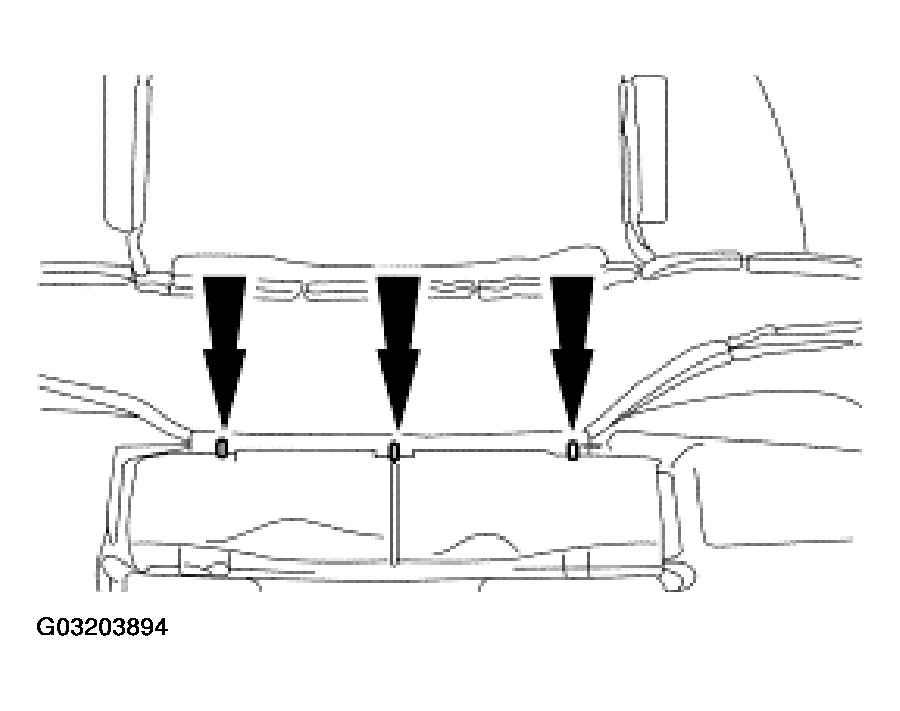

   Fig 2: Removing Hog Rings

   Courtesy of FORD MOTOR CO.

Item 9: 40 Percent Seat Backrest Trim Cover Disassembly Note

CAUTION: Use care when separating the seat upholstery from the hook and loop strip, or the hook and loop strip can be torn from the seat backrest foam pad.
1. Separate the hook and loop fasteners.
2. Remove and discard the hog rings.
   Fig 3: Removing Hog Rings

   Courtesy of FORD MOTOR CO.
