Climate Control System-General Information
›
Diagnosis And Testing
›
Climate Control System
›
Special Tool(s)
›
Function Selector Switch Vacuum Application Chart
Function Selector Switch Vacuum Application Chart

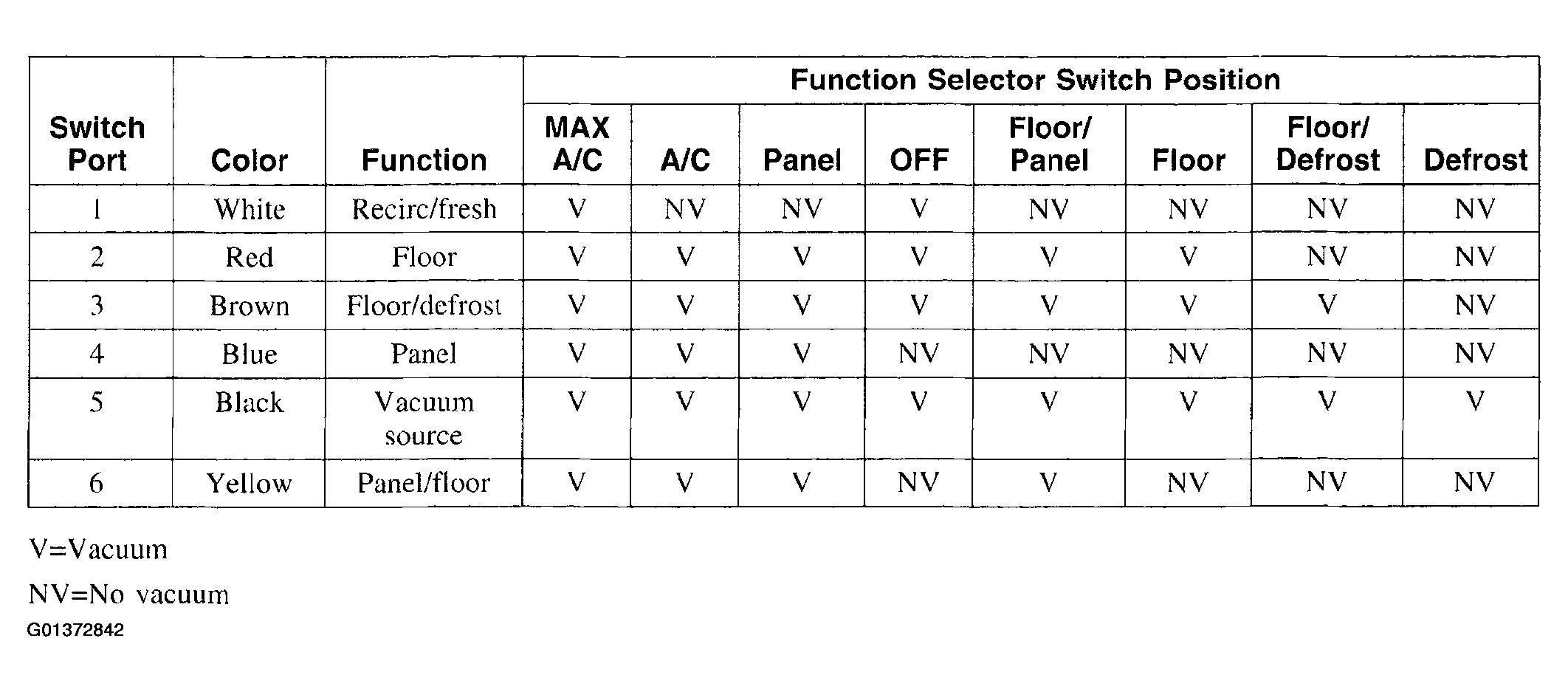

Fig 1: Function Selector Switch Vacuum Application Chart
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
