Switch - Function Selector: Removal

  1. Remove the control assembly; refer to CONTROL ASSEMBLY  .
  2. Remove the function selector knob.

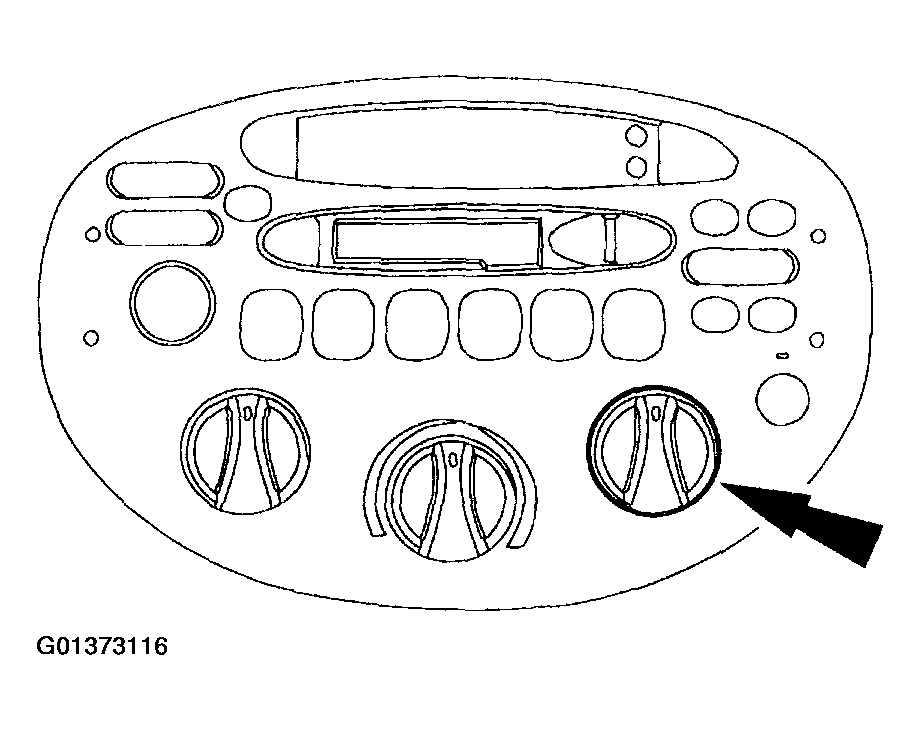

    Fig 1: Removing Function Selector Knob
    G01373116Courtesy of FORD MOTOR CO.
  3. Disconnect the function selector switch electrical connector.

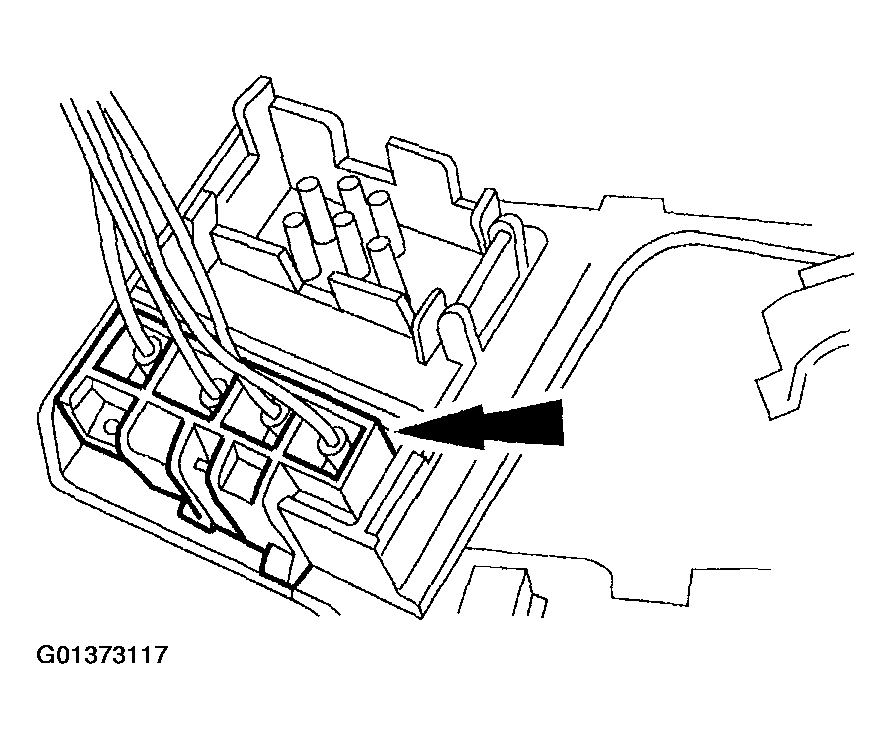

    Fig 2: Disconnecting Function Selector Switch Electrical Connector
    G01373117Courtesy of FORD MOTOR CO.
  4. Remove the function selector switch.

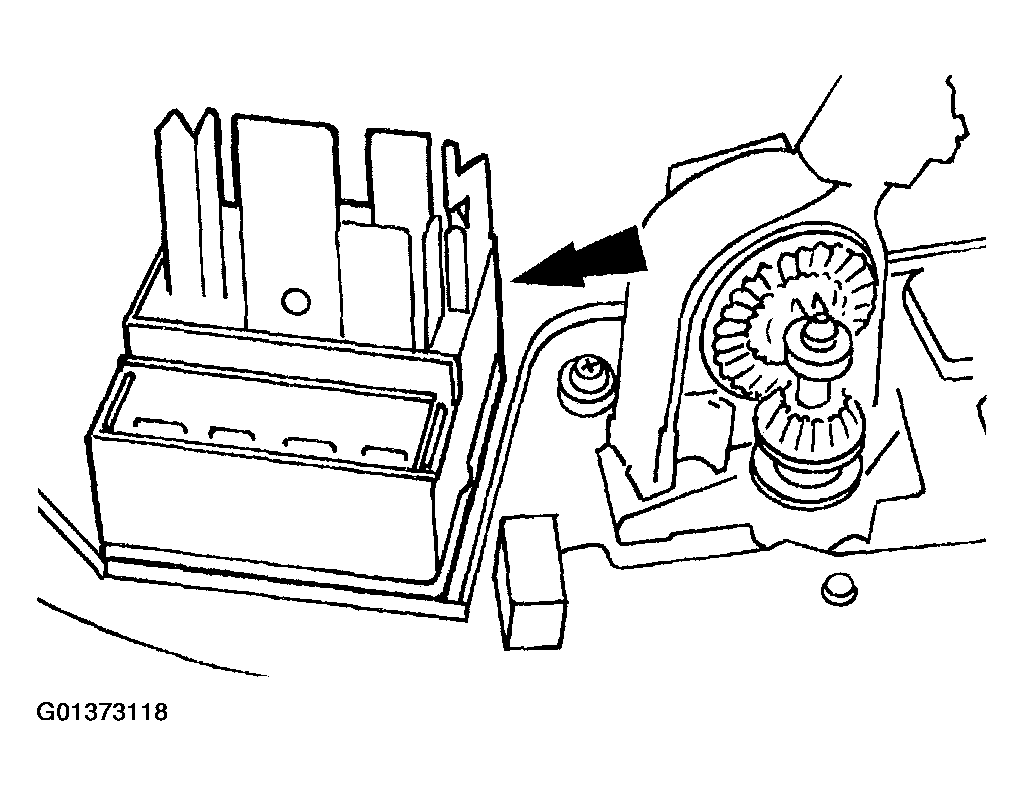

    Fig 3: Removing Function Selector Switch
    G01373118Courtesy of FORD MOTOR CO.
