Removal And Installation: Pulley-2.0L: Installation

NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 mi) or more to relearn the strategy.

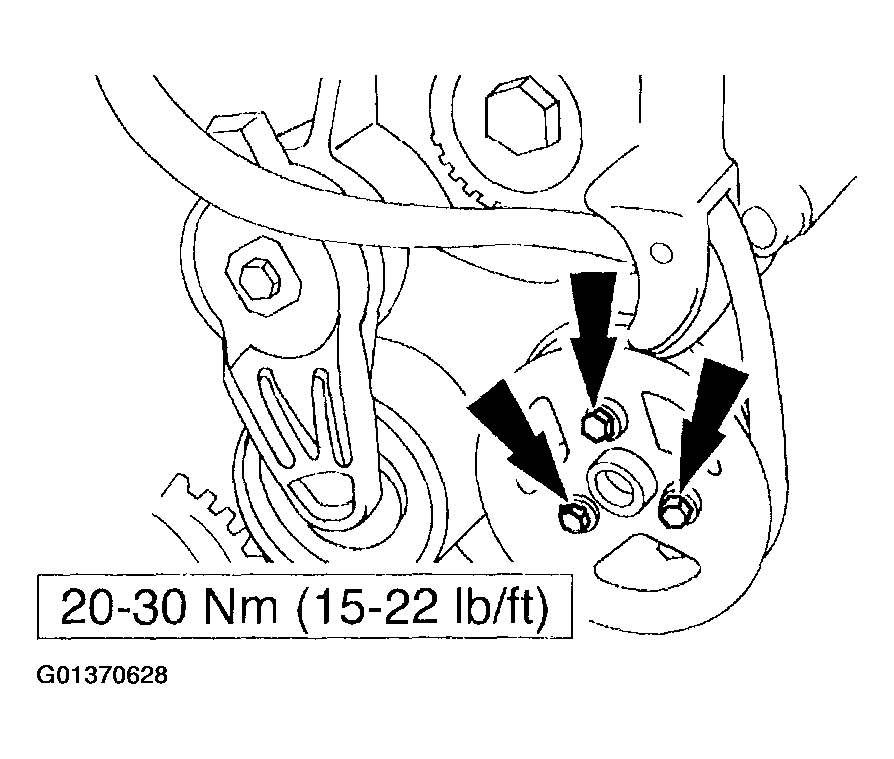

Fig 1: Installing Power Steering Pump Pulley

Courtesy of FORD MOTOR CO.

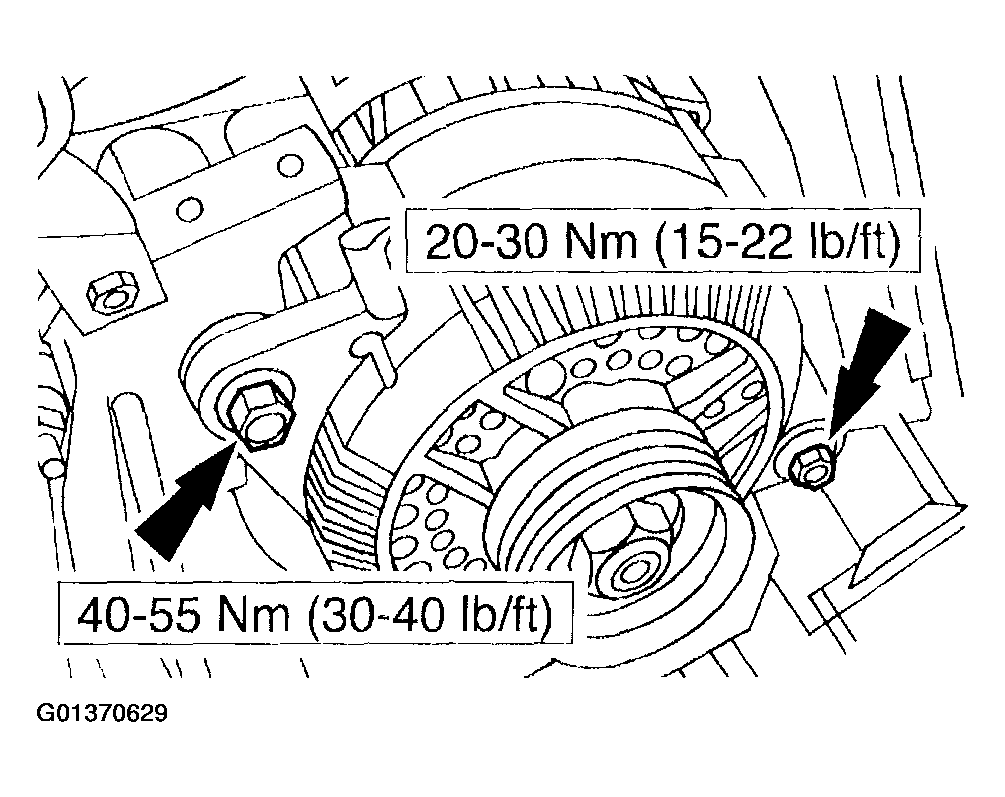

Fig 2: Installing Generator

Courtesy of FORD MOTOR CO.

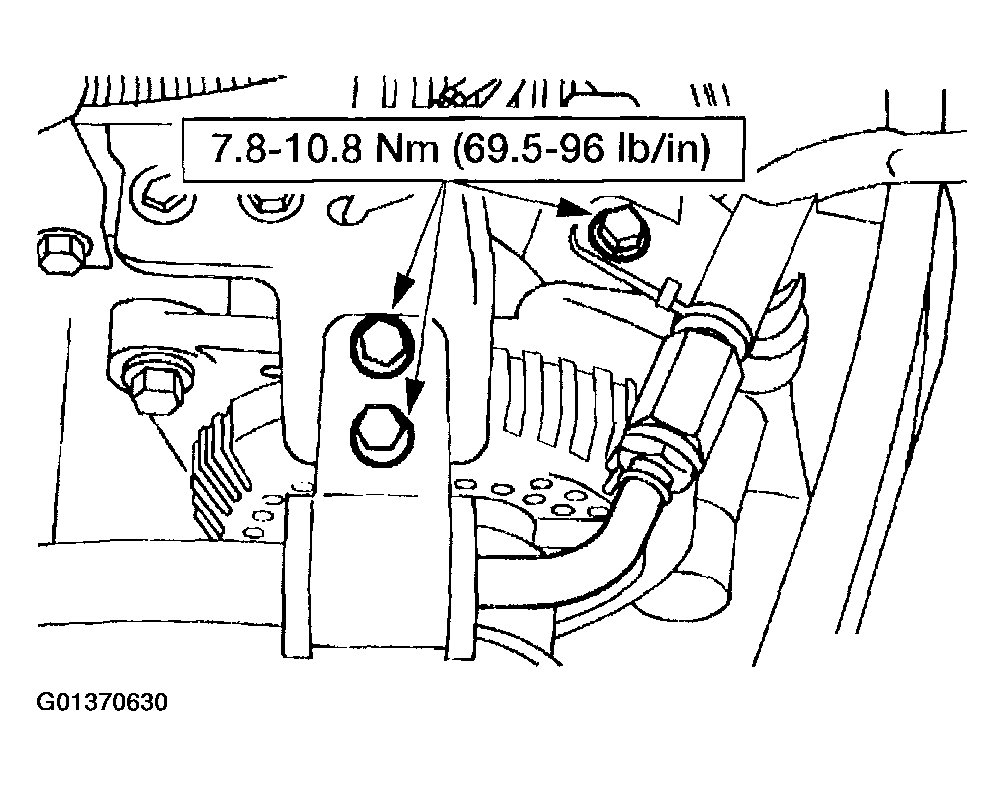

Fig 3: Installing Power Steering Pressure Hose Bolts

Courtesy of FORD MOTOR CO.

To install, reverse the removal procedure.
