Strut And Spring Assembly: Removal

Remove the package tray trim panel.
Remove the upper strut and spring assembly nuts.

Fig 1: Identifying Upper Strut & Spring Assembly Nuts
Courtesy of FORD MOTOR CO.
Raise and support the vehicle.
Slide the brake hose clip off and position the brake hose aside.
If equipped with anti-lock brakes, remove the anti-lock brake system (ABS) sensor bracket bolt.

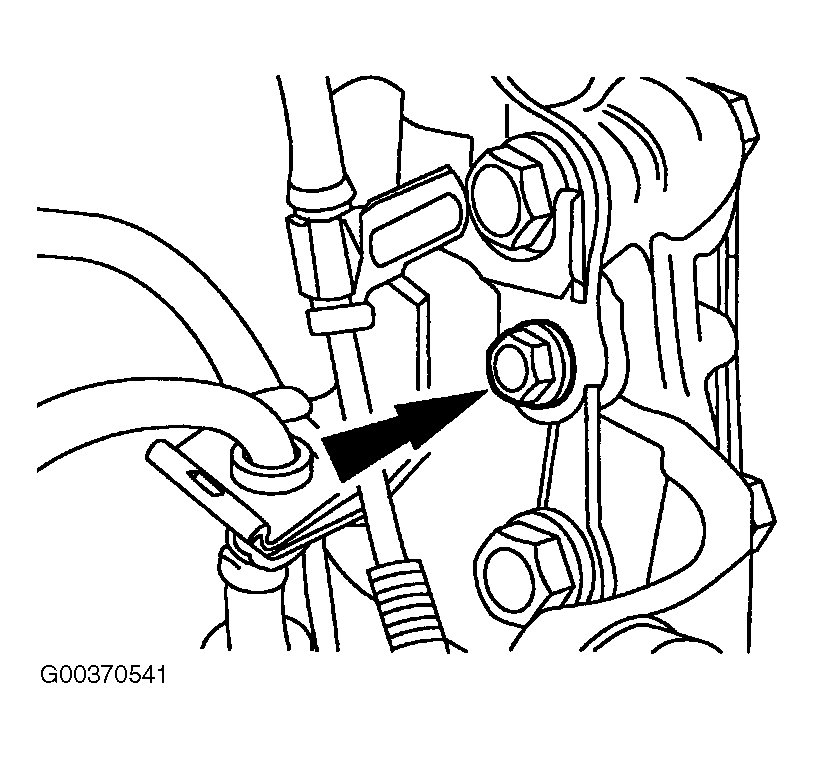

Fig 2: Identifying ABS Bracket Bolt
Courtesy of FORD MOTOR CO.
Remove the lower strut and spring assembly bolts and the strut and spring assembly.

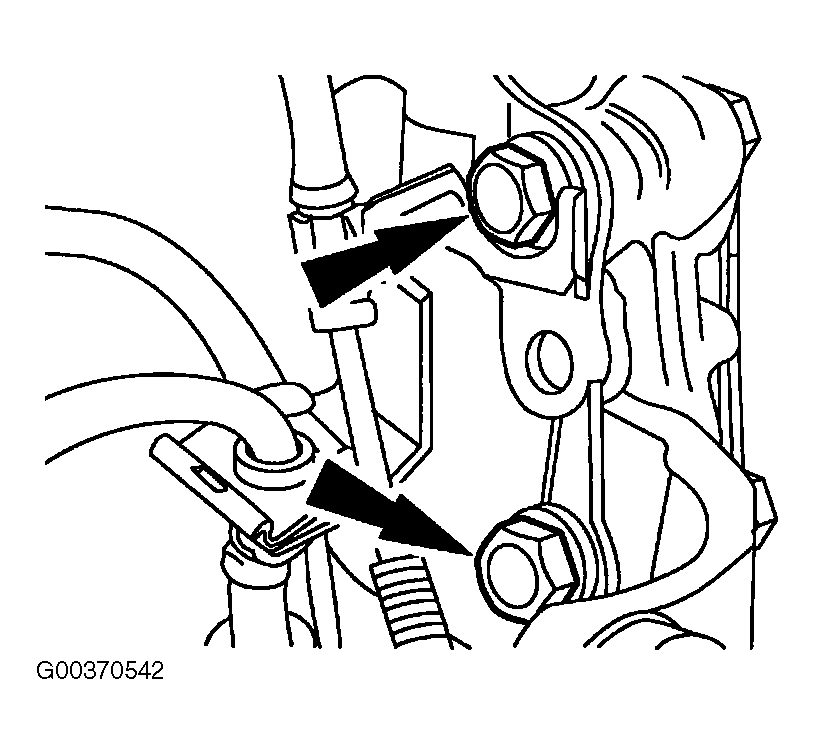

Fig 3: Identifying Lower Strut & Spring Assembly Bolt
Courtesy of FORD MOTOR CO.
