Shift Lever: Installation

  1. To install, reverse the removal procedure.

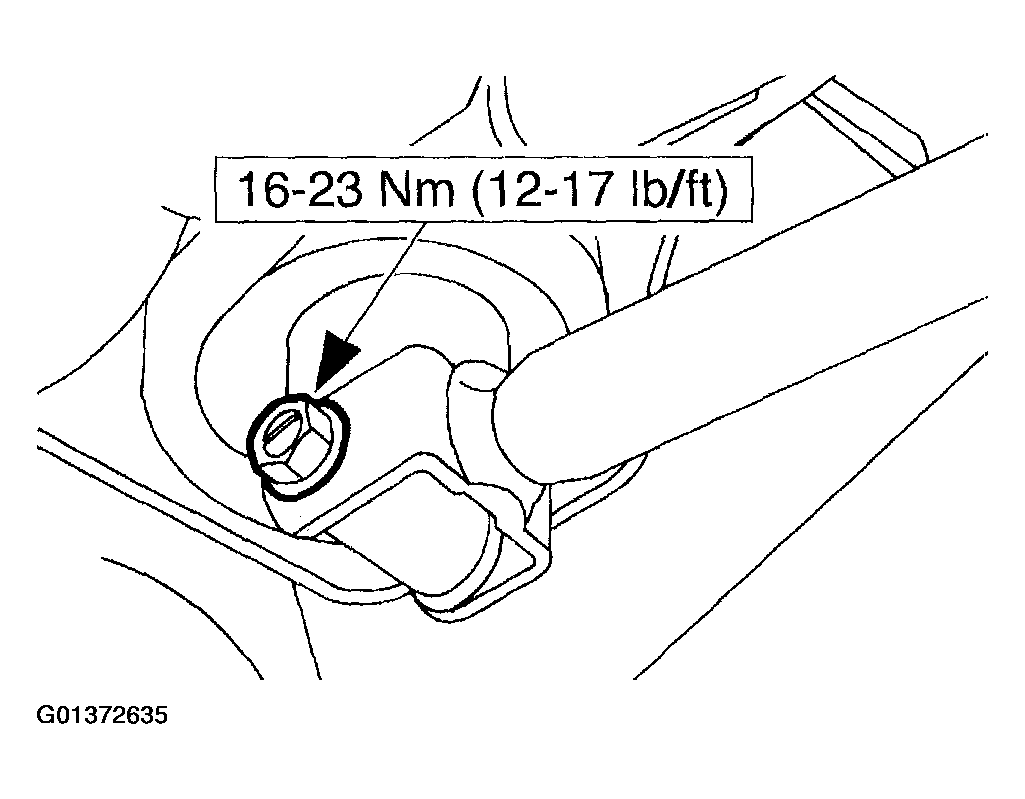

    Fig 1: Installing Transmission Gearshift Rod-To-Shift Lever Nut
    G01372635Courtesy of FORD MOTOR CO.

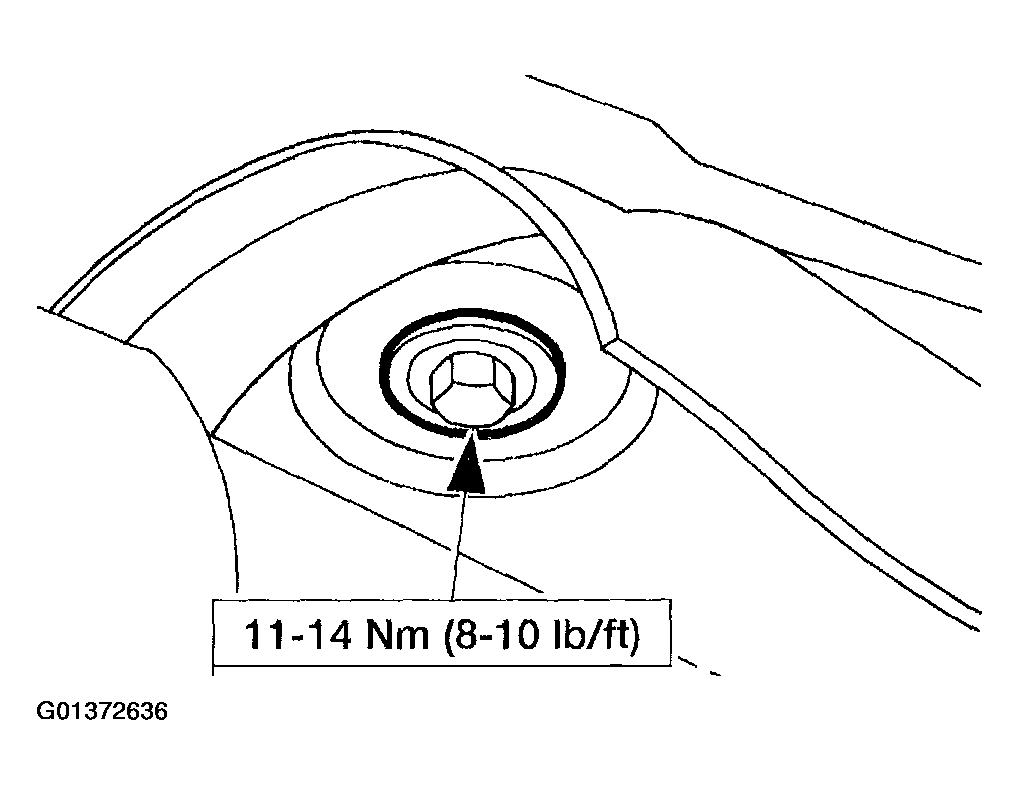

    Fig 2: Installing Heat Shield Rear Bolt
    G01372636Courtesy of FORD MOTOR CO.
    Fig 3: Installing Heat Shield Rear (LH) Bolt
    G01372637Courtesy of FORD MOTOR CO.
    Fig 4: Installing Heat Shield Middle (RH) Bolt
    G01372638Courtesy of FORD MOTOR CO.

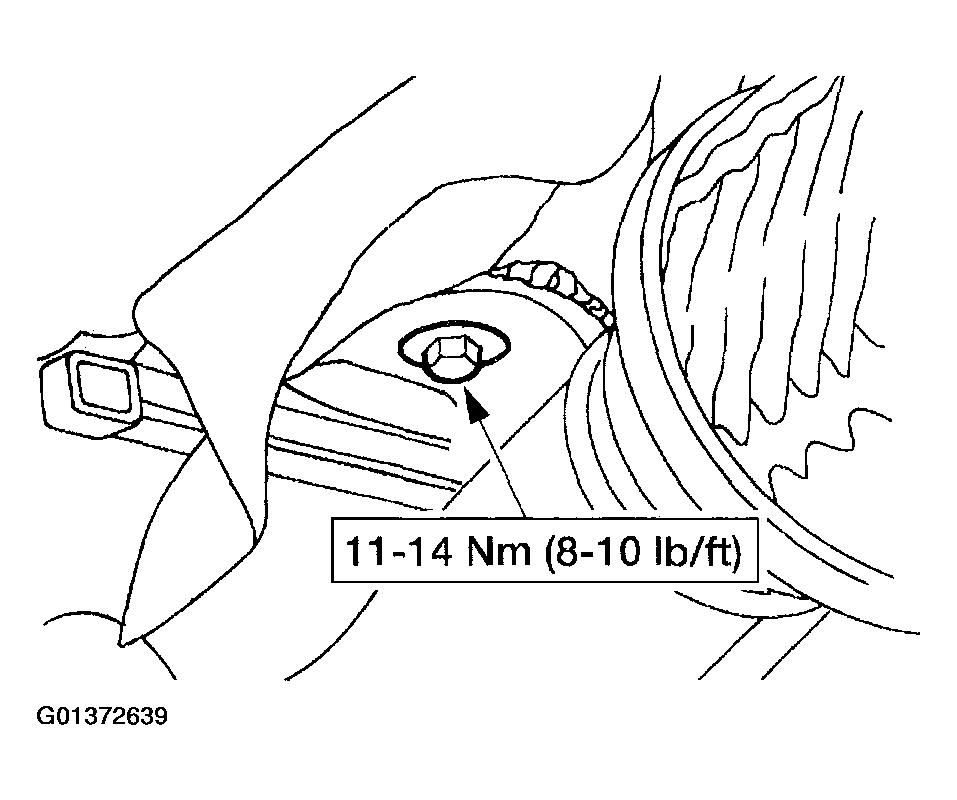

    Fig 5: Installing Heat Shield Front (RH) Bolt
    G01372639Courtesy of FORD MOTOR CO.
