Crown Victoria Base, 4.6 W
›
Repair and Diagnosis (Single Page)
›
Accessories & Equipment
›
Accessories Control Systems
›
Component Testing
›
Component Testing
›
Multifunction Switch, Turn Portion
Multifunction Switch, Turn Portion

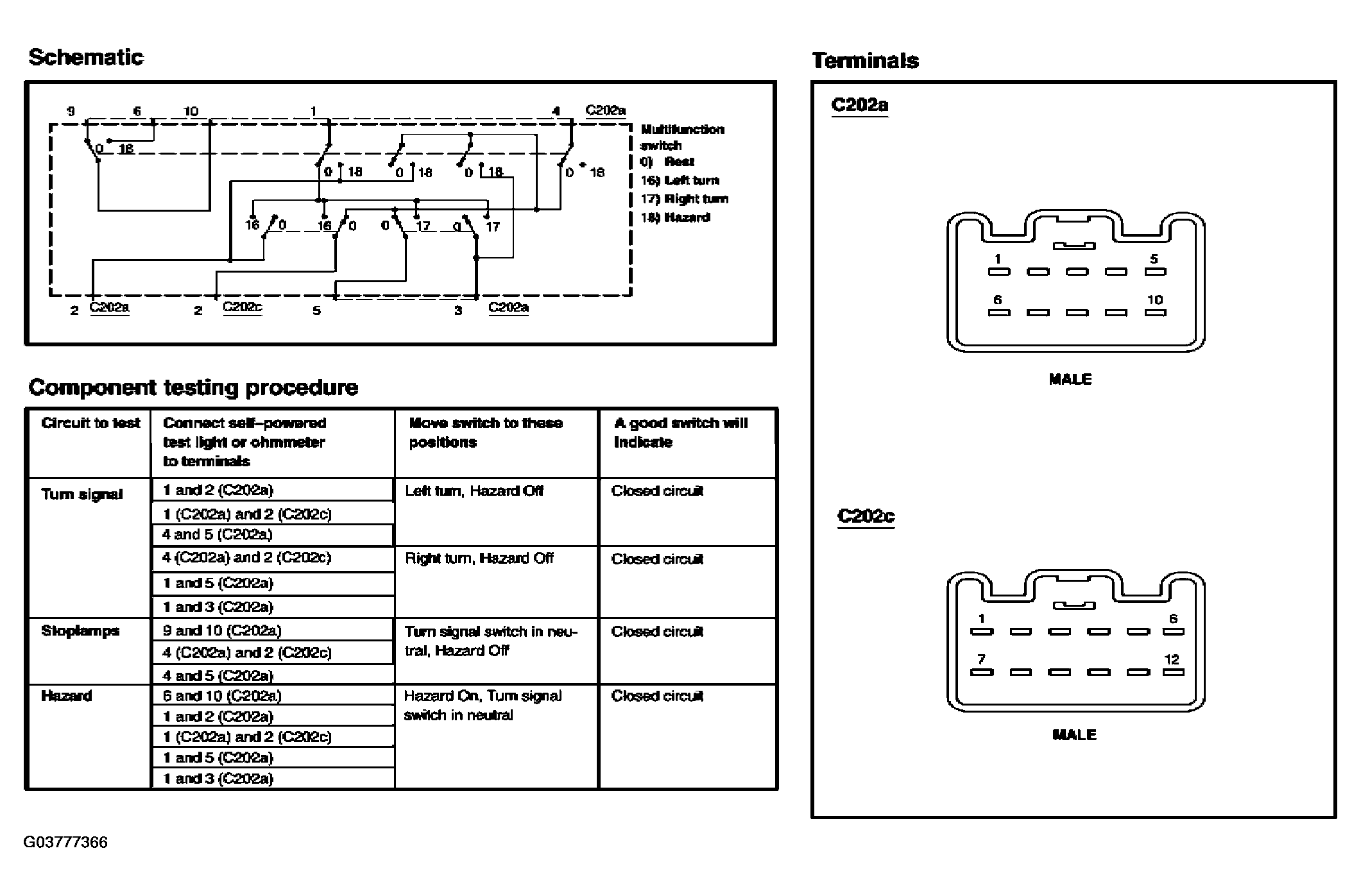

Fig 1: Testing Multifunction Switch, Turn Portion
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
