Engine 4.6L: Assembly: Engine: Notes

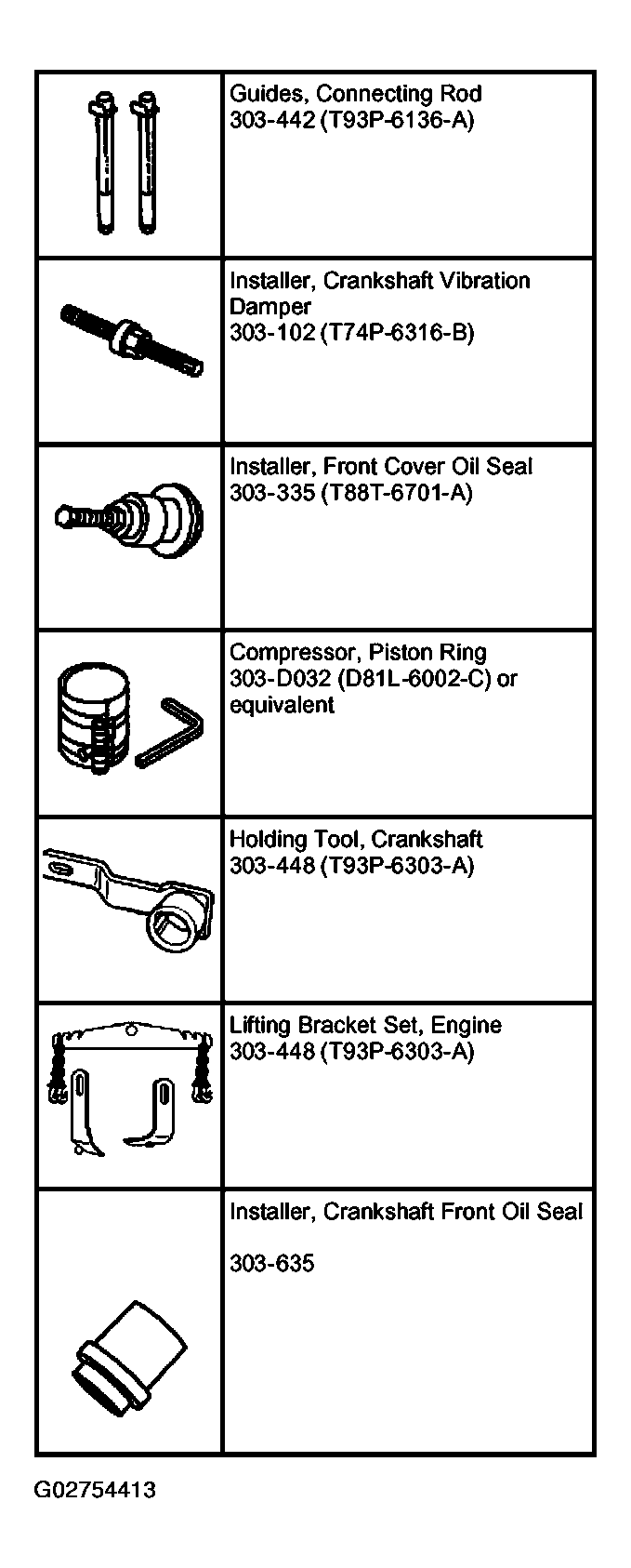

Fig 1: Identifying Special Tool (1 Of 2)

Courtesy of FORD MOTOR CO.

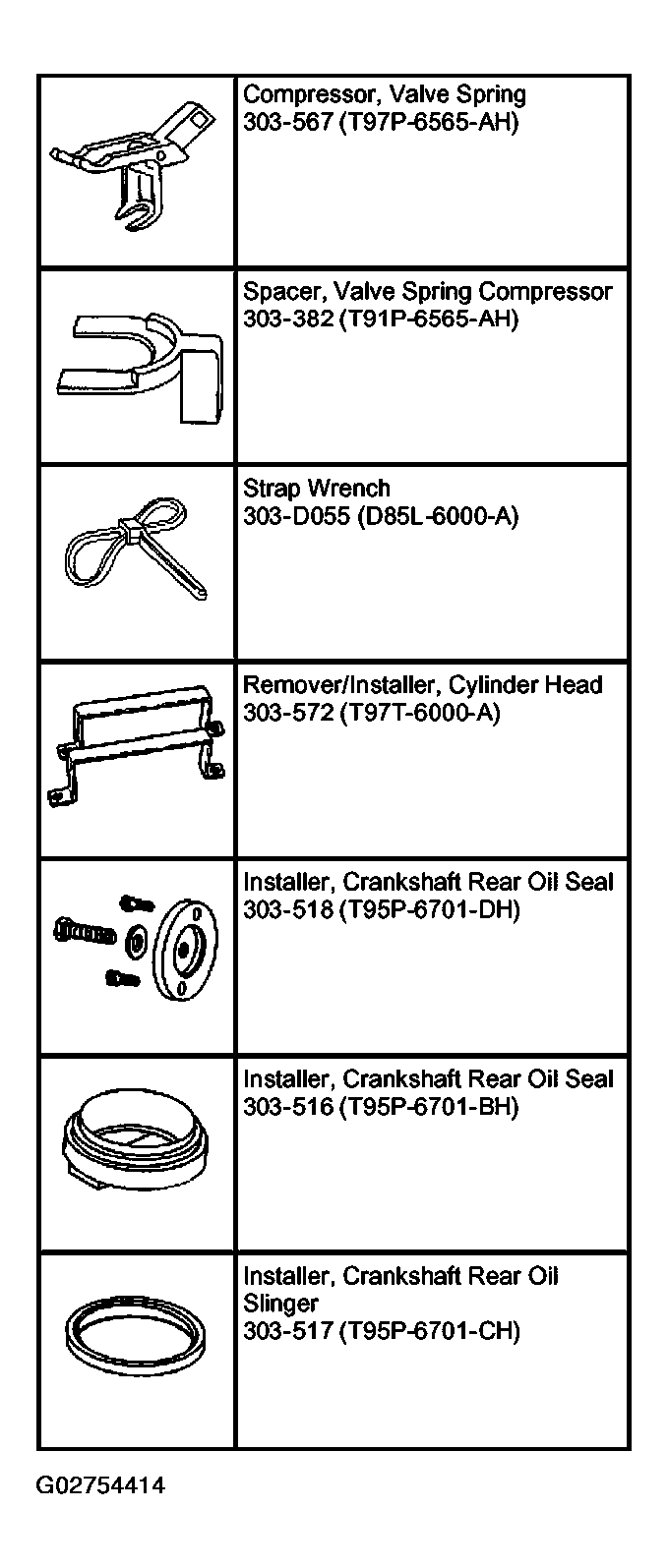

Fig 2: Identifying Special Tool (2 Of 2)

Courtesy of FORD MOTOR CO.

MATERIAL SPECIFICATION

Item	Specification
SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP or equivalent	WSS-M2C153-H
Metal Surface Cleaner F4AZ-19A536-RA or equivalent	WSE-M5B392-A
Silicone Gasket and Sealant F7AZ-19554-EA or equivalent	WSE-M4G323-A4
Motorcraft Premium Gold Engine Coolant VC-7-A (in Oregon VC-7-B) or equivalent	WSS-M97B51-A1
Motorcraft Silicone Gasket Remover ZC-30	-
Motorcraft Metal Surface Prep ZC-31	-
Hydraulic Chain Tensioner Retaining Clip 1L3Z-6P250-AA	-
