Pump And Intermediate Clutch Piston: Notes

Fig 1: Identifying Special Tool(s)
G02757845Courtesy of FORD MOTOR CO.

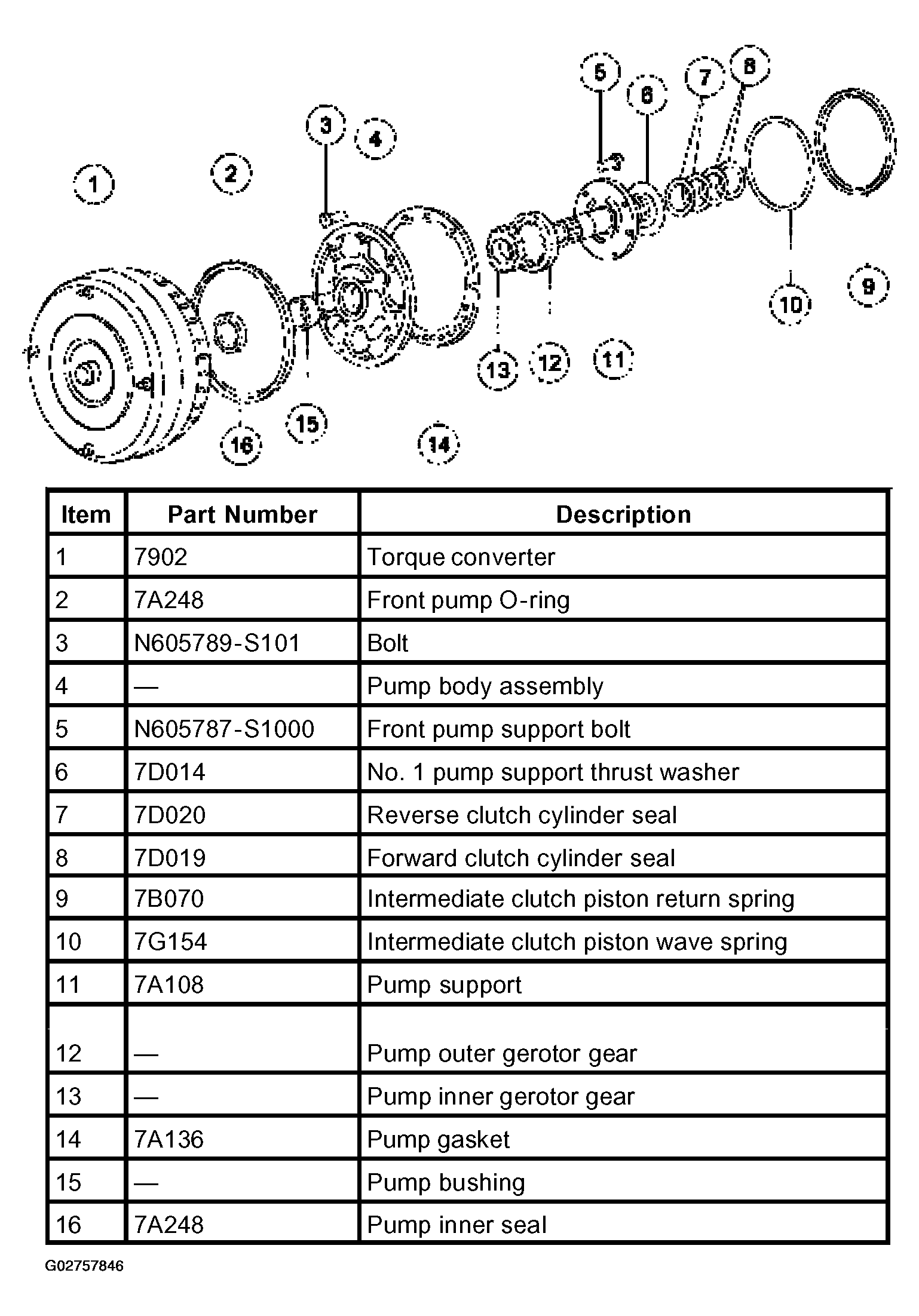

Fig 2: Pump and Intermediate Clutch Spring and Support - Disassembled View
G02757846Courtesy of FORD MOTOR CO.
