Steering Column: Assembly

ALL COLUMNS

Install the steering column lock lever actuator and steering column lock actuator.

1. Lubricate the steering column lock actuators.
   • Use long life grease.
2. Install the steering column lock actuators.

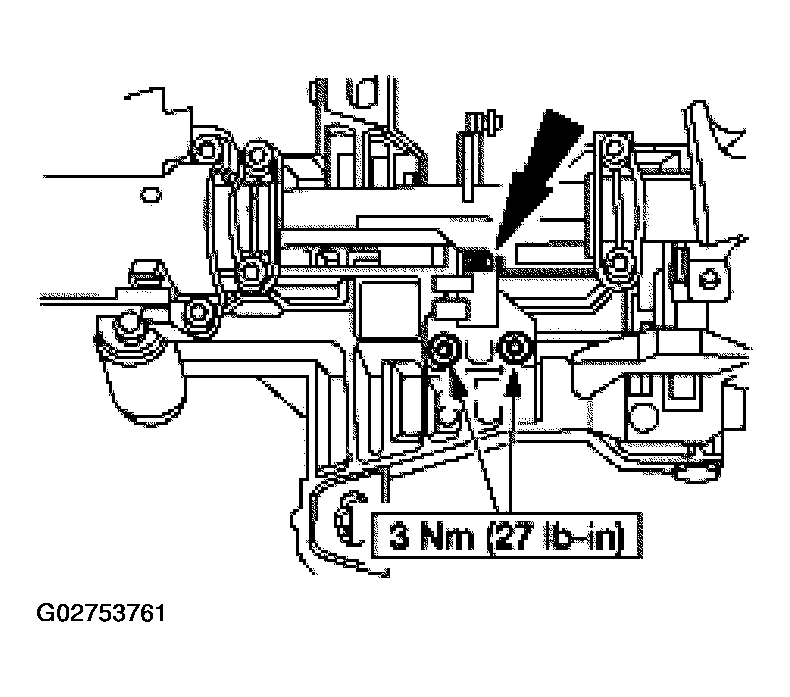

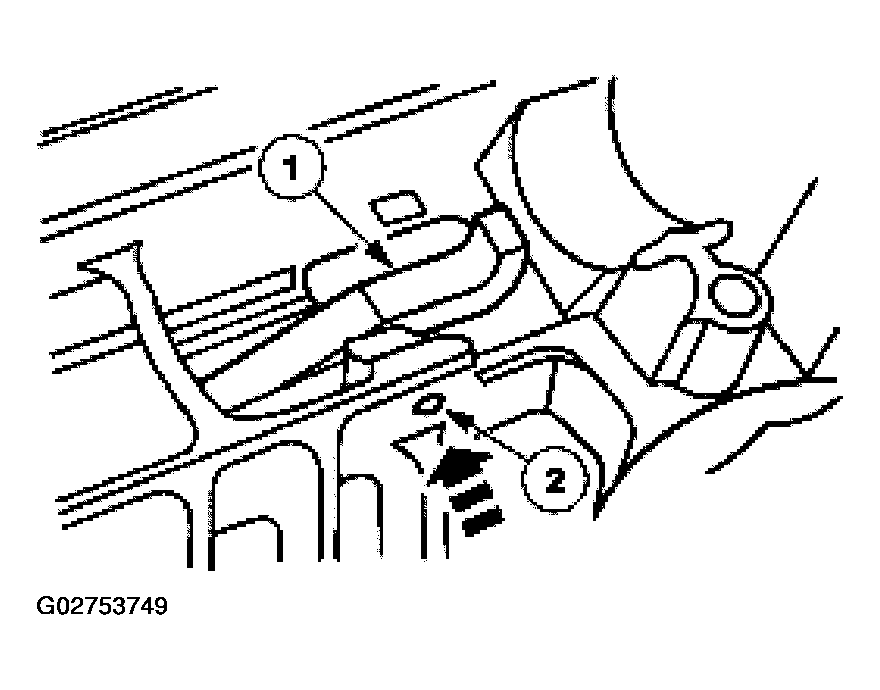

Fig 1: Installing Steering Column Lock Actuators

Courtesy of FORD MOTOR CO.

Install the steering column lock pawl.

1. Position the steering column lock pawl.
2. Drive in the steering column lock lever pin.

Fig 2: Installing Steering Column Lock Pawl

Courtesy of FORD MOTOR CO.

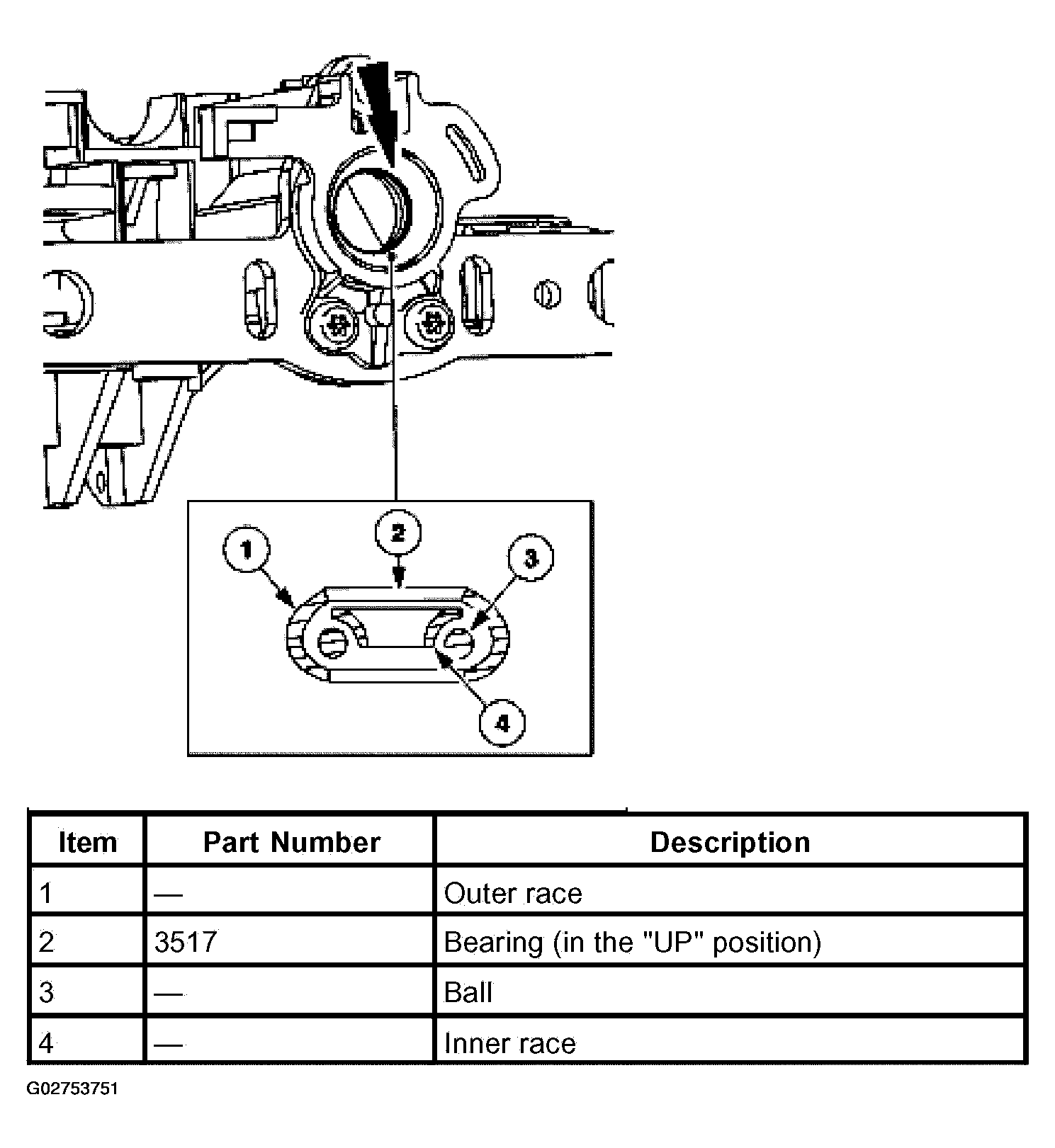

Install the steering column lower bearing retainer.

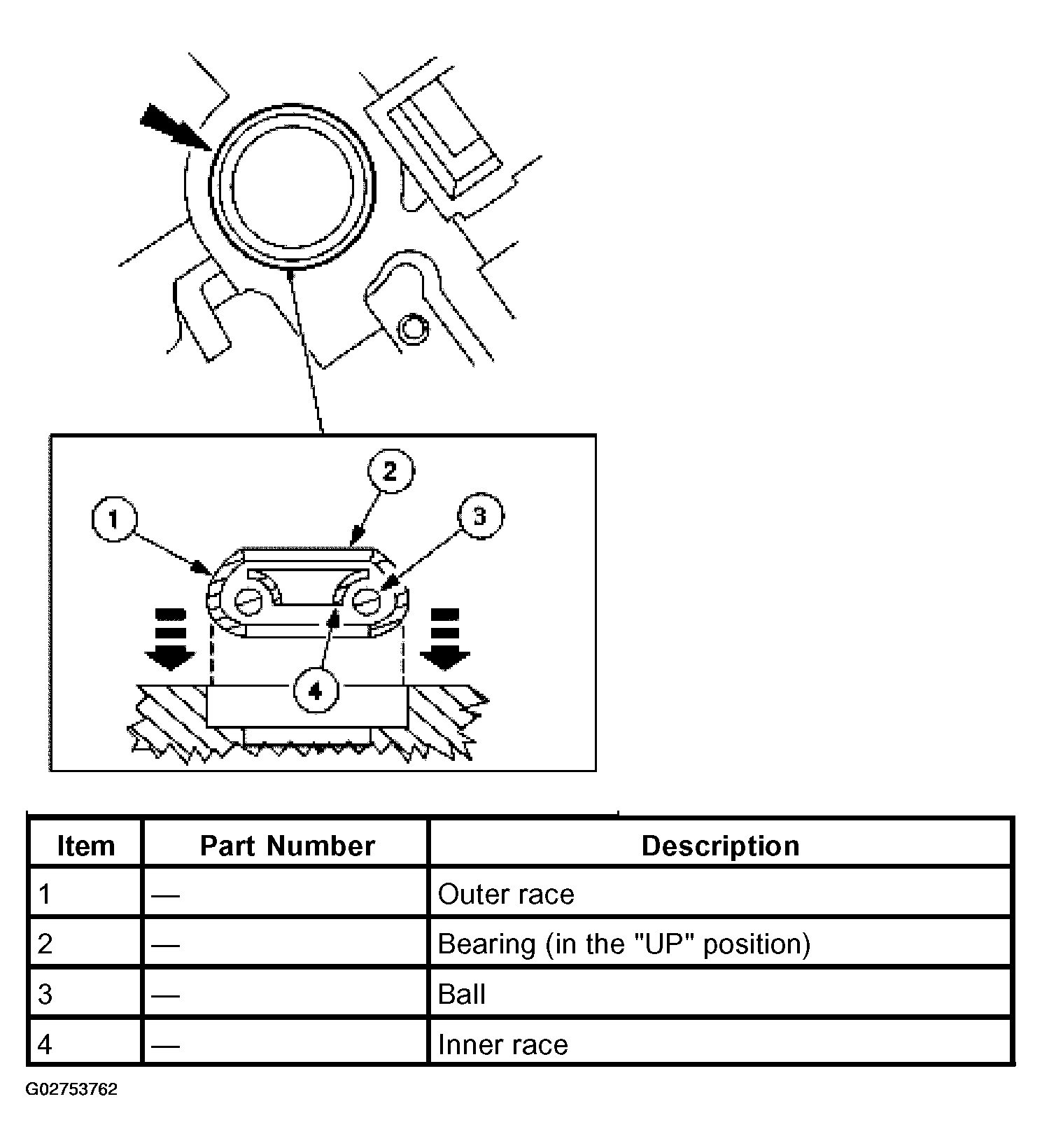

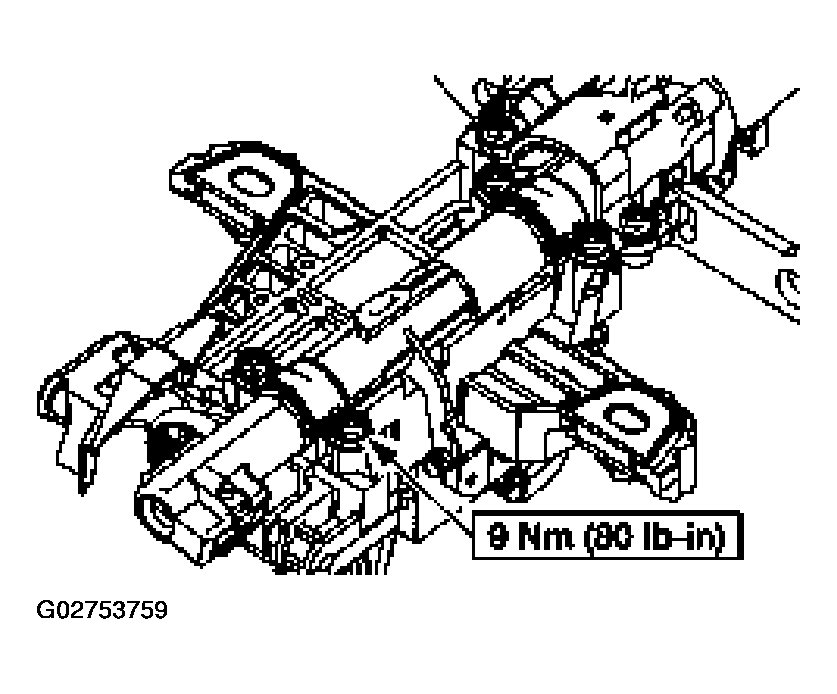

Fig 3: Installing Steering Column Lower Bearing Retainer

Courtesy of FORD MOTOR CO.

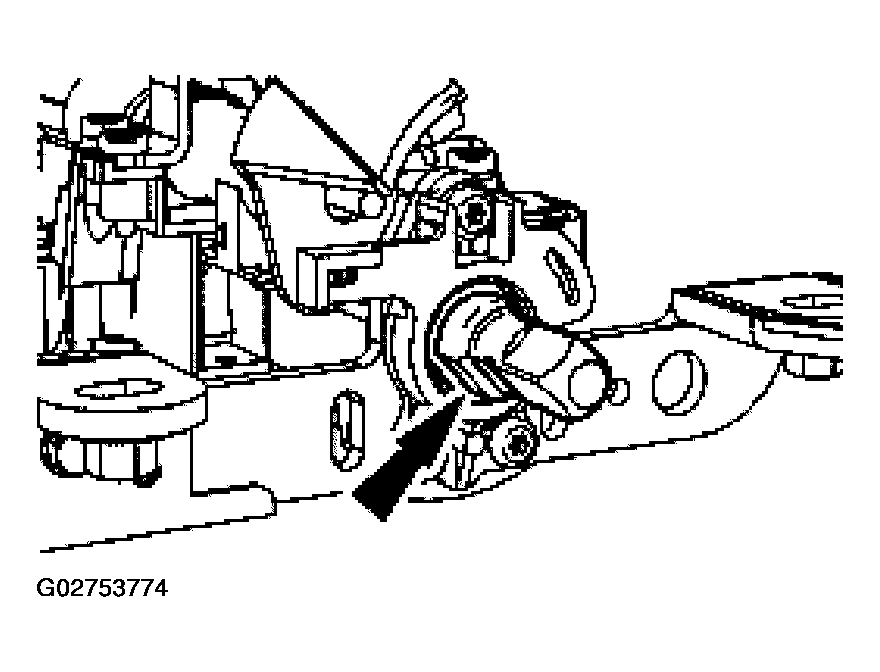

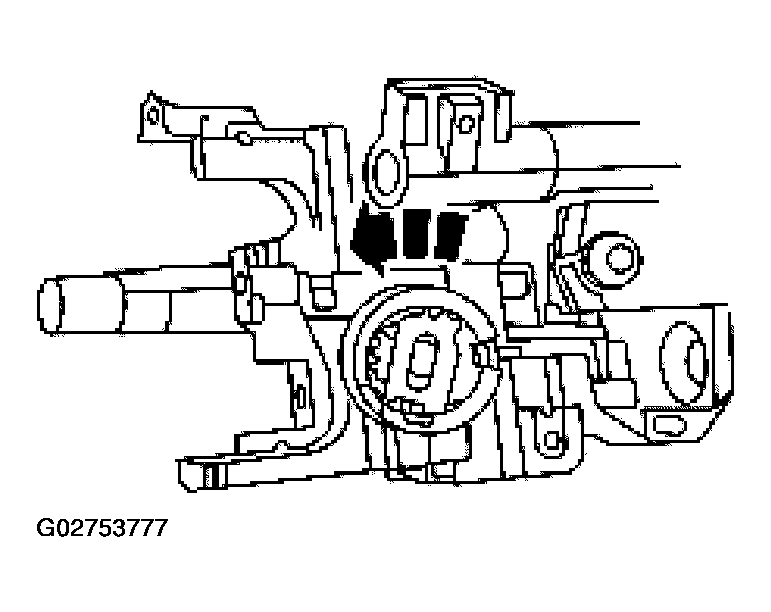

Fig 4: Installing Steering Column Bearing And Sleeve

Courtesy of FORD MOTOR CO.

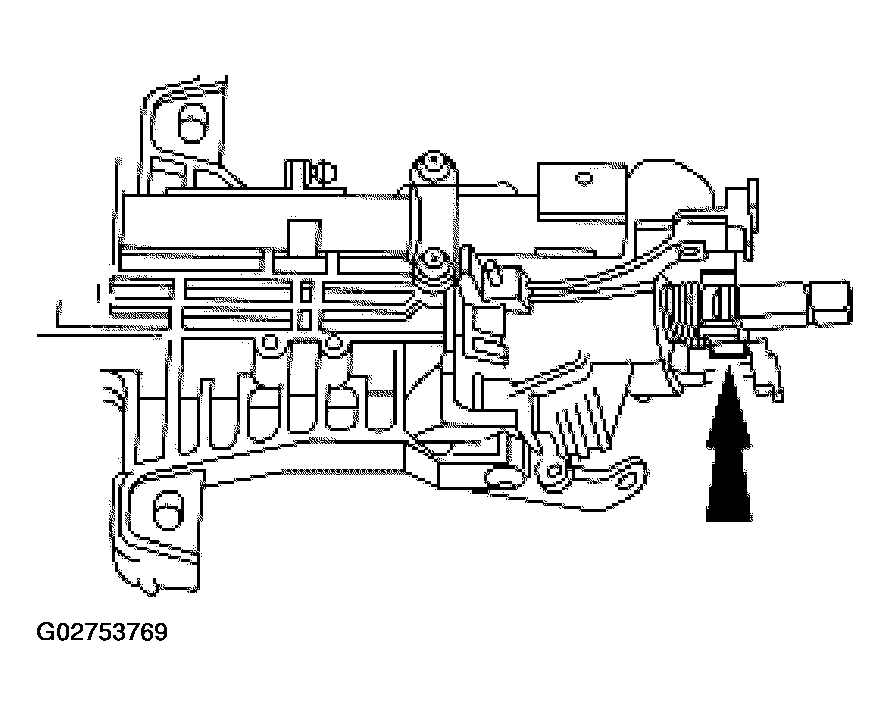

Install the ignition switch, aligning the ignition switch with the slot and index mark on the steering column.

• Install the bolts.

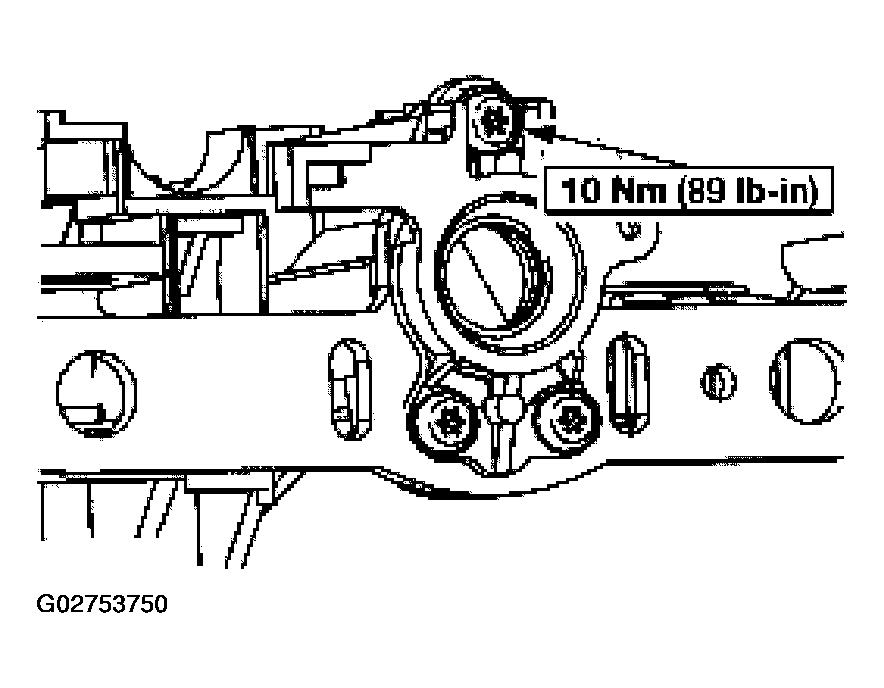

Fig 5: Installing Ignition Switch

Courtesy of FORD MOTOR CO.

VEHICLES WITH COLUMN SHIFT

Install the transmission control selector lever spring clip and the gearshift lever socket bushings on the shift tube.

• Coat the gearshift lever socket bushings with long-life grease.

Fig 6: Installing Transmission Control Selector Lever Spring Clip And Gearshift Lever Socket Bushings On Shift Tube

Courtesy of FORD MOTOR CO.

Install the column shift selector lever plunger.

• Coat the column shift selector plunger with long-life grease.

Fig 7: Installing Column Shift Selector Lever Plunger

Courtesy of FORD MOTOR CO.

Position the gearshift lever in the shift tube.

Fig 8: Installing Gearshift Lever In Shift Tube

Courtesy of FORD MOTOR CO.

Fig 9: Installing Gearshift Lever Pin In Shift Tube

Courtesy of FORD MOTOR CO.

Install the gearshift selector tube spring in the shift tube.

• Coat the end of the spring with long-life grease.

Fig 10: Installing Gearshift Selector Tube Spring In Shift Tube

Courtesy of FORD MOTOR CO.

Install the transmission selector lever arm and support on the shift tube.

1. Position the transmission selector lever arm and support.
2. Install the bolts.

Fig 11: Assembling Transmission Selector Lever Arm And Support

Courtesy of FORD MOTOR CO.

Install the shift tube and clamps.

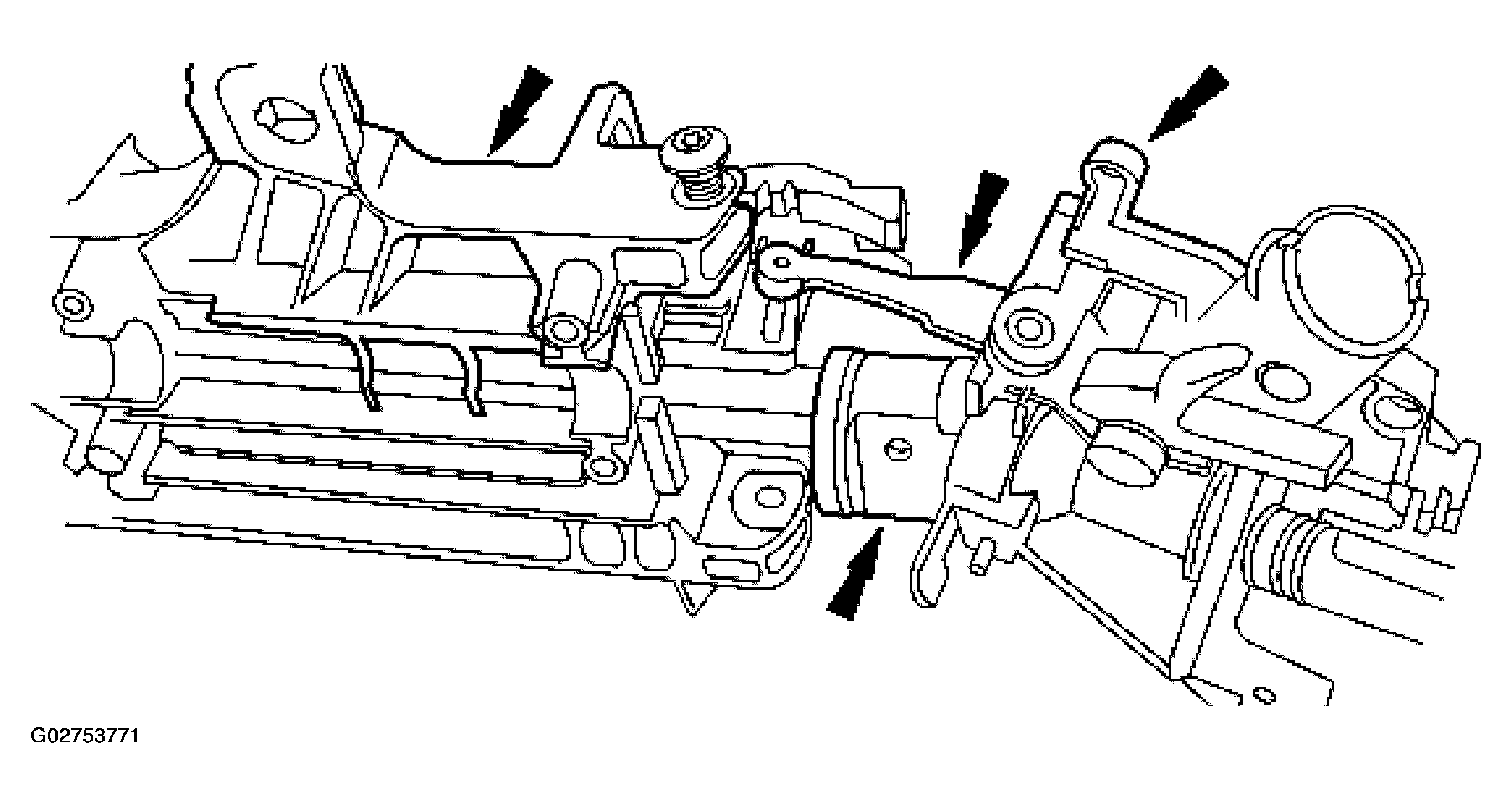

Fig 12: Installing Shift Tube And Clamps

Courtesy of FORD MOTOR CO.

Position the brake shift interlock solenoid and install the bolts.

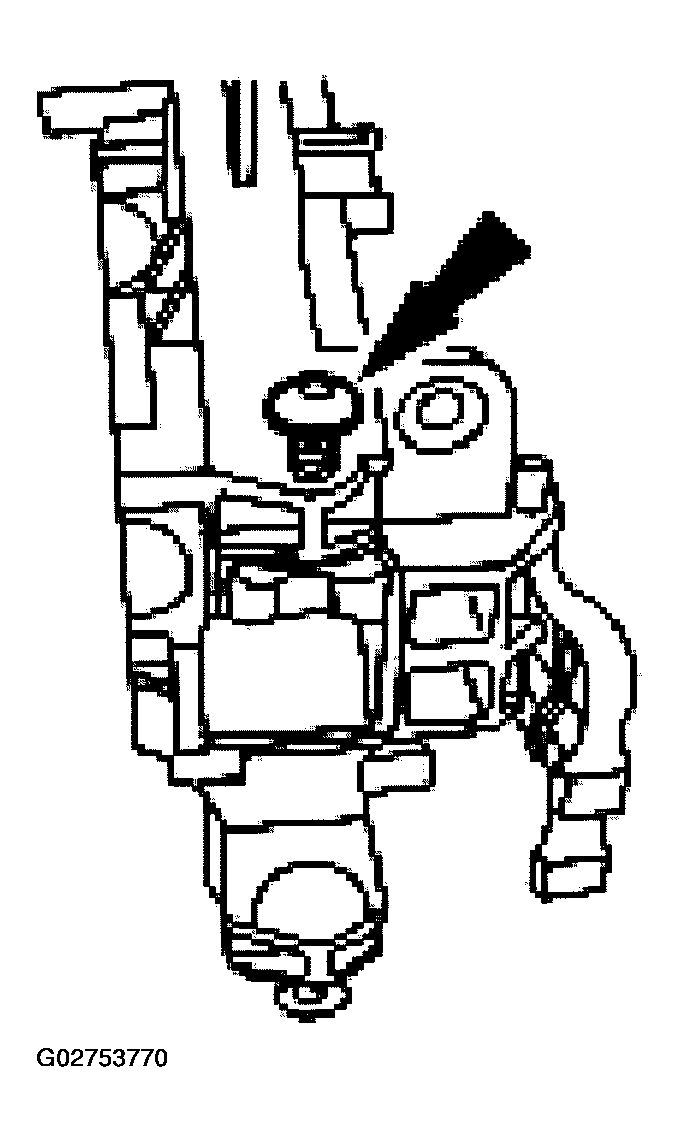

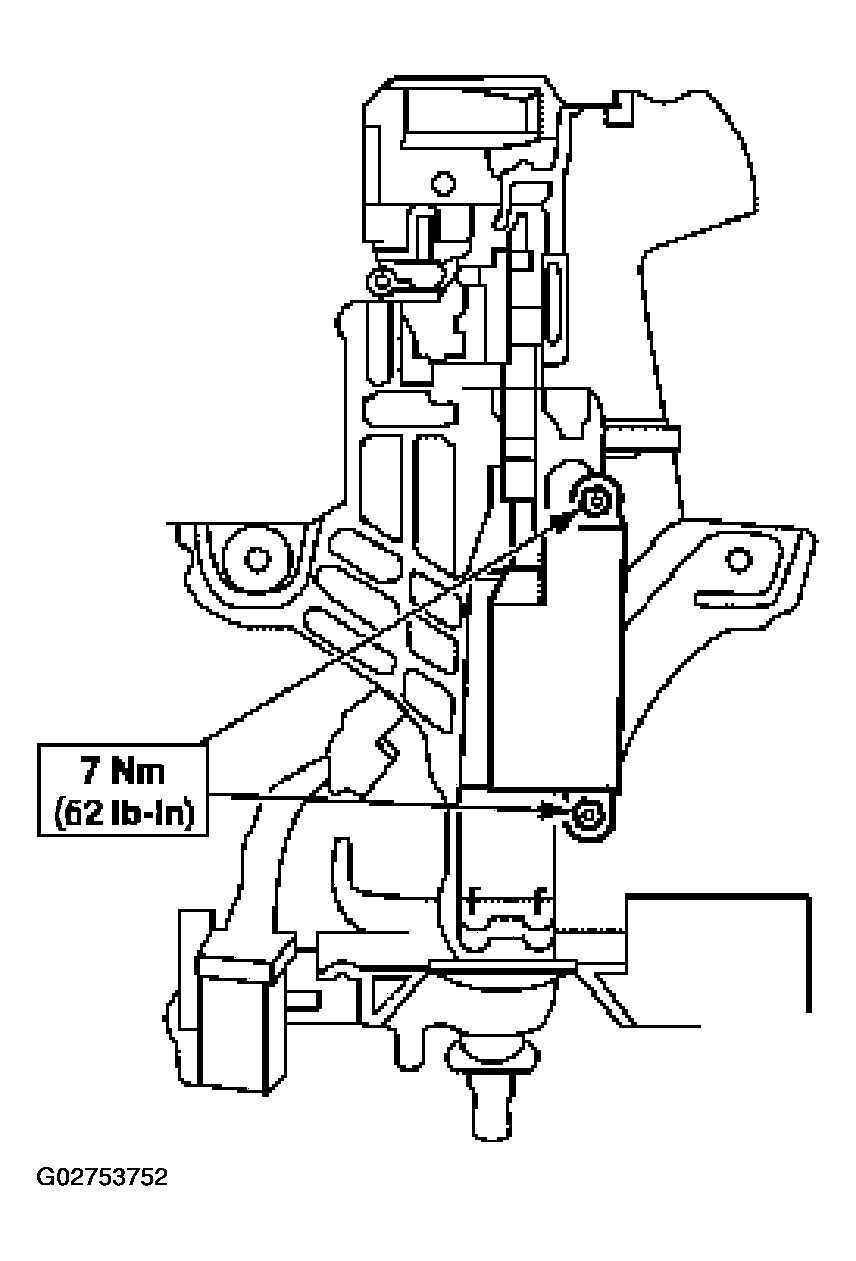

Fig 13: Assembling Brake Shift Interlock Solenoid And Bolts

Courtesy of FORD MOTOR CO.

Install the parking brake release switch and screws.

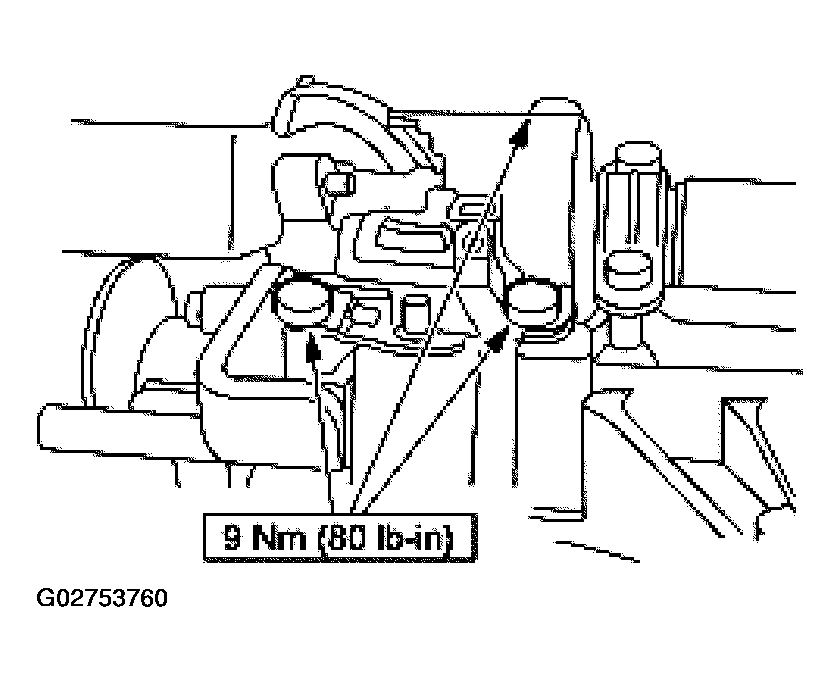

Fig 14: Installing Parking Brake Release Switch And Screws

Courtesy of FORD MOTOR CO.

ALL COLUMNS

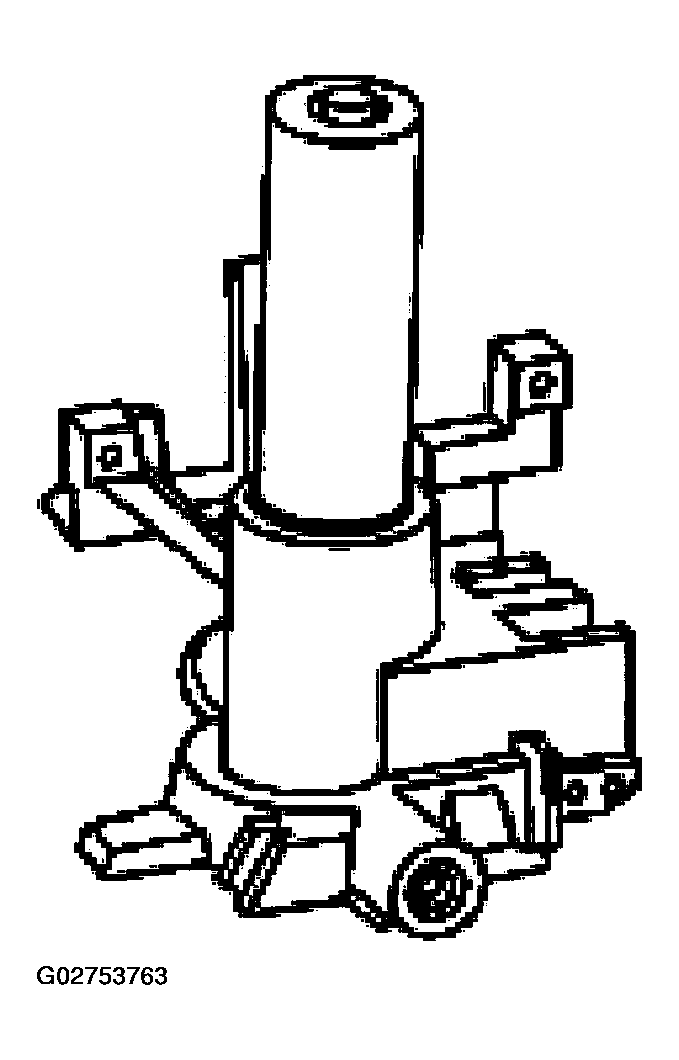

Fig 15: Installing Steering Column Upper Bearing In Steering Column Lock Cylinder Housing

Courtesy of FORD MOTOR CO.

Using an appropriate bearing installer or socket, install the upper steering column bearing on the steering column lock cylinder housing.

Fig 16: Installing Upper Steering Column Bearing On Steering Column Lock Cylinder Housing

Courtesy of FORD MOTOR CO.

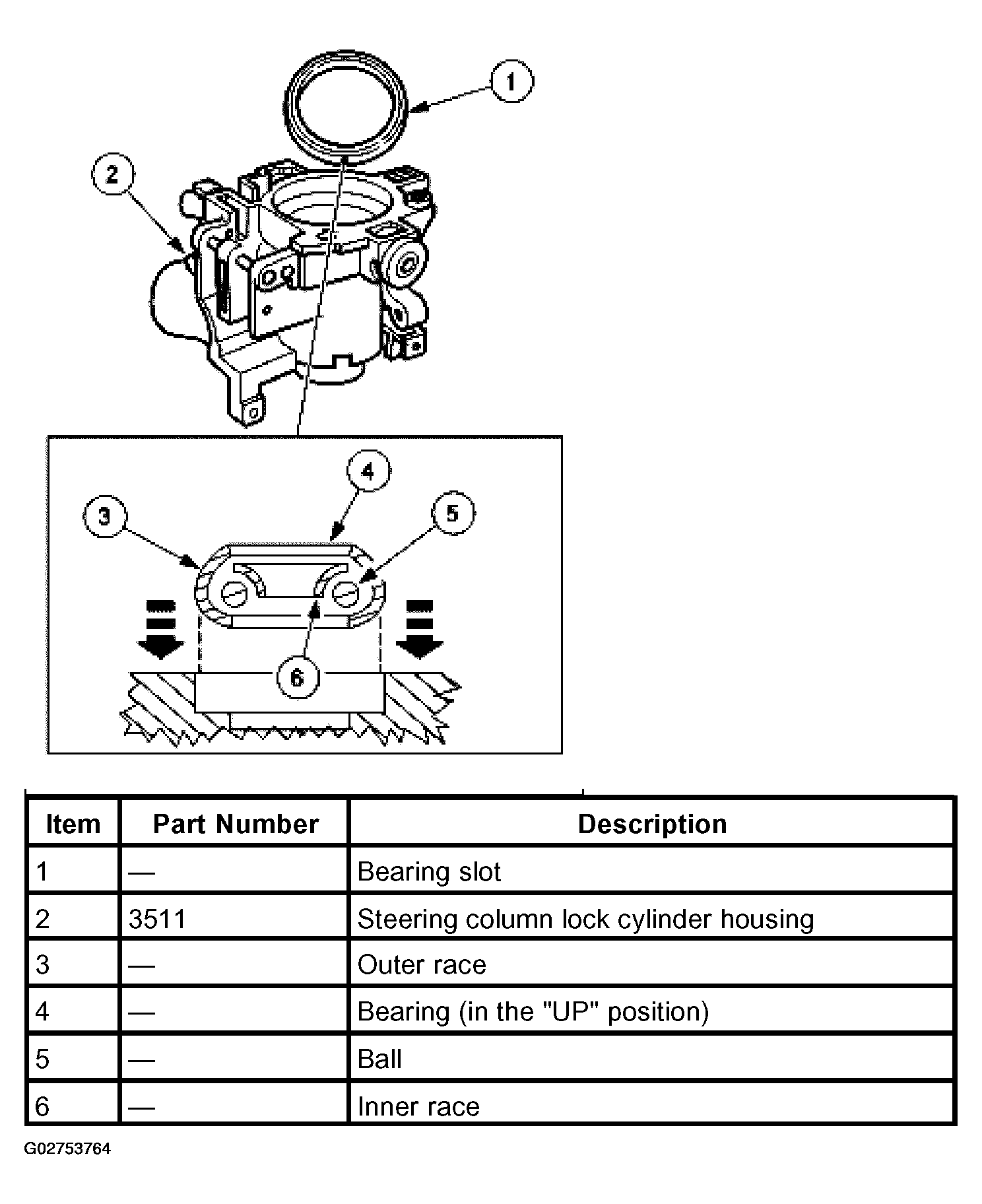

Fig 17: Installing Steering Column Lower Bearing In Steering Column Lock Cylinder Housing

Courtesy of FORD MOTOR CO.

Position the steering column shaft in the steering column lock cylinder housing.

• Install the steering column bearing tolerance ring on the steering column shaft.

Fig 18: Installing Steering Column Bearing Tolerance Ring On Steering Column Shaft

Courtesy of FORD MOTOR CO.

Install the steering column bearing sleeve.

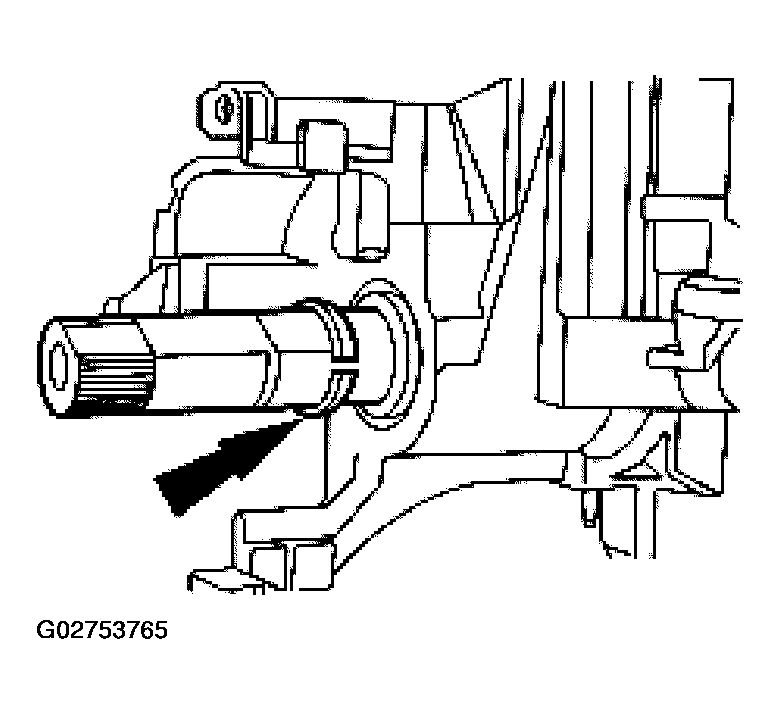

Fig 19: Installing Steering Column Bearing Sleeve

Courtesy of FORD MOTOR CO.

Install the steering column bearing spring (3C674).

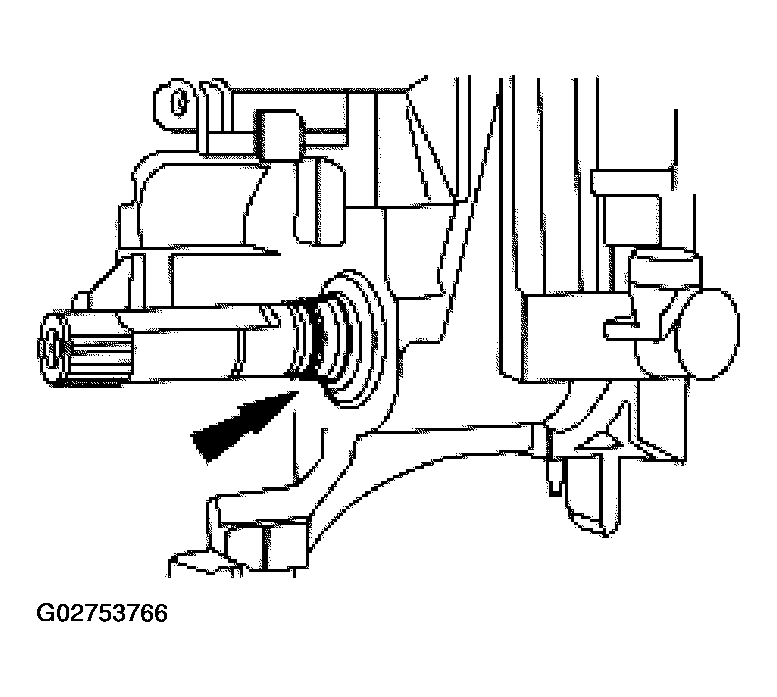

Fig 20: Installing Steering Column Bearing Spring

Courtesy of FORD MOTOR CO.

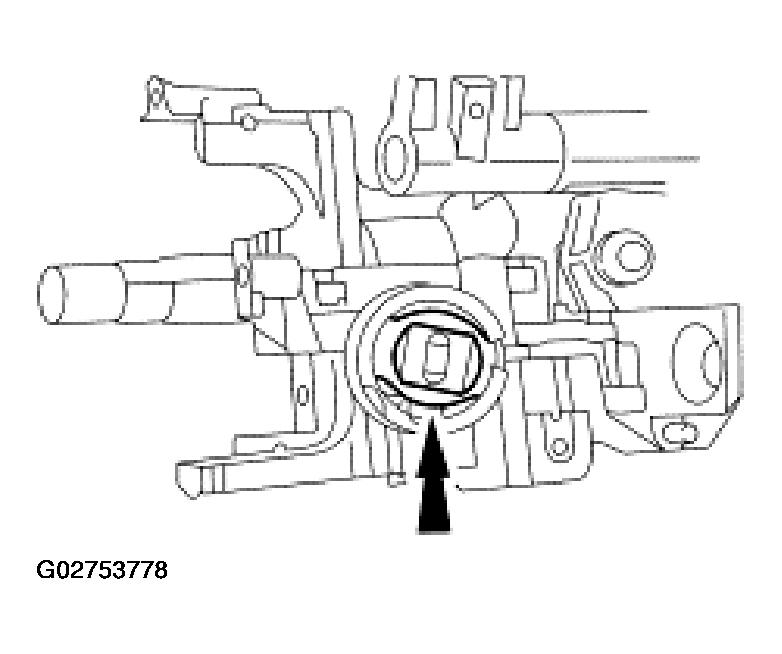

Install the snap ring.

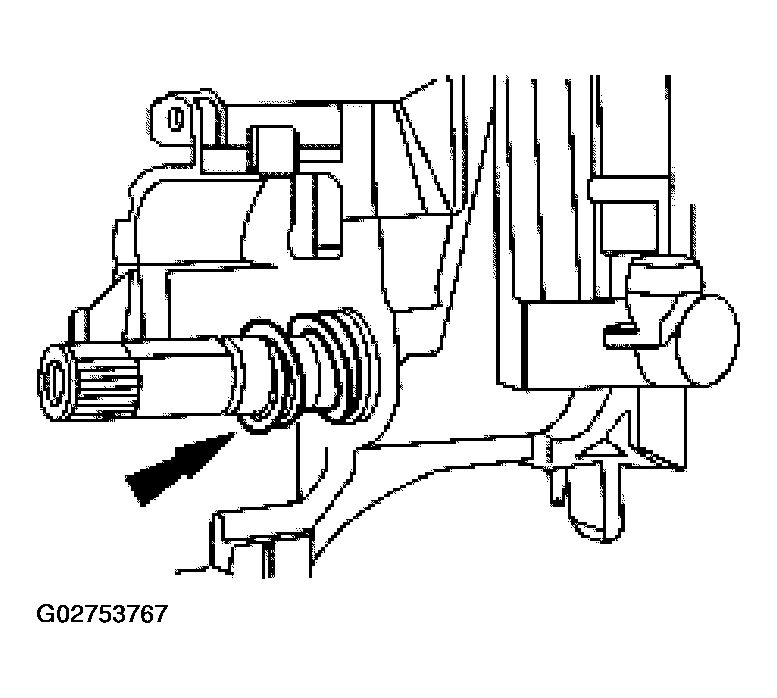

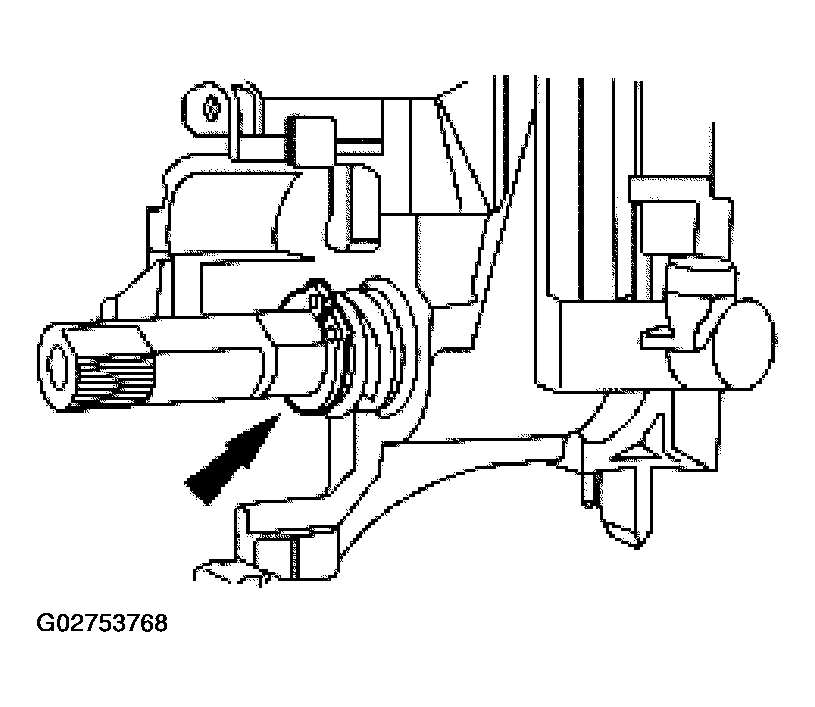

Fig 21: Installing Snap Ring

Courtesy of FORD MOTOR CO.

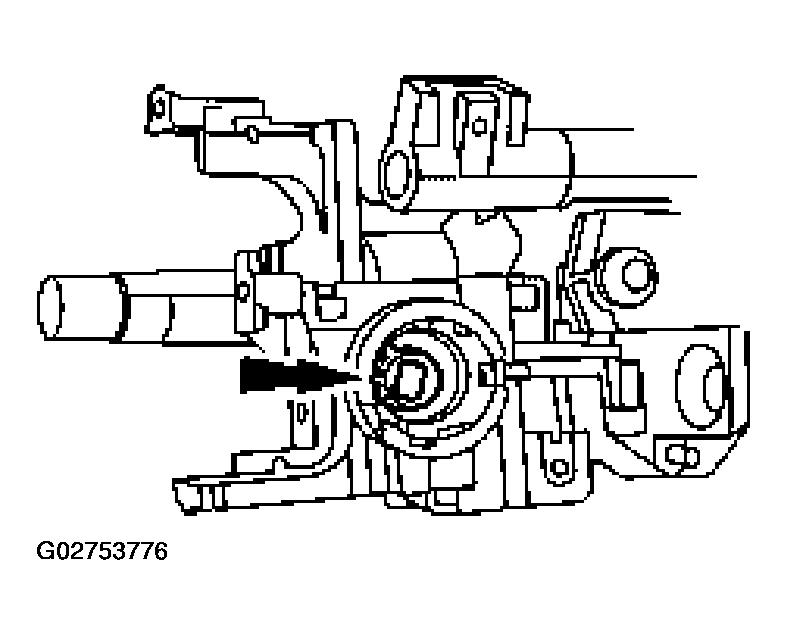

Install the turn indicator cancel cam.

Fig 22: Installing Turn Indicator Cancel Cam

Courtesy of FORD MOTOR CO.

Install the lock cylinder housing screws loosely and position the steering actuator housing in a vise.

Fig 23: Installing Lock Cylinder Housing Screws

Courtesy of FORD MOTOR CO.

Position the steering column lock cylinder housing and the steering column shaft on the steering actuator housing.

• Make sure the upper and lower steering column lock actuators are aligned.

Fig 24: Inspecting Upper And Lower Steering Column Lock Actuators Alignment

Courtesy of FORD MOTOR CO.

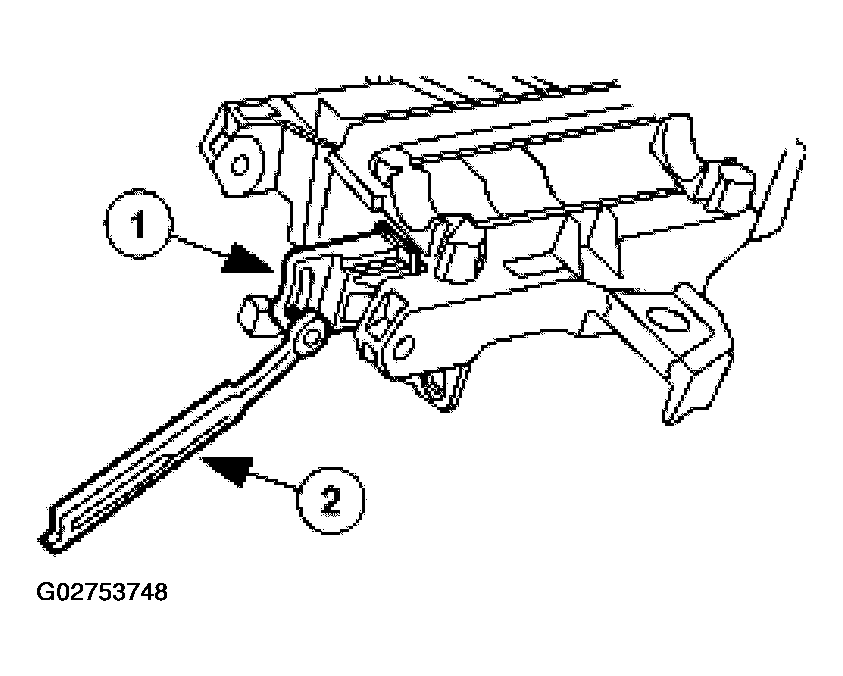

Position the steering column locking levers on the steering actuator housing.

1. Use a shop fabricated tool.
2. On tilt steering columns, install and compress the steering column position spring.

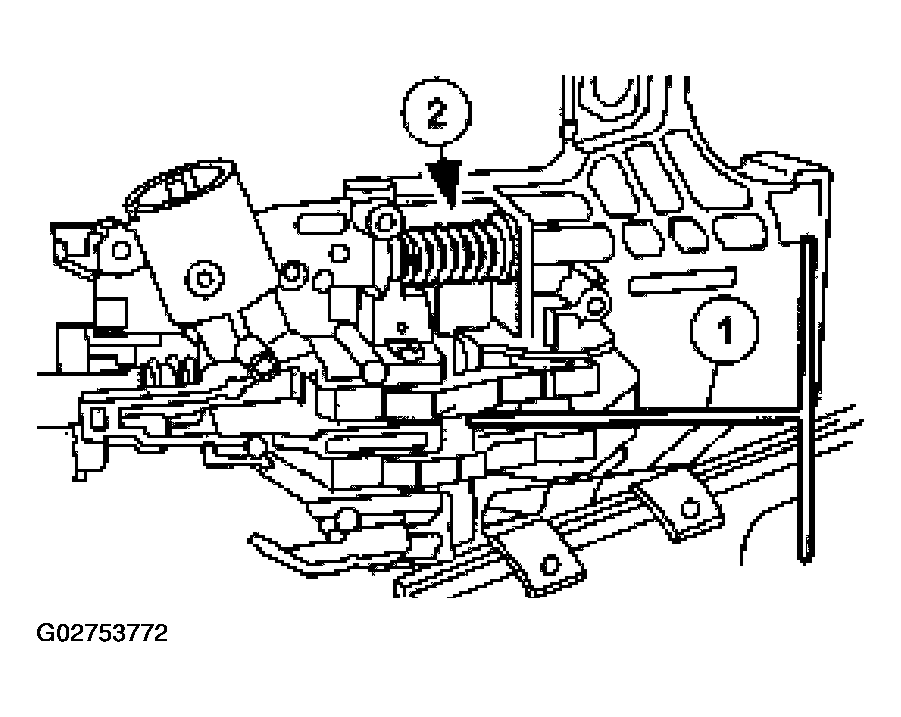

Fig 25: Installing Steering Column Position Spring

Courtesy of FORD MOTOR CO.

Position the lock cylinder housing and steering actuator housing, and tighten the lock cylinder housing screws.

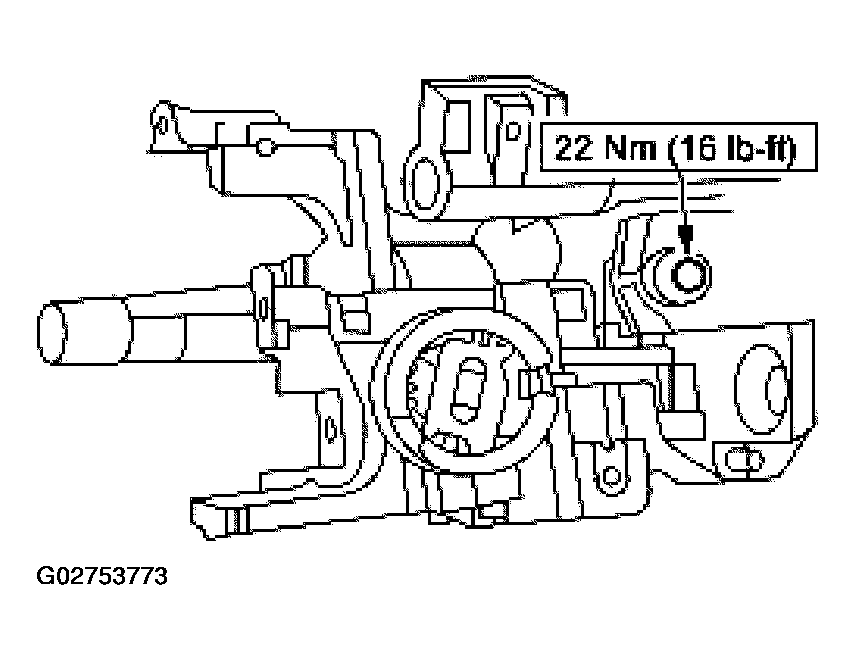

Fig 26: Installing Lock Cylinder Housing And Steering Actuator Housing

Courtesy of FORD MOTOR CO.

Install the steering column bearing tolerance ring.

Fig 27: Installing Steering Column Bearing Tolerance Ring

Courtesy of FORD MOTOR CO.

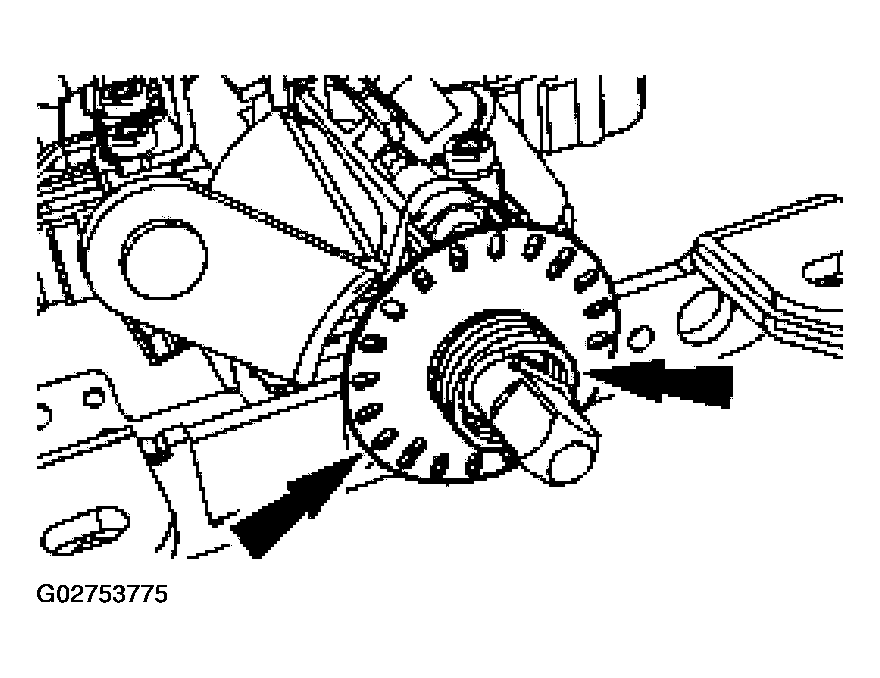

Install the sensor ring and spring.

Fig 28: Installing Sensor Ring And Spring

Courtesy of FORD MOTOR CO.

Fig 29: Installing Steering Column Lock Gear

Courtesy of FORD MOTOR CO.

Install the steering column lock housing bearing.

• While the narrow section of the keyhole is at the one o'clock position and the tab inboard at the three o'clock position, rotate it counterclockwise.
• Lubricate the steering column lock housing bearing with ignition lock grease.

Fig 30: Installing Steering Column Lock Housing Bearing

Courtesy of FORD MOTOR CO.

Install the steering column upper bearing retainer firmly to engage the four retention tabs into the lock housing.

Fig 31: Installing Steering Column Upper Bearing Retainer
