Connector Views

Fig 1: A/C Clutch Field Coil Connector End View (C100)

G07835877

Courtesy of FORD MOTOR CO.

Fig 2: Crankshaft Position Sensor Connector End View (C101)

G07835878

Courtesy of FORD MOTOR CO.

Fig 3: Generator Connector End View (C102a)

G07835879

Courtesy of FORD MOTOR CO.

Fig 4: Generator Connector End View (C102b)

G07835880

Courtesy of FORD MOTOR CO.

Fig 5: Generator Connector End View (C102c)

G07835881

Courtesy of FORD MOTOR CO.

Fig 6: Oil Pressure Sensor Connector End View (C103)

G07835882

Courtesy of FORD MOTOR CO.

Fig 7: Engine Oil Temperature (EOT) Sensor Connector End View (C104)

G07835883

Courtesy of FORD MOTOR CO.

Fig 8: A/C Clutch Relay Connector End View (C105)

G07835884

Courtesy of FORD MOTOR CO.

Fig 9: Injection Pressure Sensor Connector End View (C106)

G07835885

Courtesy of FORD MOTOR CO.

Fig 10: Knock Sensor Connector End View (C108)

G07835886

Courtesy of FORD MOTOR CO.

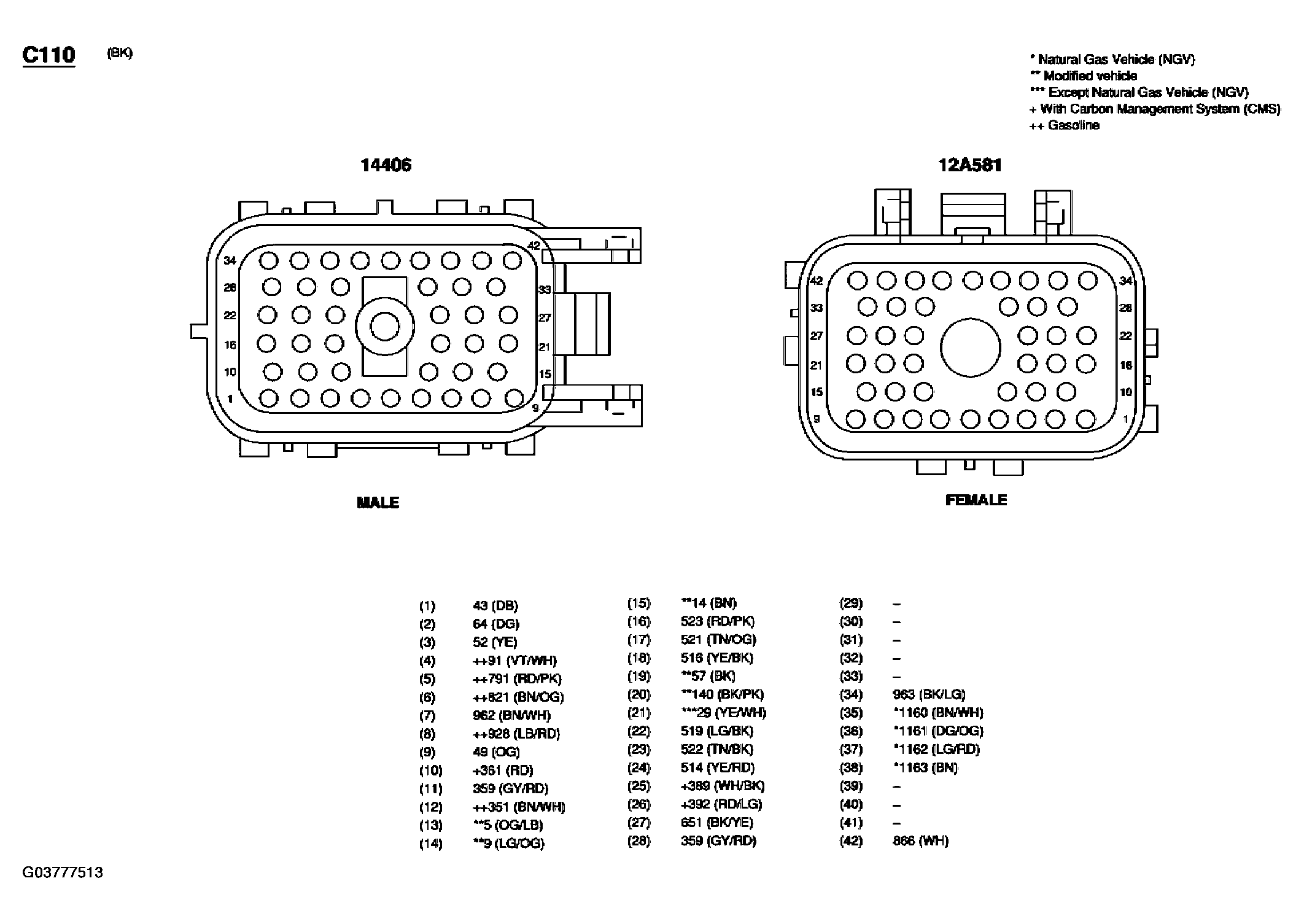

Fig 11: Inline Connector End View (C110)

G03777513

Courtesy of FORD MOTOR CO.

Fig 12: Coil On Plug (COP) 1 Connector End View (C111)

G07835887

Courtesy of FORD MOTOR CO.

Fig 13: Coil On Plug (COP) 2 Connector End View (C112)

G07835888

Courtesy of FORD MOTOR CO.

Fig 14: Coil On Plug (COP) 3 Connector End View (C113)

G07835889

Courtesy of FORD MOTOR CO.

Fig 15: Coil On Plug (COP) 4 Connector End View (C114)

G07835890

Courtesy of FORD MOTOR CO.

Fig 16: Coil On Plug (COP) 5 Connector End View (C115)

G07835891

Courtesy of FORD MOTOR CO.

Fig 17: Coil On Plug (COP) 6 Connector End View (C116)

G07835892

Courtesy of FORD MOTOR CO.

Fig 18: Coil On Plug (COP) 7 Connector End View (C117)

G07835893

Courtesy of FORD MOTOR CO.

Fig 19: Coil On Plug (COP) 8 Connector End View (C118)

G07835894

Courtesy of FORD MOTOR CO.

Fig 20: Trailer Tow Relay, Right Turn Connector End View (C119)

G07835895

Courtesy of FORD MOTOR CO.

Fig 21: Trailer Tow Relay, Right Turn Connector End View (C119)

G07835896

Courtesy of FORD MOTOR CO.

Fig 22: Reversing Lamp Relay Connector End View (C121)

G07835897

Courtesy of FORD MOTOR CO.

Fig 23: Speed Control Servo Connector End View (C122)

G07835898

Courtesy of FORD MOTOR CO.

Fig 24: EVAP Canister Purge Valve Connector End View (C123)

G07835899

Courtesy of FORD MOTOR CO.

Fig 25: Brake Fluid Level Switch Connector End View (C124)

G07835900

Courtesy of FORD MOTOR CO.

Fig 26: Windshield Wiper Motor Connector End View (C125)

G07835901

Courtesy of FORD MOTOR CO.

Fig 27: Inline Connector End View (C127)

G07835902

Courtesy of FORD MOTOR CO.

Fig 28: Mass Air Flow (MAF) Sensor Connector End View (C128)

G07835903

Courtesy of FORD MOTOR CO.

Fig 29: A/C Clutch Cycling Pressure Switch Connector End View (C130)

G07835904

Courtesy of FORD MOTOR CO.

Fig 30: Inline Connector End View (C131)

G07835905

Courtesy of FORD MOTOR CO.

Fig 31: Ambient Air Temperature Sensor Connector End View (C132)

G07835906

Courtesy of FORD MOTOR CO.

Fig 32: Inline Connector End View (C133)

G07835907

Courtesy of FORD MOTOR CO.

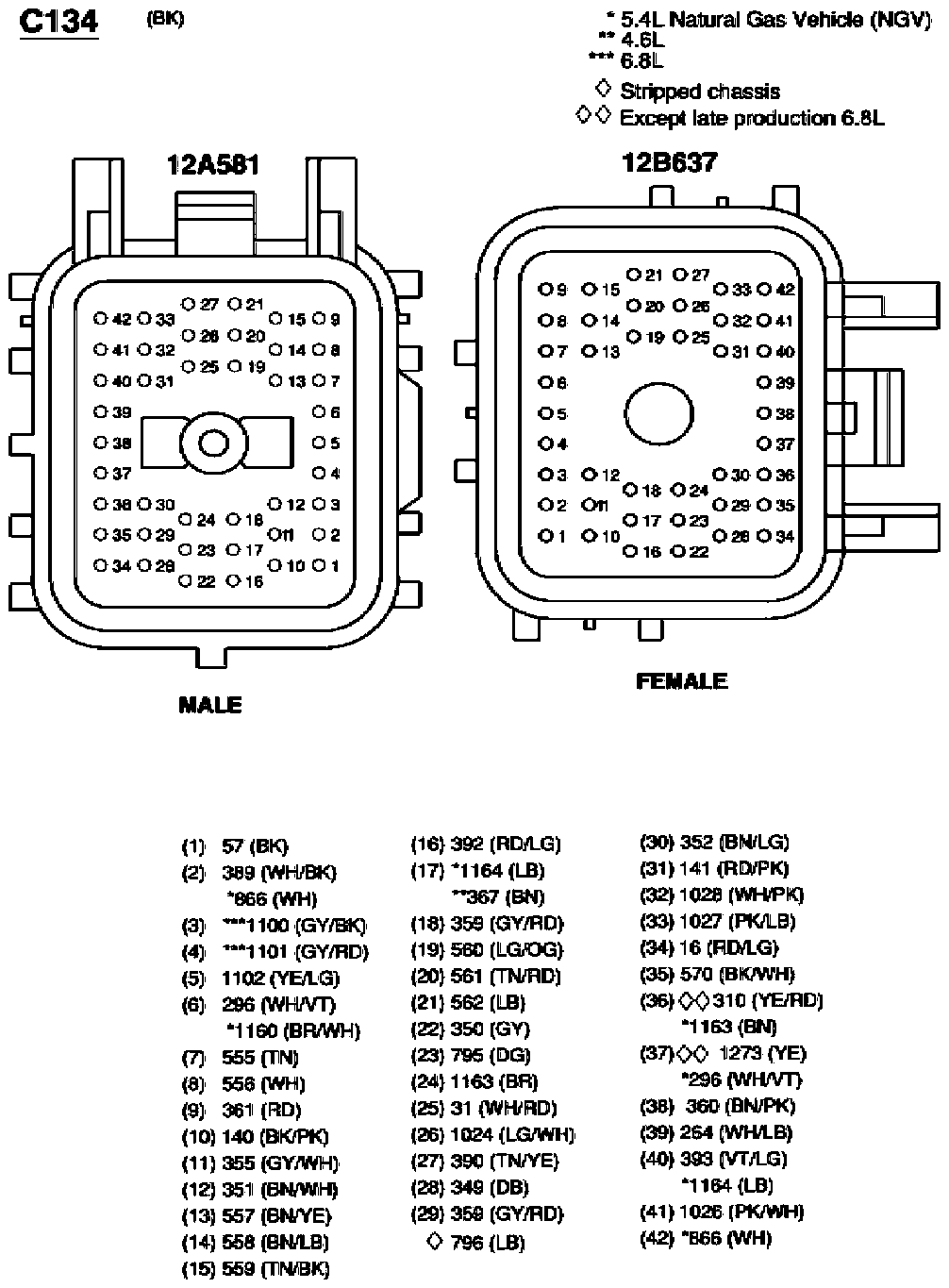

Fig 33: Inline Connector End View (C134)

G07835908

Courtesy of FORD MOTOR CO.

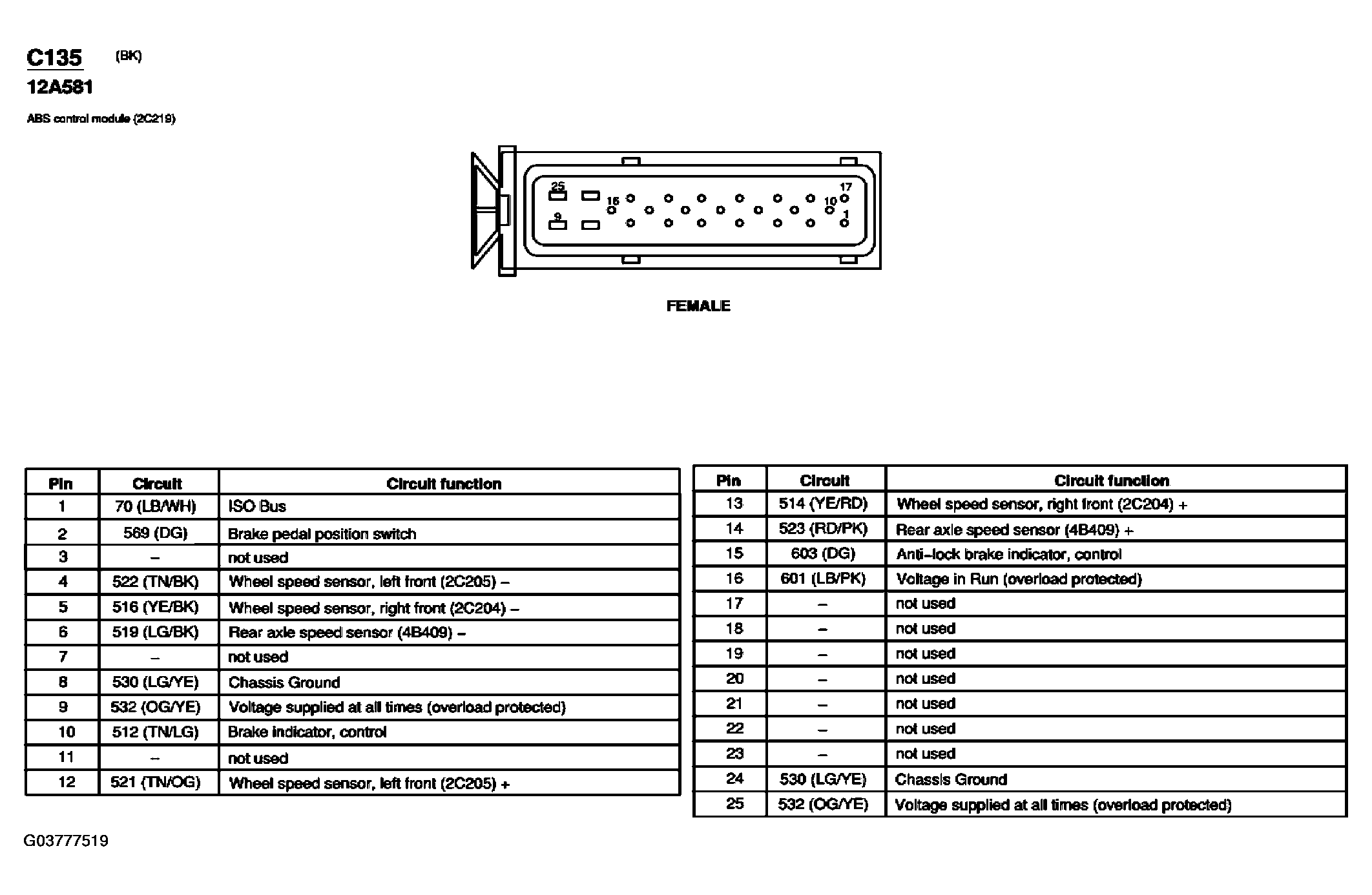

Fig 34: ABS Control Module Connector End View (C135)

G03777519

Courtesy of FORD MOTOR CO.

Fig 35: Injector Pressure Sensor Connector End View (C136)

G07835909

Courtesy of FORD MOTOR CO.

Fig 36: Windshield Washer Pump Motor Connector End View (C137)

G07835910

Courtesy of FORD MOTOR CO.

Fig 37: Heated Positive Crankcase Ventilation (PCV) Element Connector End View (C138)

G07835911

Courtesy of FORD MOTOR CO.

Fig 38: Inline Connector End View (C139)

G07835912

Courtesy of FORD MOTOR CO.

Fig 39: Inline Connector End View (C140)

G07835913

Courtesy of FORD MOTOR CO.

Fig 40: Heated Oxygen Sensor (Ho2S) #22 Connector End View (C141)

G07835914

Courtesy of FORD MOTOR CO.

Fig 41: Heated Oxygen Sensor (Ho2S) #12 Connector End View (C142)

G07835915

Courtesy of FORD MOTOR CO.

Fig 42: Turbine Shaft Speed (TSS) Sensor Connector End View (C143)

G07835916

Courtesy of FORD MOTOR CO.

Fig 43: Inline Connector End View (C144)

G07835917

Courtesy of FORD MOTOR CO.

Fig 44: Inline Connector End View (C145)

G07835918

Courtesy of FORD MOTOR CO.

Fig 45: Inline Connector End View (C146)

G07835919

Courtesy of FORD MOTOR CO.

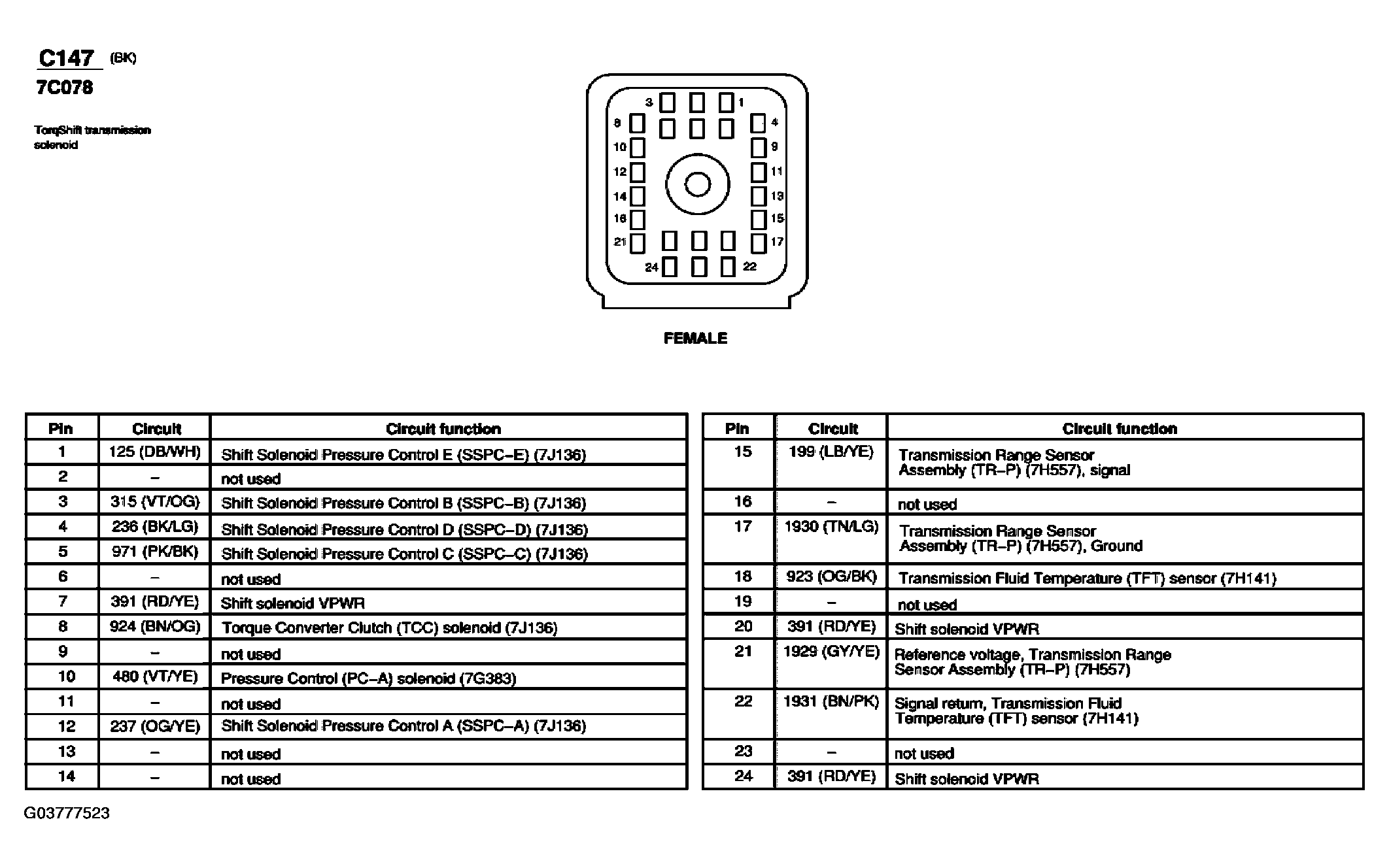

Fig 46: TorqShift Transmission Solenoid Connector End View (C147)

G03777523

Courtesy of FORD MOTOR CO.

Fig 47: Output Shaft Speed (OSS) Sensor Connector End View (C148)

G07835920

Courtesy of FORD MOTOR CO.

Fig 48: Wheel Speed Sensor, Left Front Connector End View (C150)

G07835921

Courtesy of FORD MOTOR CO.

Fig 49: Speed Sensor Assembly Connector End View (C152)

G07835922

Courtesy of FORD MOTOR CO.

Fig 50: Wheel Speed Sensor, Right Front Connector End View (C160)

G07835923

Courtesy of FORD MOTOR CO.

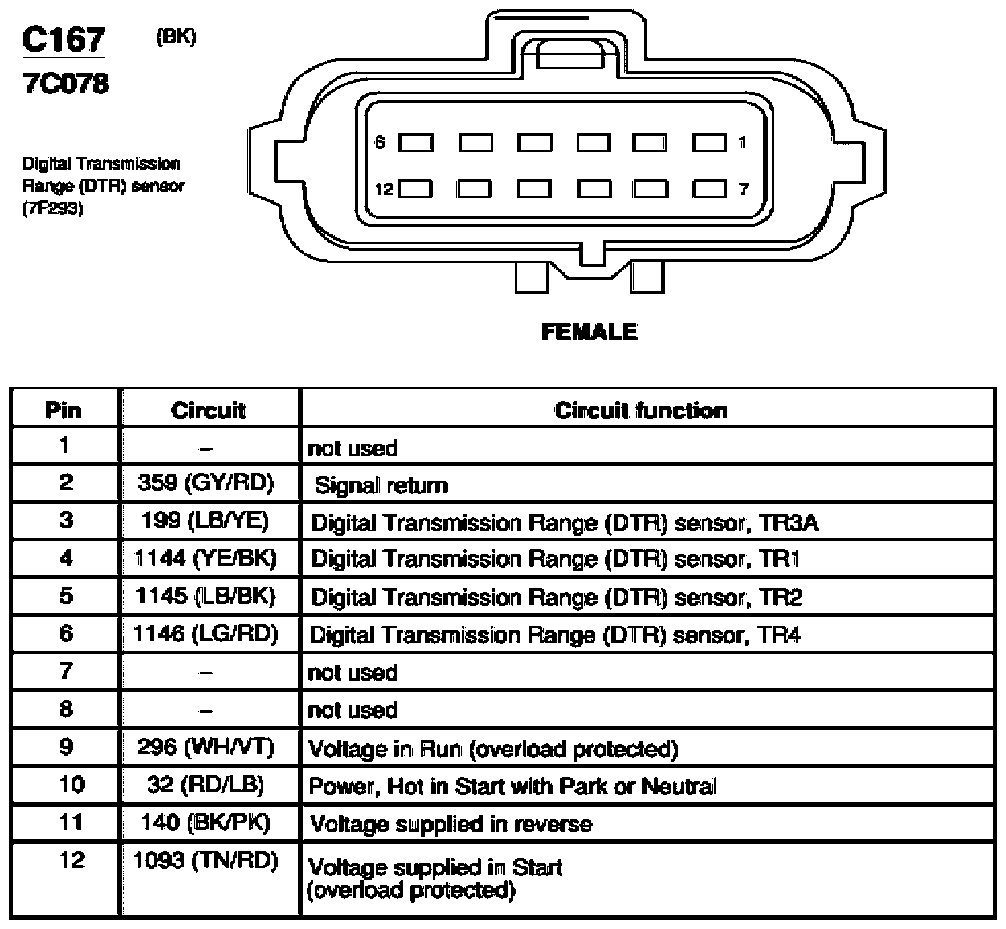

Fig 51: Digital Transmission Range (DTR) Sensor Connector End View (C167)

G07835924

Courtesy of FORD MOTOR CO.

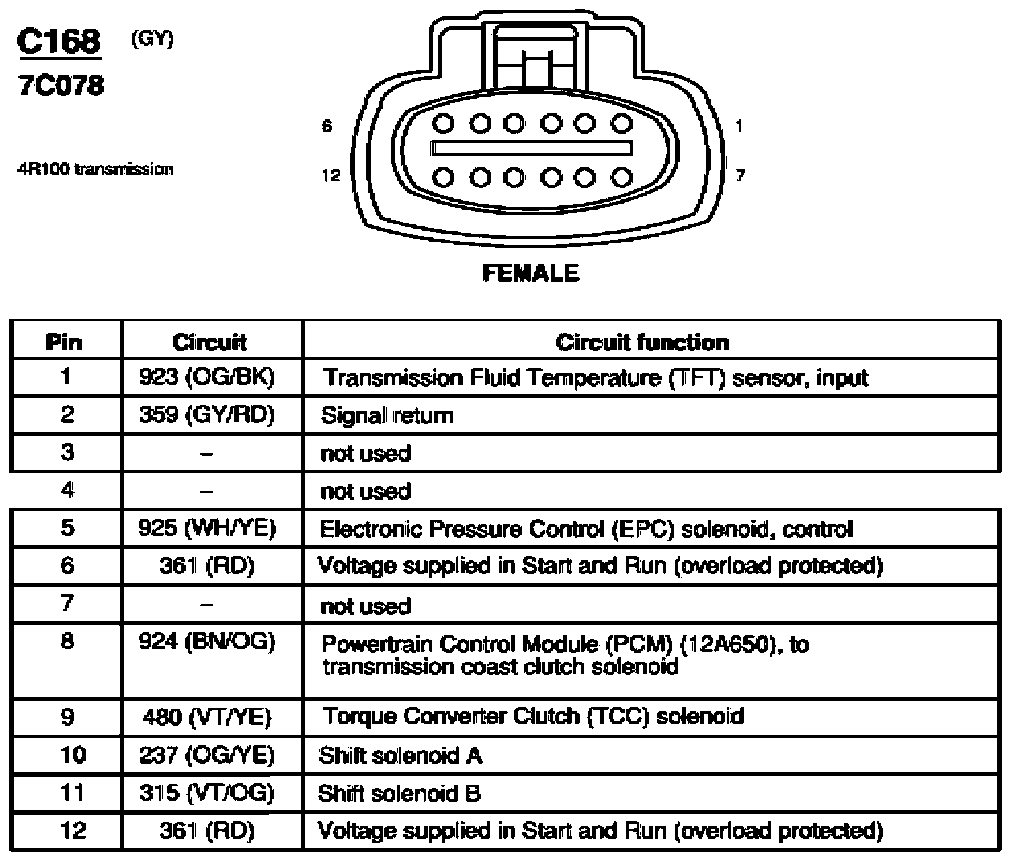

Fig 52: 4R100 Transmission Connector End View (C168)

G07835925

Courtesy of FORD MOTOR CO.

Fig 53: Heated Oxygen Sensor (Ho2S) #11 Connector End View (C171)

G07835926

Courtesy of FORD MOTOR CO.

Fig 54: Heated Oxygen Sensor (Ho2S) #21 Connector End View (C172)

G07835927

Courtesy of FORD MOTOR CO.

Fig 55: Ignition Transformer Capacitor 1 Connector End View (C174)

G07835928

Courtesy of FORD MOTOR CO.

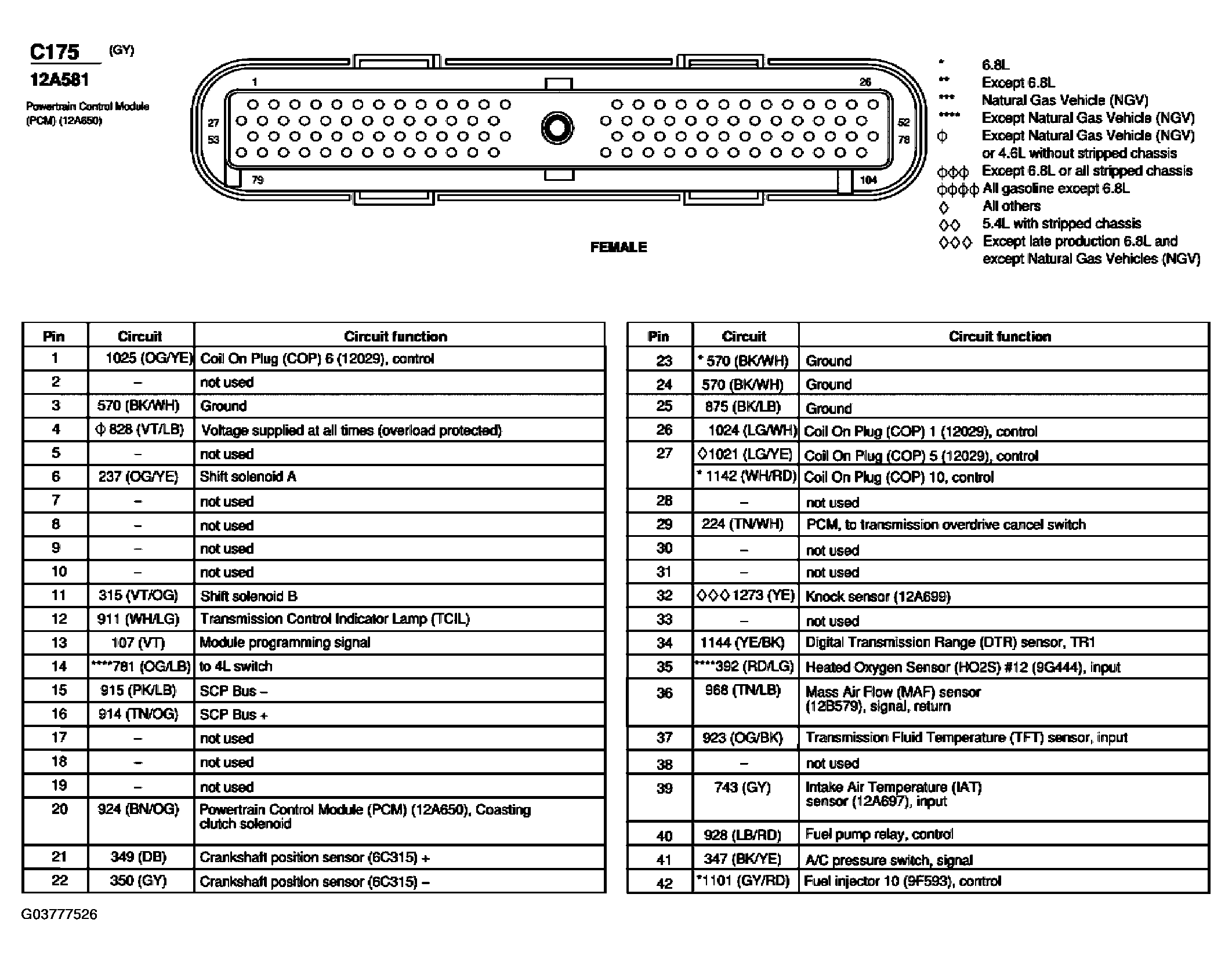

Fig 56: Powertrain Control Module (PCM) Connector End View (C175) (1 Of 3)

G03777526

Courtesy of FORD MOTOR CO.

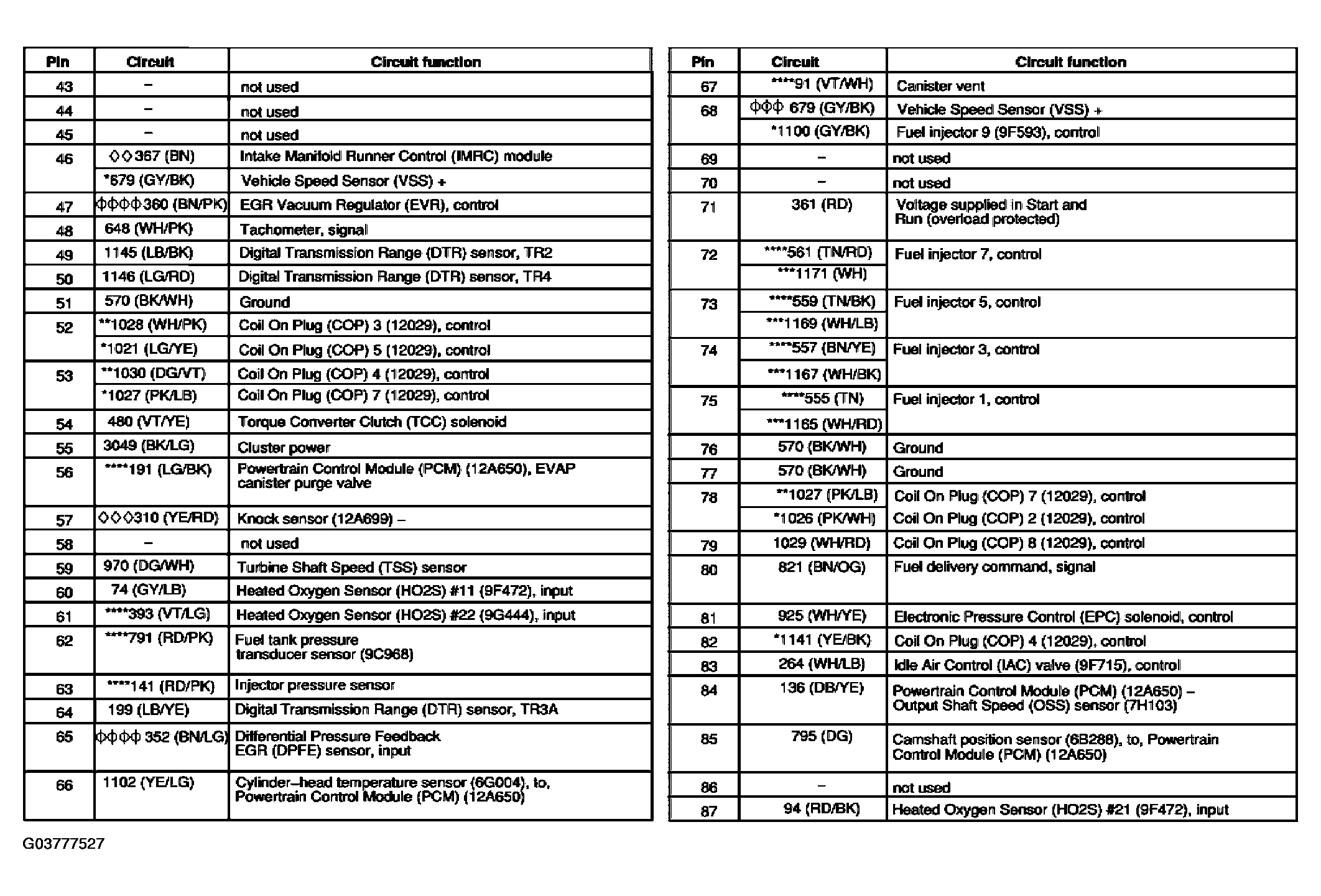

Fig 57: Powertrain Control Module (PCM) Connector End View (C175) (2 Of 3)

G03777527

Courtesy of FORD MOTOR CO.

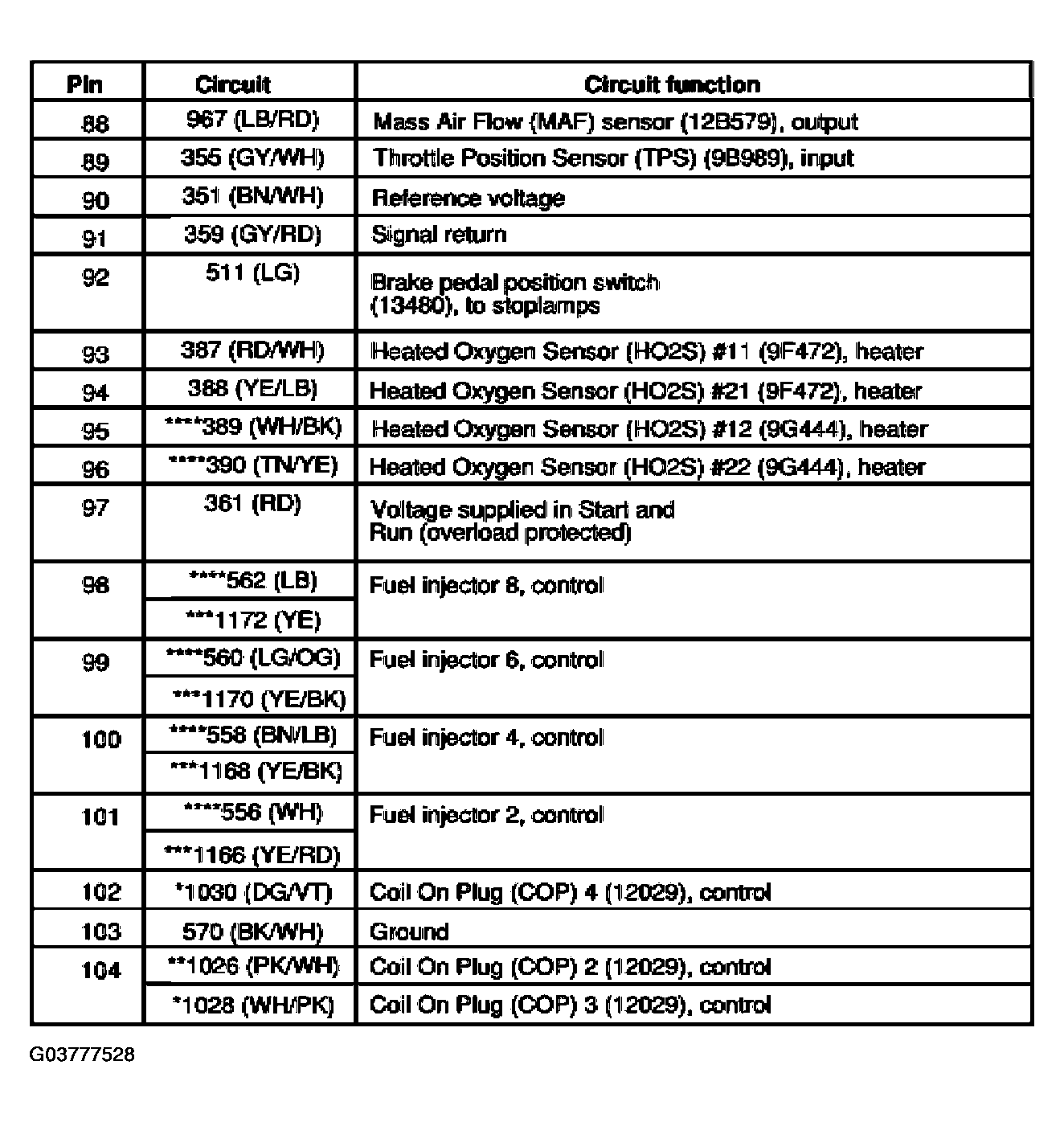

Fig 58: Powertrain Control Module (PCM) Connector End View (C175) (3 Of 3)

G03777528

Courtesy of FORD MOTOR CO.

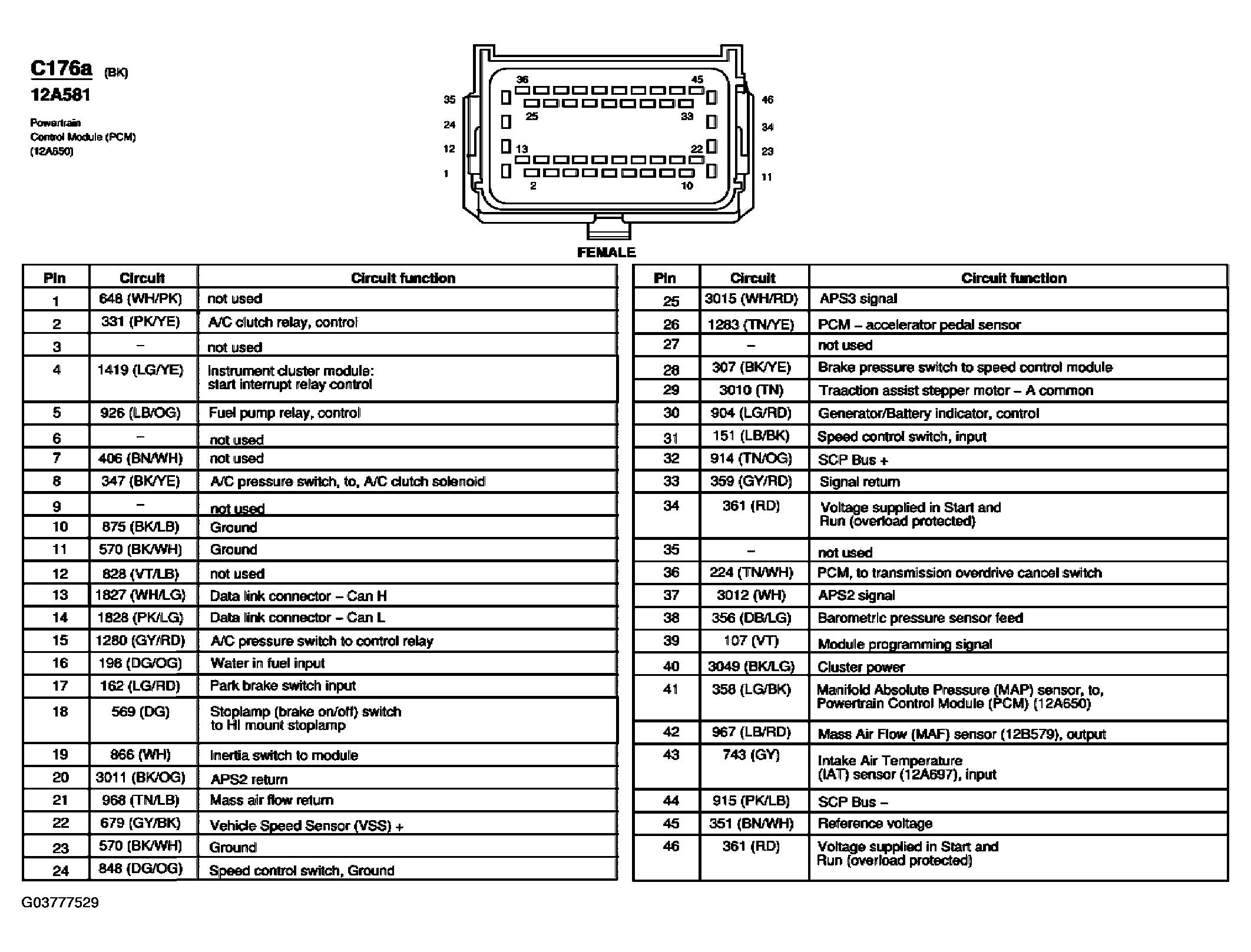

Fig 59: Powertrain Control Module (PCM) Connector End View (C176a)

G03777529

Courtesy of FORD MOTOR CO.

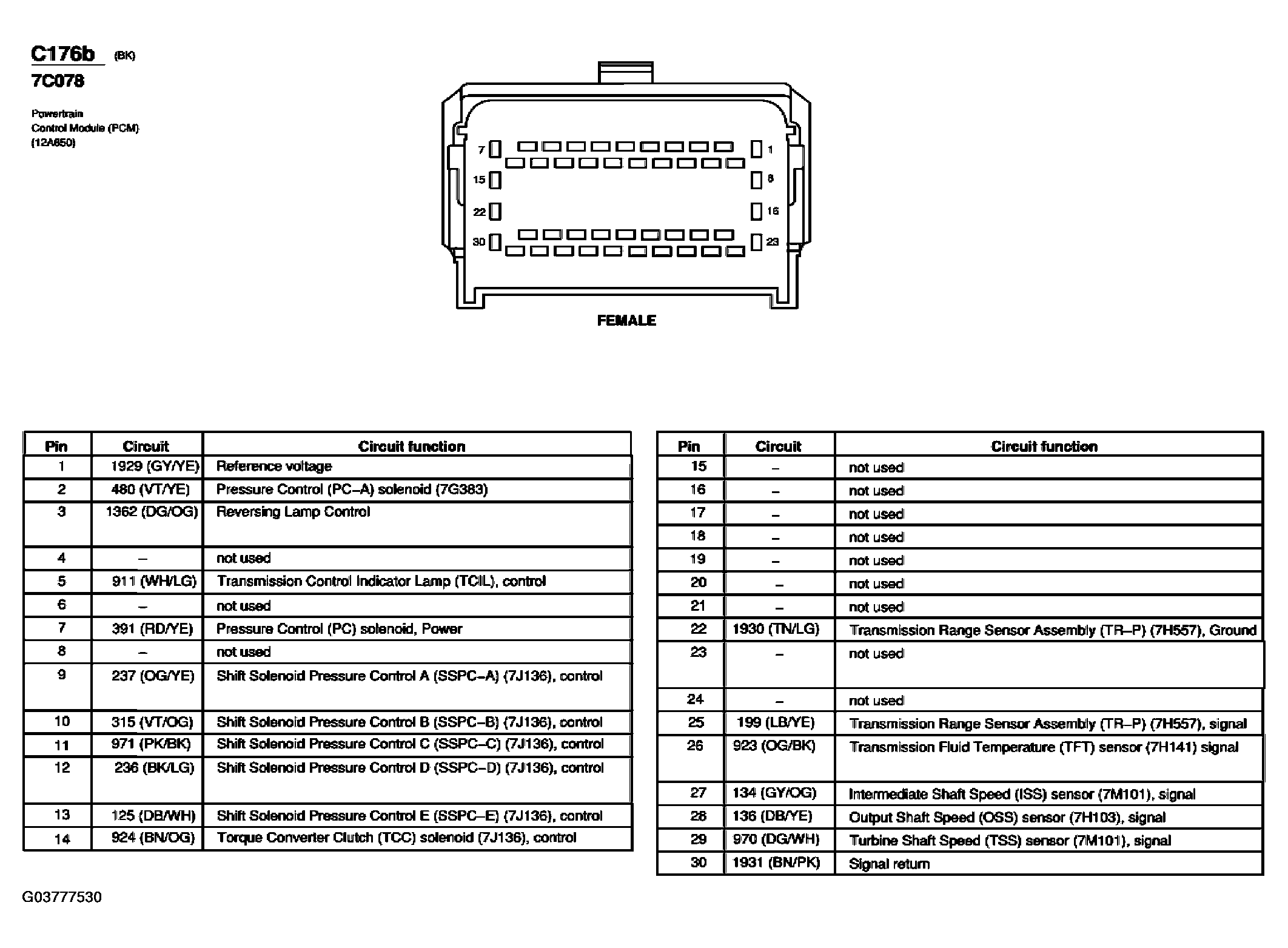

Fig 60: Powertrain Control Module (PCM) Connector End View (C176b)

G03777530

Courtesy of FORD MOTOR CO.

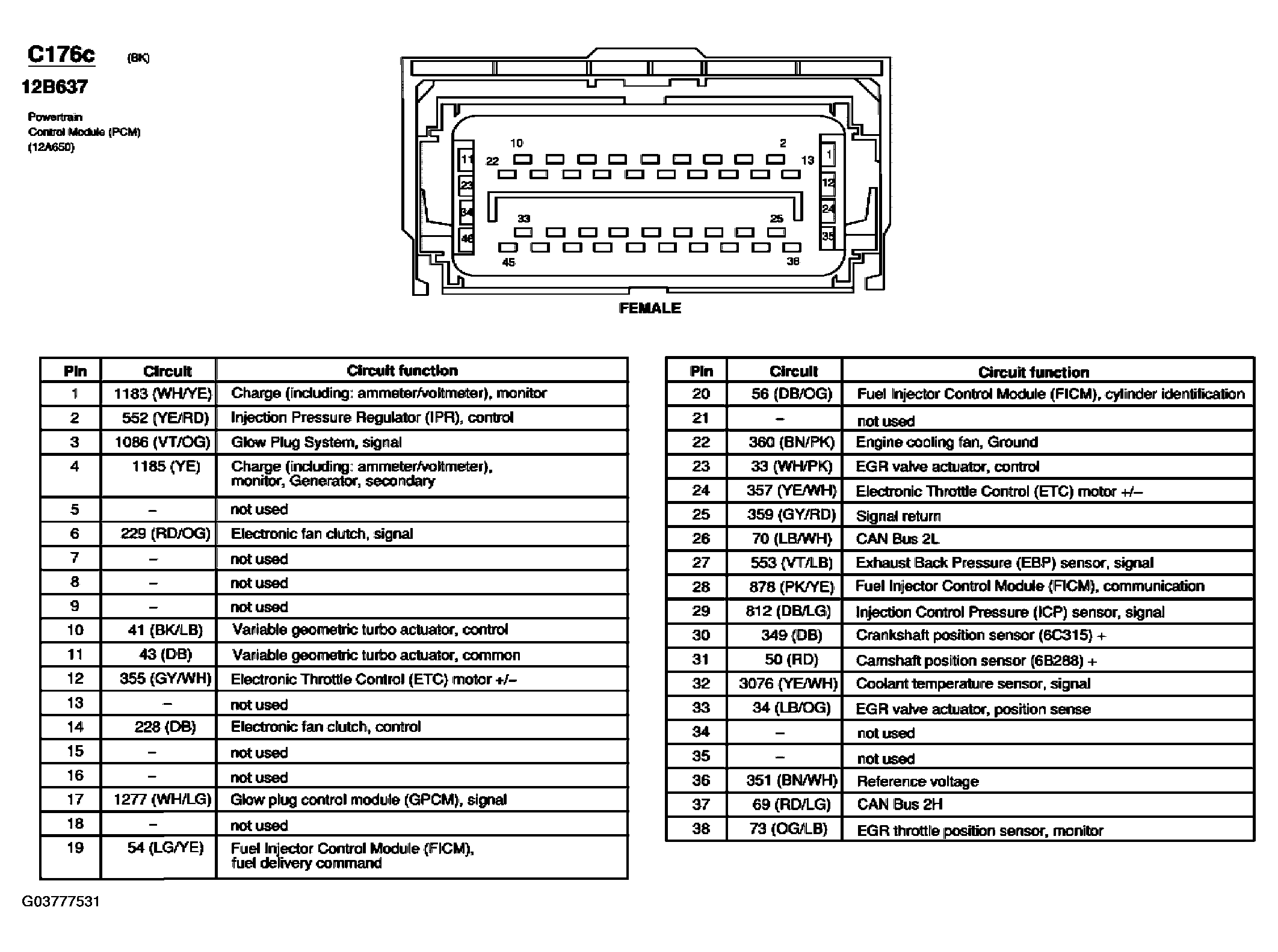

Fig 61: Powertrain Control Module (PCM) Connector End View (C176c) (1 Of 2)

G03777531

Courtesy of FORD MOTOR CO.

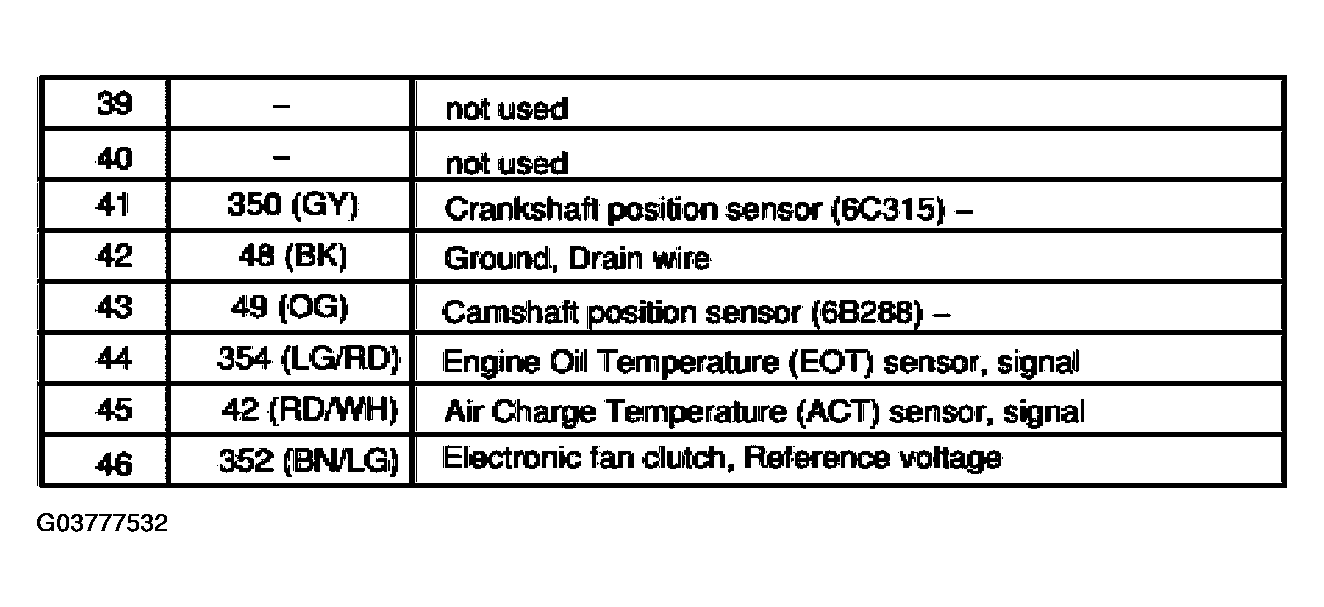

Fig 62: Powertrain Control Module (PCM) Connector End View (C176c) (2 Of 2)

G03777532

Courtesy of FORD MOTOR CO.

Fig 63: Center Air Bag Sensor Connector End View (C177)

G07835929

Courtesy of FORD MOTOR CO.

Fig 64: Camshaft Position Sensor Connector End View (C180)

G07835930

Courtesy of FORD MOTOR CO.

Fig 65: Fuel Injector 1 Connector End View (C181)

G07835931

Courtesy of FORD MOTOR CO.

Fig 66: Fuel Injector 2 Connector End View (C182)

G07835932

Courtesy of FORD MOTOR CO.

Fig 67: Fuel Injector 3 Connector End View (C183)

G07835933

Courtesy of FORD MOTOR CO.

Fig 68: Fuel Injector 4 Connector End View (C184)

G07835934

Courtesy of FORD MOTOR CO.

Fig 69: Fuel Injector 5 Connector End View (C185)

G07835935

Courtesy of FORD MOTOR CO.

Fig 70: Fuel Injector 6 Connector End View (C186)

G07835936

Courtesy of FORD MOTOR CO.

Fig 71: Fuel Injector 7 Connector End View (C187)

G07835937

Courtesy of FORD MOTOR CO.

Fig 72: Fuel Injector 8 Connector End View (C188)

G07835938

Courtesy of FORD MOTOR CO.

Fig 73: Throttle Position Sensor (TPS) Connector End View (C189)

G07835939

Courtesy of FORD MOTOR CO.

Fig 74: Intake Manifold Tuning Valve (IMTV) Connector End View (C191)

G07835940

Courtesy of FORD MOTOR CO.

Fig 75: Inline Connector End View (C192)

G07835941

Courtesy of FORD MOTOR CO.

Fig 76: Output Shaft Speed (OSS) Sensor Connector End View (C193)

G07835942

Courtesy of FORD MOTOR CO.

Fig 77: Ignition Transformer Capacitor 2 Connector End View (C194)

G07835943

Courtesy of FORD MOTOR CO.

Fig 78: Inline Connector End View (C195)

G07835944

Courtesy of FORD MOTOR CO.

Fig 79: Starter Motor Connector End View (C197a)

G07835945

Courtesy of FORD MOTOR CO.

Fig 80: Starter Motor Connector End View (C197b)

G07835946

Courtesy of FORD MOTOR CO.

Fig 81: Multifunction Switch Connector End View (C202a)

G07835947

Courtesy of FORD MOTOR CO.

Fig 82: Multifunction Switch Connector End View (C202b)

G07835948

Courtesy of FORD MOTOR CO.

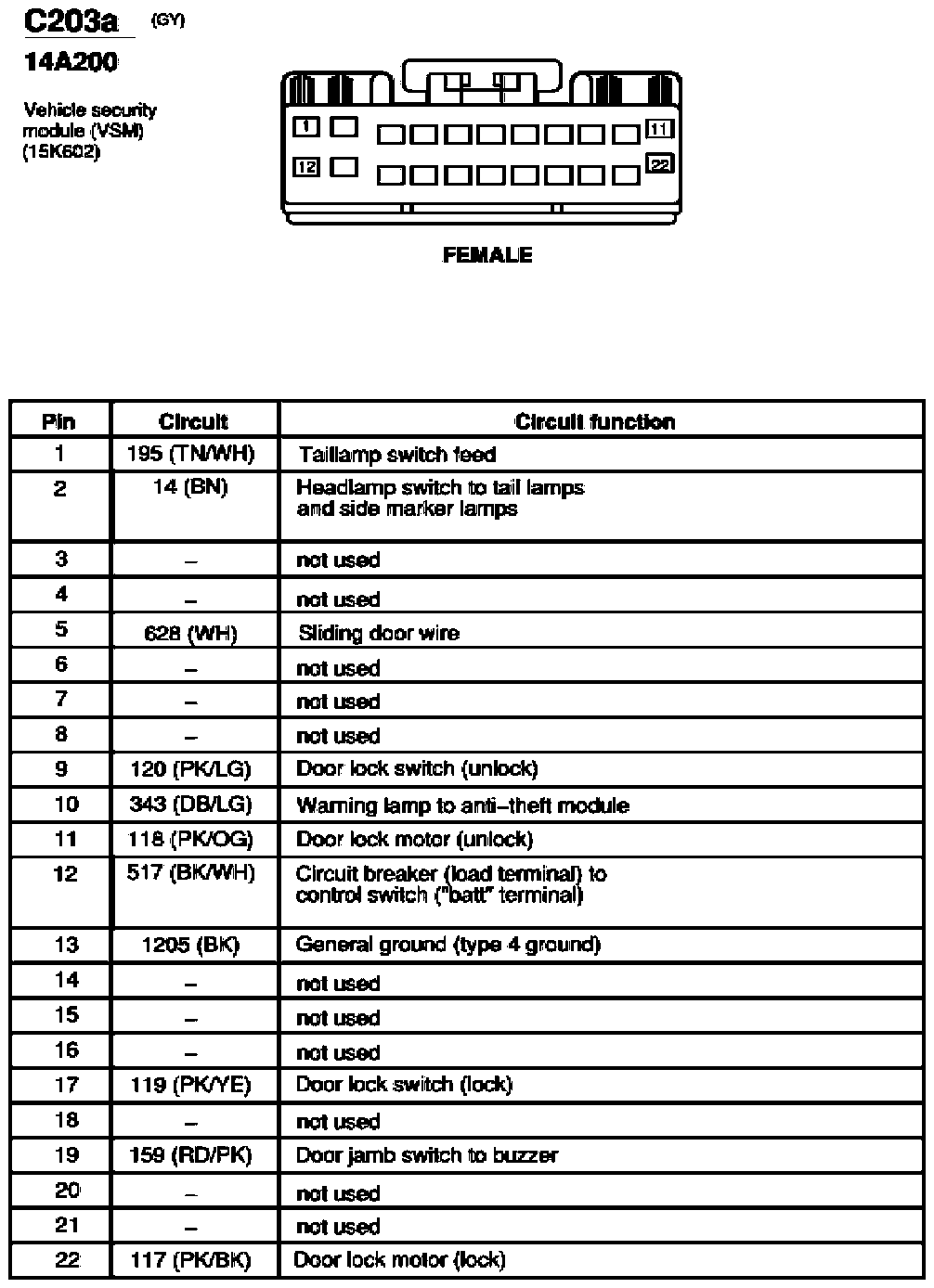

Fig 83: Vehicle Security Module (VSM) Connector End View (C203a)

G07835949

Courtesy of FORD MOTOR CO.

Fig 84: Vehicle Security Module (VSM) Connector End View (C203b)

G07835950

Courtesy of FORD MOTOR CO.

Fig 85: Main Light Switch Connector End View (C205)

G07835951

Courtesy of FORD MOTOR CO.

Fig 86: Inline Connector End View (C210)

G07835952

Courtesy of FORD MOTOR CO.

Fig 87: Inline Connector End View (C211)

G07835953

Courtesy of FORD MOTOR CO.

Fig 88: Inline Connector End View (C212)

G07835954

Courtesy of FORD MOTOR CO.

Fig 89: Inline Connector End View (C213)

G07835955

Courtesy of FORD MOTOR CO.

Fig 90: Air Bag Sliding Contact Connector End View (C218a)

G07835956

Courtesy of FORD MOTOR CO.

Fig 91: Air Bag Sliding Contact Connector End View (C218b)

G07835957

Courtesy of FORD MOTOR CO.

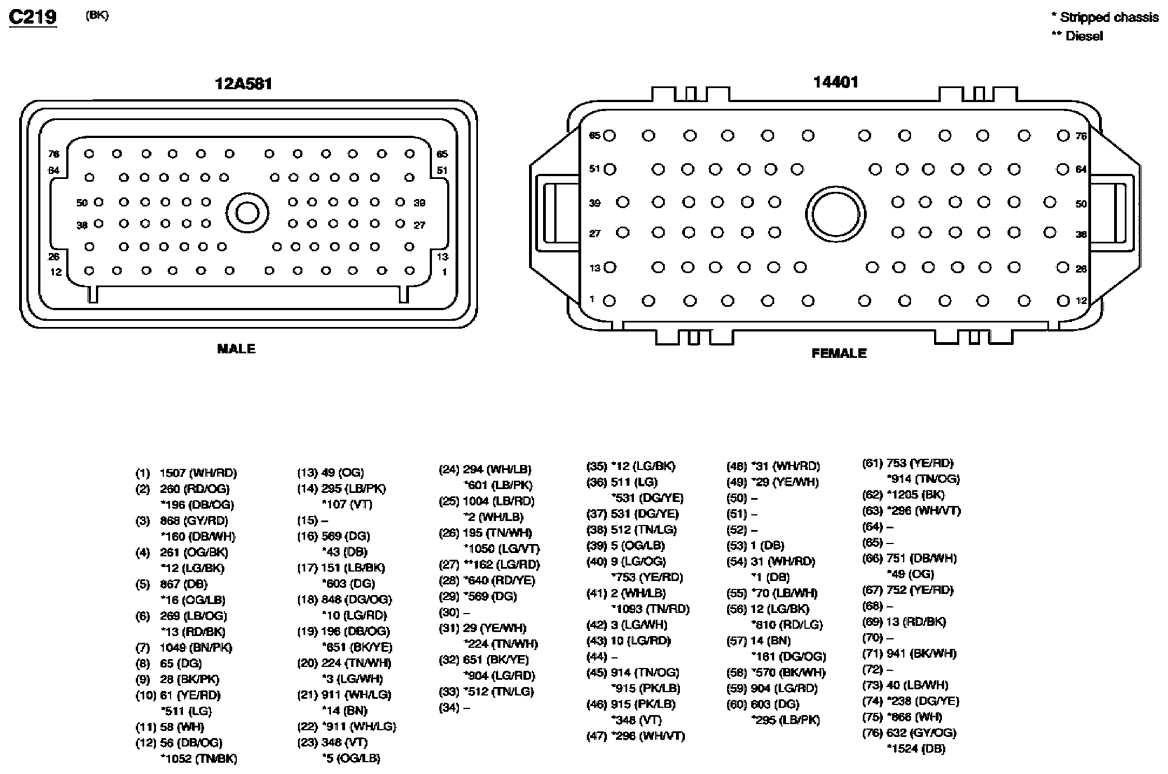

Fig 92: Inline Connector End View (C219)

G07835958

Courtesy of FORD MOTOR CO.

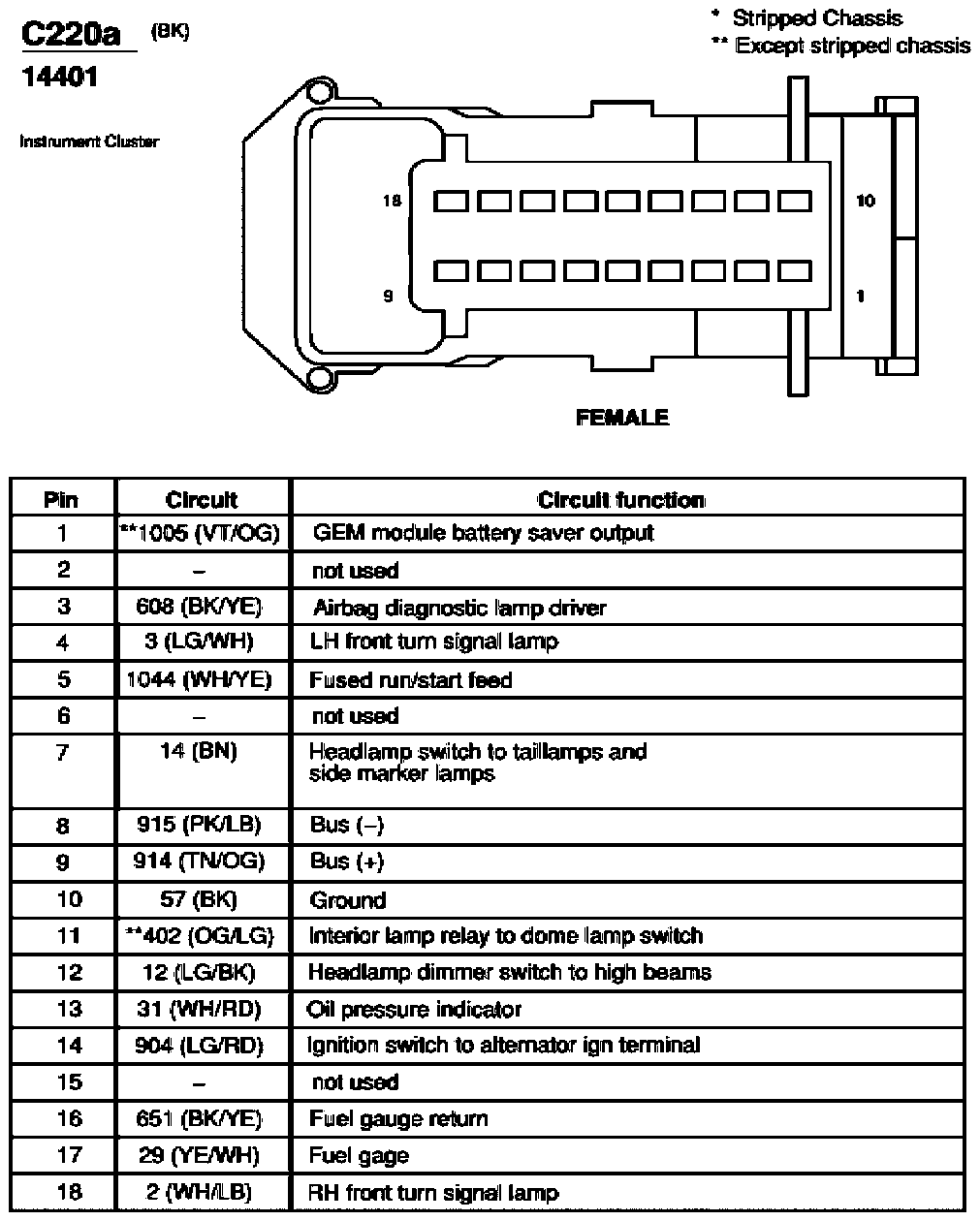

Fig 93: Instrument Cluster Connector End View (C220a)

G03777541

Courtesy of FORD MOTOR CO.

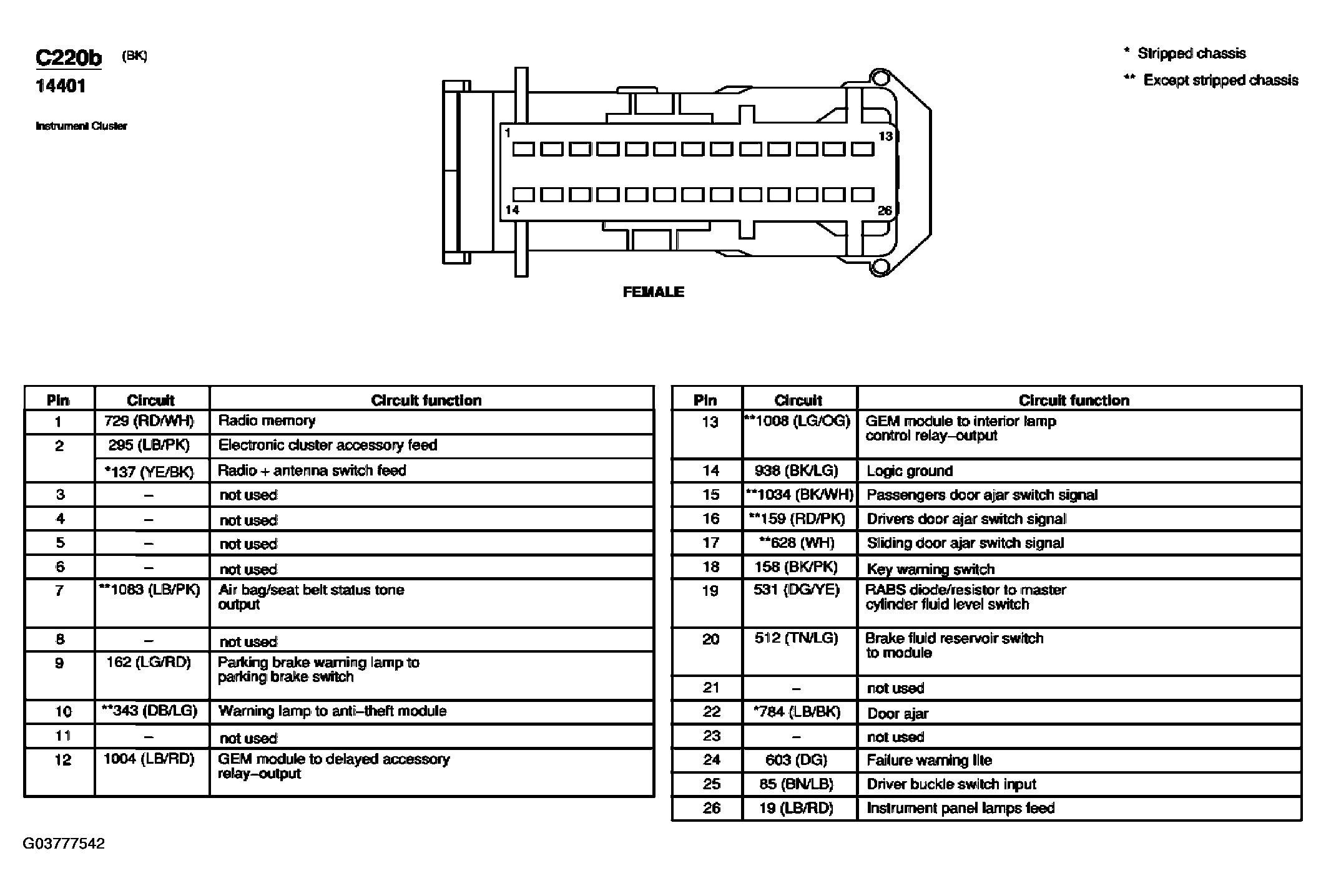

Fig 94: Instrument Cluster Connector End View (C220b)

G03777542

Courtesy of FORD MOTOR CO.

Fig 95: Interior Lamp Relay Connector End View (C221)

G07835959

Courtesy of FORD MOTOR CO.

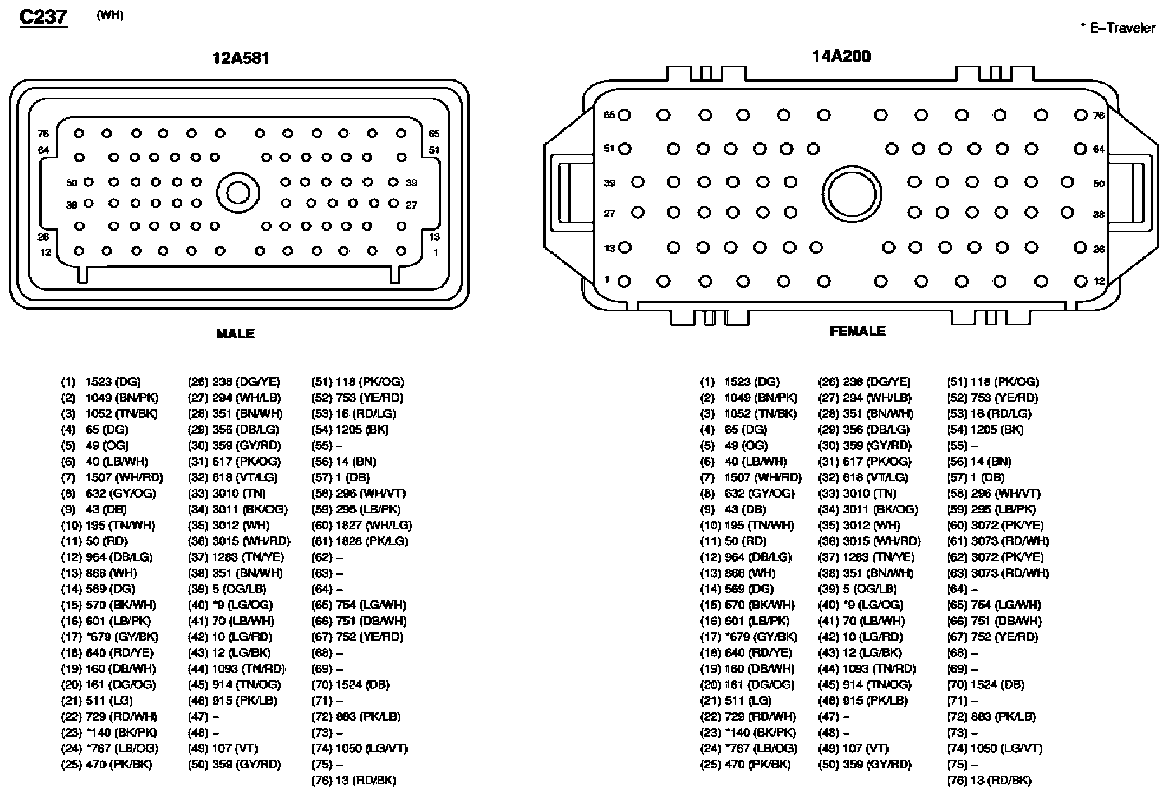

Fig 96: Inline Connector End View (C237)

G07835960

Courtesy of FORD MOTOR CO.

Fig 97: Inline Connector End View (C238)

G07835961

Courtesy of FORD MOTOR CO.

Fig 98: Trailer Control Electronic Brake Control Connector End View (C248)

G07835962

Courtesy of FORD MOTOR CO.

Fig 99: Ignition Switch Connector End View (C250)

G07835963

Courtesy of FORD MOTOR CO.

Fig 100: Data Link Connector (DLC) Connector End View (C251)

G07835964

Courtesy of FORD MOTOR CO.

Fig 101: Passenger Air Bag Module Connector End View (C256)

G07835965

Courtesy of FORD MOTOR CO.

Fig 102: Inline Connector End View (C275)

G07835966

Courtesy of FORD MOTOR CO.

Fig 103: Brake Pedal Position Switch Connector End View (C278)

G07835967

Courtesy of FORD MOTOR CO.

Fig 104: Inertia Fuel Shutoff (Ifs) Switch Connector End View (C282)

G07835968

Courtesy of FORD MOTOR CO.

Fig 105: Temperature Blend Door Actuator Connector End View (C289)

G07835969

Courtesy of FORD MOTOR CO.

Fig 106: Inline Connector End View (C291)

G07835970

Courtesy of FORD MOTOR CO.

Fig 107: Function Selector Switch Assembly, Front Connector End View (C294a)

G07835971

Courtesy of FORD MOTOR CO.

Fig 108: Function Selector Switch Assembly, Front Connector End View (C294b)

G07835972

Courtesy of FORD MOTOR CO.

Fig 109: Function Selector Switch Assembly, Front Connector End View (C294c)

G07835973

Courtesy of FORD MOTOR CO.

Fig 110: Function Selector Switch Assembly, Front Connector End View (C294d)

G07835974

Courtesy of FORD MOTOR CO.

Fig 111: Function Selector Switch Assembly, Front Connector End View (C294e)

G07835975

Courtesy of FORD MOTOR CO.

Fig 112: Inline Connector End View (C298)

G07835976

Courtesy of FORD MOTOR CO.

Fig 113: Inline Connector End View (C299)

G07835977

Courtesy of FORD MOTOR CO.

Fig 114: Passenger Safety Belt Buckle Pretensioner Connector End View (C303)

G07835978

Courtesy of FORD MOTOR CO.

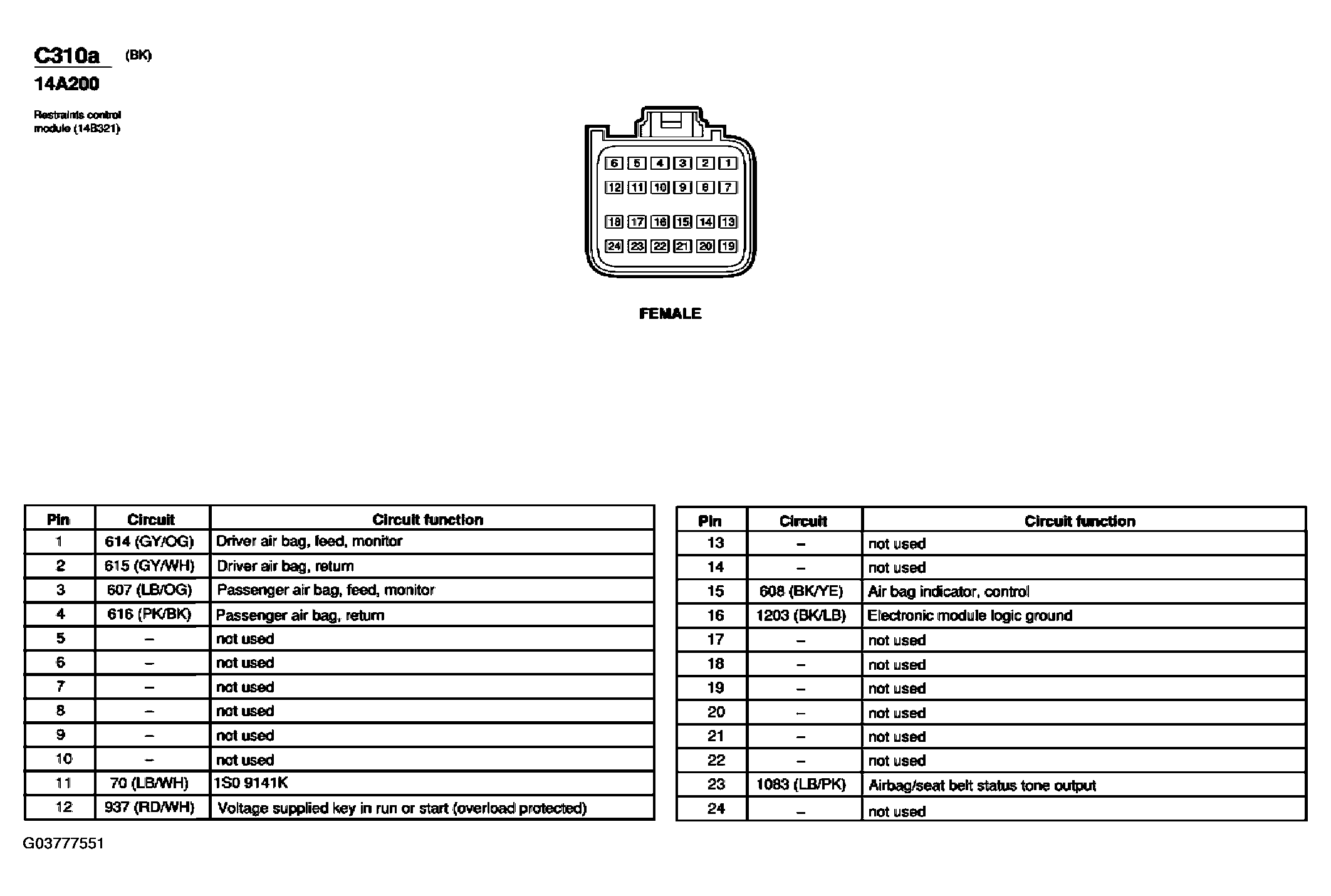

Fig 115: Restraints Control Module Connector End View (C310a)

G03777551

Courtesy of FORD MOTOR CO.

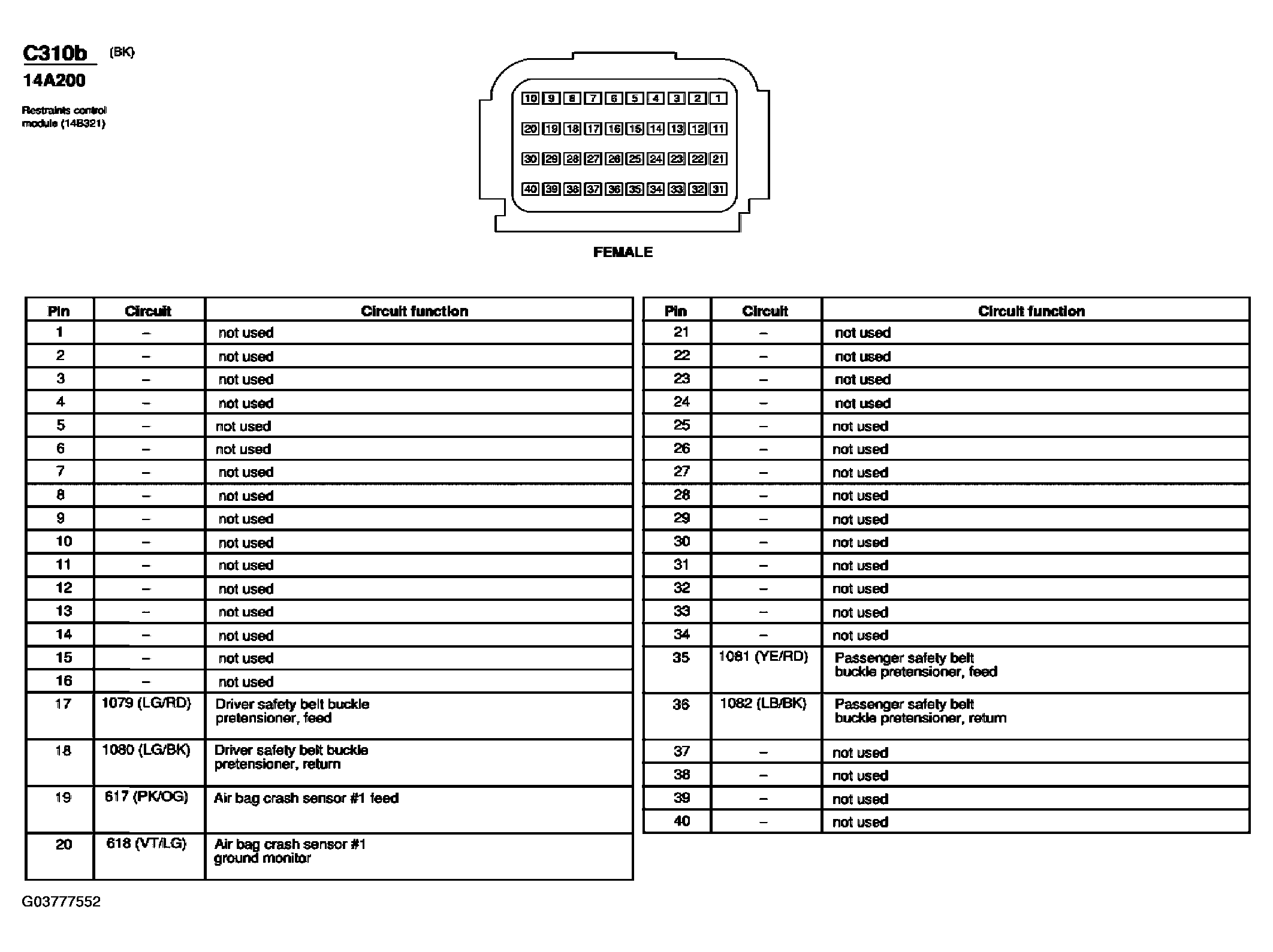

Fig 116: Restraints Control Module Connector End View (C310b)

G03777552

Courtesy of FORD MOTOR CO.

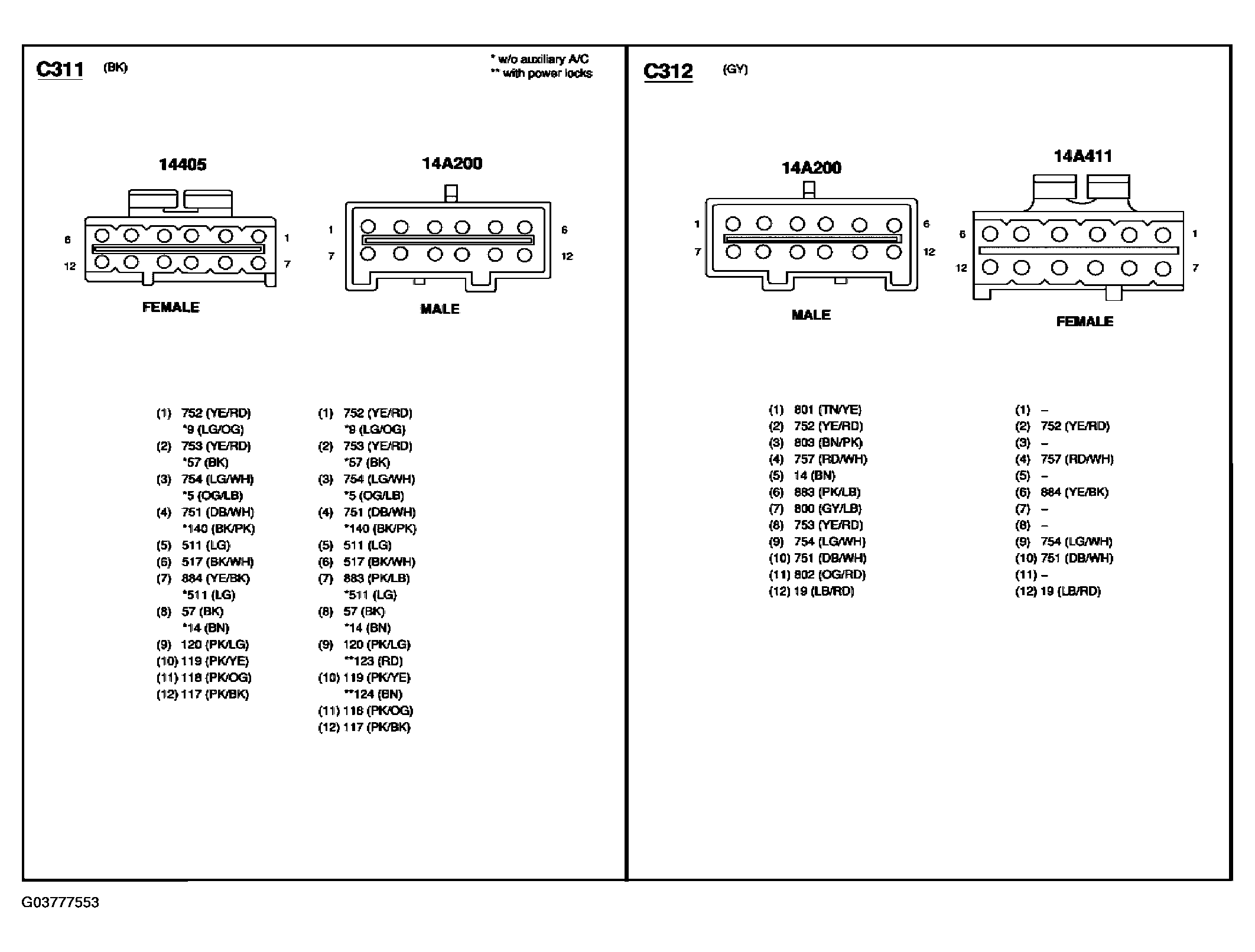

Fig 117: Inline Connector End View (C311)

G03777553

Courtesy of FORD MOTOR CO.

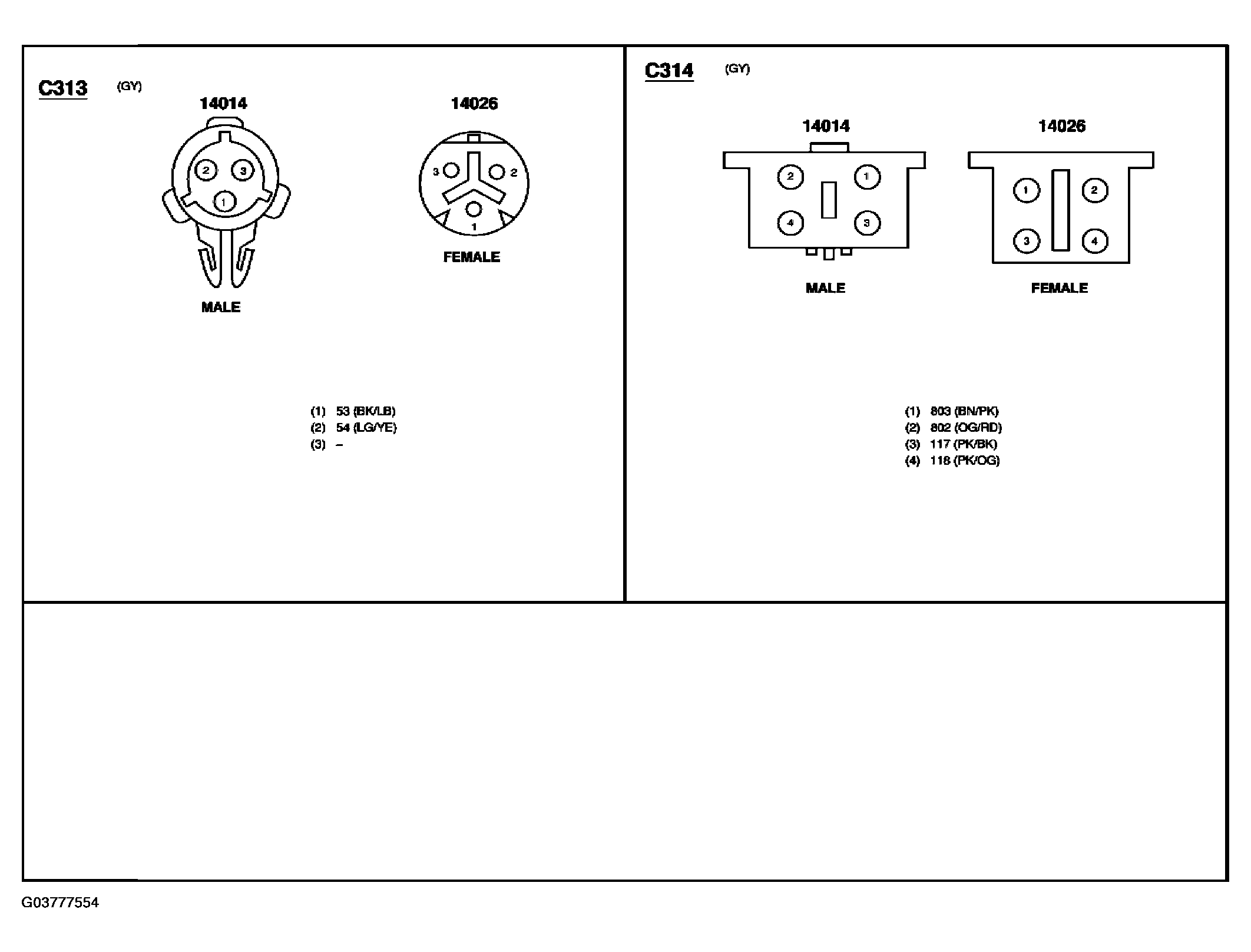

Fig 118: Inline Connector End View (C313)

G03777554

Courtesy of FORD MOTOR CO.

Fig 119: Inline Connector End View (C315)

G07835979

Courtesy of FORD MOTOR CO.

Fig 120: Inline Connector End View (C316)

G07835980

Courtesy of FORD MOTOR CO.

Fig 121: Driver Safety Belt Buckle Pretensioner Connector End View (C323)

G07835981

Courtesy of FORD MOTOR CO.

Fig 122: Inline Connector End View (C328)

G07835982

Courtesy of FORD MOTOR CO.

Fig 123: Remote Jump Start Terminal Connector End View (C329)

G07835983

Courtesy of FORD MOTOR CO.

Fig 124: Inline Connector End View (C340)

G07835984

Courtesy of FORD MOTOR CO.

Fig 125: Inline Connector End View (C353)

G07835985

Courtesy of FORD MOTOR CO.

Fig 126: Seat Adjust Switch, Driver Side Front Connector End View (C360)

G07835986

Courtesy of FORD MOTOR CO.

Fig 127: Driver Seat Horizontal Motor Connector End View (C362)

G07835987

Courtesy of FORD MOTOR CO.

Fig 128: Driver Seat Rear Height Motor Connector End View (C363)

G07835988

Courtesy of FORD MOTOR CO.

Fig 129: Extended Range Fuel Tank Valve 1 Connector End View (C364)

G07835989

Courtesy of FORD MOTOR CO.

Fig 130: Extended Range Fuel Tank Valve 2 Connector End View (C365)

G07835990

Courtesy of FORD MOTOR CO.

Fig 131: Power Point Connector End View (C380)

G07835991

Courtesy of FORD MOTOR CO.

Fig 132: Driver Seat Front Height Motor Connector End View (C382)

G07835992

Courtesy of FORD MOTOR CO.

Fig 133: Sliding Door Ajar Switch, Right Connector End View (C398)

G07835993

Courtesy of FORD MOTOR CO.

Fig 134: Inline Connector End View (C405)

G07835994

Courtesy of FORD MOTOR CO.

Fig 135: Inline Connector End View (C406)

G07835995

Courtesy of FORD MOTOR CO.

Fig 136: Inline Connector End View (C408)

G07835996

Courtesy of FORD MOTOR CO.

Fig 137: Inline Connector End View (C411)

G07835997

Courtesy of FORD MOTOR CO.

Fig 138: Lamp Assembly, Left Rear Connector End View (C414)

G07835998

Courtesy of FORD MOTOR CO.

Fig 139: Lamp Assembly, Right Rear Connector End View (C417)

G07835999

Courtesy of FORD MOTOR CO.

Fig 140: Inline Connector End View (C420)

G07836000

Courtesy of FORD MOTOR CO.

Fig 141: Inline Connector End View (C421)

G07836001

Courtesy of FORD MOTOR CO.

Fig 142: Inline Connector End View (C422)

G07836002

Courtesy of FORD MOTOR CO.

Fig 143: Inline Connector End View (C423)

G07836003

Courtesy of FORD MOTOR CO.

Fig 144: Inline Connector End View (C424)

G07836004

Courtesy of FORD MOTOR CO.

Fig 145: Inline Connector End View (C431)

G07836005

Courtesy of FORD MOTOR CO.

Fig 146: Heated Oxygen Sensor (Ho2S) #23 Connector End View (C433)

G07836006

Courtesy of FORD MOTOR CO.

Fig 147: Evaporative Emission (EVAP) Canister Vent Valve Connector End View (C450)

G07836007

Courtesy of FORD MOTOR CO.

Fig 148: Reversing Lamp, Left Connector End View (C451)

G07836008

Courtesy of FORD MOTOR CO.

Fig 149: Rear Axle Speed Sensor Connector End View (C455)

G07836009

Courtesy of FORD MOTOR CO.

Fig 150: Reversing Lamp, Right Connector End View (C461)

G07836010

Courtesy of FORD MOTOR CO.

Fig 151: High Mounted Stoplamp Connector End View (C475)

G07836011

Courtesy of FORD MOTOR CO.

Fig 152: Speaker, Left Rear Connector End View (C484)

G07836012

Courtesy of FORD MOTOR CO.

Fig 153: Speaker, Right Rear Connector End View (C485)

G07836013

Courtesy of FORD MOTOR CO.

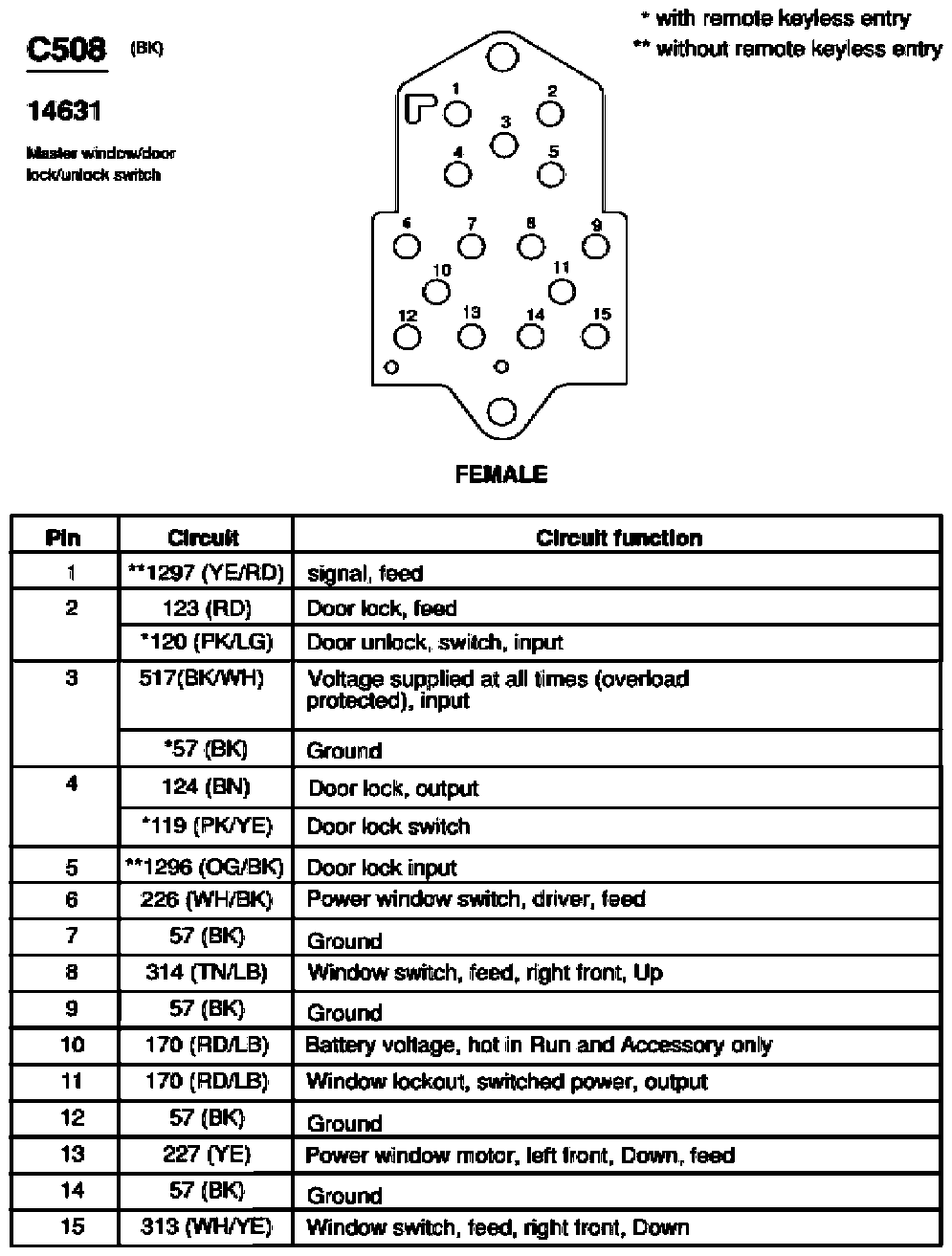

Fig 154: Master Window/Door Lock/Unlock Switch Connector End View (C508)

G07836014

Courtesy of FORD MOTOR CO.

Fig 155: Exterior Rear View Mirror, Driver Side Connector End View (C521)

G07836015

Courtesy of FORD MOTOR CO.

Fig 156: Speaker, Left Front Connector End View (C523)

G07836016

Courtesy of FORD MOTOR CO.

Fig 157: Power Window Motor, Driver Side Front Connector End View (C524)

G07836017

Courtesy of FORD MOTOR CO.

Fig 158: Door Lock Actuator, Left Front Connector End View (C525)

G07836018

Courtesy of FORD MOTOR CO.

Fig 159: Exterior Rear View Mirror Switch Connector End View (C527)

G07836019

Courtesy of FORD MOTOR CO.

Fig 160: Exterior Rear View Mirror, Passenger Side Connector End View (C601)

G07836020

Courtesy of FORD MOTOR CO.

Fig 161: Door Lock Actuator, Right Front Connector End View (C603)

G07836021

Courtesy of FORD MOTOR CO.

Fig 162: Power Window Motor, Passenger Side Front Connector End View (C608)

G07836022

Courtesy of FORD MOTOR CO.

Fig 163: Speaker, Right Front Connector End View (C612)

G07836023

Courtesy of FORD MOTOR CO.

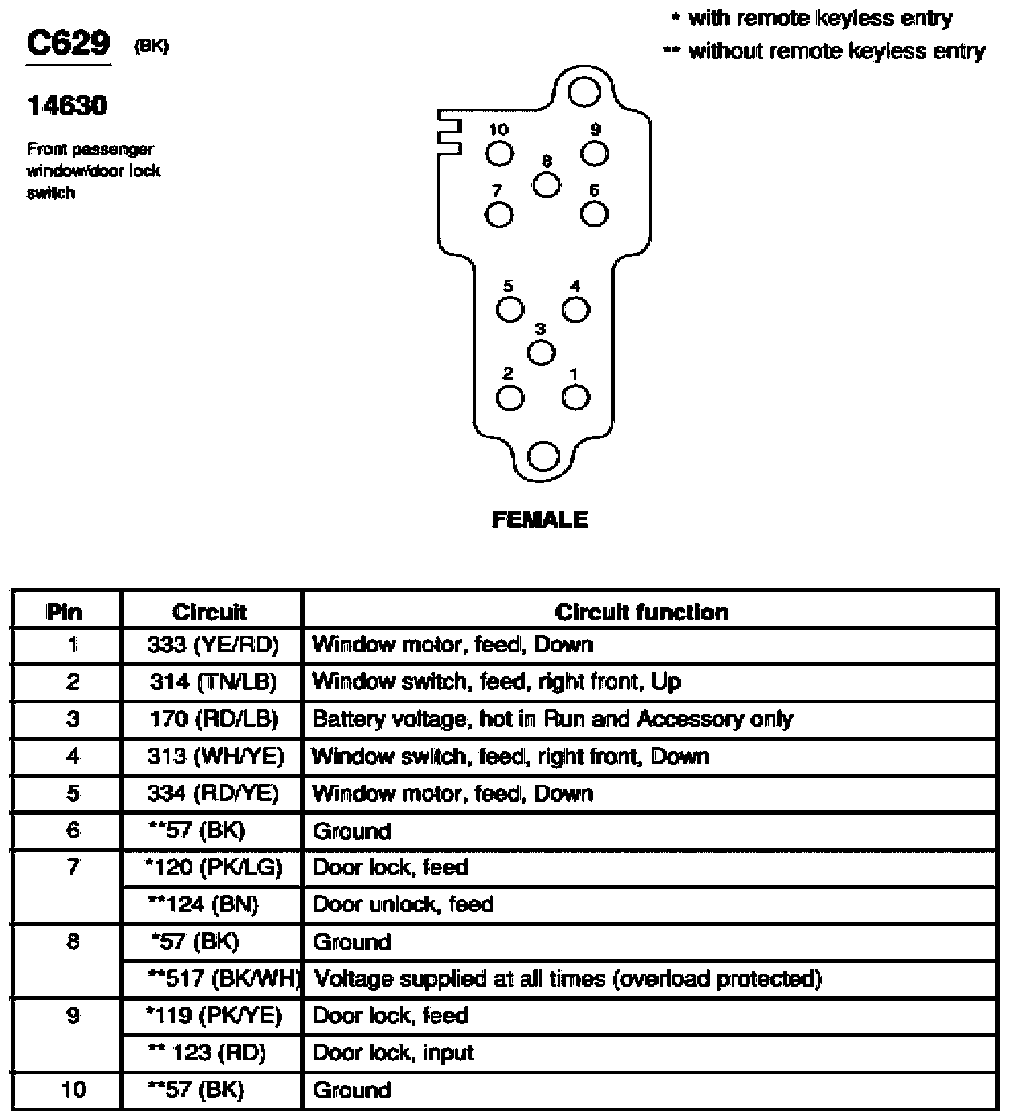

Fig 164: Front Passenger Window/Door Lock Switch Connector End View (C629)

G07836024

Courtesy of FORD MOTOR CO.

Fig 165: Sliding Door Contact Switch, Right Connector End View (C807)

G07836025

Courtesy of FORD MOTOR CO.

Fig 166: Speaker, Right Middle Connector End View (C813)

G07836026

Courtesy of FORD MOTOR CO.

Fig 167: Side Door Ajar Switch, Right Connector End View (C816)

G07836027

Courtesy of FORD MOTOR CO.

Fig 168: Side Door Lock Actuator, Right Connector End View (C817)

G07836028

Courtesy of FORD MOTOR CO.

Fig 169: Rear Interior Lamp Connector End View (C901)

G07836029

Courtesy of FORD MOTOR CO.

Fig 170: Vanity Mirror Lamp, Right Connector End View (C906)

G07836030

Courtesy of FORD MOTOR CO.

Fig 171: Vanity Mirror Lamp, Left Connector End View (C907)

G07836031

Courtesy of FORD MOTOR CO.

Fig 172: Inline Connector End View (C913)

G07836032

Courtesy of FORD MOTOR CO.

Fig 173: Inline Connector End View (C919)

G07836033

Courtesy of FORD MOTOR CO.

Fig 174: Inline Connector End View (C925)

G07836034

Courtesy of FORD MOTOR CO.

Fig 175: Cargo Lamp Connector End View (C926)

G07836035

Courtesy of FORD MOTOR CO.

Fig 176: Overhead Console Connector End View (C930)

G07836036

Courtesy of FORD MOTOR CO.

Fig 177: Interior/Map Lamps Assembly, Front Connector End View (C931)

G07836037

Courtesy of FORD MOTOR CO.

Fig 178: Inline Connector End View (C935)

G07836038

Courtesy of FORD MOTOR CO.

Fig 179: Inline Connector End View (C936)

G07836039

Courtesy of FORD MOTOR CO.

Fig 180: Video Display, Left Connector End View (C976)

G07836040

Courtesy of FORD MOTOR CO.

Fig 181: Video Display, Right Connector End View (C977)

G07836041

Courtesy of FORD MOTOR CO.

Fig 182: Interior Lamp Connector End View (C981)

G07836042

Courtesy of FORD MOTOR CO.

Fig 183: Inline Connector End View (C983)

G07836043

Courtesy of FORD MOTOR CO.

Fig 184: Starter Relay Connector End View (C1001)

G07836044

Courtesy of FORD MOTOR CO.

Fig 185: Accessory Delay Relay Connector End View (C1002)

G07836045

Courtesy of FORD MOTOR CO.

Fig 186: Horn Relay Connector End View (C1006)

G03777571

Courtesy of FORD MOTOR CO.

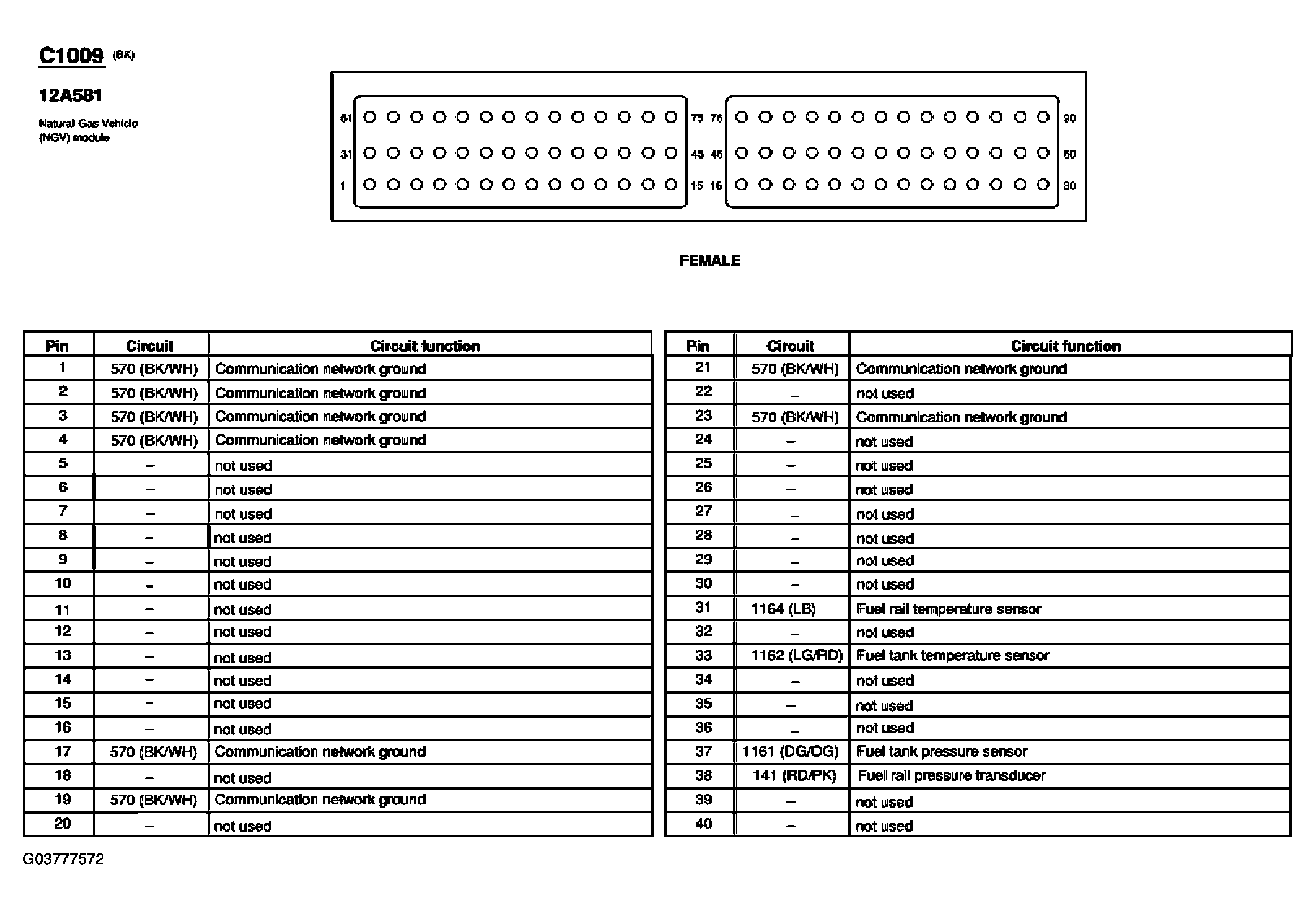

Fig 187: Natural Gas Vehicle (NGV) Module Connector End View (C1009) (1 Of 2)

G03777572

Courtesy of FORD MOTOR CO.

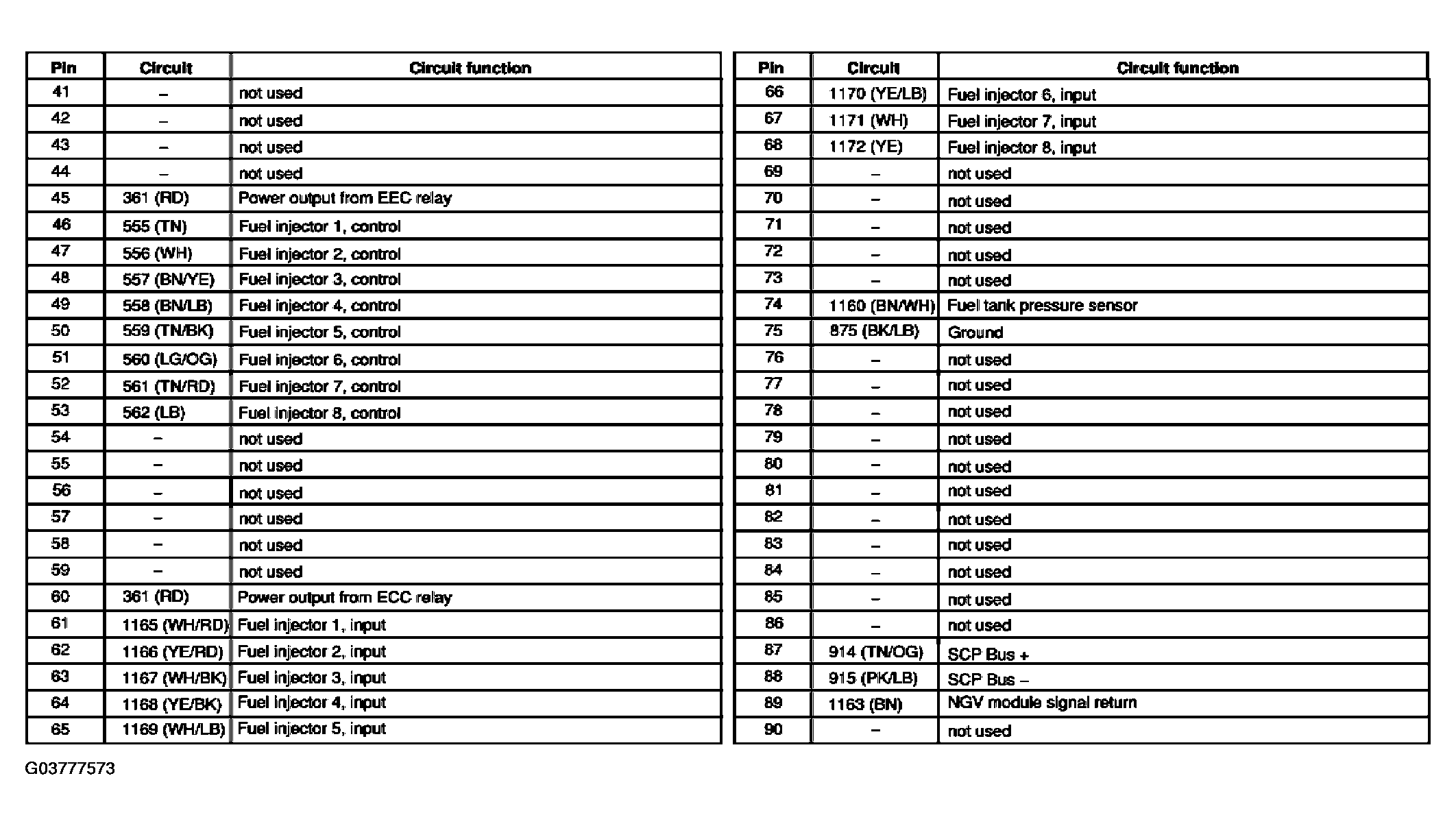

Fig 188: Natural Gas Vehicle (NGV) Module Connector End View (C1009) (2 Of 2)

G03777573

Courtesy of FORD MOTOR CO.

Fig 189: Inline Connector End View (C1010)

G07836046

Courtesy of FORD MOTOR CO.

Fig 190: Blower Motor Relay Connector End View (C1011)

G07836047

Courtesy of FORD MOTOR CO.

Fig 191: PCM Power Relay Connector End View (C1016)

G07836048

Courtesy of FORD MOTOR CO.

Fig 192: Starter Relay Connector End View (C1017a)

G07836049

Courtesy of FORD MOTOR CO.

Fig 193: Starter Relay Connector End View (C1017b)

G07836050

Courtesy of FORD MOTOR CO.

Fig 194: Starter Relay Connector End View (C1017c)

G07836051

Courtesy of FORD MOTOR CO.

Fig 195: PCM Power Diode Connector End View (C1018)

G07836052

Courtesy of FORD MOTOR CO.

Fig 196: Inline Connector End View (C1019)

G07836053

Courtesy of FORD MOTOR CO.

Fig 197: Headlamp, Left Connector End View (C1021)

G07836054

Courtesy of FORD MOTOR CO.

Fig 198: Park/Turn Lamp, Left Front Connector End View (C1023)

G07836055

Courtesy of FORD MOTOR CO.

Fig 199: Brake Pressure Switch Connector End View (C1025)

G07836056

Courtesy of FORD MOTOR CO.

Fig 200: Inline Connector End View (C1026)

G07836057

Courtesy of FORD MOTOR CO.

Fig 201: Daytime Running Lamps (DRL) Module Connector End View (C1030)

G07836058

Courtesy of FORD MOTOR CO.

Fig 202: Inline Connector End View (C1033)

G07836059

Courtesy of FORD MOTOR CO.

Fig 203: Battery Junction Box (BJB) Connector End View (C1035a)

G07836060

Courtesy of FORD MOTOR CO.

Fig 204: Injection Pressure Sensor Connector End View (C1036)

G07836061

Courtesy of FORD MOTOR CO.

Fig 205: Headlamp, Right Connector End View (C1041)

G07836062

Courtesy of FORD MOTOR CO.

Fig 206: Park/Turn Lamp, Right Front Connector End View (C1043)

G07836063

Courtesy of FORD MOTOR CO.

Fig 207: Inline Connector End View (C1045)

G07836064

Courtesy of FORD MOTOR CO.

Fig 208: Inline Connector End View (C1046)

G07836065

Courtesy of FORD MOTOR CO.

Fig 209: Cylinder Head Temperature Sensor Connector End View (C1047)

G07836066

Courtesy of FORD MOTOR CO.

Fig 210: Fuel Pump Relay Connector End View (C1051)

G07836067

Courtesy of FORD MOTOR CO.

Fig 211: Inline Connector End View (C1052)

G07836068

Courtesy of FORD MOTOR CO.

Fig 212: Dual Pressure Switch Connector End View (C1062)

G07836069

Courtesy of FORD MOTOR CO.

Fig 213: Engine Coolant Temperature (ECT) Sensor Connector End View (C1064)

G07836070

Courtesy of FORD MOTOR CO.

Fig 214: Idle Air Control (IAC) Valve Connector End View (C1066)

G07836071

Courtesy of FORD MOTOR CO.

Fig 215: Differential Pressure Feedback EGR (DPFE) Sensor Connector End View (C1068)

G07836072

Courtesy of FORD MOTOR CO.

Fig 216: EGR Vacuum Regulator Solenoid Connector End View (C1072)

G07836073

Courtesy of FORD MOTOR CO.

Fig 217: Inline Connector End View (C1075)

G07836074

Courtesy of FORD MOTOR CO.

Fig 218: Fuel Heater Connector End View (C1076)

G07836075

Courtesy of FORD MOTOR CO.

Fig 219: A/C High Pressure Switch Connector End View (C1078)

G07836076

Courtesy of FORD MOTOR CO.

Fig 220: Water-In-Fuel Sensor Connector End View (C1080)

G07836077

Courtesy of FORD MOTOR CO.

Fig 221: Manifold Absolute Pressure (MAP) Sensor Connector End View (C1087)

G07836078

Courtesy of FORD MOTOR CO.

Fig 222: Battery Connector End View (C1100a)

G07836079

Courtesy of FORD MOTOR CO.

Fig 223: Battery Connector End View (C1100b)

G07836080

Courtesy of FORD MOTOR CO.

Fig 224: Electronic Fan Clutch Connector End View (C1158)

G07836081

Courtesy of FORD MOTOR CO.

Fig 225: Cylinder Head Temperature Sensor Connector End View (C1164)

G07836082

Courtesy of FORD MOTOR CO.

Fig 226: Trailer Tow Relay, Reversing Lamp Connector End View (C1178)

G07836083

Courtesy of FORD MOTOR CO.

Fig 227: Fuel Injector 1 Connector End View (C1181)

G07836084

Courtesy of FORD MOTOR CO.

Fig 228: Fuel Injector 2 Connector End View (C1182)

G07836085

Courtesy of FORD MOTOR CO.

Fig 229: Fuel Injector 3 Connector End View (C1183)

G07836086

Courtesy of FORD MOTOR CO.

Fig 230: Fuel Injector 4 Connector End View (C1184)

G07836087

Courtesy of FORD MOTOR CO.

Fig 231: Fuel Injector 5 Connector End View (C1185)

G07836088

Courtesy of FORD MOTOR CO.

Fig 232: Fuel Injector 6 Connector End View (C1186)

G07836089

Courtesy of FORD MOTOR CO.

Fig 233: Fuel Injector 1 Connector End View (C1191)

G07836090

Courtesy of FORD MOTOR CO.

Fig 234: Fuel Injector 2 Connector End View (C1192)

G07836091

Courtesy of FORD MOTOR CO.

Fig 235: Fuel Injector 3 Connector End View (C1193)

G07836092

Courtesy of FORD MOTOR CO.

Fig 236: Trailer Connector End View (C1194)

G07836093

Courtesy of FORD MOTOR CO.

Fig 237: Fuel Injector 5 Connector End View (C1195)

G07836094

Courtesy of FORD MOTOR CO.

Fig 238: Fuel Injector 6 Connector End View (C1196)

G07836095

Courtesy of FORD MOTOR CO.

Fig 239: Fuel Injector 7 Connector End View (C1197)

G07836096

Courtesy of FORD MOTOR CO.

Fig 240: Fuel Injector 8 Connector End View (C1198)

G07836097

Courtesy of FORD MOTOR CO.

Fig 241: Trailer Tow Relay, Parking Lamp Connector End View (C1199)

G07836098

Courtesy of FORD MOTOR CO.

Fig 242: Trailer Tow Relay, Battery Charge Connector End View (C1200)

G07836099

Courtesy of FORD MOTOR CO.

Fig 243: Fuel Injector 9 Connector End View (C1204)

G07836100

Courtesy of FORD MOTOR CO.

Fig 244: Fuel Injector 10 Connector End View (C1205)

G07836101

Courtesy of FORD MOTOR CO.

Fig 245: Coil On Plug (COP) 9 Connector End View (C1206)

G07836102

Courtesy of FORD MOTOR CO.

Fig 246: Coil On Plug (COP) 10 Connector End View (C1207)

G07836103

Courtesy of FORD MOTOR CO.

Fig 247: Front Blower Motor Connector End View (C1227)

G07836104

Courtesy of FORD MOTOR CO.

Fig 248: Blower Motor Resistor Connector End View (C1228)

G07836105

Courtesy of FORD MOTOR CO.

Fig 249: Fuel Injector Control Module (FICM) Power Relay Connector End View (C1235)

G07836106

Courtesy of FORD MOTOR CO.

Fig 250: Manifold Air Temperature (MAT) Sensor Connector End View (C1236)

G07836107

Courtesy of FORD MOTOR CO.

Fig 251: Injection Control Pressure (ICP) Sensor Connector End View (C1244)

G07836108

Courtesy of FORD MOTOR CO.

Fig 252: Battery II Connector End View (C1249a)

G07836109

Courtesy of FORD MOTOR CO.

Fig 253: Battery II Connector End View (C1249b)

G07836110

Courtesy of FORD MOTOR CO.

Fig 254: Generator, Secondary Connector End View (C1251a)

G07836111

Courtesy of FORD MOTOR CO.

Fig 255: Generator, Secondary Connector End View (C1251b)

G07836112

Courtesy of FORD MOTOR CO.

Fig 256: Fuel Pump Connector End View (C1253)

G07836113

Courtesy of FORD MOTOR CO.

Fig 257: Natural Gas Vehicle (NGV) Timer Jumper Connector End View (C1254)

G07836114

Courtesy of FORD MOTOR CO.

Fig 258: Horn Connector End View (C1256)

G07836115

Courtesy of FORD MOTOR CO.

Fig 259: Fuel Rail Temperature Sensor Connector End View (C1257)

G07836116

Courtesy of FORD MOTOR CO.

Fig 260: Fuel Rail Cutoff Valve Connector End View (C1258)

G07836117

Courtesy of FORD MOTOR CO.

Fig 261: Exhaust Back Pressure (EBP) Sensor Connector End View (C1271)

G07836118

Courtesy of FORD MOTOR CO.

Fig 262: 4R70E/4R75E Transmission Connector End View (C1274)

G07836119

Courtesy of FORD MOTOR CO.

Fig 263: Inline Connector End View (C1278)

G07836120

Courtesy of FORD MOTOR CO.

Fig 264: Inline Connector End View (C1279)

G07836121

Courtesy of FORD MOTOR CO.

Fig 265: Auxiliary Battery Relay Connector End View (C1283a)

G07836122

Courtesy of FORD MOTOR CO.

Fig 266: Auxiliary Battery Relay Connector End View (C1283b)

G07836123

Courtesy of FORD MOTOR CO.

Fig 267: Auxiliary Battery Relay Connector End View (C1283c)

G07836124

Courtesy of FORD MOTOR CO.

Fig 268: Headlamp, Left Connector End View (C1284)

G07836125

Courtesy of FORD MOTOR CO.

Fig 269: Headlamp, Right Connector End View (C1285)

G07836126

Courtesy of FORD MOTOR CO.

Fig 270: Intake Manifold Runner Control (IMRC) Module Connector End View (C1286)

G07836127

Courtesy of FORD MOTOR CO.

Fig 271: Glow Plug Control Module Connector End View (C1301a)

G07836128

Courtesy of FORD MOTOR CO.

Fig 272: Glow Plug Control Module Connector End View (C1301b)

G07836129

Courtesy of FORD MOTOR CO.

Fig 273: Throttle Position Sensor (TPS) Connector End View (C1302)

G07836130

Courtesy of FORD MOTOR CO.

Fig 274: Fuel Injector 7 Connector End View (C1312)

G07836131

Courtesy of FORD MOTOR CO.

Fig 275: Fuel Injector 8 Connector End View (C1313)

G07836132

Courtesy of FORD MOTOR CO.

Fig 276: Alternative Fuel Control Module (AFCM) Diode Connector End View (C1319)

G07836133

Courtesy of FORD MOTOR CO.

Fig 277: Injector Pressure Regulator (IPR) Connector End View (C1360)

G07836134

Courtesy of FORD MOTOR CO.

Fig 278: Electronic Throttle Control (ETC) Connector End View (C1368)

G07836135

Courtesy of FORD MOTOR CO.

Fig 279: Camshaft Position Sensor Connector End View (C1375)

G07836136

Courtesy of FORD MOTOR CO.

Fig 280: Inline Connector End View (C1386)

G07836137

Courtesy of FORD MOTOR CO.

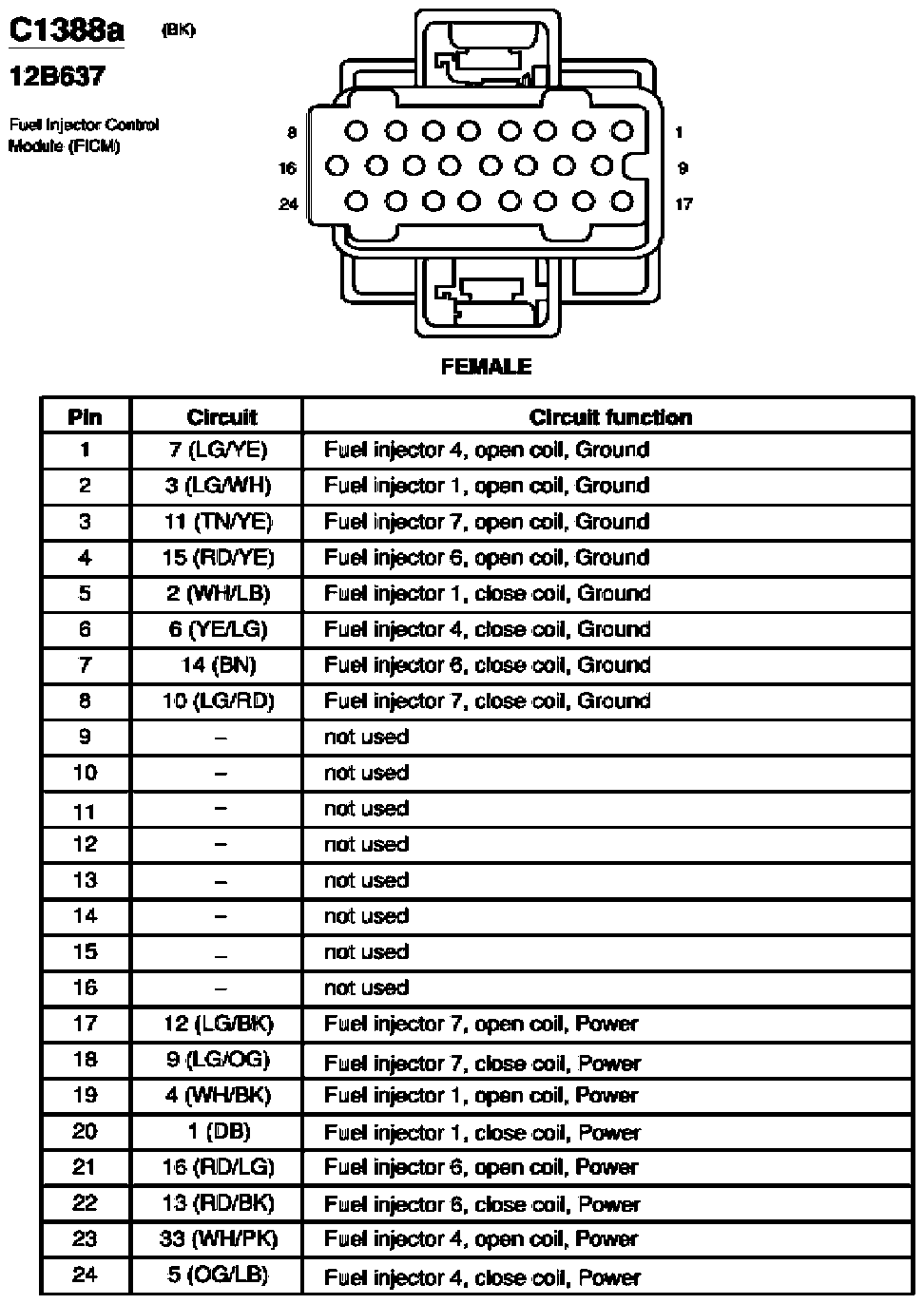

Fig 281: Fuel Injector Control Module (FICM) Connector End View (C1388a)

G07836138

Courtesy of FORD MOTOR CO.

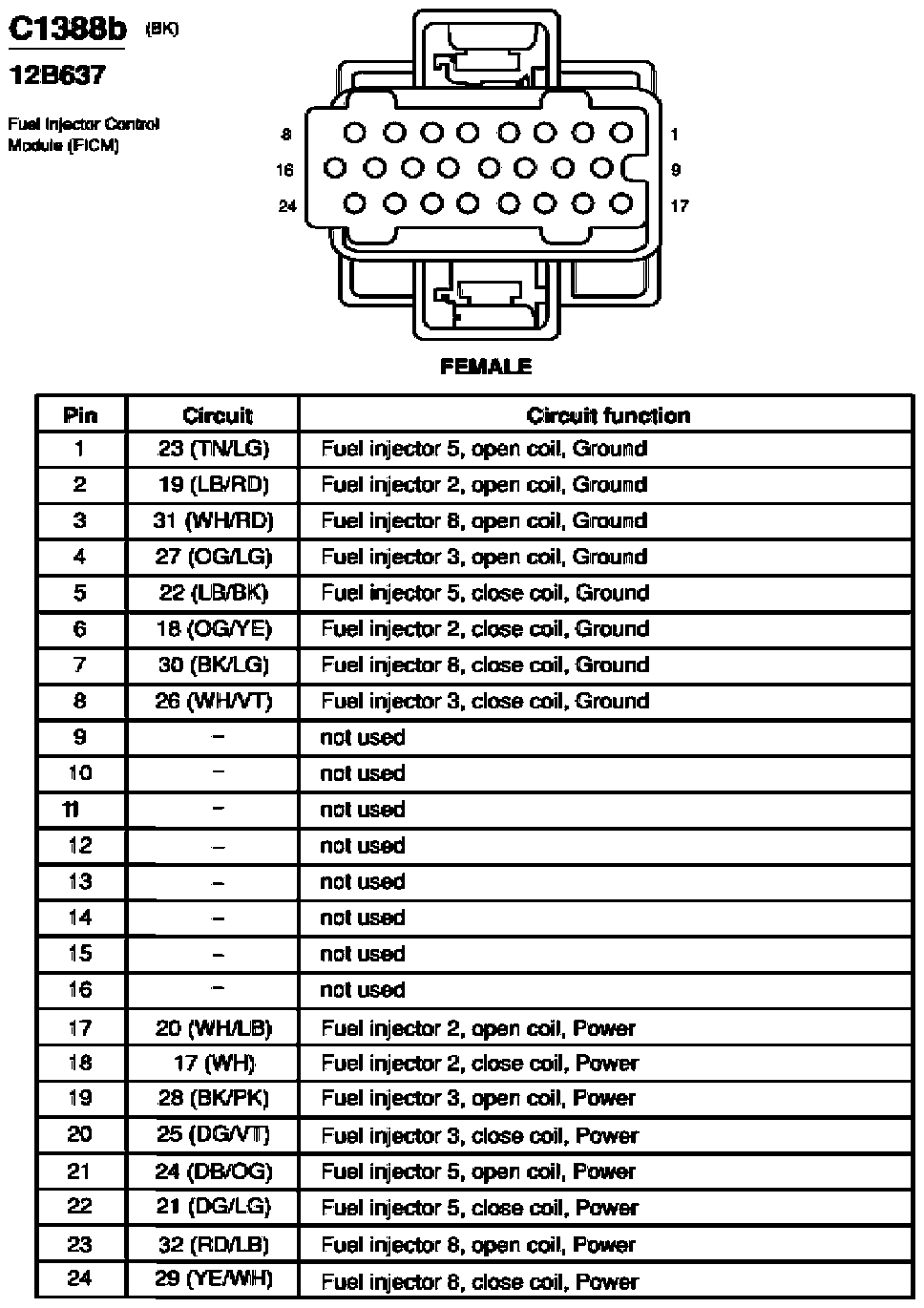

Fig 282: Fuel Injector Control Module (FICM) Connector End View (C1388b)

G03777594

Courtesy of FORD MOTOR CO.

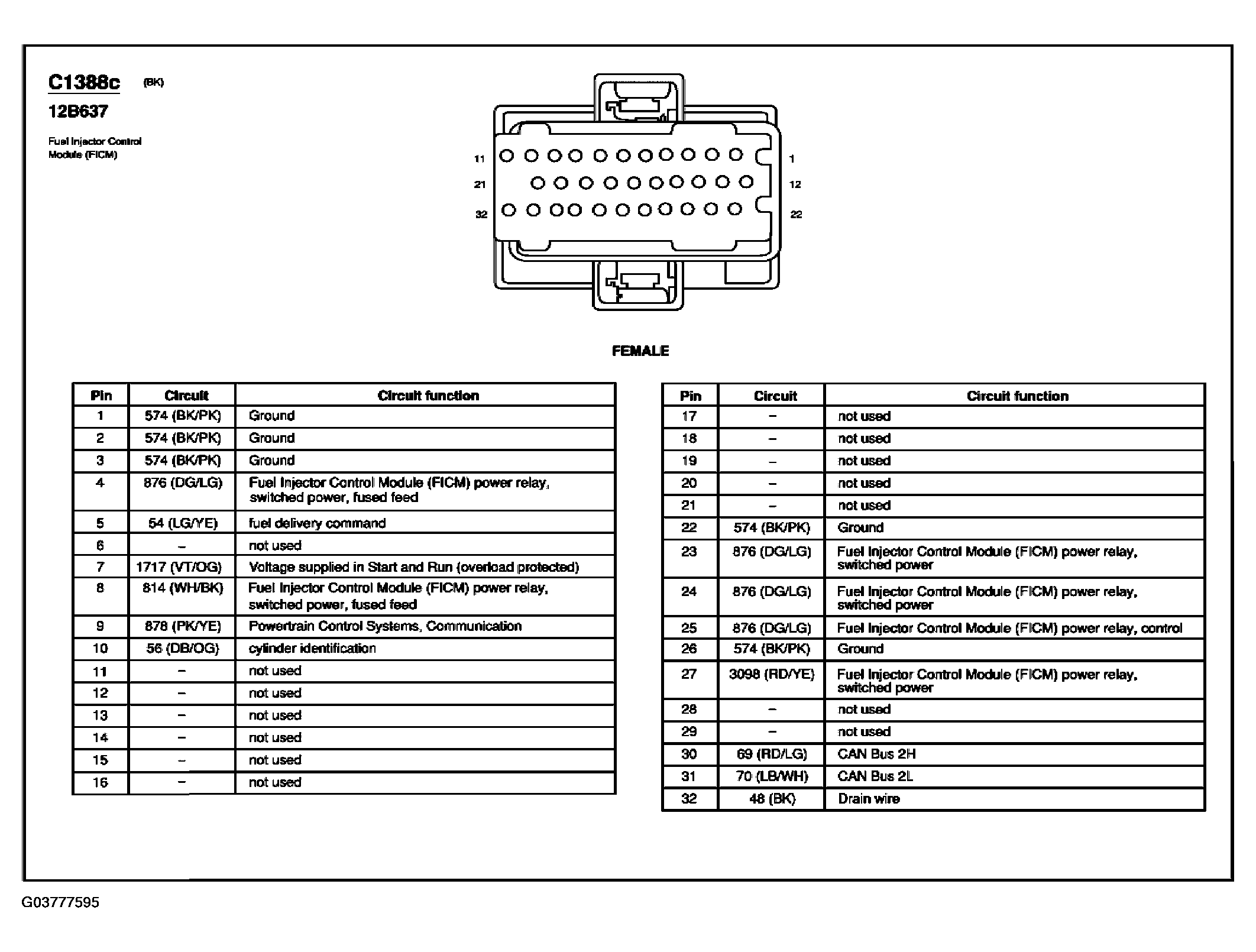

Fig 283: Fuel Injector Control Module (FICM) Connector End View (C1388c)

G03777595

Courtesy of FORD MOTOR CO.

Fig 284: EGR Valve Actuator Connector End View (C1389)

G07836139

Courtesy of FORD MOTOR CO.

Fig 285: Variable Geometric Turbo Actuator Connector End View (C1390)

G07836140

Courtesy of FORD MOTOR CO.

Fig 286: Glow Plug Bank, Left Connector End View (C1413)

G07836141

Courtesy of FORD MOTOR CO.

Fig 287: Glow Plug Bank, Right Connector End View (C1414)

G07836142

Courtesy of FORD MOTOR CO.

Fig 288: Brake Shift Interlock Connector End View (C2008)

G07836143

Courtesy of FORD MOTOR CO.

Fig 289: Parking Brake Switch Connector End View (C2015)

G07836144

Courtesy of FORD MOTOR CO.

Fig 290: Cigar Lighter, Front Connector End View (C2031)

G07836145

Courtesy of FORD MOTOR CO.

Fig 291: Power Point Connector End View (C2033)

G07836146

Courtesy of FORD MOTOR CO.

Fig 292: Accelerator Pedal Position Sensor Connector End View (C2040)

G07836147

Courtesy of FORD MOTOR CO.

Fig 293: Overdrive Cancel Switch Connector End View (C2135)

G07836148

Courtesy of FORD MOTOR CO.

Fig 294: Electronic Flasher Module Connector End View (C2141)

G07836149

Courtesy of FORD MOTOR CO.

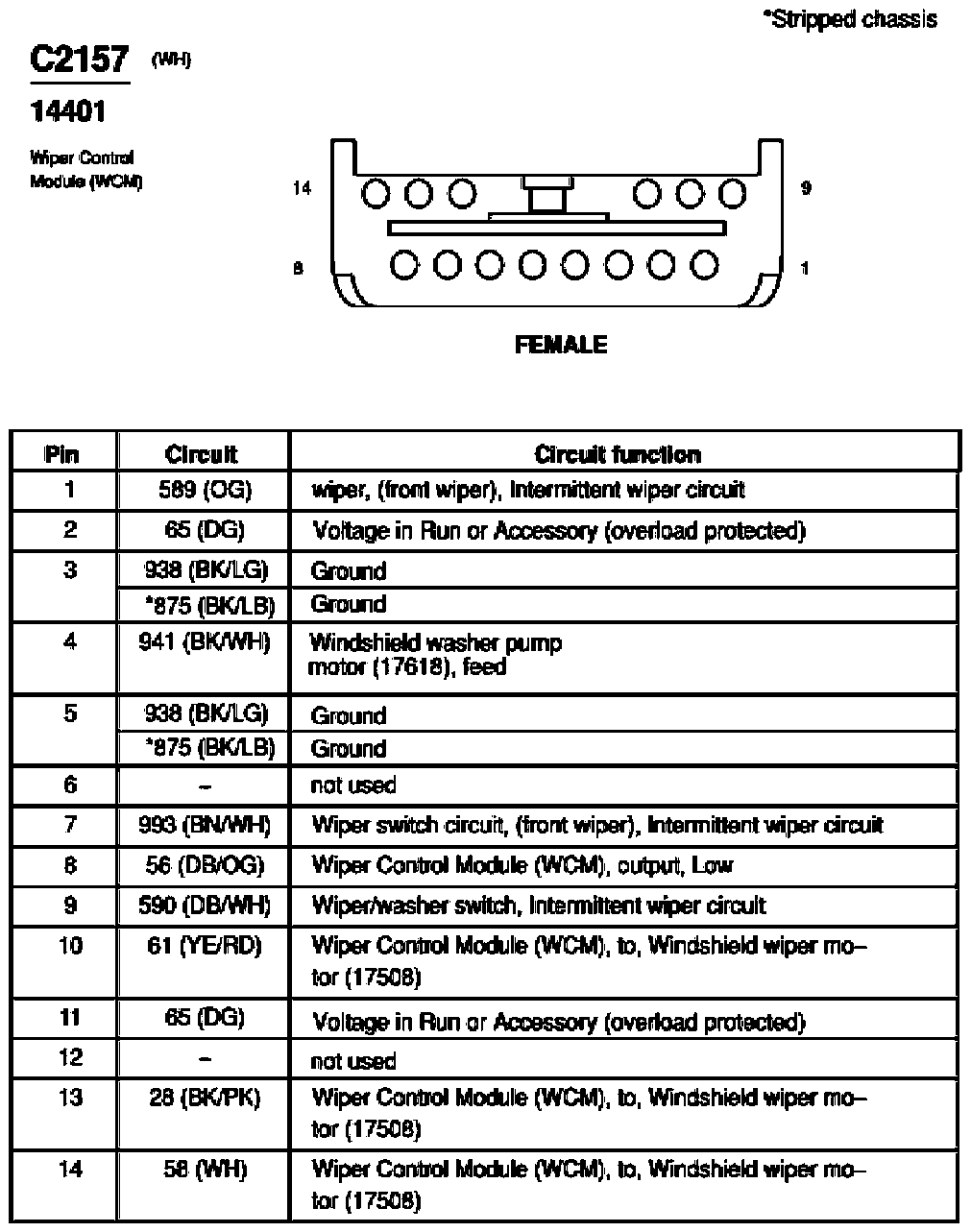

Fig 295: Wiper Control Module (WCM) Connector End View (C2157)

G07836150

Courtesy of FORD MOTOR CO.

Fig 296: Auxiliary Powertrain Control Module (APCM) Connector End View (C2176)

G07836151

Courtesy of FORD MOTOR CO.

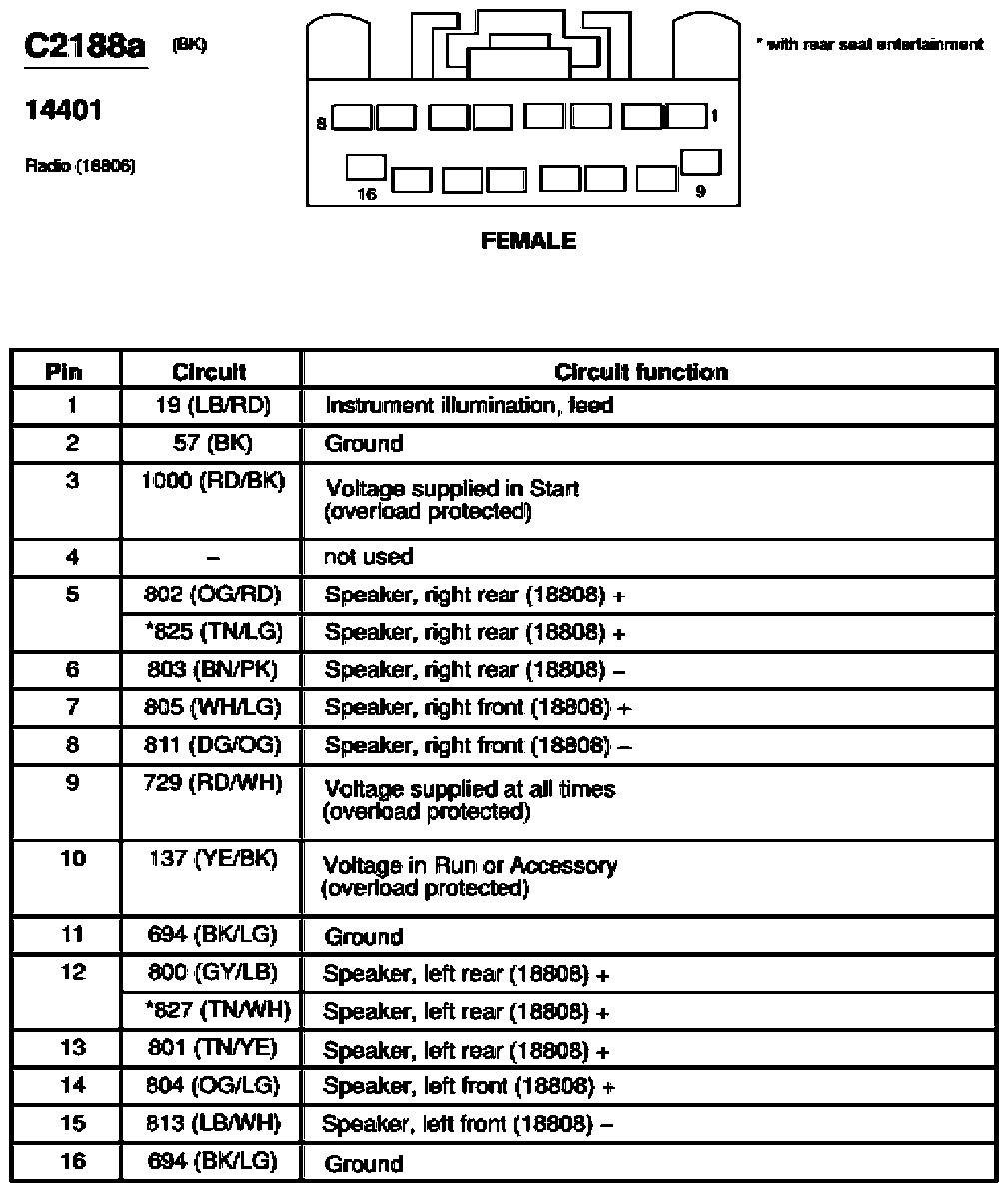

Fig 297: Radio Connector End View (C2188a)

G07836152

Courtesy of FORD MOTOR CO.

Fig 298: Radio Connector End View (C2188b)

G07836153

Courtesy of FORD MOTOR CO.

Fig 299: Grote Flasher Module Connector End View (C2252)

G07836154

Courtesy of FORD MOTOR CO.

Fig 300: Barometric Absolute Pressure Sensor (BAP) Connector End View (C2256)

G07836155

Courtesy of FORD MOTOR CO.

Fig 301: Inline Connector End View (C3007)

G07836156

Courtesy of FORD MOTOR CO.

Fig 302: Inline Connector End View (C3047)

G07836157

Courtesy of FORD MOTOR CO.

Fig 303: Inline Connector End View (C3006)

G07836158

Courtesy of FORD MOTOR CO.

Fig 304: Inline Connector End View (C3049)

G07836159

Courtesy of FORD MOTOR CO.

Fig 305: Inline Connector End View (C3050)

G07836160

Courtesy of FORD MOTOR CO.

Fig 306: Inline Connector End View (C3051)

G07836161

Courtesy of FORD MOTOR CO.

Fig 307: Inline Connector End View (C3052)

G07836162

Courtesy of FORD MOTOR CO.

Fig 308: Inline Connector End View (C3053)

G07836163

Courtesy of FORD MOTOR CO.

Fig 309: Power Point, Console 1 Connector End View (C3063)

G07836164

Courtesy of FORD MOTOR CO.

Fig 310: Power Point Console 2 Connector End View (C3064)

G07836165

Courtesy of FORD MOTOR CO.

Fig 311: Video Cassette Player Connector End View (C3076)

G07836166

Courtesy of FORD MOTOR CO.

Fig 312: Rear Seat Entertainment (RSE) Module Connector End View (C3077a)

G07836167

Courtesy of FORD MOTOR CO.

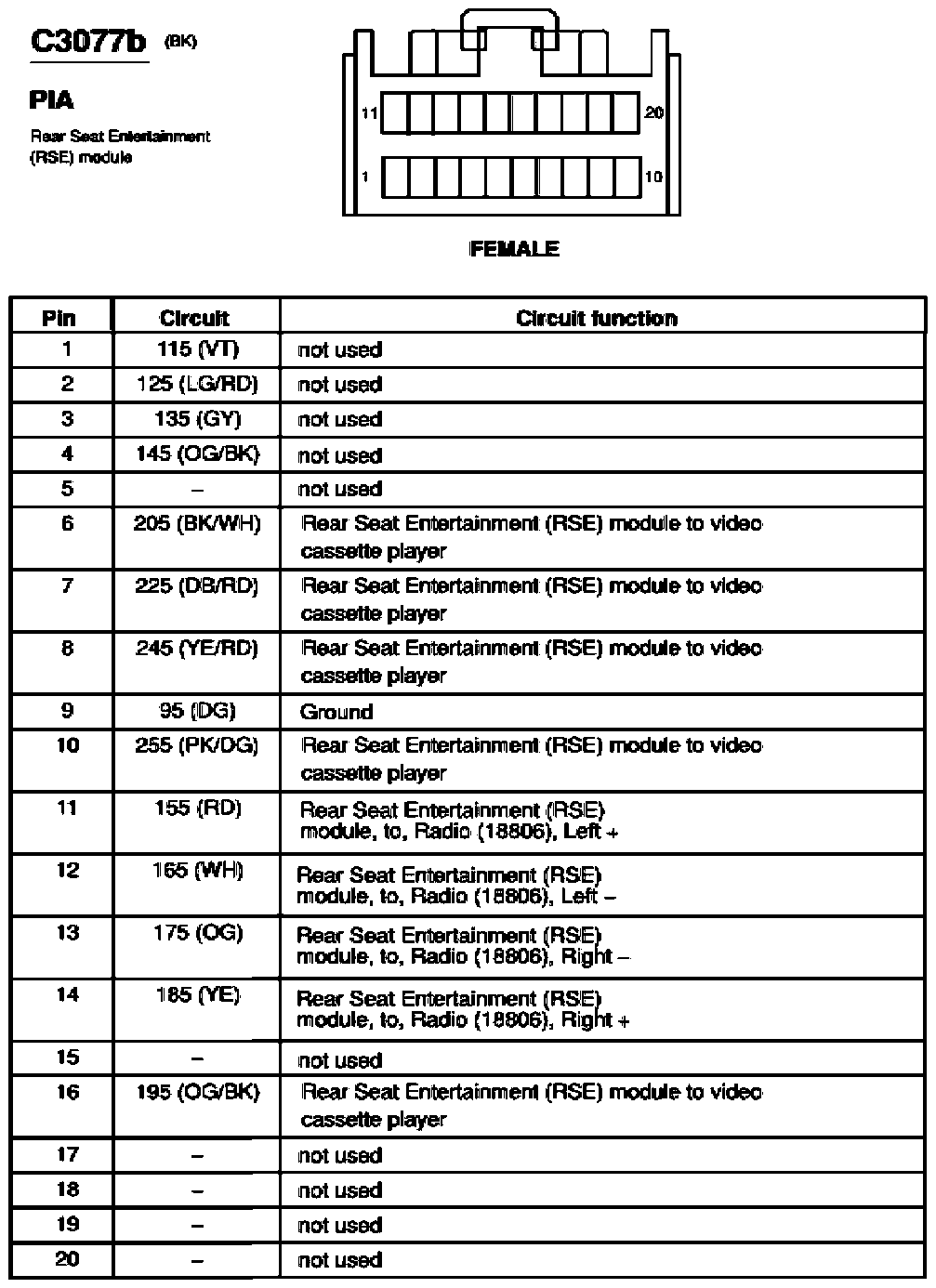

Fig 313: Rear Seat Entertainment (RSE) Module Connector End View (C3077b)

G07836168

Courtesy of FORD MOTOR CO.

Fig 314: Pony Tank Valve Connector End View (C3104)

G07836169

Courtesy of FORD MOTOR CO.

Fig 315: Inline Connector End View (C3122)

G07836170

Courtesy of FORD MOTOR CO.

Fig 316: Fuel Tank Pressure Transducer Sensor Connector End View (C3123)

G07836171

Courtesy of FORD MOTOR CO.

Fig 317: Fuel Tank Temperature Sensor Connector End View (C3124)

G07836172

Courtesy of FORD MOTOR CO.

Fig 318: Aft-Axle Fuel Tank Valve, Front Connector End View (C3125)

G07836173

Courtesy of FORD MOTOR CO.

Fig 319: Aft-Axle Fuel Tank Valve, Rear Connector End View (C3126)

G07836174

Courtesy of FORD MOTOR CO.

Fig 320: Fuel Pump Module Connector End View (C3127)

G07836175

Courtesy of FORD MOTOR CO.

Fig 321: Door Ajar Switch, Left Front Connector End View (C3129)

G07836176

Courtesy of FORD MOTOR CO.

Fig 322: Speaker, Left Middle Connector End View (C3130)

G07836177

Courtesy of FORD MOTOR CO.

Fig 323: Midship Fuel Tank Valve Connector End View (C3132)

G07836178

Courtesy of FORD MOTOR CO.

Fig 324: Inline Connector End View (C3133)

G07836179

Courtesy of FORD MOTOR CO.

Fig 325: Inline Connector End View (C3134)

G07836180

Courtesy of FORD MOTOR CO.

Fig 326: Inline Connector End View (C3135)

G07836181

Courtesy of FORD MOTOR CO.

Fig 327: Inline Connector End View (C3136)

G07836182

Courtesy of FORD MOTOR CO.

Fig 328: Inline Connector End View (C3137)

G07836183

Courtesy of FORD MOTOR CO.

Fig 329: Inline Connector End View (C3138)

G07836184

Courtesy of FORD MOTOR CO.

Fig 330: Inline Connector End View (C3139)

G07836185

Courtesy of FORD MOTOR CO.

Fig 331: Door Ajar Switch, Right Front Connector End View (C3141)

G07836186

Courtesy of FORD MOTOR CO.

Fig 332: Inline Connector End View (C3149)

G07836187

Courtesy of FORD MOTOR CO.

Fig 333: Fuel Tank Pressure Transducer Sensor Connector End View (C3166)

G07836188

Courtesy of FORD MOTOR CO.

Fig 334: Inline Connector End View (C3176)

G07836189

Courtesy of FORD MOTOR CO.

Fig 335: Sliding Door Contact Switch, Right Connector End View (C3235)

G07836190

Courtesy of FORD MOTOR CO.

Fig 336: Fuel Pump Driver Module Connector End View (C3239)

G07836191

Courtesy of FORD MOTOR CO.

Fig 337: Park/Stop/Turn Lamp, Right Rear Connector End View (C4032)

G07836192

Courtesy of FORD MOTOR CO.

Fig 338: Park/Stop/Turn Lamp, Left Rear Connector End View (C4035)

G07836193

Courtesy of FORD MOTOR CO.

Fig 339: License Plate Lamp Connector End View (C4046)

G07836194

Courtesy of FORD MOTOR CO.

Fig 340: Trailer Tow Connector, 4-Pin Connector End View (C4098)

G07836195

Courtesy of FORD MOTOR CO.

Fig 341: Trailer Tow Connector, 7-Pin Connector End View (C4099)

G07836196

Courtesy of FORD MOTOR CO.

Fig 342: Auxiliary Blower Motor Connector End View (C4106)

G07836197

Courtesy of FORD MOTOR CO.

Fig 343: Auxiliary Blower Motor Resistor Assembly Connector End View (C4107)

G07836198

Courtesy of FORD MOTOR CO.

Fig 344: Rear A/C Blower Speed Relay 1 Connector End View (C4117)

G07836199

Courtesy of FORD MOTOR CO.

Fig 345: Rear A/C Blower Speed Relay 2 Connector End View (C4118)

G07836200

Courtesy of FORD MOTOR CO.

Fig 346: Door Ajar Switch, Rear Doors Connector End View (C4119)

G07836201

Courtesy of FORD MOTOR CO.

Fig 347: Door Lock Actuator, Rear Doors Connector End View (C4120)

G07836202

Courtesy of FORD MOTOR CO.

Fig 348: Door Lock Switch, Rear Doors Connector End View (C4121)

G07836203

Courtesy of FORD MOTOR CO.
