Heated Seat Module: Installation

NOTE: A repair is made by installing a new part only. If a new part is installed and the new part does not correct the condition, install the original part and carry out the diagnostic procedure again.

NOTE: If a side air bag deployment took place, a new seatback pad, trim cover, and side air bag module must be installed. A new seatback frame should be installed if necessary.

Install the heated seat module.
- Slide the heated seat module down over the attachment bracket until the locking tab snaps into place
- Connect the electrical connector.

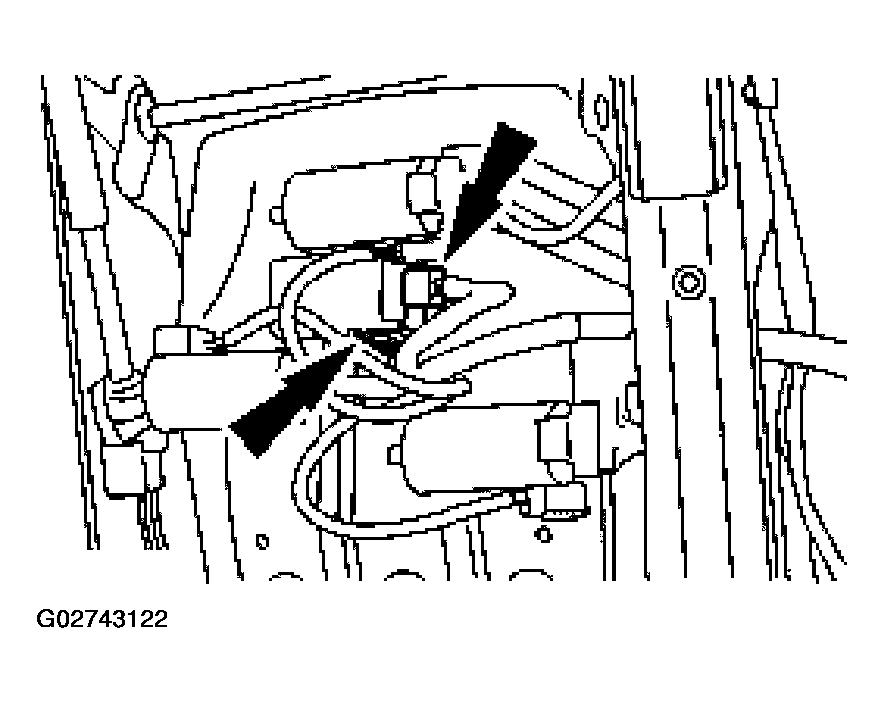

Fig 1: Installing Heated Seat Module
Courtesy of FORD MOTOR CO.
Install the front seat. For additional information, refer to DRIVER SEAT or PASSENGER SEAT
