Connecting Rod Twist

Measure the connecting rod twist on a suitable alignment fixture. Follow the instructions of the fixture manufacturer. Verify the measurement is within specification.
- Refer to ENGINE-2.0L ZETEC or ENGINE-3.0L (4V) for the specifications .
- If out of specification, install new components as necessary. Refer to ENGINE-2.0L ZETEC or ENGINE-3.0L (4V) for the procedure .

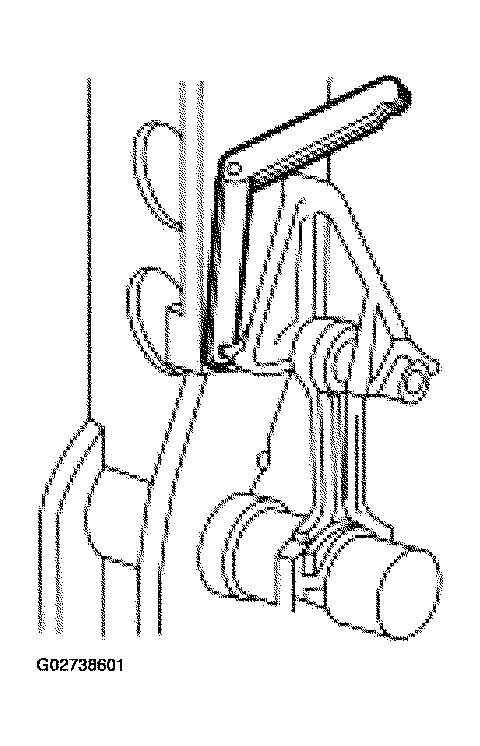

Fig 1: Measuring Connecting Rod Twist On Suitable Alignment Fixture
Courtesy of FORD MOTOR CO.
