Spark Plug Wires: Installation

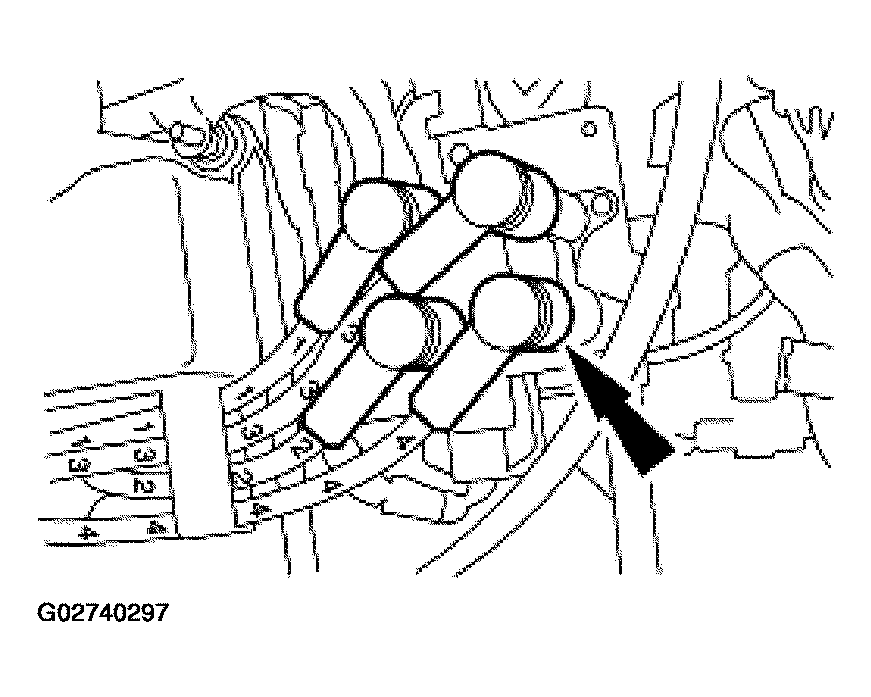

- Connect the ignition wires to the correct ignition coil terminals.

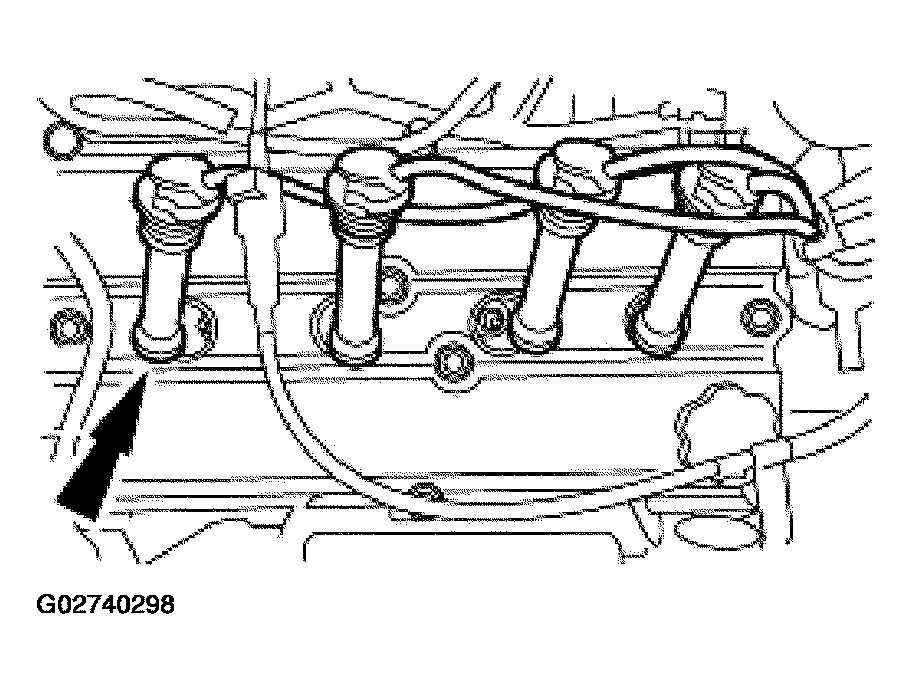

- Connect the ignition wires to the correct spark plugs (12405).
CAUTION:
Correct installation of the ignition wires is critical to engine operation. If one spark plug wire is not correctly installed at either the spark plug or the ignition coil, both spark plugs connected to the ignition coil may not fire under load.
NOTE:
Whenever an ignition wire is reinstalled or a new one is installed, apply Silicone Brake Caliper Grease and Dielectric compound to the interior surface of the ignition wire boot.
NOTE:
Before installing the ignition wires, inspect the ignition wires for any visible damage; install new ignition wires if necessary.
