Steering Wheel: Removal

Position the front seats rearward.
Disable the supplemental restraint system (SRS). For additional information, refer to AIR BAG RESTRAINT SYSTEMS .
Lower the steering wheel air bag connector access cover.

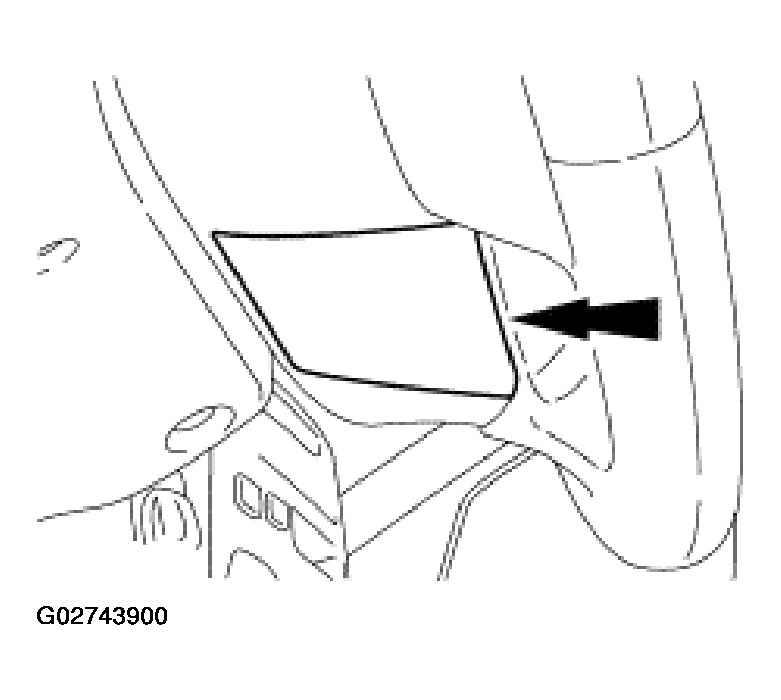

Fig 1: Identifying Lower Steering Wheel Air Bag Connector Access Cover
Courtesy of FORD MOTOR CO.
Turn the pinion shaft to release the steering wheel from the column shaft.

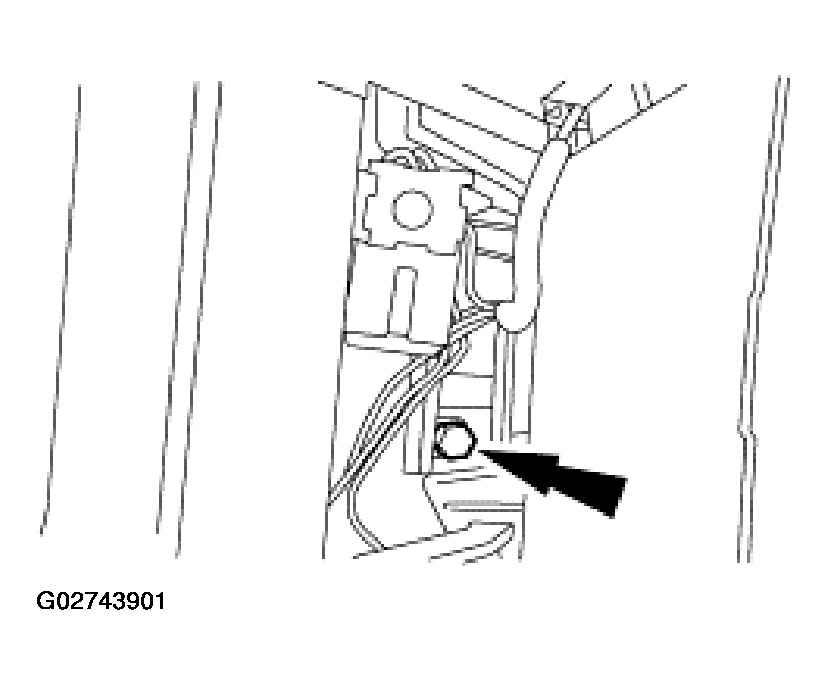

Fig 2: Turning Pinion Shaft To Release Steering Wheel From Column Shaft
Courtesy of FORD MOTOR CO.
Remove the steering wheel.
1. Position the steering wheel rearward.
2. Disconnect the electrical connector.

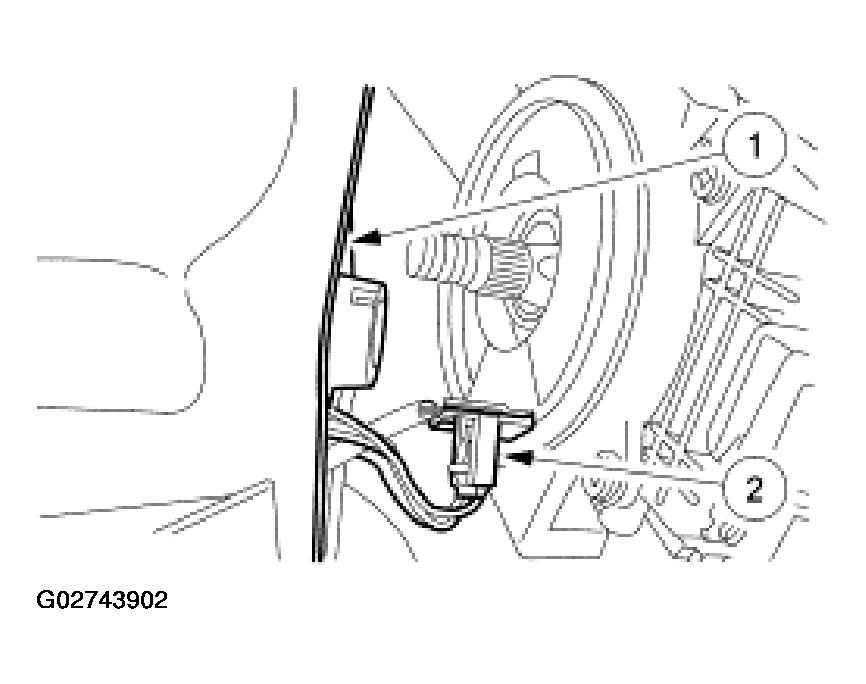

Fig 3: Removing Steering Wheel
Courtesy of FORD MOTOR CO.
