Home › Ford › 2004 › Escape 2.0 B › Repair and Diagnosis › Transmission › Manual Trans › Manual Transmission › Disassembly And Assembly Of Subassemblies › Differential › Notes

Disassembly And Assembly Of Subassemblies: Differential: Notes

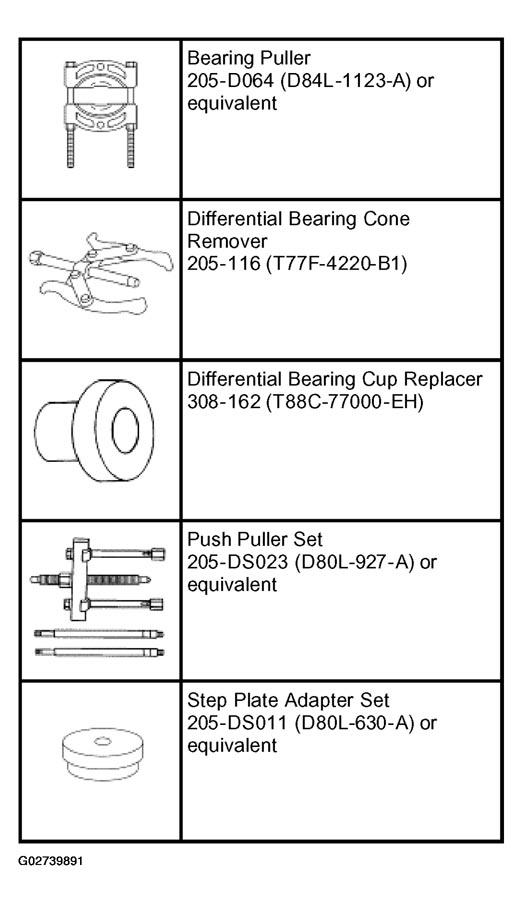

Fig 1: Identifying Special Tools
G02739891Courtesy of FORD MOTOR CO.

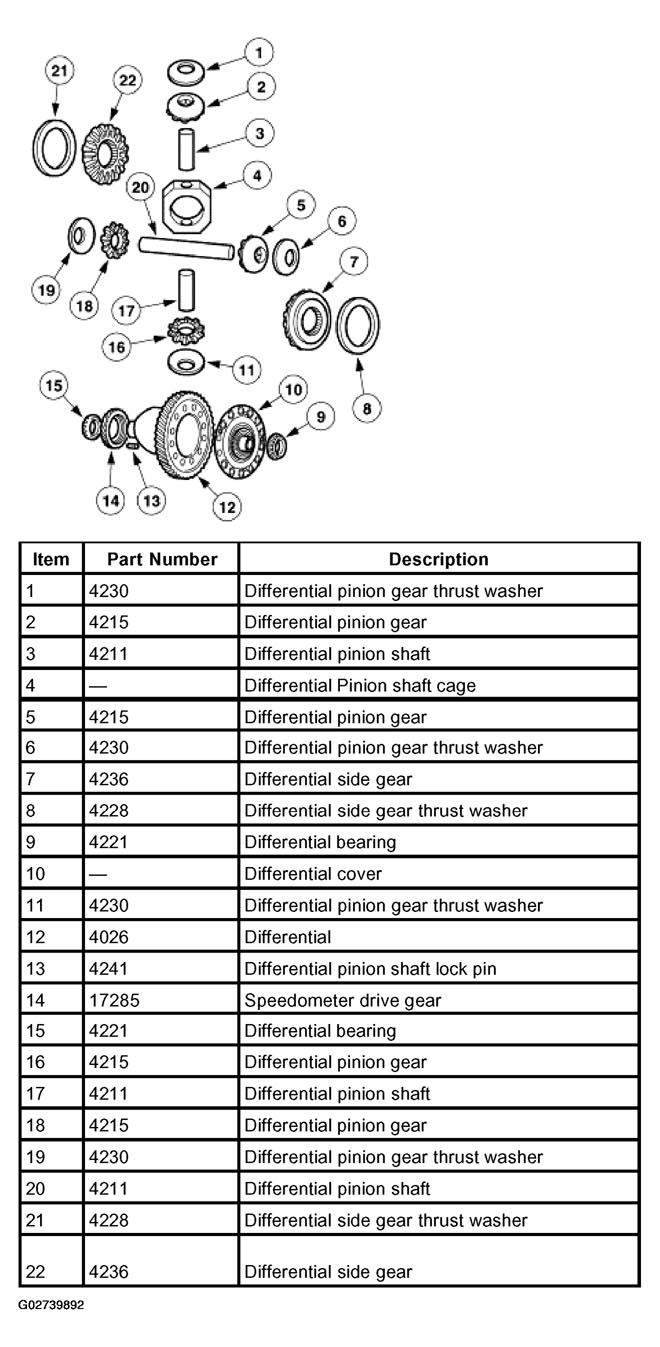

Fig 2: Exploded View Of Differential
G02739892Courtesy of FORD MOTOR CO.
