Output Shaft: Notes

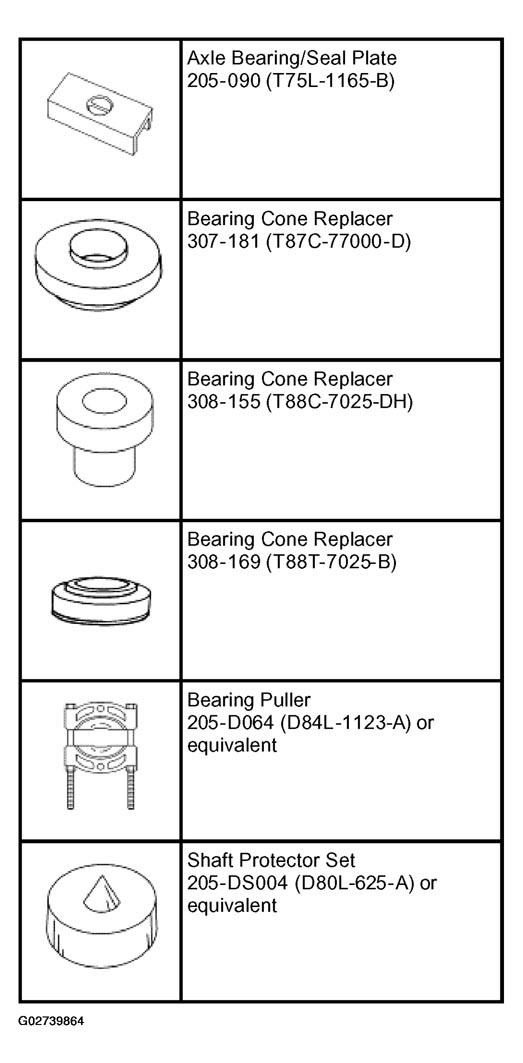

Fig 1: Identifying Special Tools
G02739864Courtesy of FORD MOTOR CO.

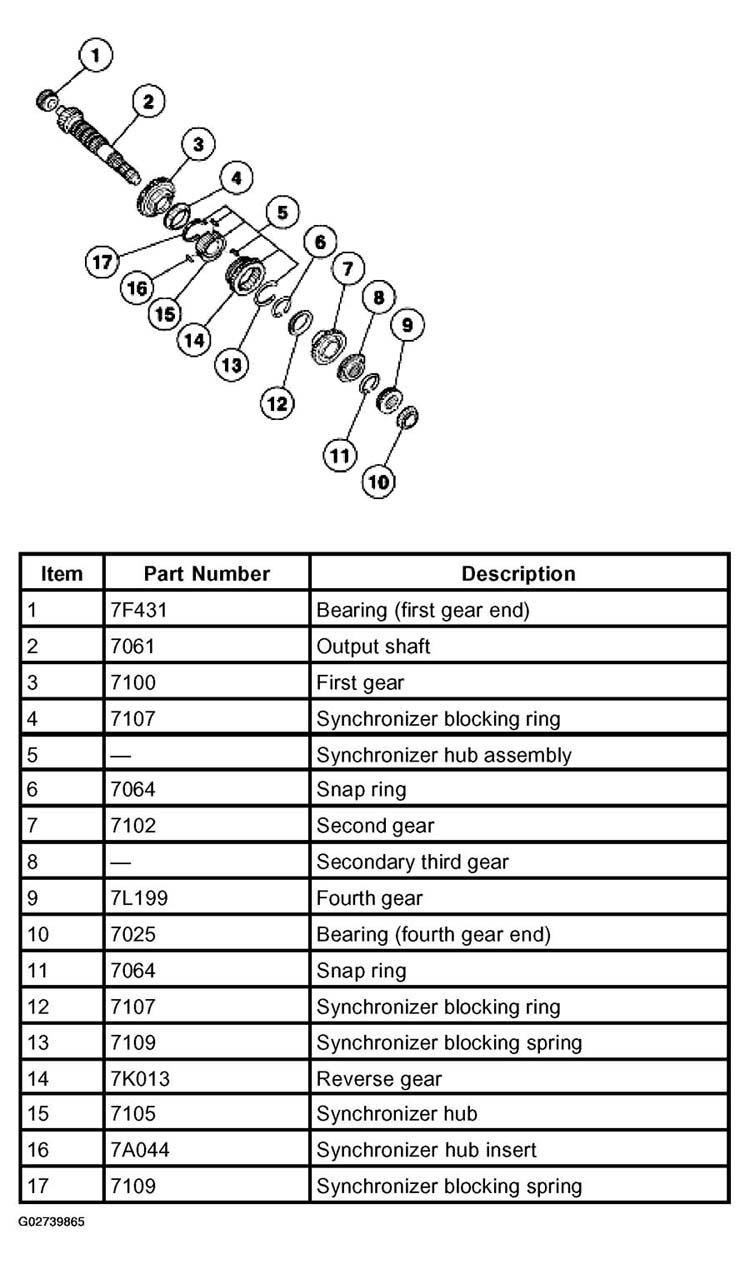

Fig 2: Exploded View Of Output Shaft Components
G02739865Courtesy of FORD MOTOR CO.
