Fluid Pump Assembly Components

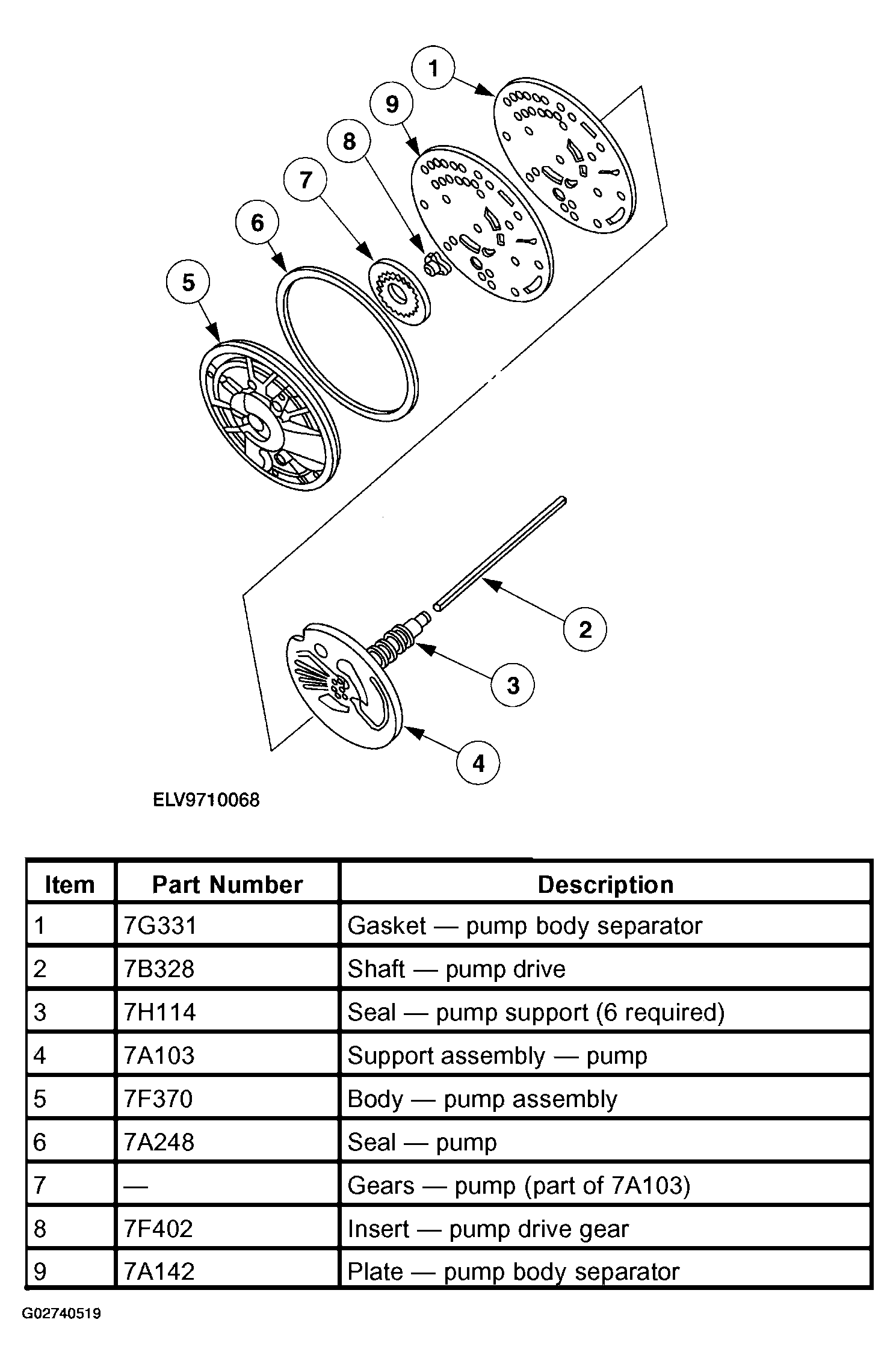

Fig 1: Disassembling Fluid Pump Assembly Components
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
