Final Drive Carrier and Differential Assembly: Assembly

  1. Install the differential side gears and thrust washers.
    Fig 1: Installing Differential Side Gears And Thrust Washers
    G02740874Courtesy of FORD MOTOR CO.
  2. Install the differential pinion gears and thrust washers.
    • Rotate the differential pinion gears 90 degrees.

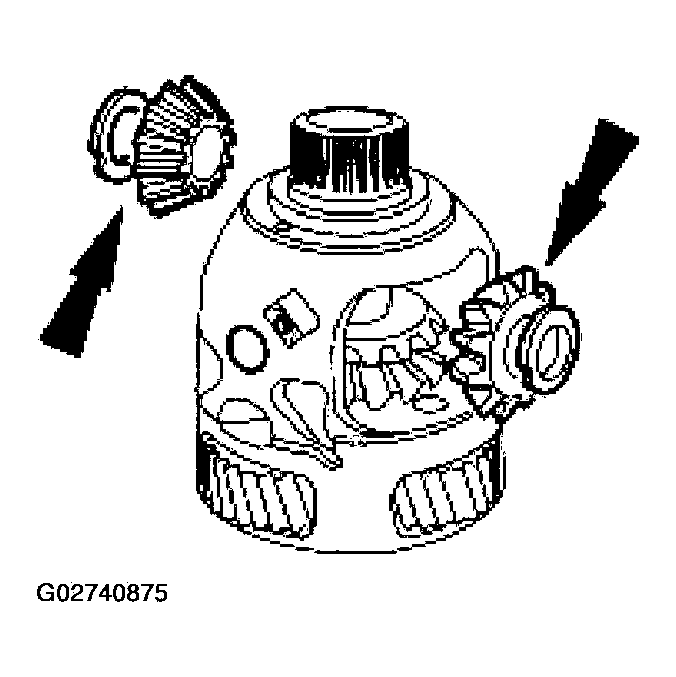

    Fig 2: Installing Differential Pinion Gears And Thrust Washers
    G02740875Courtesy of FORD MOTOR CO.
  3. Install the differential pinion shaft.
    1. Push the pinion shaft in place.
    2. Install the roll pin.

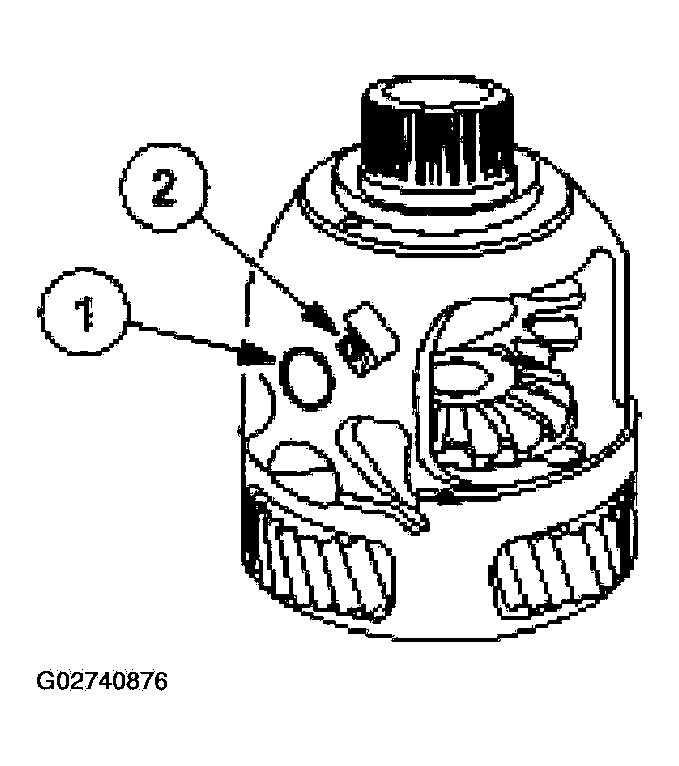

    Fig 3: Installing Differential Pinion Shaft
    G02740876Courtesy of FORD MOTOR CO.
