Automatic Transmission: Disassembly: Transaxle: Notes

Special Tool(s)

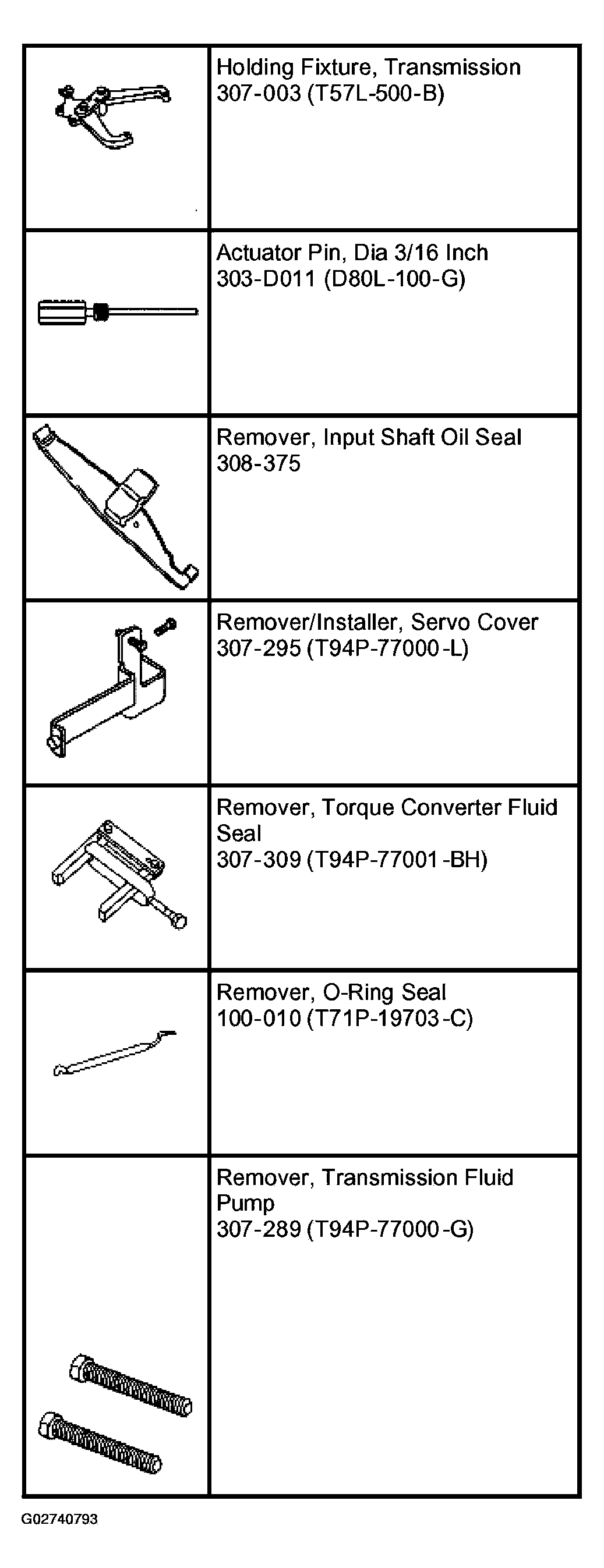

Fig 1: Identifying Special Tools (1 Of 2)
G02740793Courtesy of FORD MOTOR CO.

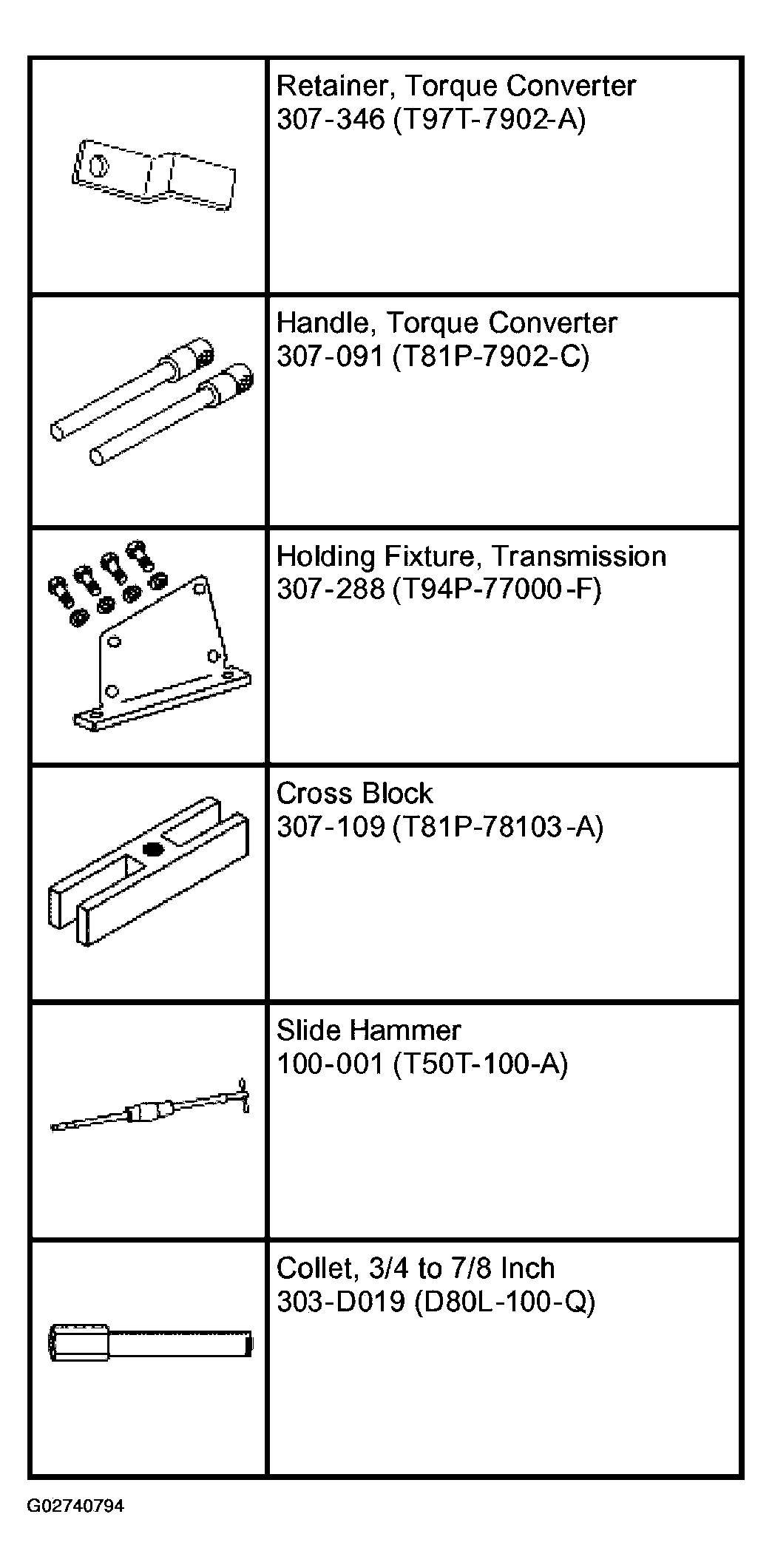

Fig 2: Identifying Special Tools (2 Of 2)
G02740794Courtesy of FORD MOTOR CO.
