Main Control Cover and Gasket: Removal

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
Drain the engine coolant. For additional information, refer to ENGINE COOLING .
Remove the battery tray. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Disconnect the wiring harness from the battery tray bracket.

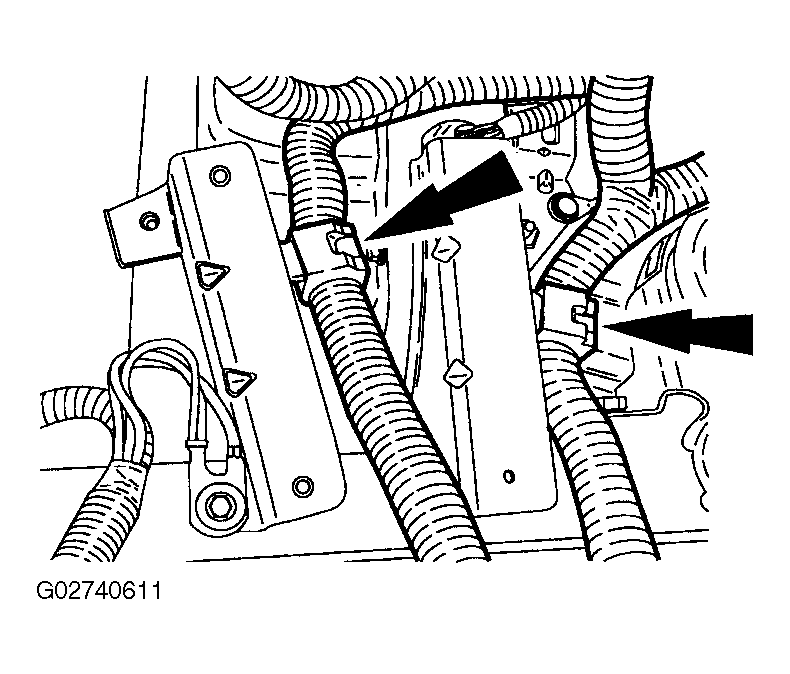

Fig 1: Disconnecting Wiring Harness From Battery Tray Bracket
Courtesy of FORD MOTOR CO.
Remove the battery tray bracket.

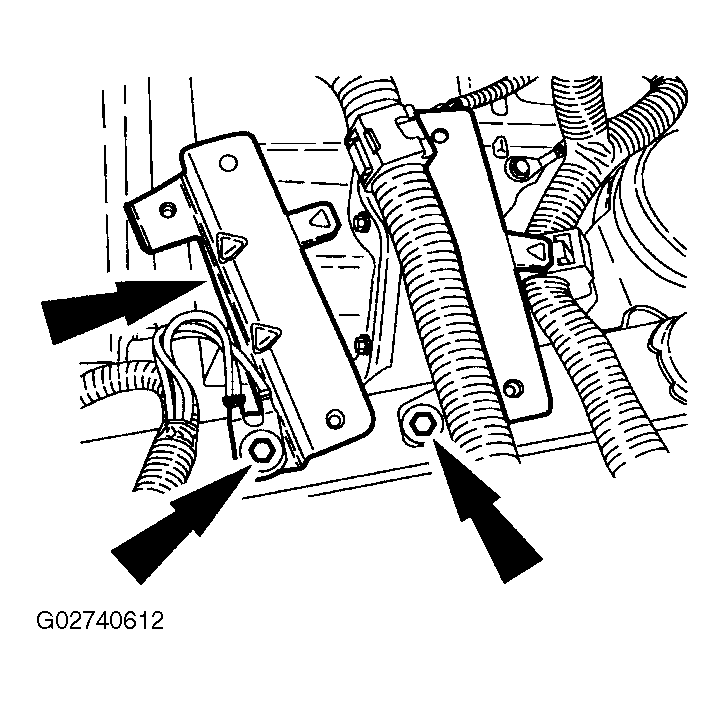

Fig 2: Removing Battery Tray Bracket
Courtesy of FORD MOTOR CO.
Remove the vent tube hose.

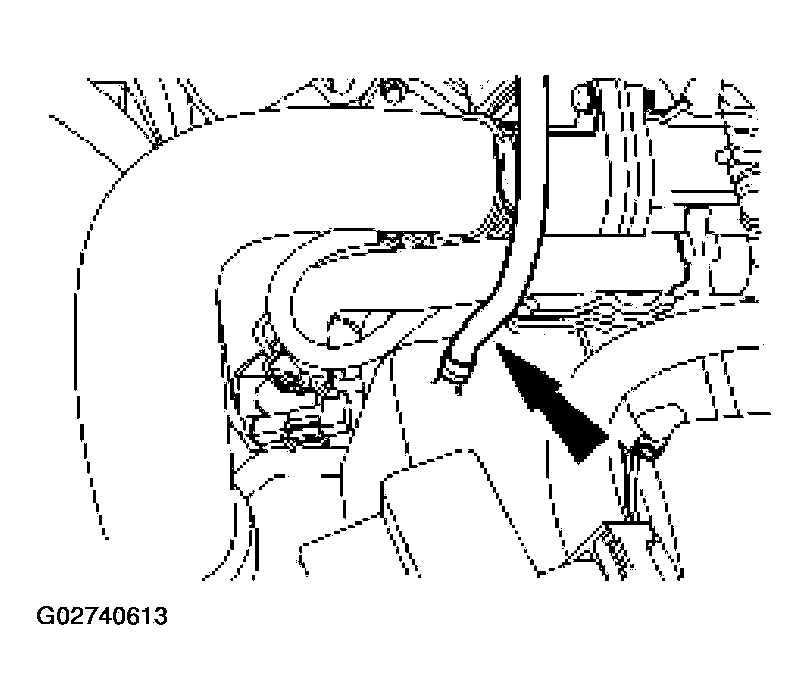

Fig 3: Removing Vent Tube Hose
Courtesy of FORD MOTOR CO.
Remove the LH splash shield.

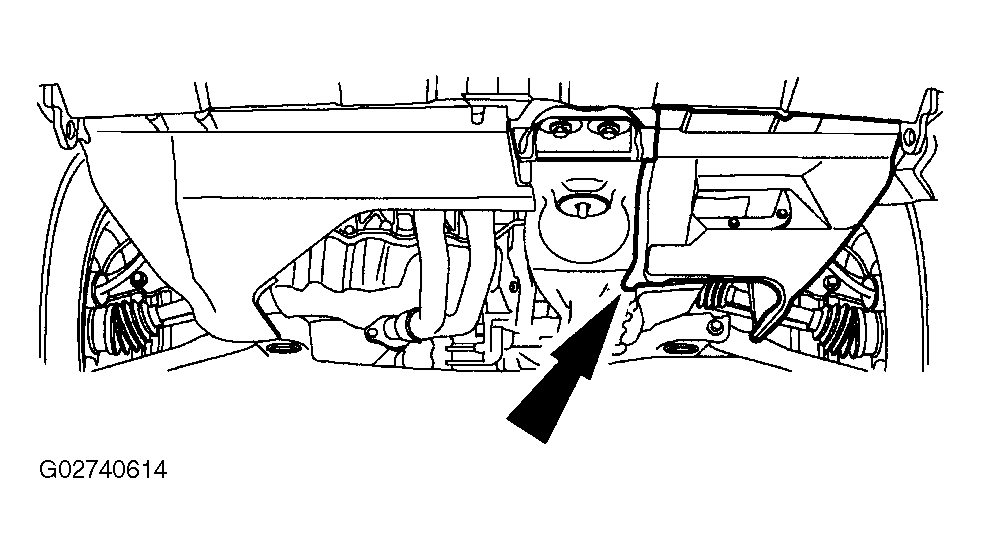

Fig 4: Removing LH Splash Shield
Courtesy of FORD MOTOR CO.
Remove the lower radiator hose and position aside.

Fig 5: Removing Lower Radiator Hose And Position Aside
Courtesy of FORD MOTOR CO.
Remove the transmission fluid cooler tube bracket bolt.

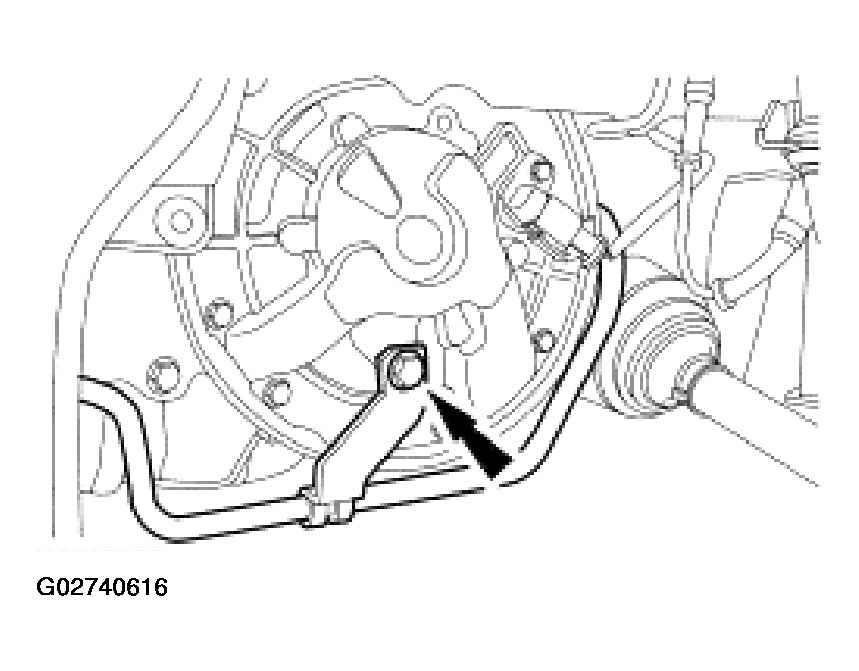

Fig 6: Removing Transmission Fluid Cooler Tube Bracket Bolt
Courtesy of FORD MOTOR CO.
Remove the transaxle drain plug and drain the transmission fluid.

Fig 7: Removing Transaxle Drain Plug
Courtesy of FORD MOTOR CO.
Remove the main control cover bolts and the cover.

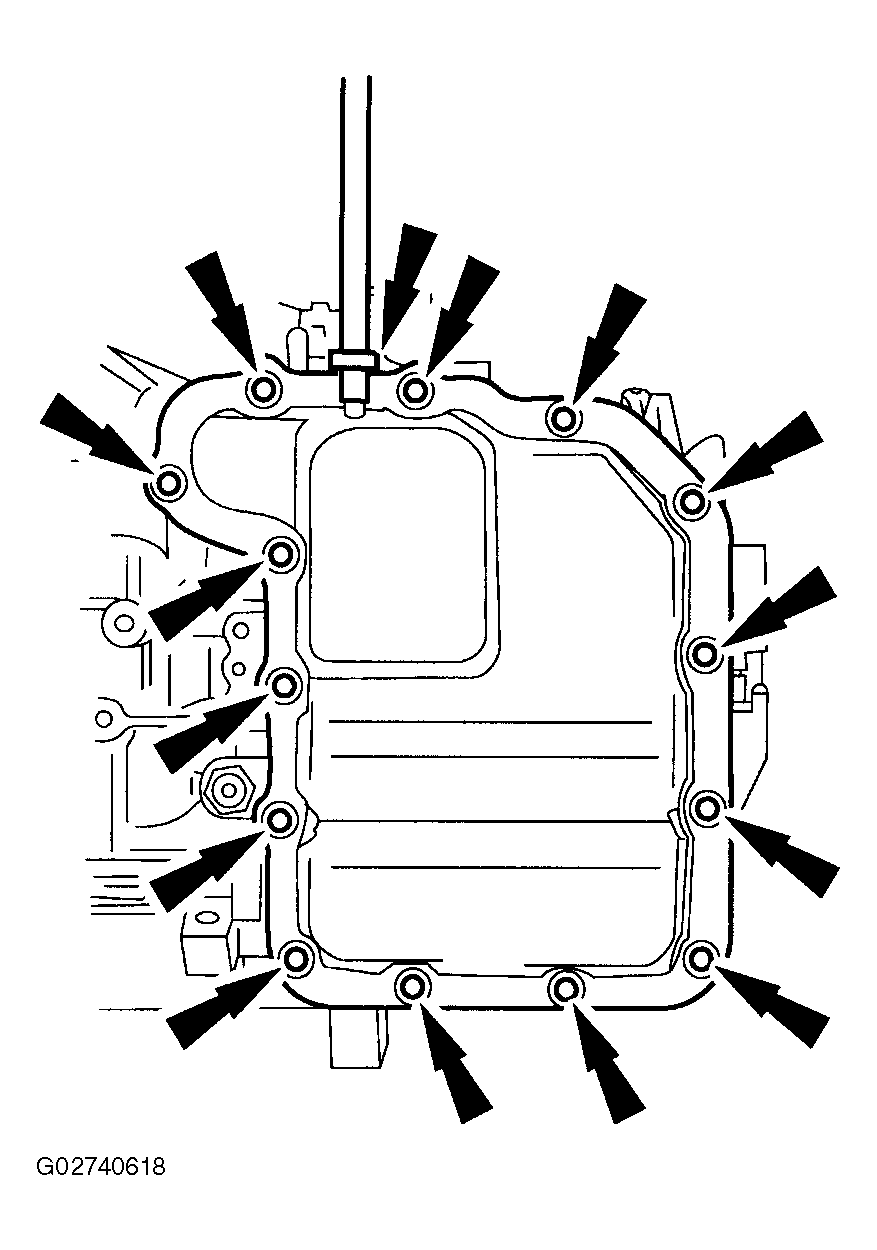

Fig 8: Removing Main Control Cover Bolts
Courtesy of FORD MOTOR CO.
Remove the main control cover gasket from the pan.

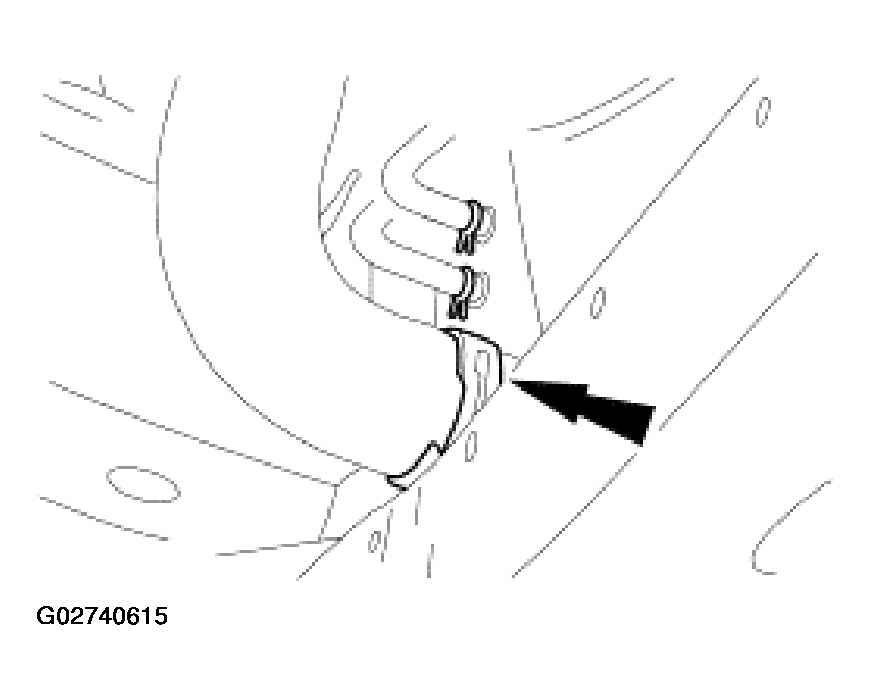

Fig 9: Removing Main Control Cover Gasket From Pan
Courtesy of FORD MOTOR CO.
