Output Shaft Speed (OSS) Sensor: Installation

NOTE: Apply a light coat of petroleum jelly to the O-ring before installation.

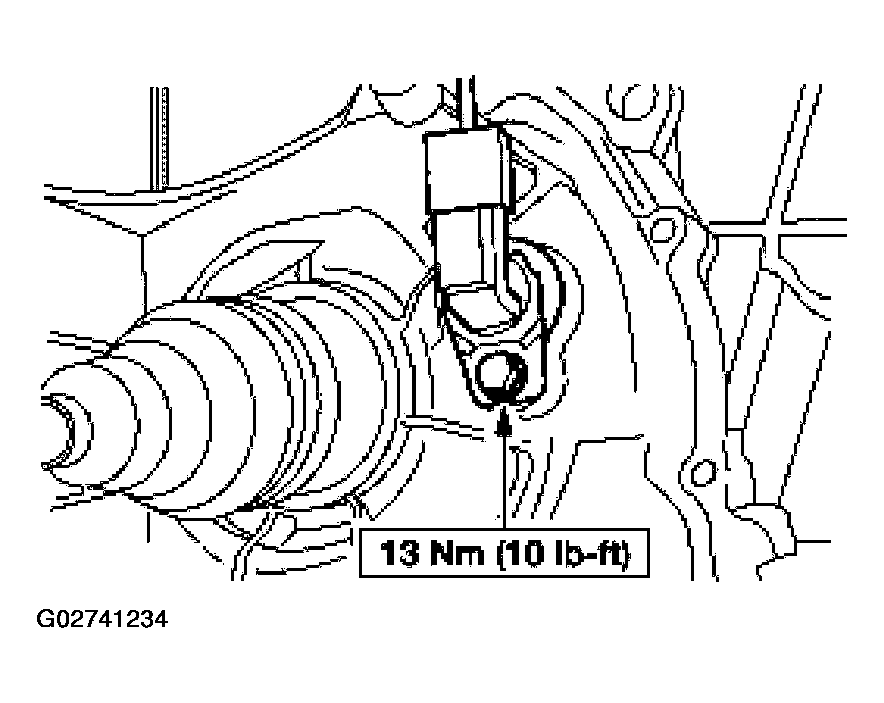

Fig 1: Installing OSS Sensor

Courtesy of FORD MOTOR CO.

Install the OSS sensor.
- Connect the OSS sensor electrical connector.
Install the splash shield.

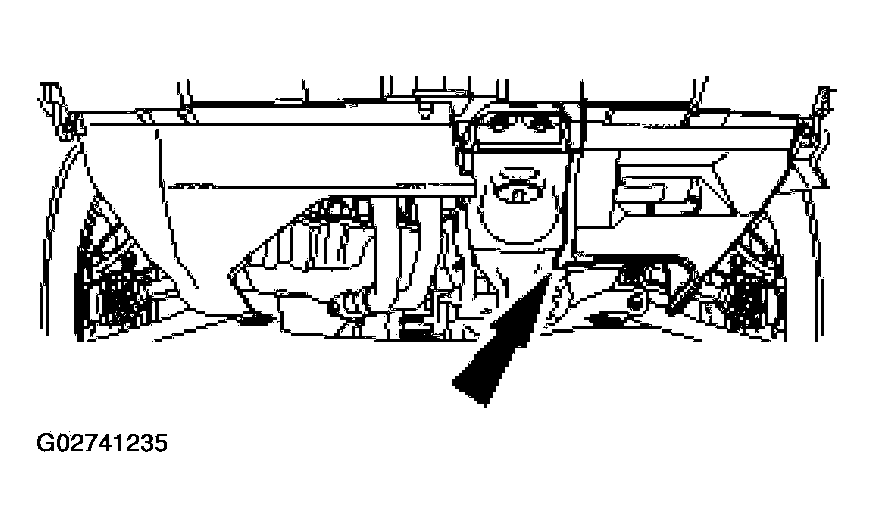

Fig 2: Installing Splash Shield
Courtesy of FORD MOTOR CO.
Install the LH front wheel.
Lower vehicle.
Check the transmission fluid level, add fluid as necessary using MERCON® Multi-Purpose (ATF) Transmission Fluid XT -2-QDX or equivalent meeting MERCON® specification.
Start the engine and move the transaxle range selector lever through all gear positions.
