Transmission Range (TR) Sensor: Removal

  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to GENERATORS & REGULATORS .
  2. Remove the battery and tray. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  3. Remove the transmission range (TR) sensor.
    1. Disconnect the TR sensor electrical connector.
    2. Remove the bolts.
    3. Remove the TR sensor.

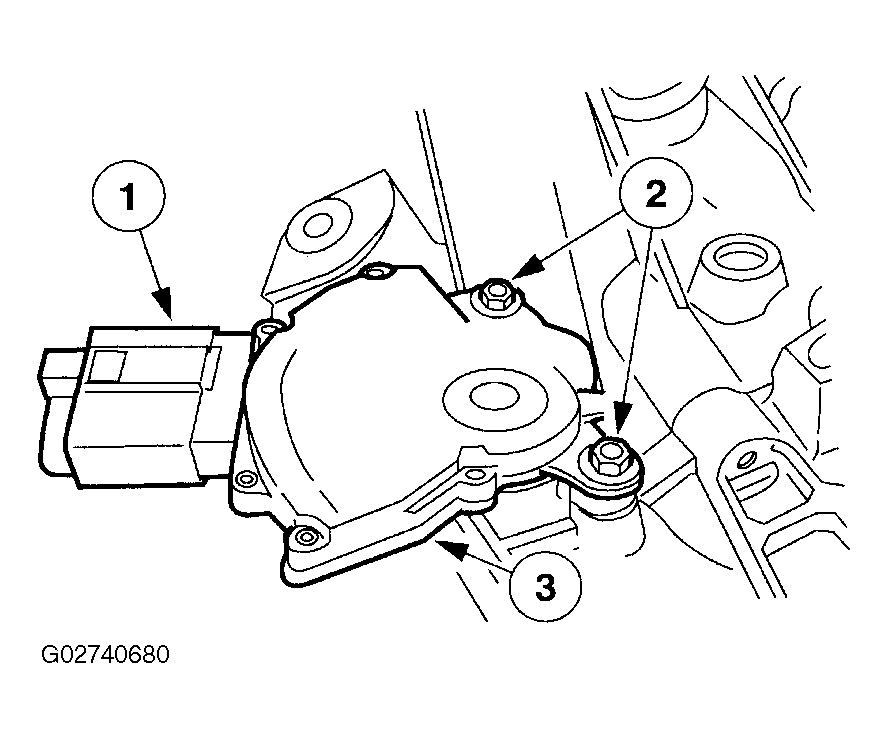

    Fig 1: Removing Transmission Range (TR) Sensor
    G02740680Courtesy of FORD MOTOR CO.
