Cylinder Head: Assembly

WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

All cylinder heads

  1. Lubricate the camshaft journals with clean engine oil.
    2. Fig 1: Camshaft Journals
    GF0011650Courtesy of FORD MOTOR CO.

    4.6L cylinder heads

  2. Install the camshaft and the camshaft bearing caps in their original locations.
    • Lubricate the camshaft bearing caps with clean engine oil.
    • Position the camshaft bearing caps.
    • Install the bolts loosely.
    3. Fig 2: Identifying Camshaft And Camshaft Bearing Caps
    G03885383Courtesy of FORD MOTOR CO.
    NOTE: LH shown, RH similar.
  3. Tighten the bolts in the sequence shown.
    • Tighten to 10 Nm (89 lb-in).
    4. Fig 3: Camshaft Bearing Cap Bolt Tightening Sequence
    GF0002627Courtesy of FORD MOTOR CO.

    5.4L cylinder heads

  4. Install the camshaft and the camshaft bearing caps in their original locations.
    • Lubricate the camshaft bearing caps with clean engine oil.
    • Position the camshaft bearing caps.
    • Install the bolts loosely.

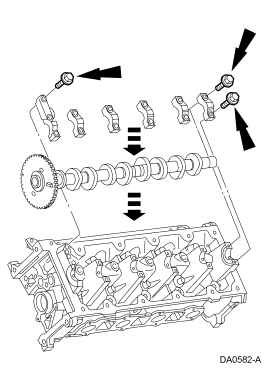

    5. Fig 4: Camshaft, Bearing Caps & Bolts
    GF0011704Courtesy of FORD MOTOR CO.
    NOTE: LH shown, RH similar.
  5. Tighten the bolts in the sequence shown.
    • Tighten to 10 Nm (89 lb-in).
    6. Fig 5: Camshaft Bearing Cap Bolt Tightening Sequence
    GF0011651Courtesy of FORD MOTOR CO.

    All cylinder heads

    NOTE: Lubricate the valve stems using clean engine oil.
  6. Install the valves in the valve guides located in the cylinder head.
    7. Fig 6: Installing Valve
    GF0011705Courtesy of FORD MOTOR CO.
    NOTE: Lubricate the valve seals with clean engine oil prior to installation.
  7. Using the special tools, install the new valve stem seal.
    8. Fig 7: Installing Seal
    GF0011654Courtesy of FORD MOTOR CO.
  8. Install the valve springs and the valve spring retainers onto the valves.
    9. Fig 8: Installing Valve Springs & Valve Spring Retainers
    GF0011706Courtesy of FORD MOTOR CO.
  9. Install the special tool between the valve spring coils to prevent valve stem seal damage.
    10. Fig 9: Installing Special Tool Between Valve Spring Coils
    G03962476Courtesy of FORD MOTOR CO.
  10. Using the special tool, compress the valve springs. Install the valve spring retainer keys.
    11. Fig 10: Compressing Valve Springs Using Special Tool (303-567)
    G04612253Courtesy of FORD MOTOR CO.
    NOTE: Lubricate the hydraulic lash adjusters using clean engine oil.
  11. Install the hydraulic lash adjusters in their original locations.
    12. Fig 11: Locating Hydraulic Lash Adjusters
    GF0002630Courtesy of FORD MOTOR CO.
  12. Remove the special tool.
    13. Fig 12: Installing Special Tool Between Valve Spring Coils
    G03962476Courtesy of FORD MOTOR CO.
