Intake Manifold - 4.6L: Notes
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| Motorcraft Metal Surface Prep ZC-31 |
- |
| Silicone Gasket Remover ZC-30 |
- |

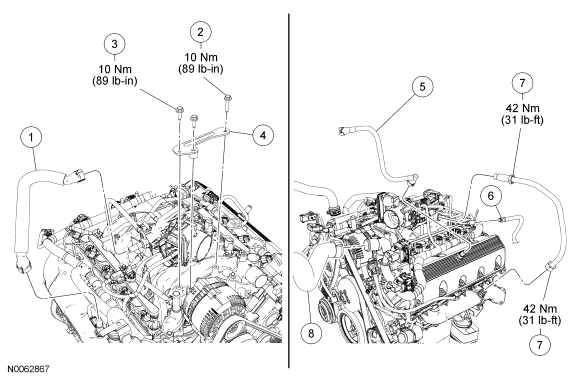

| Item | Part Number | Description |
|---|---|---|
| 1 | 6K817 | PCV tube |
| 2 | W704682 | Generator support bracket bolt |
| 3 | W503924 | Generator support bracket bolt (3 required) |
| 4 | 10153 | Generator support bracket |
| 5 | 18K527 | Crankcase vent tube |
| 6 | - | Fuel supply tube spring lock coupling |
| 7 | 9D477 | EGR system module-to-exhaust manifold tube |
| 8 | - | Upper radiator hose |

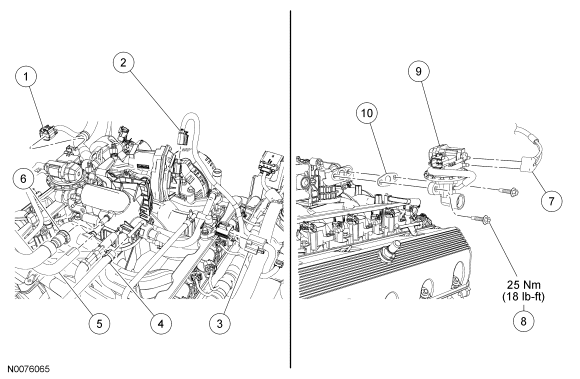

| Item | Part Number | Description |
|---|---|---|
| 1 | - | EGR system module electrical connector (part of 12B637) |
| 2 | - | Electronic throttle control electrical connector (part of 12B637) |
| 3 | - | Fuel pressure and temperature sensor electrical connector (part of 12B637) |
| 4 | 18465 | PCV coolant hose |
| 5 | - | Vacuum connector (part of 9E498) |
| 6 | - | Evaporative emissions (EVAP) system vapor tube quick connect coupling |
| 7 | - | EGR system module vacuum, connector (part of 9E498) |
| 8 | N506024 | EGR system module bolt (2 required) |
| 9 | 9Y456 | EGR system module |
| 10 | - | EGR system module gasket |

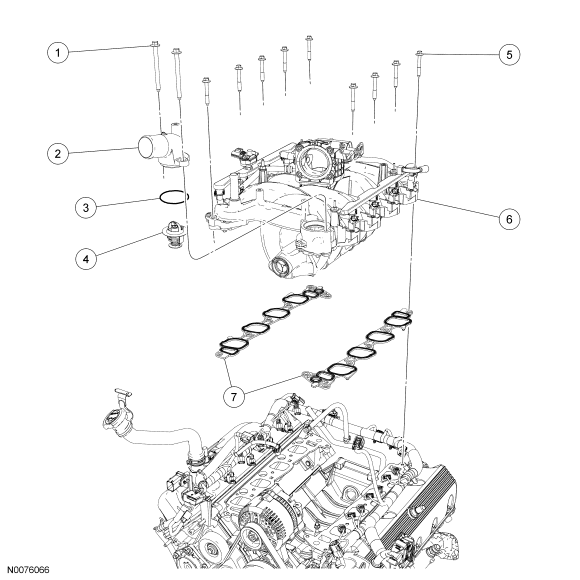

| Item | Part Number | Description |
|---|---|---|
| 1 | W704693 | Thermostat housing bolt (2 required) |
| 2 | 8594 | Thermostat housing |
| 3 | N806807 | Thermostat housing O-ring seal |
| 4 | 8575 | Thermostat |
| 5 | W503301 | Intake manifold bolt (9 required) |
| 6 | 9S455 | Intake manifold |
| 7 | 9439 | Intake manifold gaskets (2 required) |
