Symptom Chart

NOTE: Refer to the appropriate wiring diagram for connector numbers stated in the pinpoint tests.

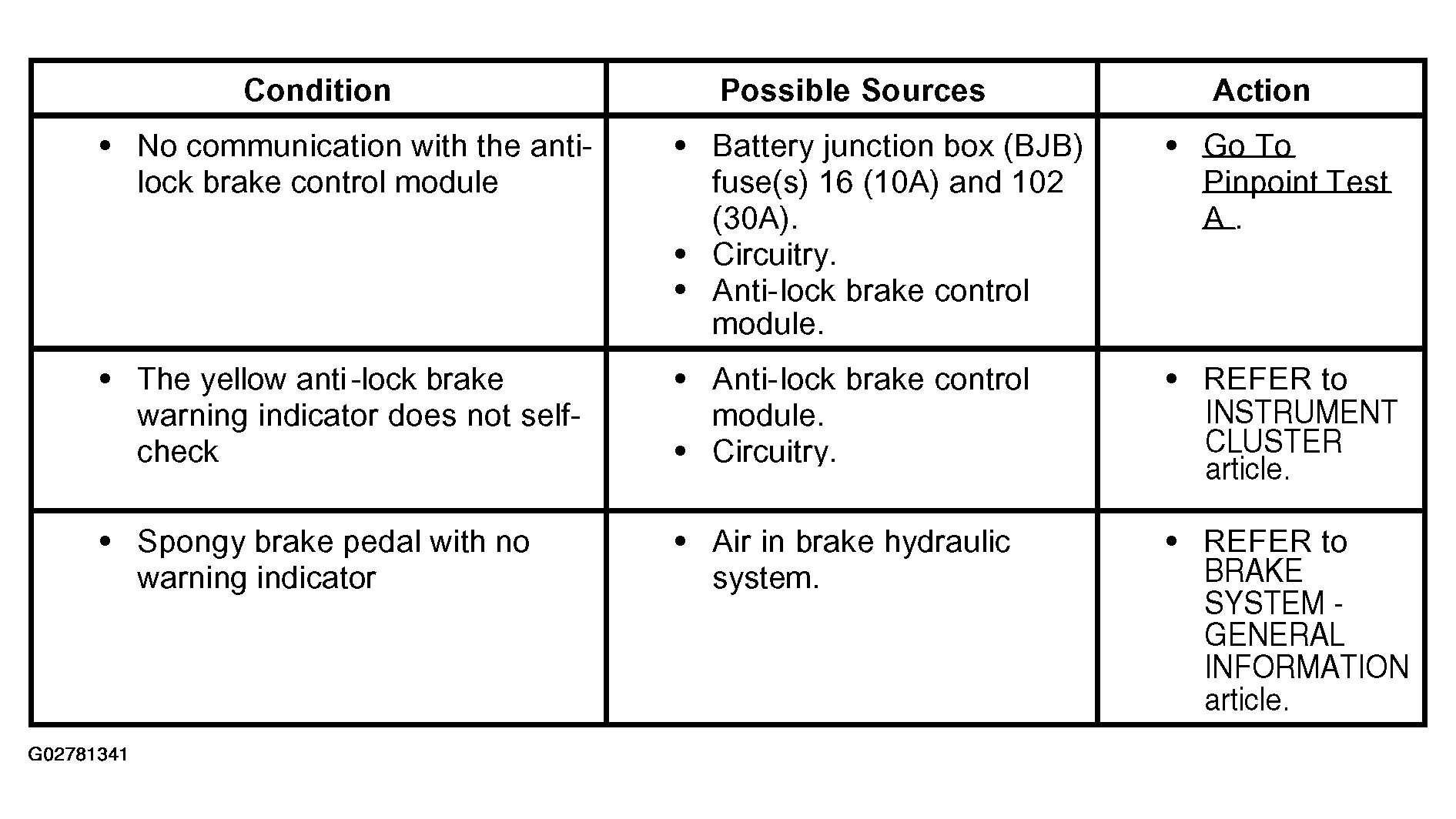

Fig 1: Identifying Symptom Chart
G02781341Courtesy of FORD MOTOR CO.
