Symptom Chart

NOTE: Refer to ANTI-LOCK BRAKES (Navigator) or ANTI-LOCK BRAKES (Expedition) for schematic and connector information.

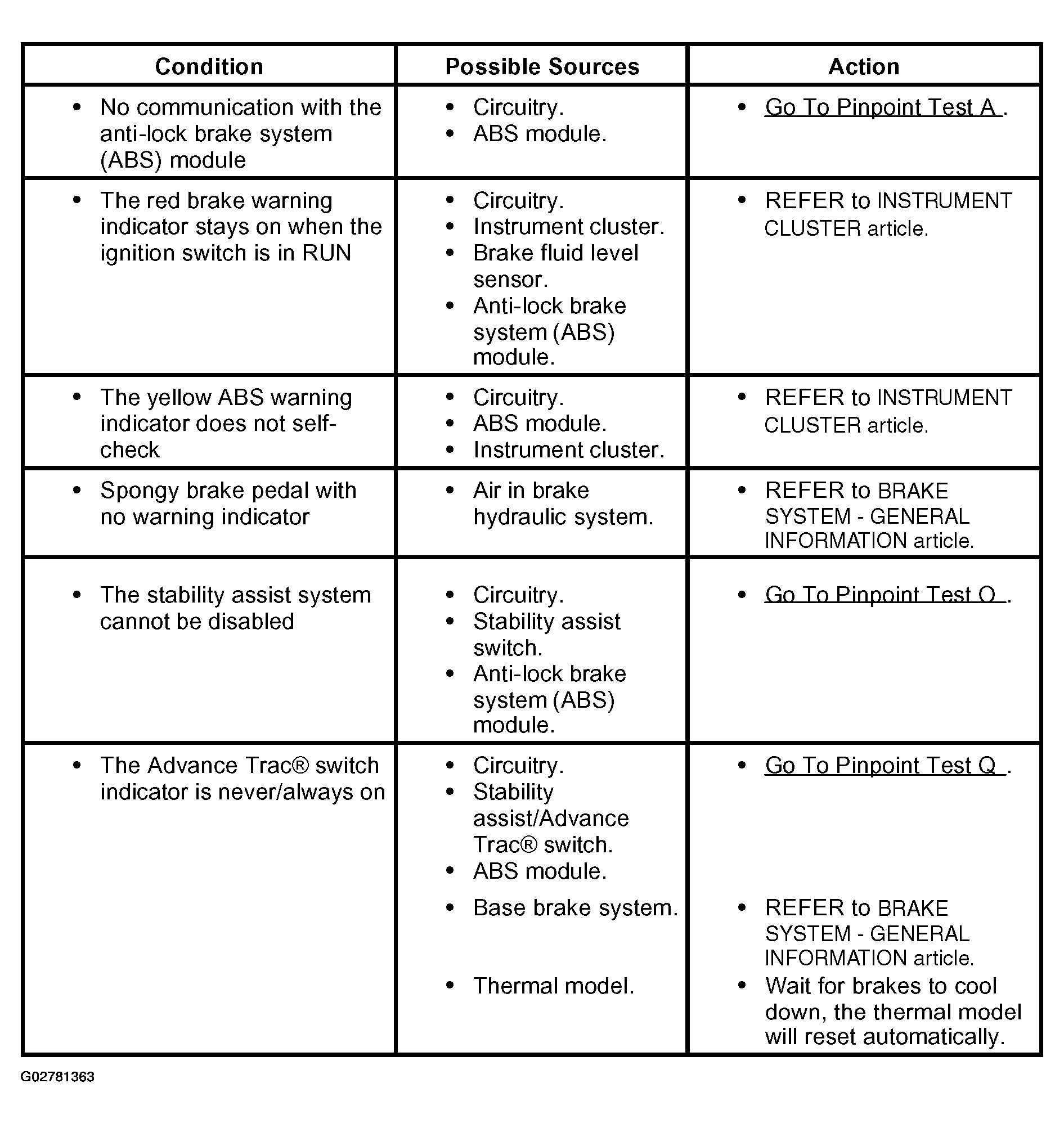

Fig 1: Identifying Symptom Chart
G02781363Courtesy of FORD MOTOR CO.
