Wheel Alignment Angles: Toe

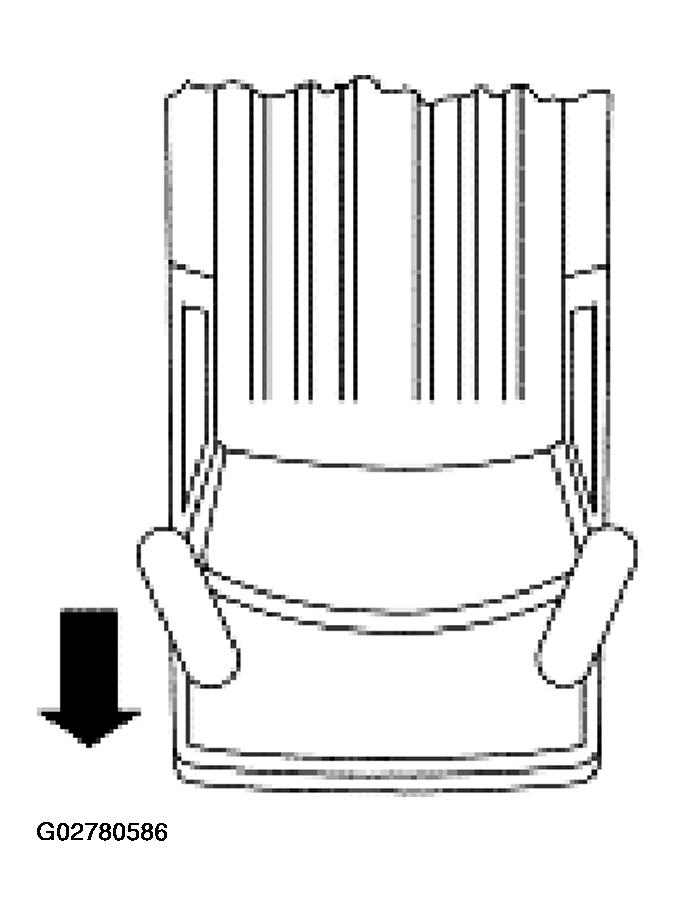

Fig 1: Identifying Positive Toe (Toe In)

Courtesy of FORD MOTOR CO.

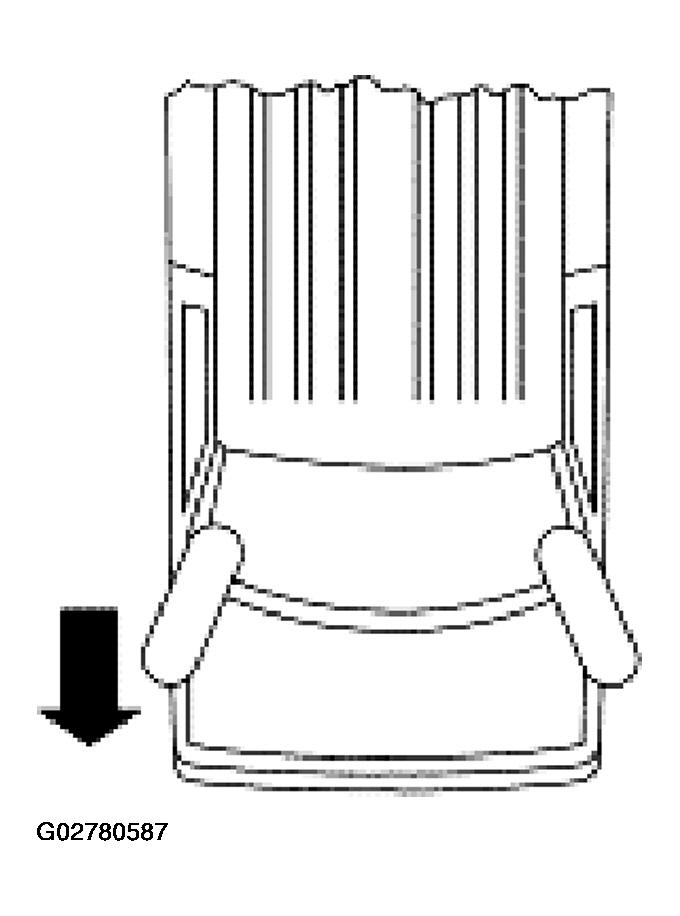

Fig 2: Identifying Negative Toe (Toe Out)

Courtesy of FORD MOTOR CO.

The vehicle toe setting:

• Affects tire wear and directional stability.
• Must be checked after adding aftermarket equipment, such as a snowplow or body.
