Main Control Valve Body: Disassembly

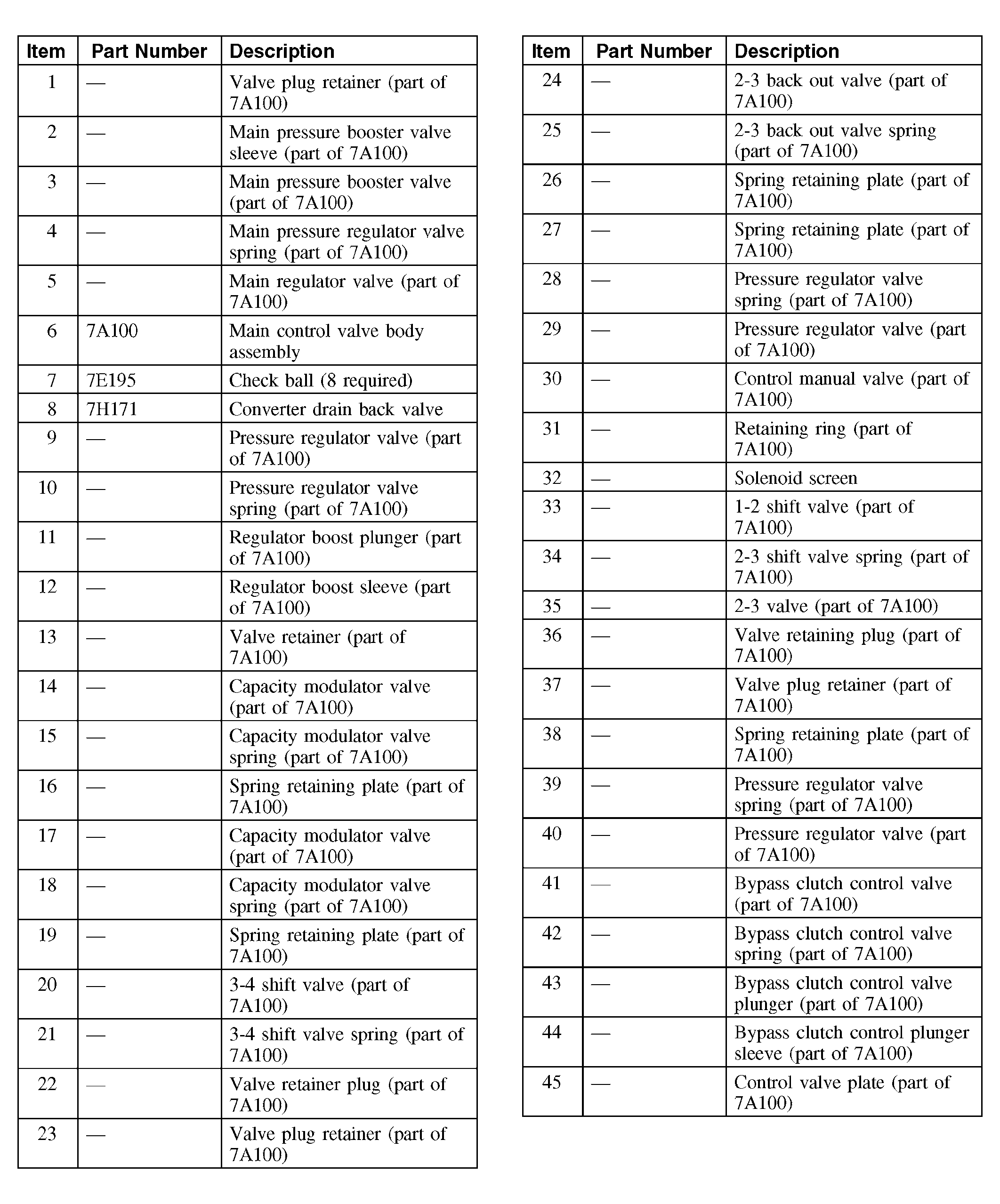

Fig 1: Removing Main Control Valve Body (1 Of 2)

Courtesy of FORD MOTOR CO.

Fig 2: Removing Main Control Valve Body (2 Of 2)

Courtesy of FORD MOTOR CO.

1. Remove the torque converter clutch (TCC) solenoid and the shift solenoid.
   1. Remove the retaining bolt.
   2. Remove the shift solenoid.
   3. Remove the TCC solenoid.
      Fig 3: Removing Torque Converter Clutch (TCC) Solenoid And Shift Solenoid

      Courtesy of FORD MOTOR CO.
2. Remove the 2 reinforcement plates.
   1. Remove the bolts.
   2. Remove the plates.
      Fig 4: Removing Reinforcement Plates

      Courtesy of FORD MOTOR CO.
3. Remove the separator plate and discard the gaskets.
   Fig 5: Identifying Separator Plate And Gaskets

   Courtesy of FORD MOTOR CO.
NOTE: Note the location of the eight coasting booster valve shuttle balls for assembly.
Fig 6: Identifying Coasting Booster Valve Shuttle Balls
Courtesy of FORD MOTOR CO.
4. Remove the 8 coasting booster valve shuttle balls.
5. Remove the converter drain back valve and solenoid pressure supply screen.
   Fig 7: Identifying Converter Drain Back Valve And Solenoid Pressure Supply Screen

   Courtesy of FORD MOTOR CO.
6. Remove the main control valve body cover plate.
   1. Remove the 13 main control valve body cover plate bolts.
   2. Remove the main control valve body cover plate.
      Fig 8: Removing Valve Control Body Cover Plate

      Courtesy of FORD MOTOR CO.
