Removal and Installation

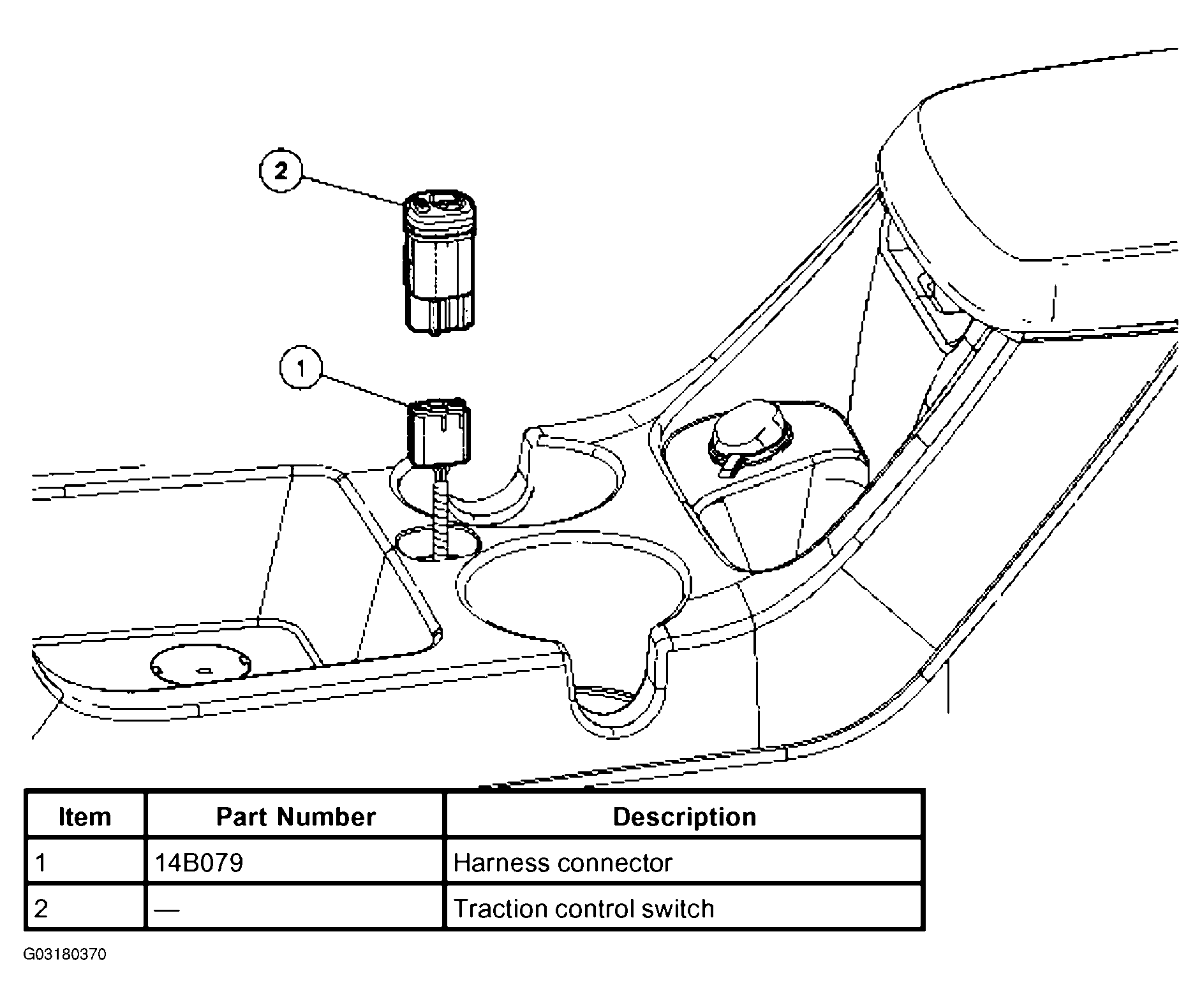

Fig 1: Identifying Traction Control Switch And Harness Connector

Courtesy of FORD MOTOR CO.

Disconnect the battery. For additional information, refer to BATTERY & CHARGING SYSTEM .
Remove the center console. For additional information, refer to BODY SYSTEM - INTERIOR .
Disconnect the traction control switch connector.
Remove the traction control switch.
To install, reverse the removal procedure.
