Item 42: Center Support Assembly Note

    NOTE: Align the center support screw hole with correct case hole.

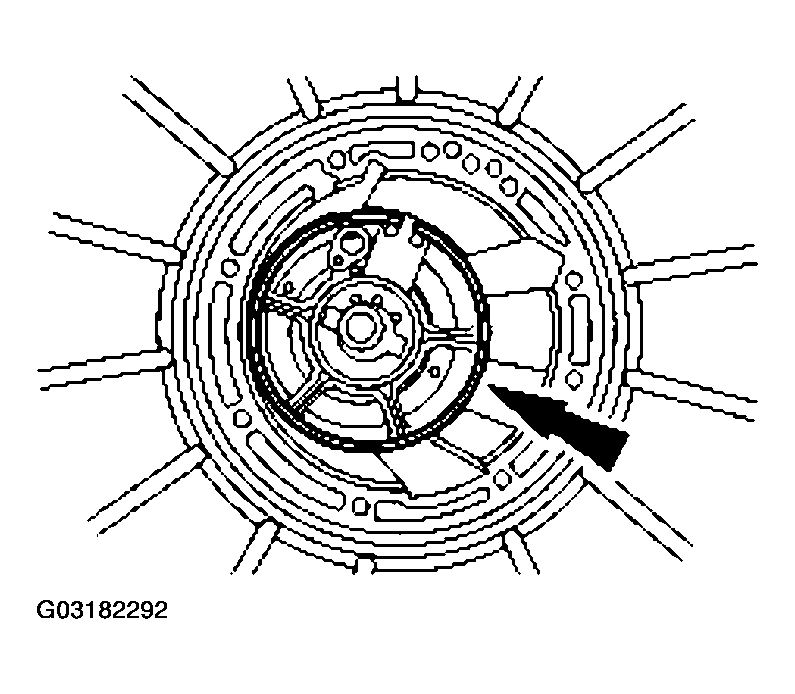

    Fig 1: Installing Center Support
    G03182292Courtesy of FORD MOTOR CO.
  1. Install the center support.
