Item 59: Fluid Pump Assembly Note

CAUTION: Make sure that the fluid pump inlet thrust washer (No. 1), selective thrust washer, fluid pump gasket and the fluid pump-to-case 0-ring seal remain in the correct position throughout this step.

Fig 1: Installing Fluid Pump

Courtesy of FORD MOTOR CO.

Install the fluid pump.

CAUTION: The special tools must be used to correctly align the pump with the adapter plate to reduce gear noise, bushing failure and leakage.

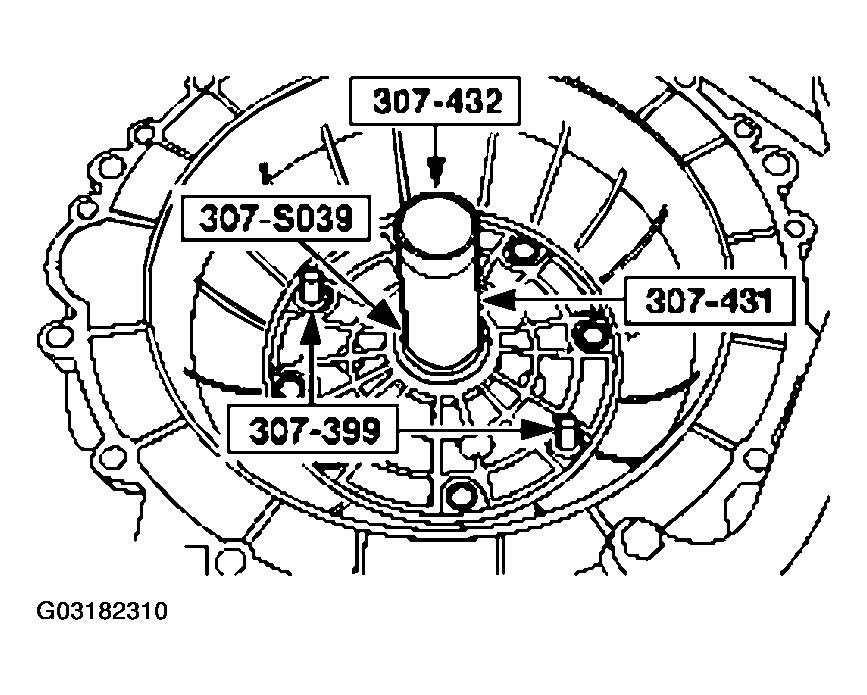

Fig 2: Aligning Fluid Pump To Adapter Plate

Courtesy of FORD MOTOR CO.

Using the special tool, align the fluid pump to the adapter plate.
