Removal and Installation
- Connect the diagnostic tool to the vehicle. Allow the diagnostic tool to identify the vehicle and obtain configuration data.
- All programmable module information will automatically be retrieved by the WDS.
- Disconnect the battery ground cable. For additional information, refer to BATTERY DISCONNECT .

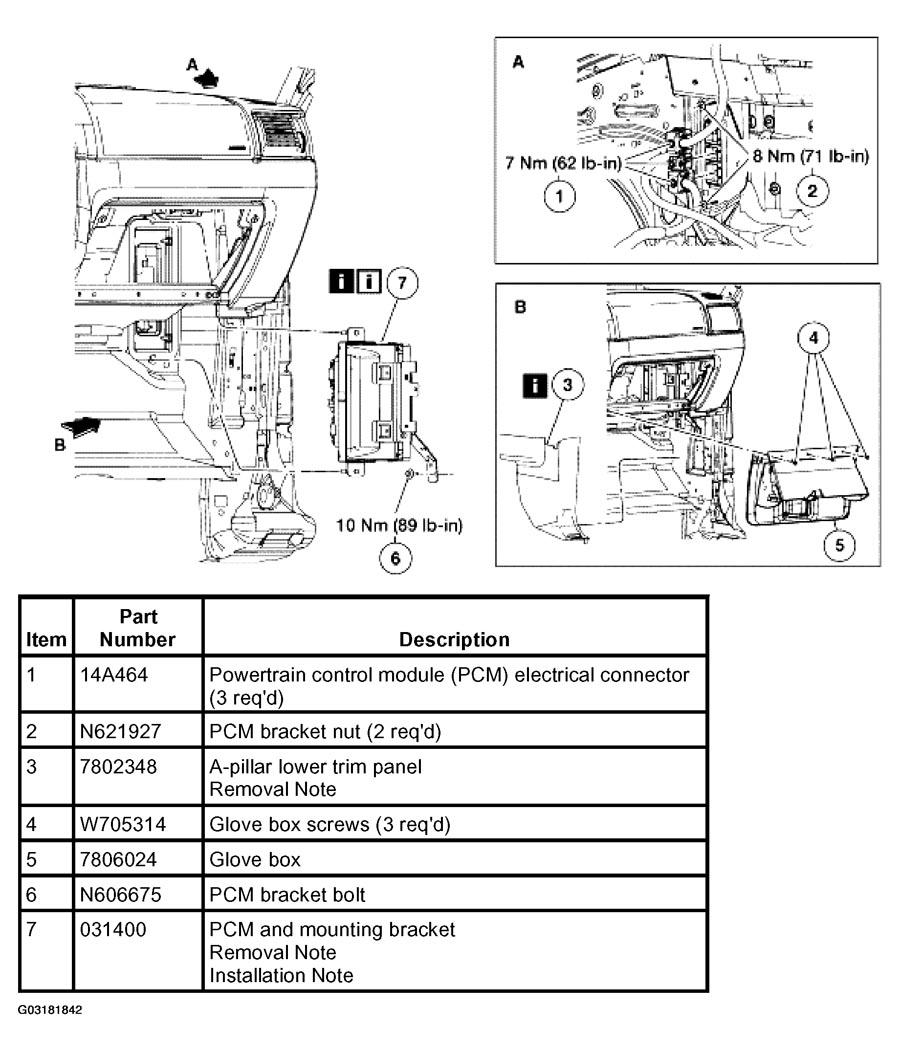

- Remove the parts in the order indicated in the following illustration and table.
- To install, reverse the removal procedure.
NOTE:
Refer to INTRODUCTION - CNG, FLEX-FUEL & GASOLINE
for correct worldwide diagnostic system (WDS) hook-up procedure.
