Transfer Case - Electronic Shift: Notes

Item	Specification
Silicone Gasket and Sealant F7AZ-19554-EA	WSE-M4G323-A4

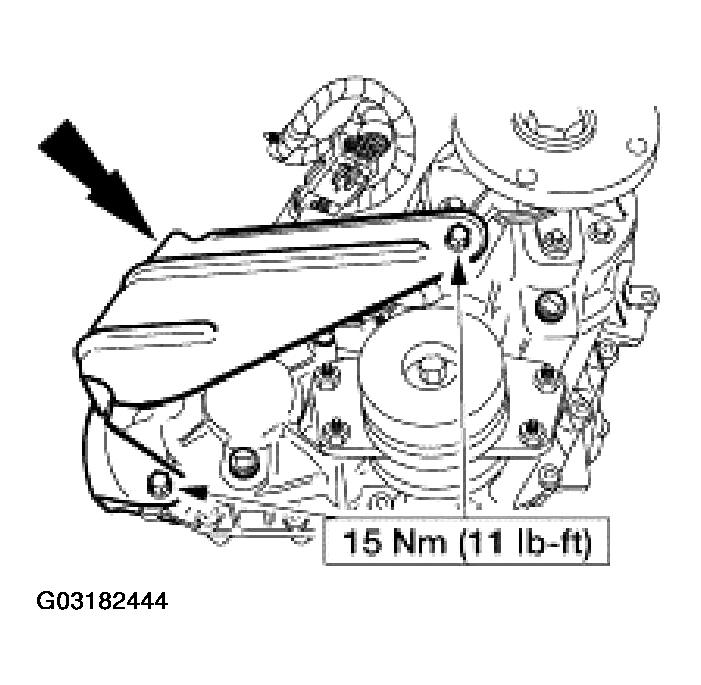

1. Remove the heat shield.
   Fig 3: Removing Heat Shield

   Courtesy of FORD MOTOR CO.

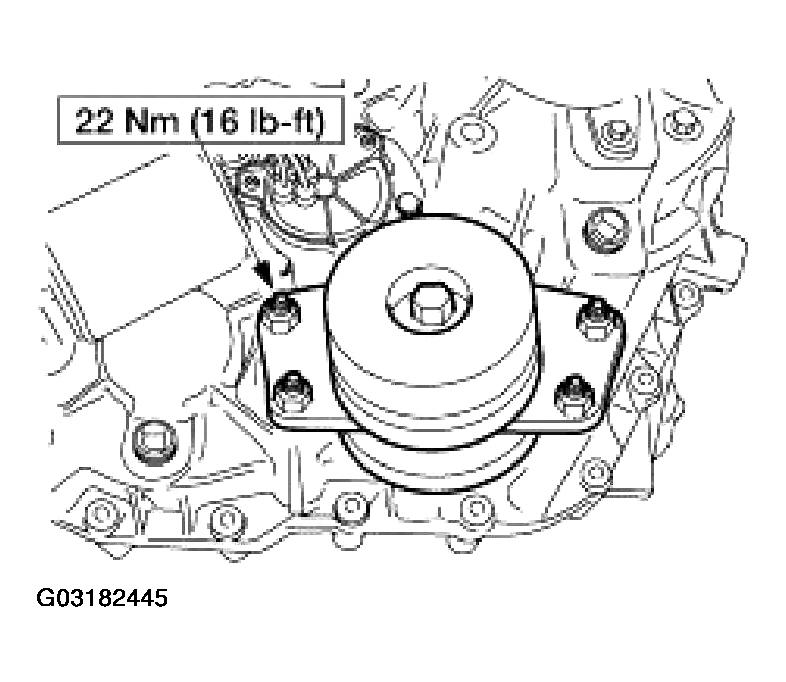

2. Remove the damper.
   Fig 4: Removing Damper

   Courtesy of FORD MOTOR CO.
WARNING: Make sure the special tool lock pin is secure.
Fig 5: Securing Transfer Case To Bench
Courtesy of FORD MOTOR CO.

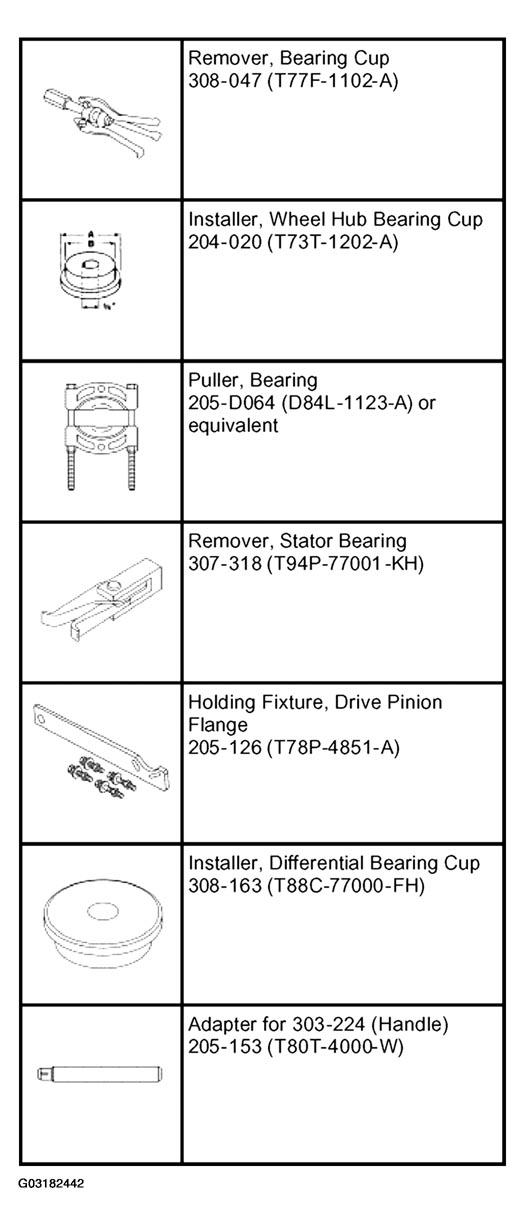

3. Using the special tool, secure the transfer case to the bench.
4. Index-mark the rear output flange and the rear output shaft.
   Fig 6: Marking Rear Output Flange And Rear Output Shaft

   Courtesy of FORD MOTOR CO.
5. Remove the parts in the order indicated in the following illustrations and tables.
   Fig 7: Exploded View Of Transfer Case - Electronic Shift

   Courtesy of FORD MOTOR CO.

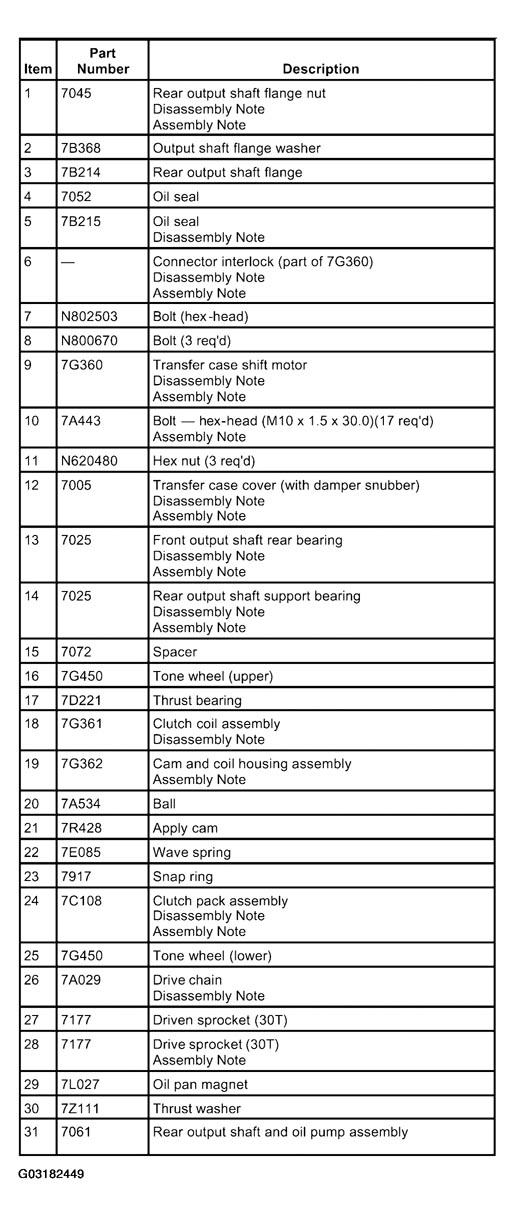

   Fig 8: Identifying Components Of Exploded View Of Transfer Case - Electronic Shift (1 Of 2)

   Courtesy of FORD MOTOR CO.
   Fig 9: Identifying Components Of Exploded View Of Transfer Case - Electronic Shift (1 Of 2)

   Courtesy of FORD MOTOR CO.
6. To assemble, reverse the disassembly procedure.
