Section 665 (Component Testing)
›
Component Testing
›
Liftgate door lock switch
Liftgate door lock switch
WARNING:
This page is about a different car, the 2003 Mercury Mountaineer and 2003 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

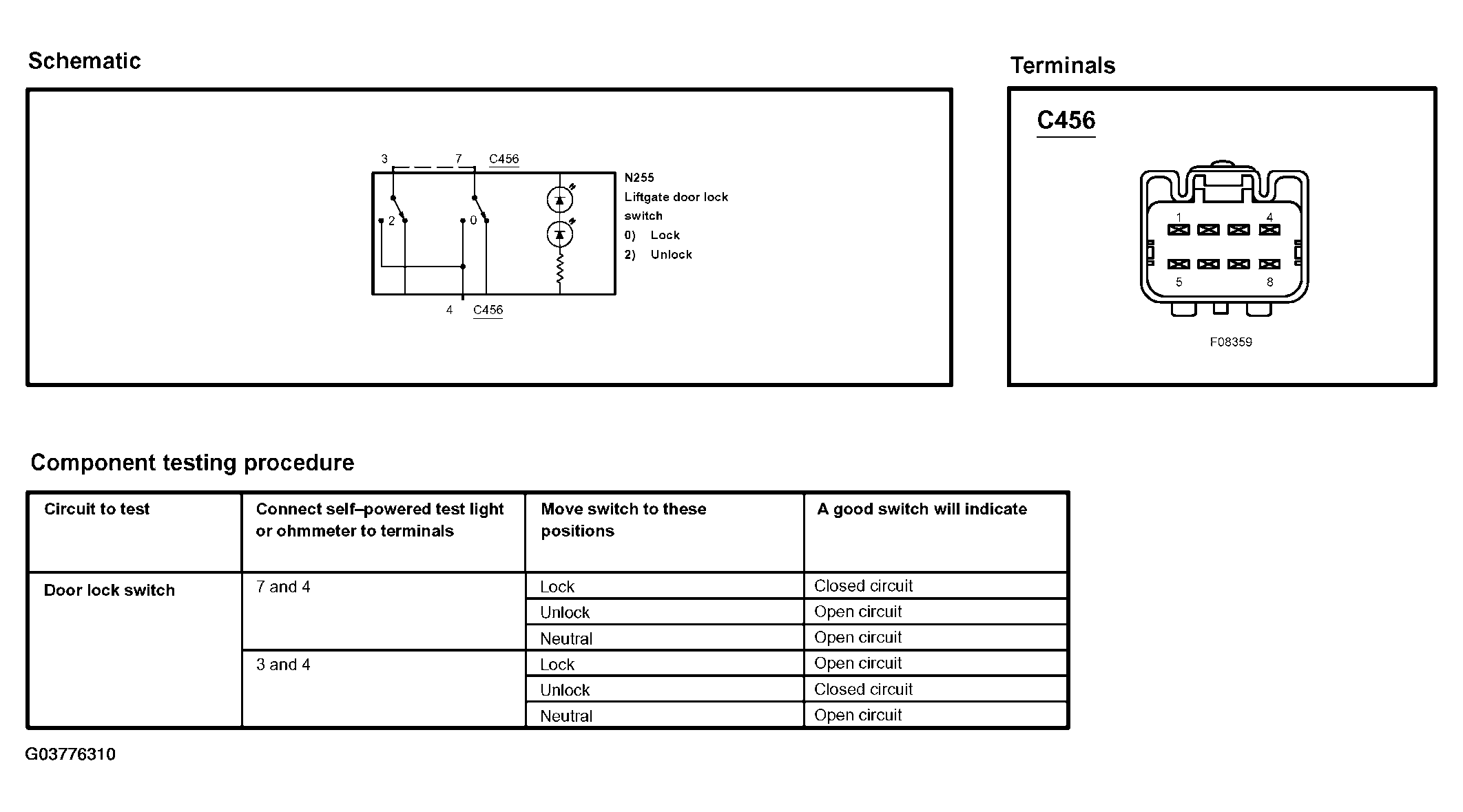

Fig 1: Testing Liftgate Door Lock Switch
Courtesy of FORD MOTOR CO.
