Section 665 (Component Testing)
›
Component Testing
›
Multifunction Switch, Wiper/Washer Portion
Multifunction Switch, Wiper/Washer Portion
WARNING:
This page is about a different car, the 2003 Mercury Mountaineer and 2003 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

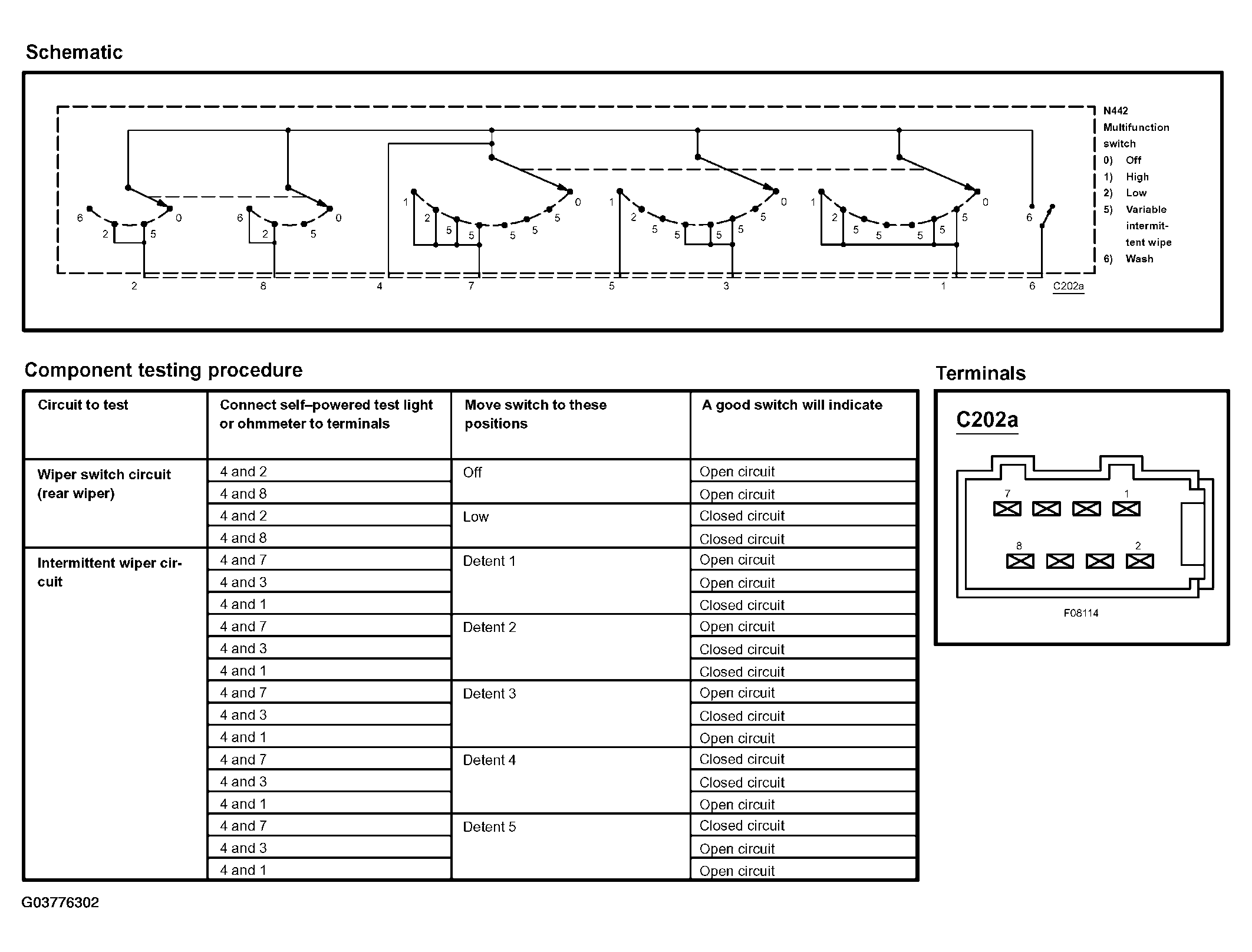

Fig 1: Testing Multifunction Switch - Wiper/Washer Portion
Courtesy of FORD MOTOR CO.
