Fluid Pump: Assembly

  1. Assemble the parts in the order indicated in the following illustration and table.

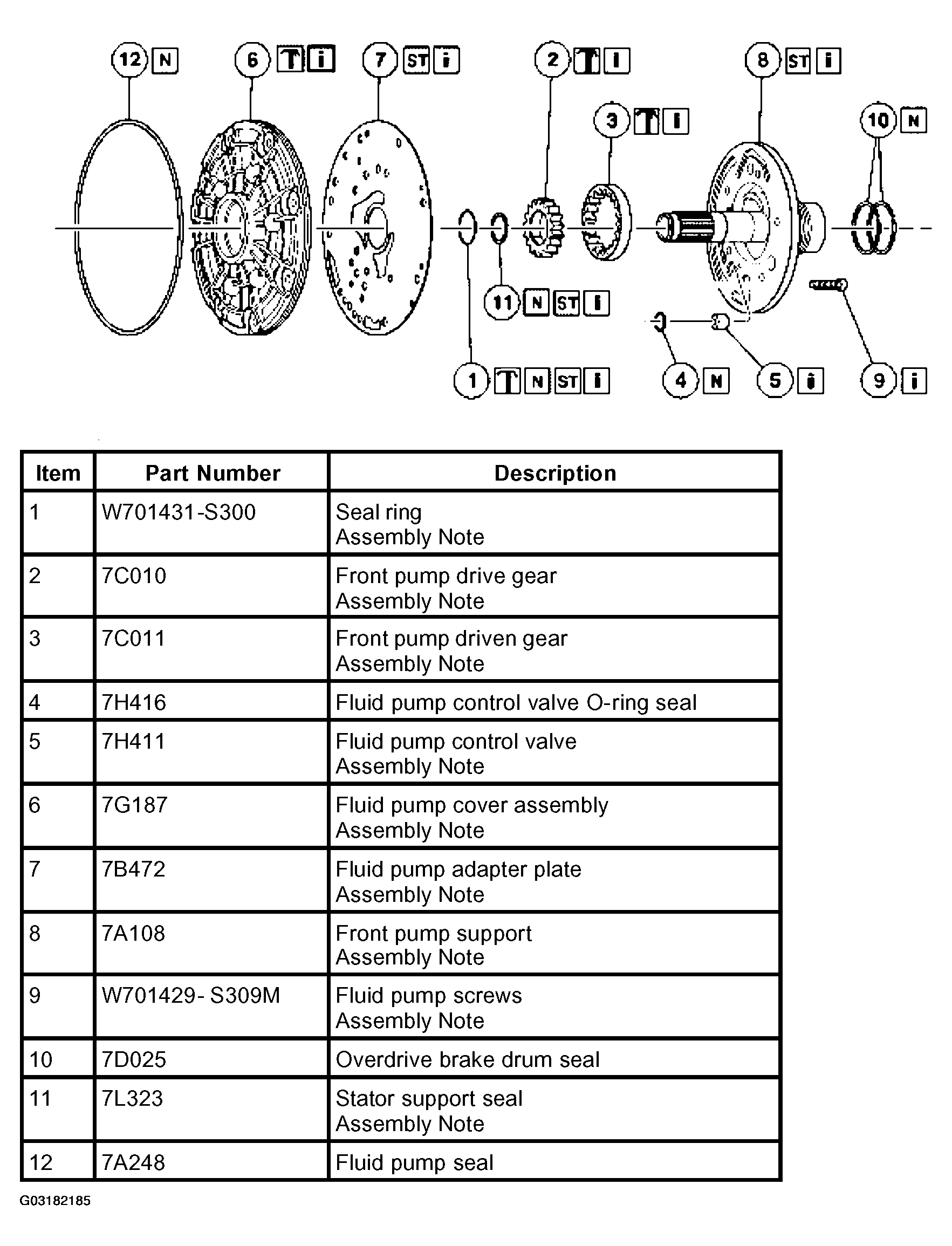

    Fig 1: Identifying Assembling Order Of Fluid Pump
    G03182185Courtesy of FORD MOTOR CO.
