Digital Transmission Range (TR) Sensor: Notes

Fig 1: Identifying Special Tool(s)

Courtesy of FORD MOTOR CO.

1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
2. It is not necessary to remove the range selector lever cable and bracket from the transmission.
3. Remove the parts in the order indicated in the following illustration and table.

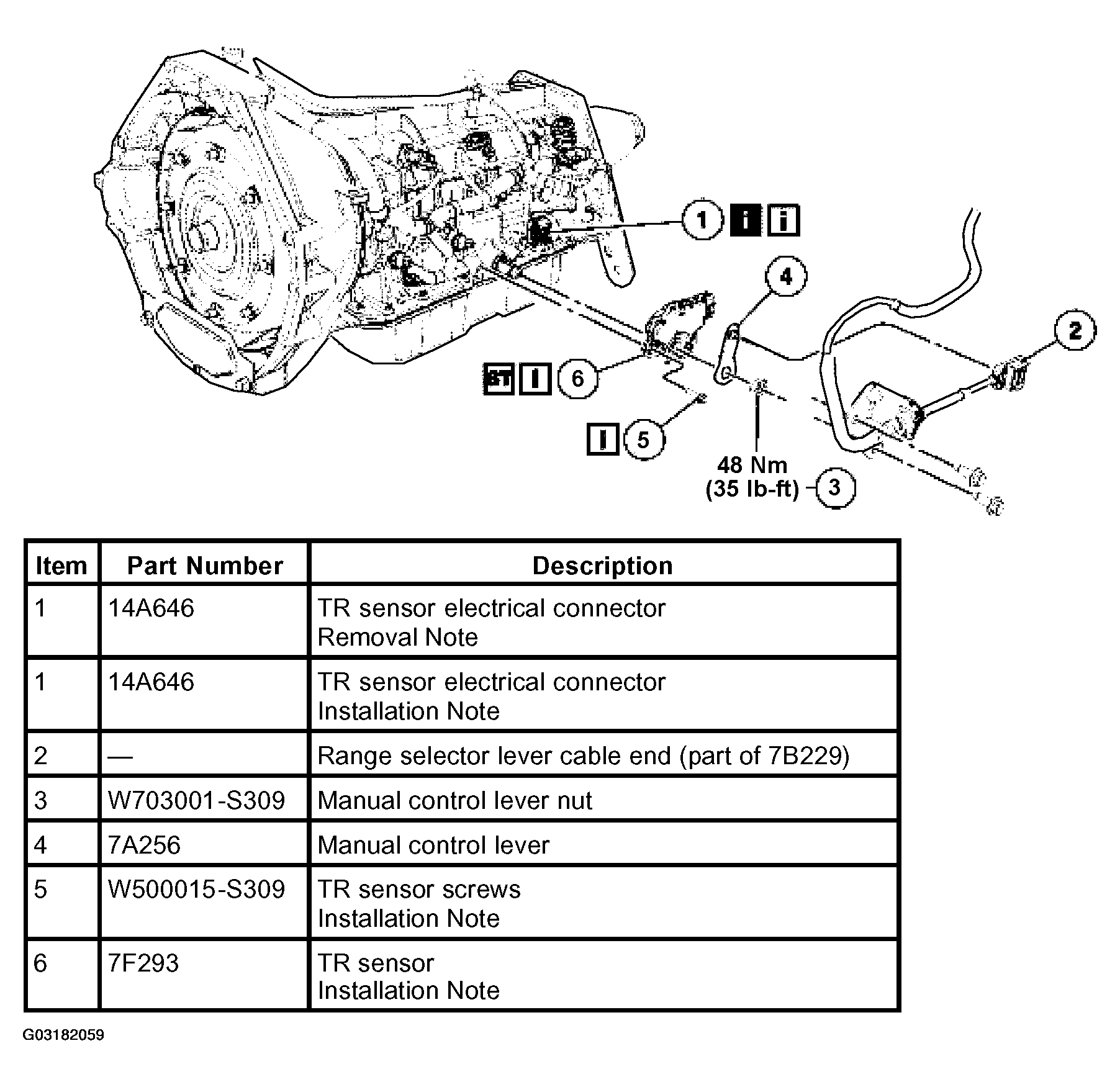

   Fig 2: Identifying Removal Order Of Digital Transmission Range (TR) Sensor

   Courtesy of FORD MOTOR CO.
4. To install, reverse the removal procedure.
