Item 92: Fluid Pump Assembly Note

Using the special tool, make sure that the fluid pump gear seal ring is fully seated.

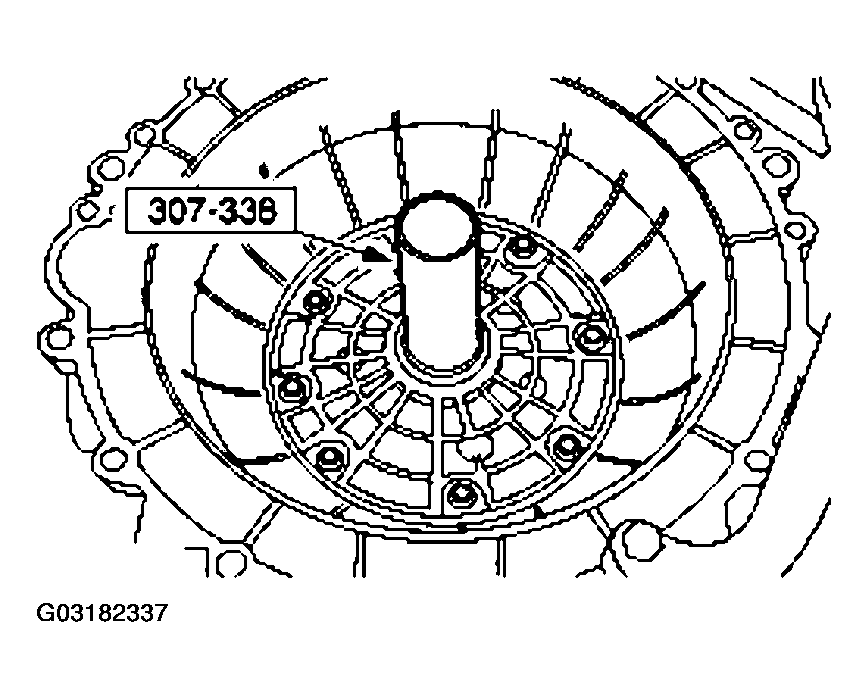

Fig 1: Inspecting Fluid Pump Gear Seal Ring
Courtesy of FORD MOTOR CO.
Remove the special tool.

Fig 2: Removing Special Tool
Courtesy of FORD MOTOR CO.
