Connector Reference
›
150 Pin Powertrain Control Module (PCM) Transmission
150 Pin Powertrain Control Module (PCM) Transmission

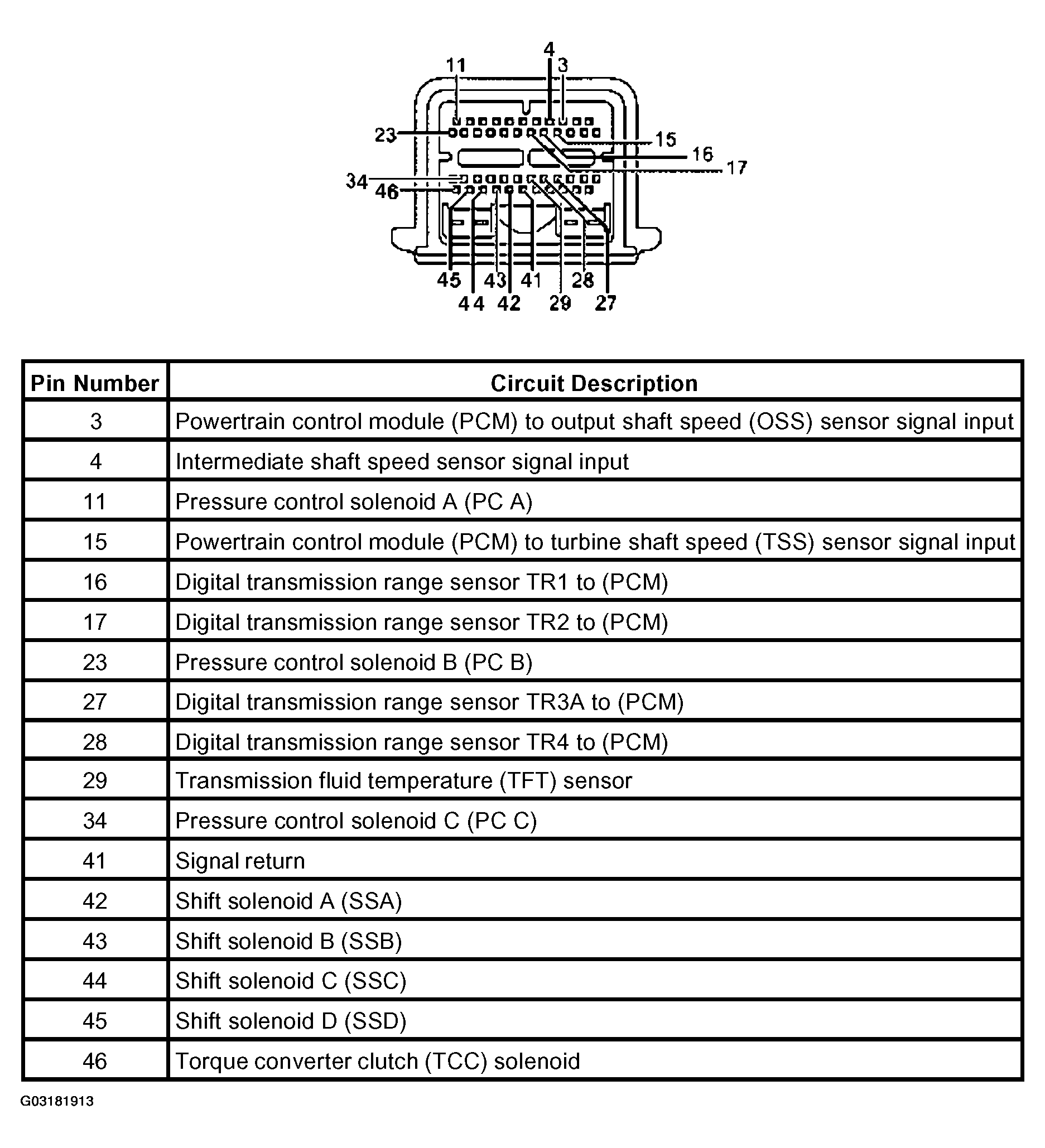

Fig 1: Identifying 150 Pin Powertrain Control Module (PCM) Transmission Connector
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
