Transmission Support Insulator - 4x4: Notes

  1. With the vehicle in PARK, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Support the transmission with a transmission jack.
  3. Remove the components in the order indicated the following illustration and table.
  4. To install, reverse the removal procedure.

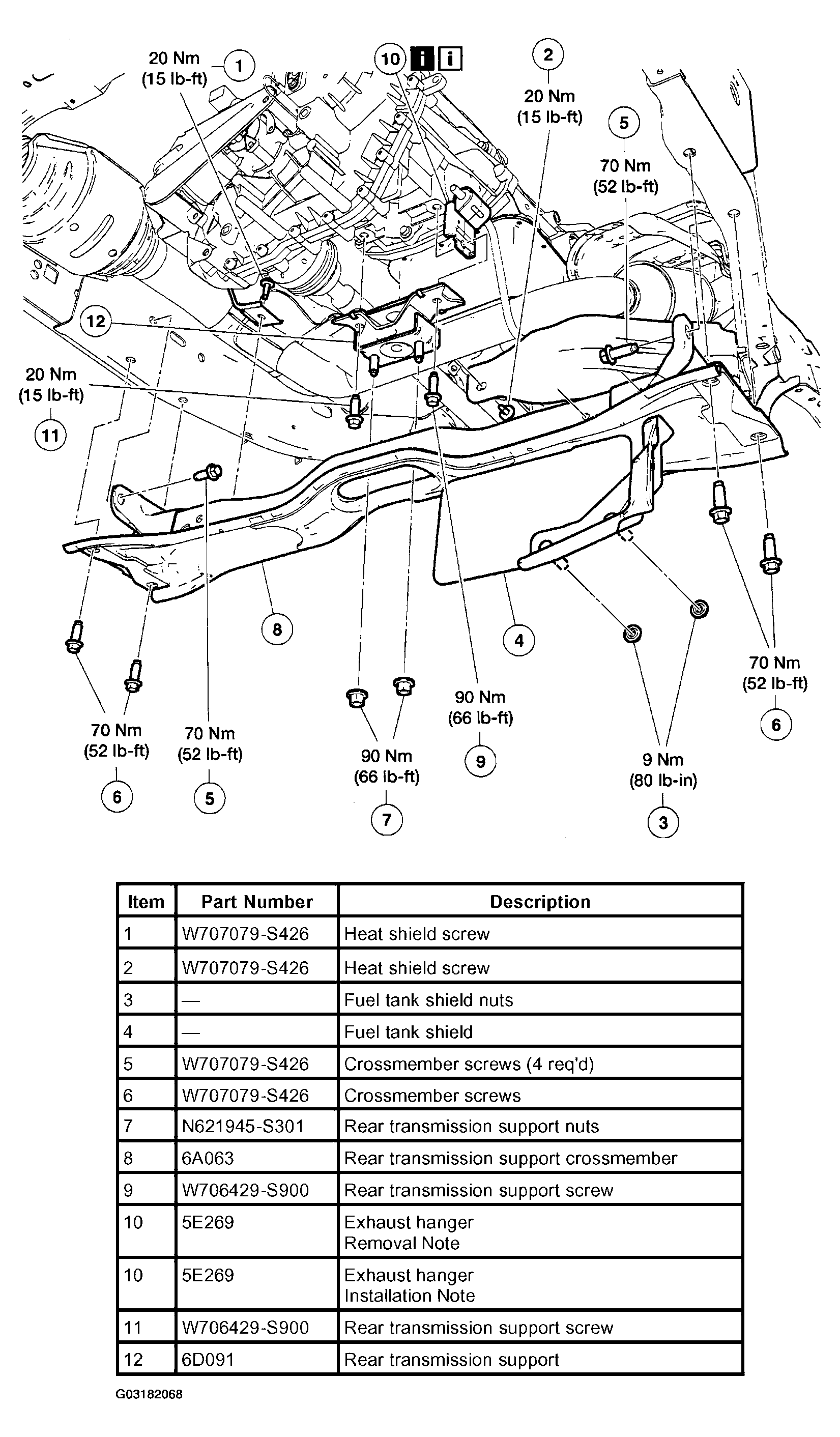

    Fig 1: Identifying Removal Order Of Transmission Support Insulator - 4X4
    G03182068Courtesy of FORD MOTOR CO.
